| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03376cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03376cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,259,840 | 89,452,800 |
| Size | 479.9 MB | 85.3 MB |
| Events in quadrant A | 3,783,046 | 544,577 |
| Events in quadrant B | 3,924,458 | 554,587 |
| Events in quadrant C | 3,654,430 | 551,306 |
| Events in quadrant D | 3,361,528 | 528,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16682 | 3 |
| B | 0 | 16629 | 2 |
| C | 0 | 16309 | 2 |
| D | 0 | 15860 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7615 | 378 | 4.963887% |
| B | 7615 | 295 | 3.873933% |
| C | 7615 | 256 | 3.361786% |
| D | 7615 | 244 | 3.204202% |

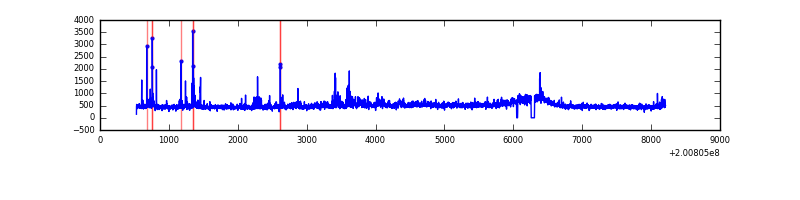

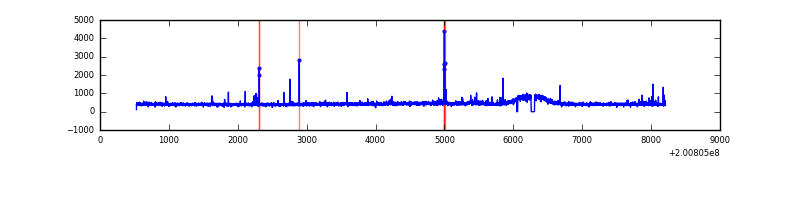

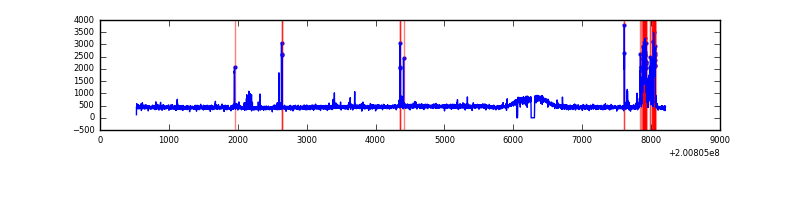

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7680 | 7617 | 76 | 76 | 0.99% | 1.00% |  |
| B | 7680 | 7617 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7680 | 7617 | 49 | 49 | 0.64% | 0.64% |  |
| D | 7680 | 7617 | 7 | 7 | 0.09% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 352721 | 1922.66 | 883 | 862 | 183.0 |
| A | 0 | 118 | 16594 | 85.96 | 883 | 862 | 183.0 |
| A | 0 | 226 | 10647 | 53.47 | 883 | 862 | 183.0 |
| B | 15 | 204 | 272336 | 1546.36 | 896 | 869 | 175.6 |
| B | 2 | 249 | 103410 | 584.1 | 896 | 869 | 175.6 |
| B | 0 | 229 | 36478 | 202.84 | 896 | 869 | 175.6 |
| C | 15 | 208 | 206149 | 1000.41 | 870 | 873 | 205.2 |
| C | 6 | 80 | 30921 | 146.44 | 870 | 873 | 205.2 |
| C | 12 | 4 | 8575 | 37.54 | 870 | 873 | 205.2 |
| D | 13 | 223 | 37714 | 173.15 | 868 | 839 | 213.0 |
| D | 2 | 206 | 17827 | 79.77 | 868 | 839 | 213.0 |
| D | 12 | 110 | 16839 | 75.13 | 868 | 839 | 213.0 |

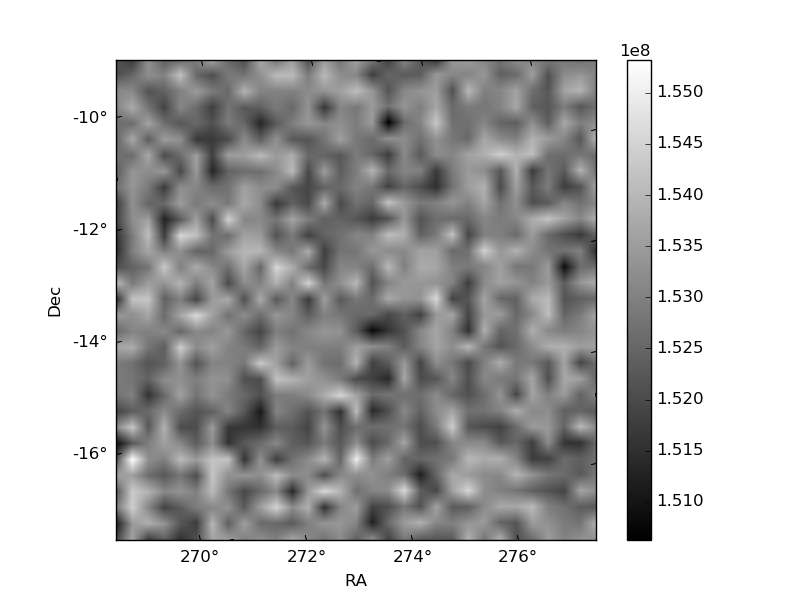

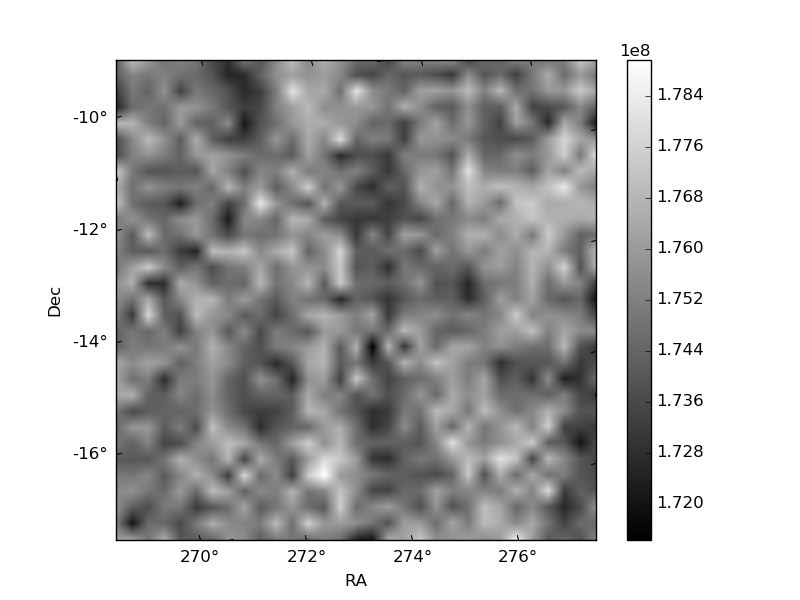

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

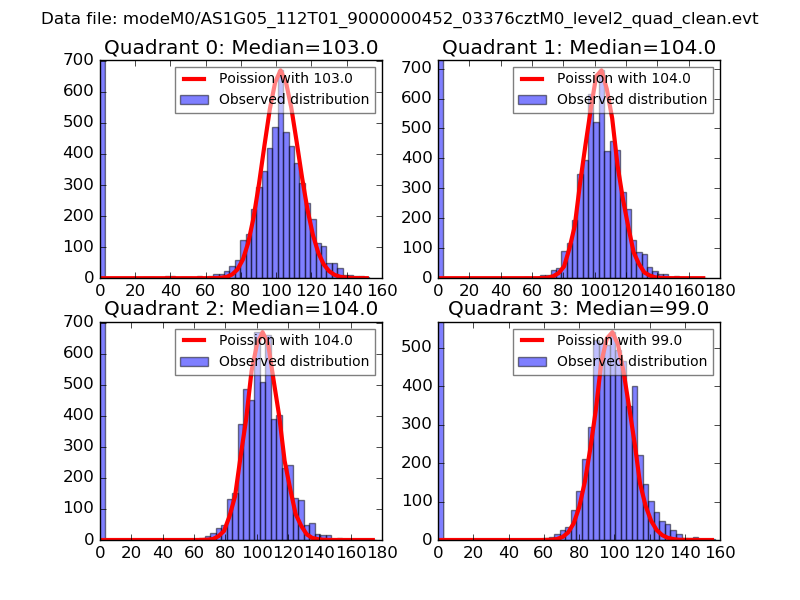

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

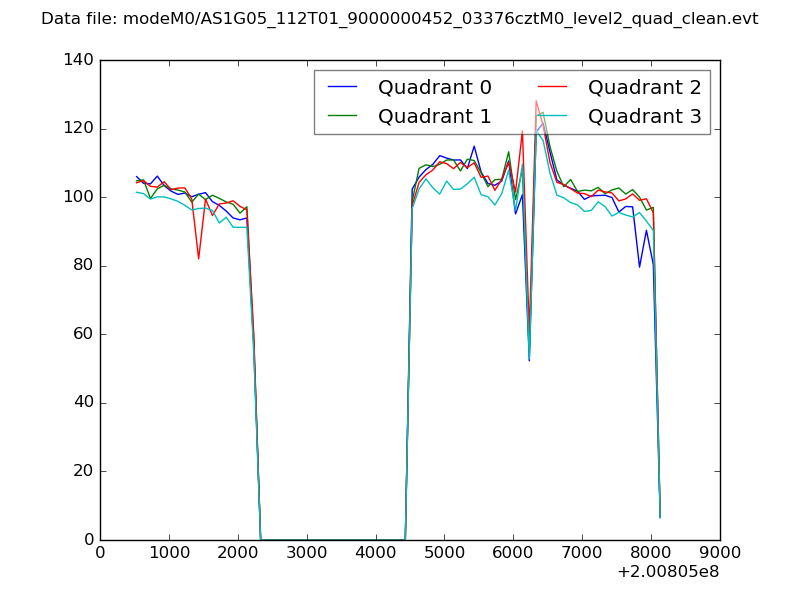

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

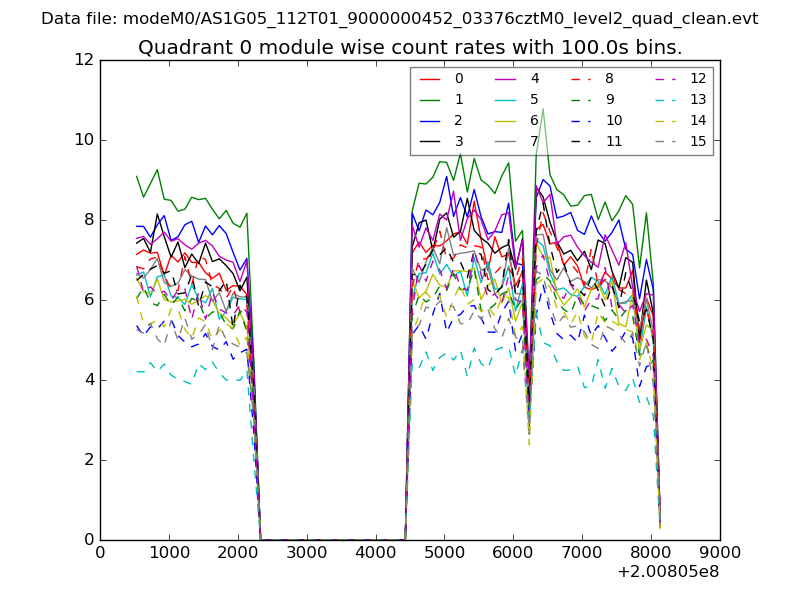

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

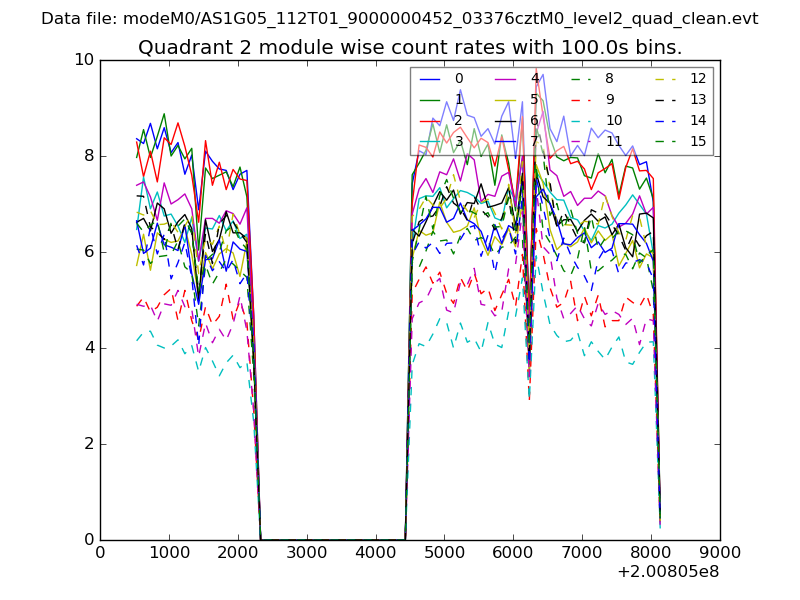

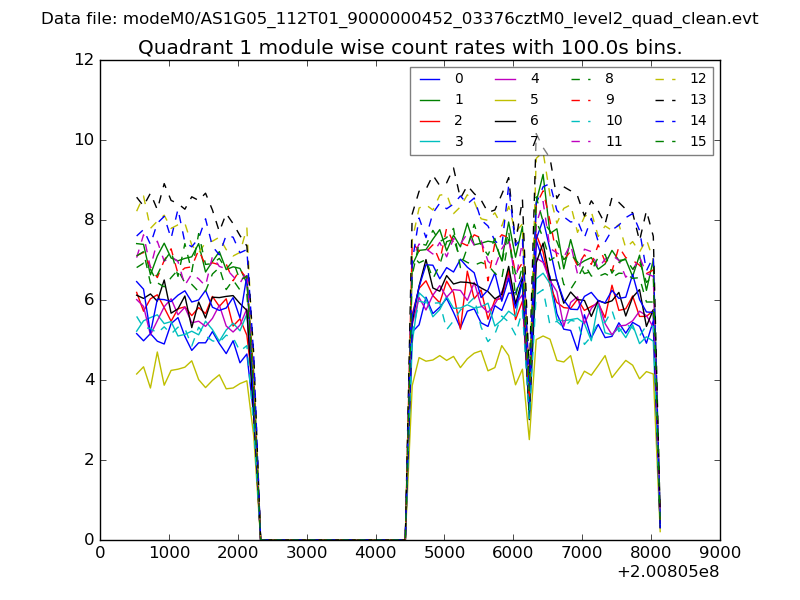

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

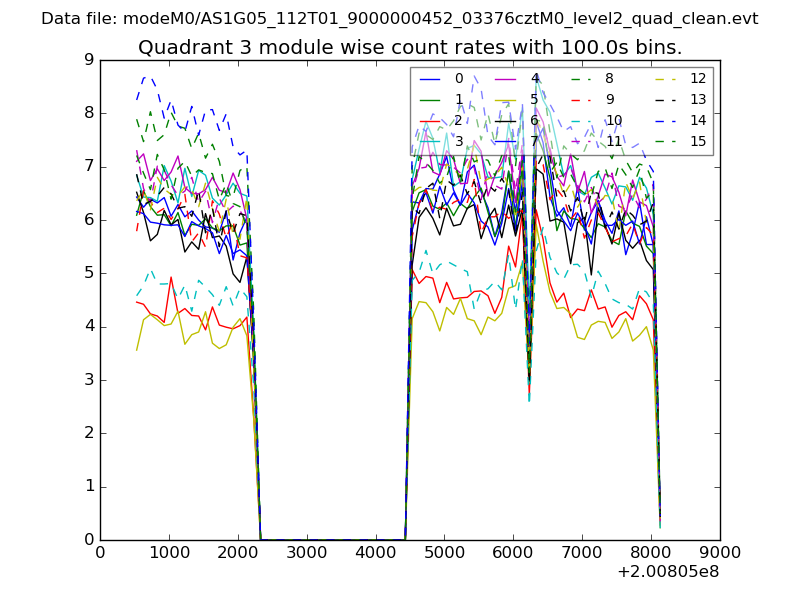

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

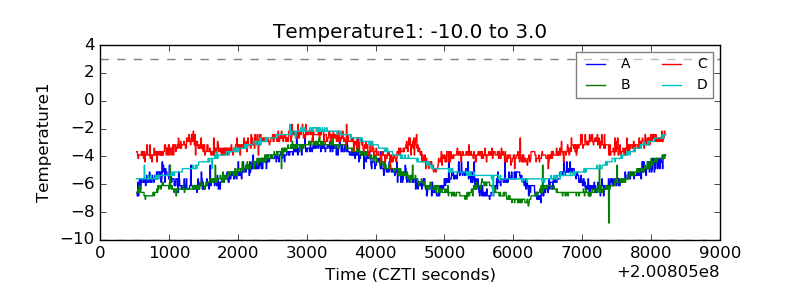

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

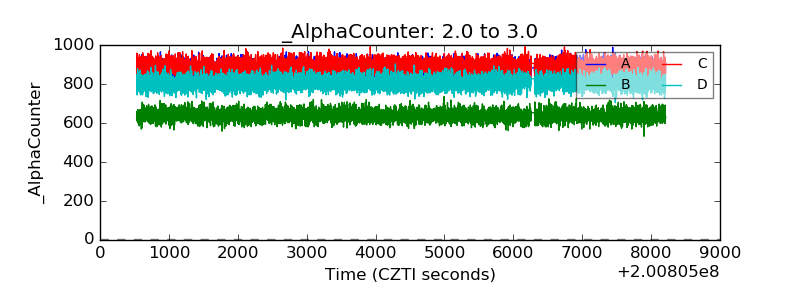

| Alpha Counter |  |

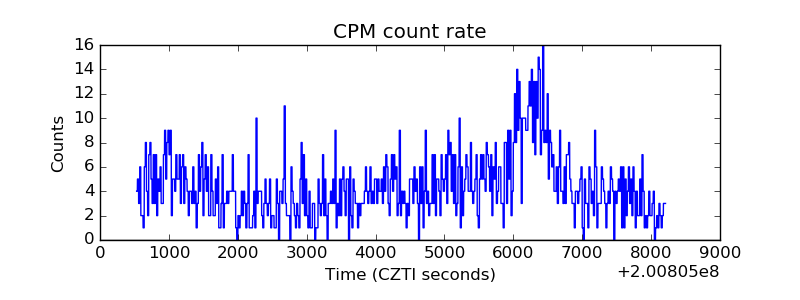

| _CPM_Rate |  |

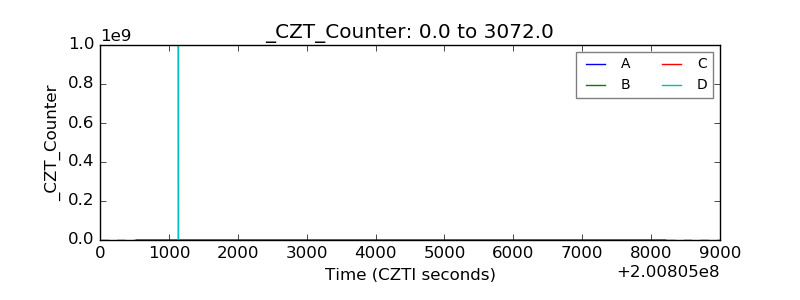

| CZT Counter |  |

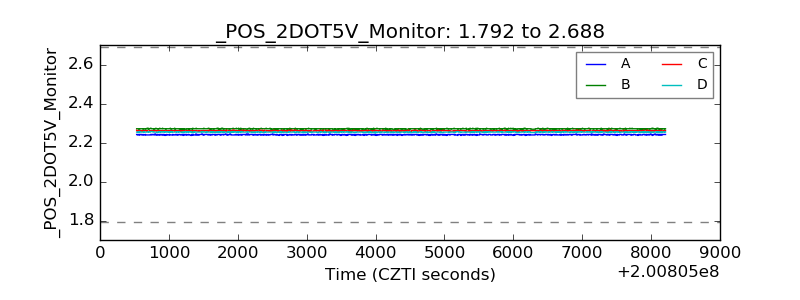

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

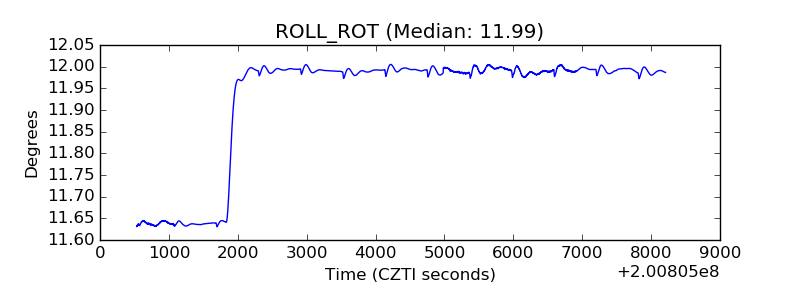

| _ROLL_ROT |  |

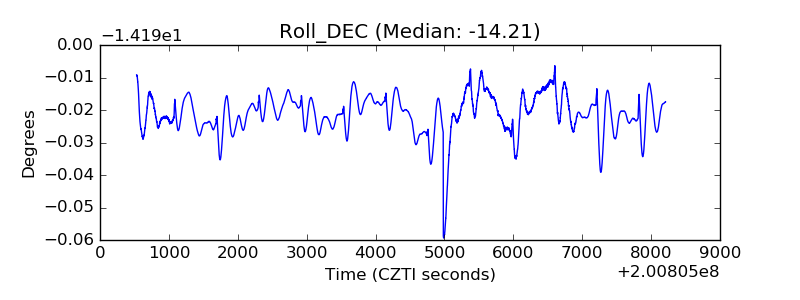

| _Roll_DEC |  |

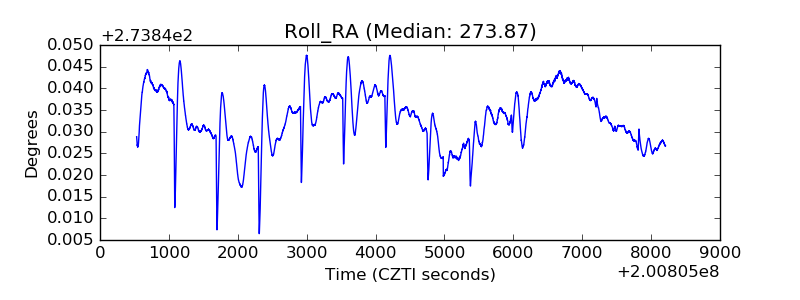

| _Roll_RA |  |

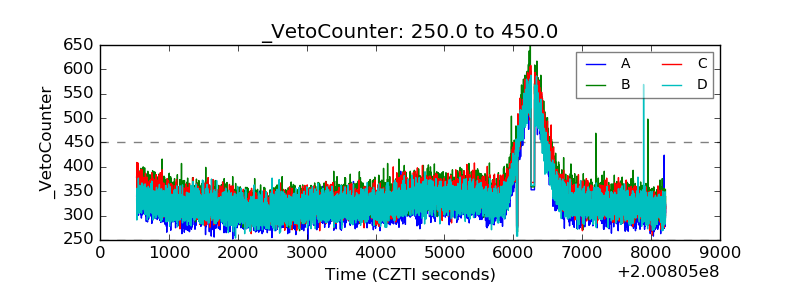

| Veto Counter |  |
