| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03378cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03378cztM0_level2_quad_clean.evt |
| Size (bytes) | 720,792,000 | 117,126,720 |
| Size | 687.4 MB | 111.7 MB |
| Events in quadrant A | 4,584,090 | 724,625 |
| Events in quadrant B | 7,490,979 | 721,015 |
| Events in quadrant C | 4,436,030 | 724,261 |
| Events in quadrant D | 4,651,944 | 695,472 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 198 | 0 |
| B | 0 | 198 | 0 |
| C | 0 | 198 | 0 |
| D | 0 | 198 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20588 | 3 |
| B | 0 | 29178 | 2 |
| C | 0 | 20280 | 2 |
| D | 0 | 21313 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9835 | 216 | 2.196238% |
| B | 9835 | 353 | 3.589222% |
| C | 9835 | 145 | 1.474326% |
| D | 9834 | 288 | 2.928615% |

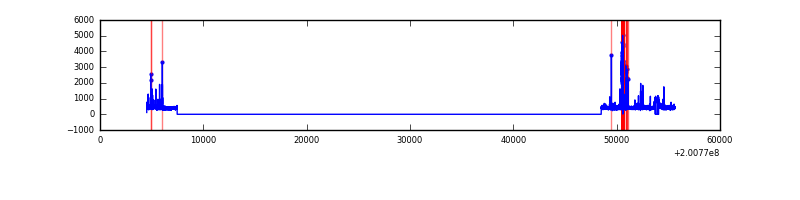

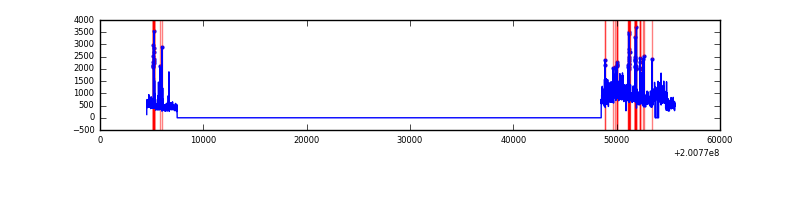

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 51102 | 9839 | 28 | 28 | 0.05% | 0.28% |  |
| B | 51102 | 9839 | 54 | 54 | 0.11% | 0.55% |  |
| C | 51102 | 9839 | 1 | 1 | 0.00% | 0.01% |  |
| D | 51102 | 9838 | 119 | 119 | 0.23% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 140549 | 596.45 | 1128 | 1100 | 233.8 |
| A | 8 | 15 | 35915 | 148.91 | 1128 | 1100 | 233.8 |
| A | 0 | 226 | 24128 | 98.49 | 1128 | 1100 | 233.8 |
| B | 4 | 170 | 2190090 | 9938.43 | 1138 | 1109 | 220.3 |
| B | 15 | 204 | 479601 | 2172.45 | 1138 | 1109 | 220.3 |
| B | 14 | 167 | 243112 | 1098.74 | 1138 | 1109 | 220.3 |
| C | 1 | 192 | 23970 | 87.45 | 1108 | 1116 | 261.3 |
| C | 14 | 223 | 23868 | 87.06 | 1108 | 1116 | 261.3 |
| C | 6 | 80 | 16206 | 57.74 | 1108 | 1116 | 261.3 |
| D | 12 | 79 | 341523 | 1166.69 | 1086 | 1061 | 291.8 |
| D | 2 | 118 | 64571 | 217.64 | 1086 | 1061 | 291.8 |
| D | 13 | 223 | 36480 | 121.37 | 1086 | 1061 | 291.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

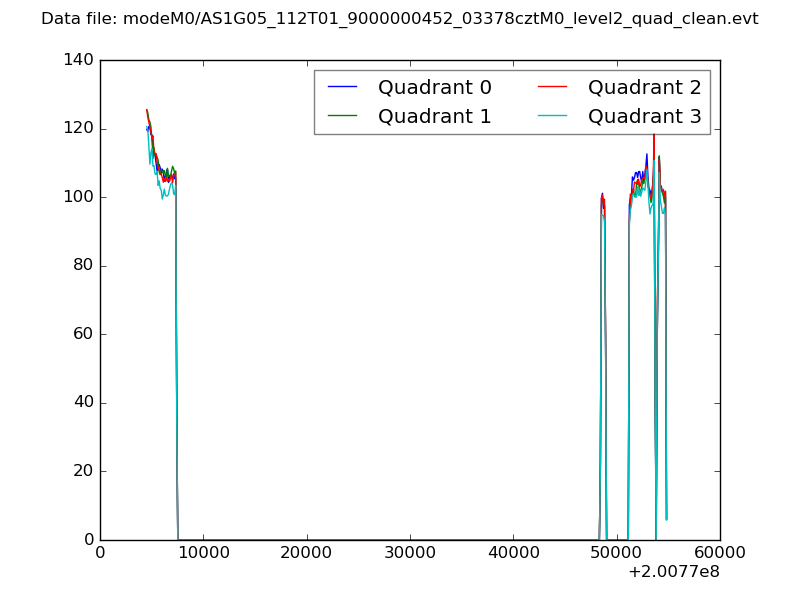

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

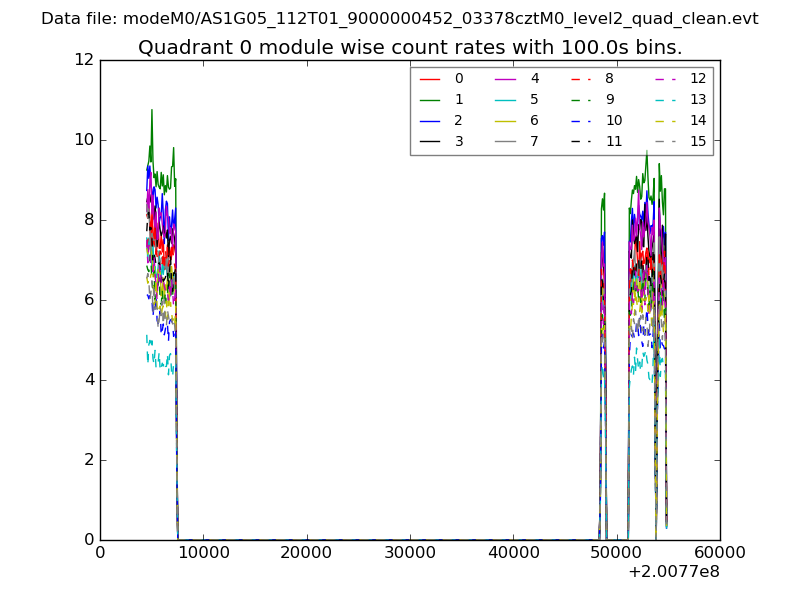

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

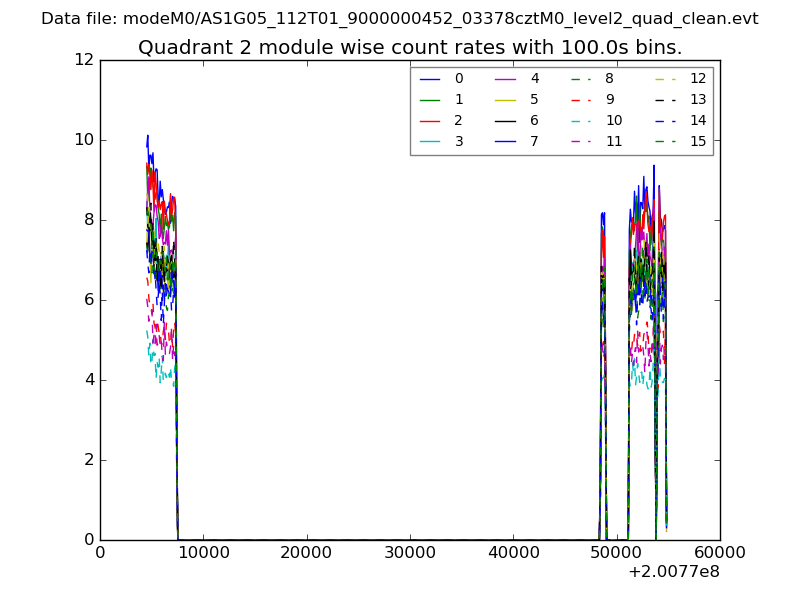

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

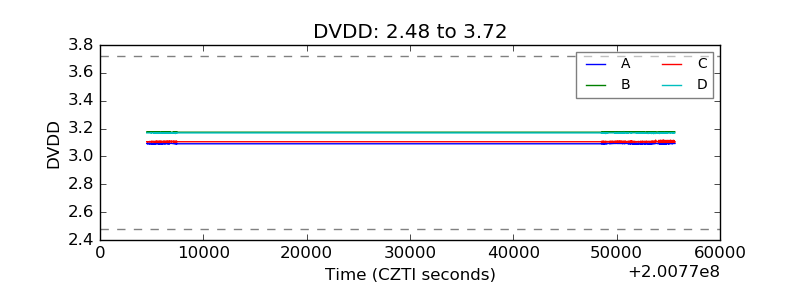

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

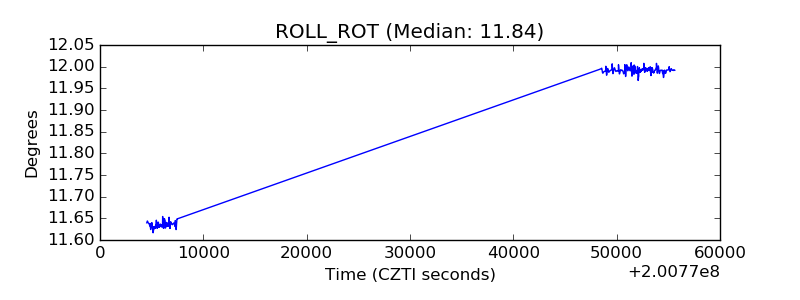

| _ROLL_ROT |  |

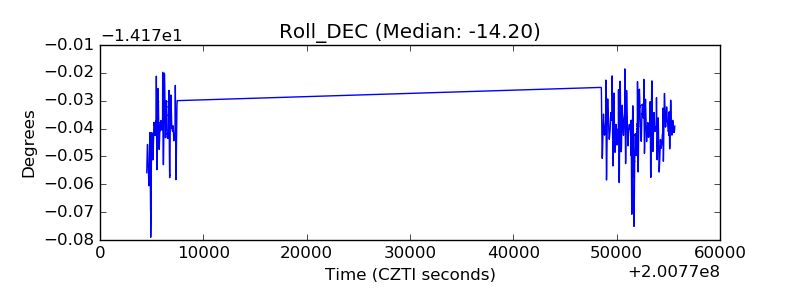

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
