| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03380cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03380cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,256,640 | 61,787,520 |
| Size | 407.5 MB | 58.9 MB |
| Events in quadrant A | 2,796,277 | 371,052 |
| Events in quadrant B | 3,098,666 | 371,665 |
| Events in quadrant C | 3,802,166 | 360,441 |
| Events in quadrant D | 2,840,854 | 354,910 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12471 | 2 |
| B | 0 | 13012 | 1 |
| C | 0 | 15446 | 1 |
| D | 0 | 12562 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5903 | 183 | 3.100119% |
| B | 5903 | 147 | 2.490259% |
| C | 5903 | 222 | 3.760800% |
| D | 5902 | 123 | 2.084039% |

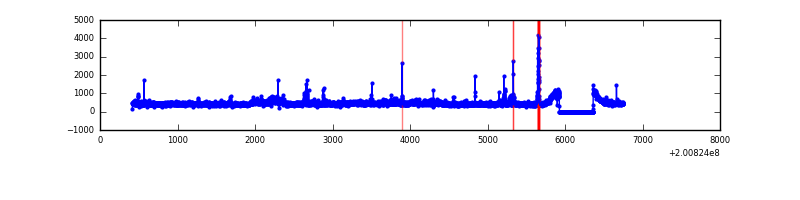

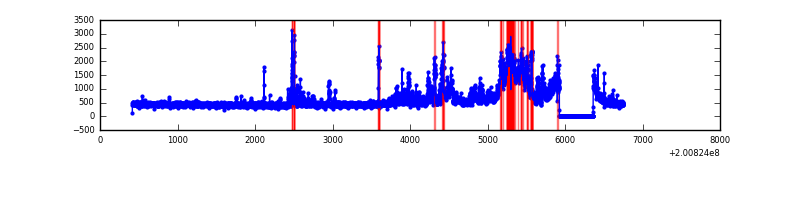

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6338 | 5904 | 23 | 23 | 0.36% | 0.39% |  |
| B | 6338 | 5904 | 14 | 14 | 0.22% | 0.24% |  |
| C | 6338 | 5904 | 117 | 117 | 1.85% | 1.98% |  |
| D | 6338 | 5904 | 15 | 15 | 0.24% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 94459 | 658.76 | 682 | 666 | 142.4 |
| A | 8 | 15 | 24248 | 165.63 | 682 | 666 | 142.4 |
| A | 0 | 50 | 24140 | 164.87 | 682 | 666 | 142.4 |
| B | 15 | 204 | 134310 | 978.89 | 695 | 677 | 136.5 |
| B | 2 | 249 | 103795 | 755.36 | 695 | 677 | 136.5 |
| B | 4 | 170 | 99977 | 727.39 | 695 | 677 | 136.5 |
| C | 1 | 192 | 1130248 | 7160.37 | 663 | 667 | 157.8 |
| C | 8 | 128 | 22693 | 139.62 | 663 | 667 | 157.8 |
| C | 6 | 80 | 16154 | 98.17 | 663 | 667 | 157.8 |
| D | 12 | 79 | 200930 | 1131.64 | 659 | 645 | 177.0 |
| D | 13 | 223 | 76086 | 426.25 | 659 | 645 | 177.0 |
| D | 14 | 34 | 27286 | 150.53 | 659 | 645 | 177.0 |

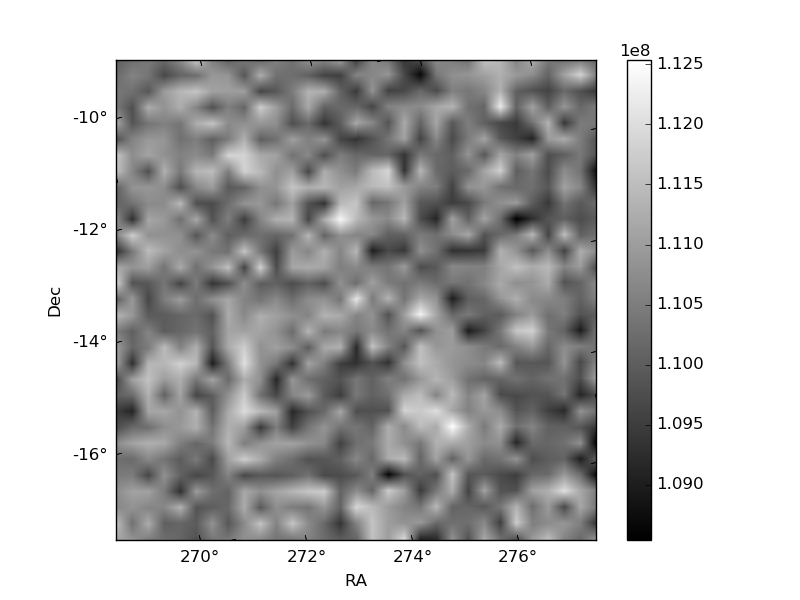

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

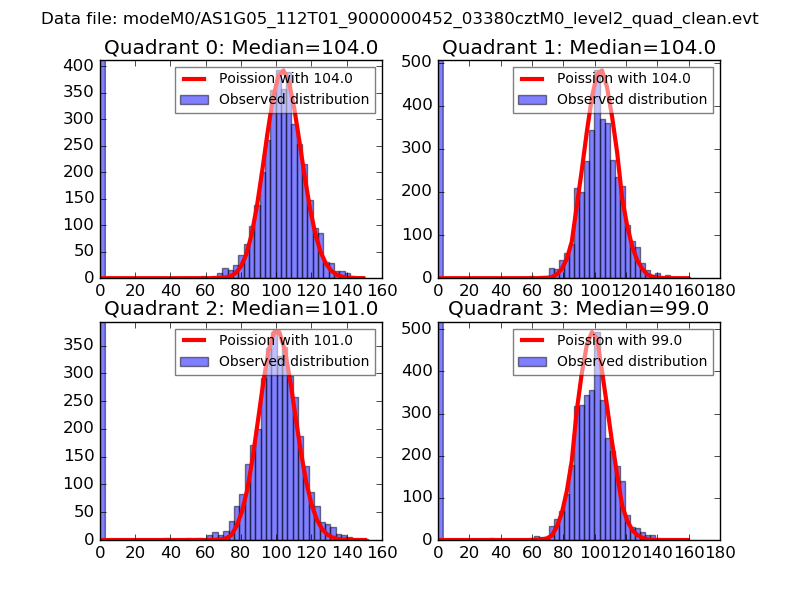

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

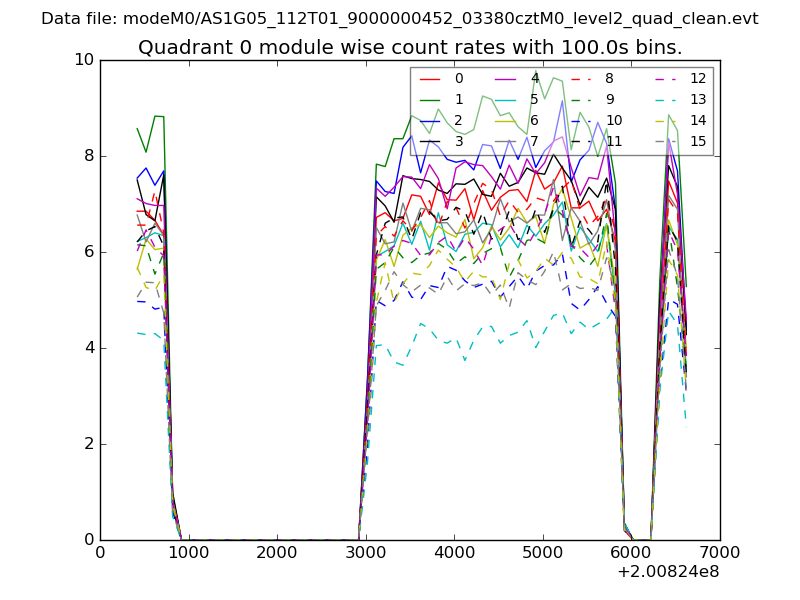

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

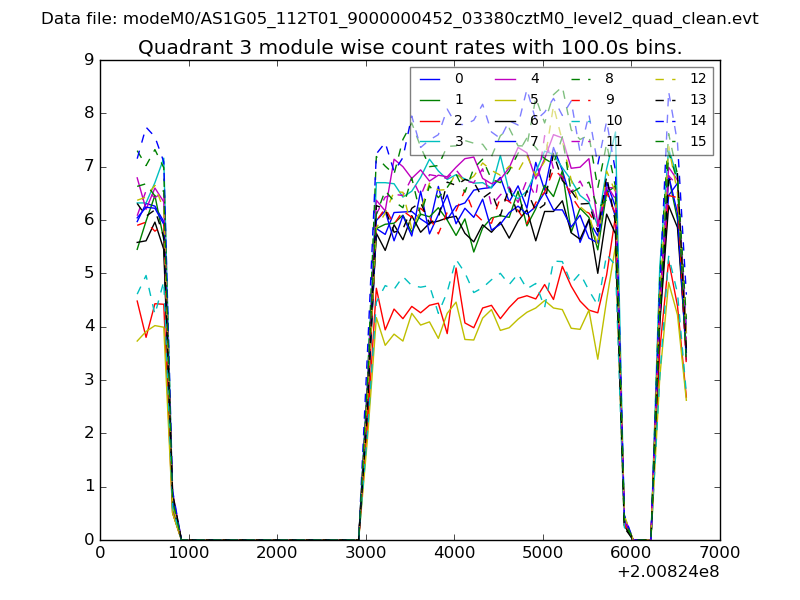

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

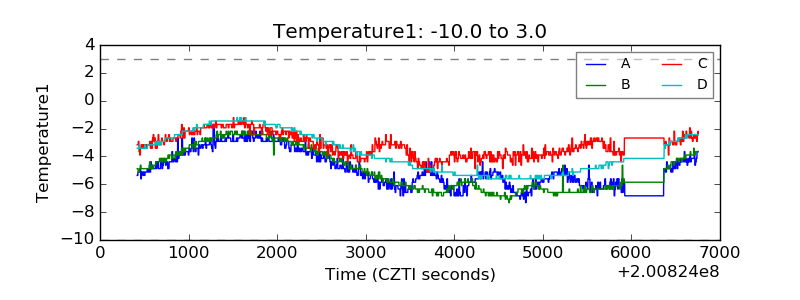

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

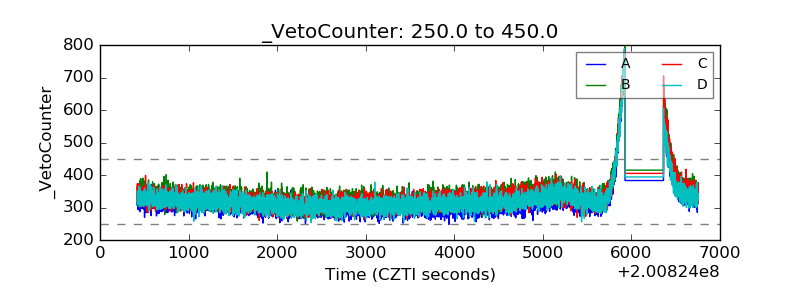

| Veto Counter |  |
