| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_210T01_9000000454_03400cztM0_level2.evt | modeM0/AS1G05_210T01_9000000454_03400cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,274,880 | 77,158,080 |
| Size | 427.5 MB | 73.6 MB |
| Events in quadrant A | 2,910,408 | 479,124 |
| Events in quadrant B | 3,512,188 | 483,047 |
| Events in quadrant C | 3,937,273 | 476,332 |
| Events in quadrant D | 2,793,263 | 463,712 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12978 | 3 |
| B | 0 | 14735 | 2 |
| C | 0 | 16000 | 2 |
| D | 0 | 12904 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6224 | 22 | 0.353470% |
| B | 6224 | 52 | 0.835476% |
| C | 6224 | 304 | 4.884319% |
| D | 6224 | 30 | 0.482005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7504 | 6225 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7504 | 6225 | 16 | 16 | 0.21% | 0.26% |  |
| C | 7504 | 6225 | 189 | 189 | 2.52% | 3.04% |  |
| D | 7504 | 6225 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 38889 | 252.38 | 743 | 726 | 151.2 |
| A | 0 | 226 | 11326 | 70.1 | 743 | 726 | 151.2 |
| A | 12 | 194 | 7974 | 47.93 | 743 | 726 | 151.2 |
| B | 15 | 204 | 442772 | 3116.01 | 753 | 735 | 141.9 |
| B | 14 | 167 | 115996 | 812.5 | 753 | 735 | 141.9 |
| B | 0 | 229 | 19431 | 131.79 | 753 | 735 | 141.9 |
| C | 7 | 220 | 816614 | 4965.63 | 713 | 717 | 164.3 |
| C | 14 | 223 | 237945 | 1443.79 | 713 | 717 | 164.3 |
| C | 1 | 16 | 62939 | 378.69 | 713 | 717 | 164.3 |
| D | 13 | 239 | 33312 | 186.7 | 724 | 705 | 174.7 |
| D | 2 | 37 | 9625 | 51.07 | 724 | 705 | 174.7 |
| D | 14 | 226 | 8288 | 43.42 | 724 | 705 | 174.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

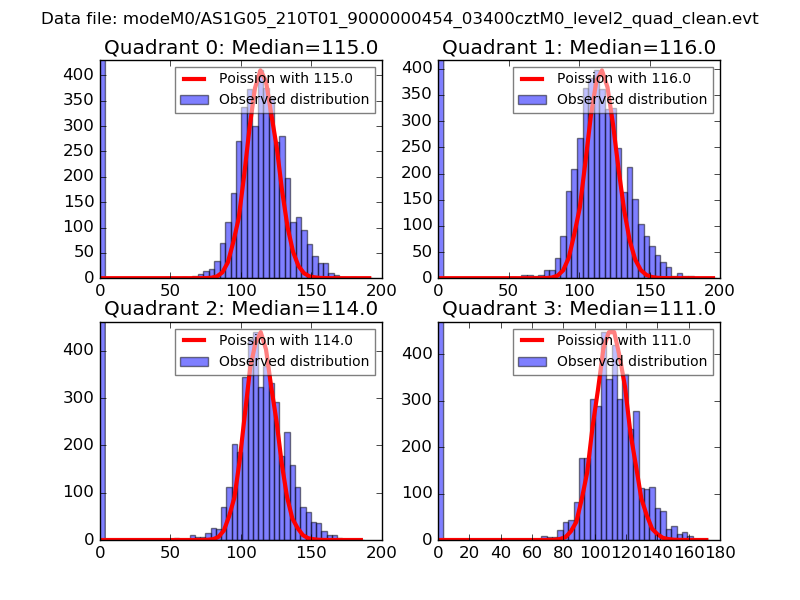

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
