| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_210T01_9000000454_03407cztM0_level2.evt | modeM0/AS1G05_210T01_9000000454_03407cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,173,440 | 64,941,120 |
| Size | 488.4 MB | 61.9 MB |
| Events in quadrant A | 3,537,351 | 364,819 |
| Events in quadrant B | 4,150,453 | 366,228 |
| Events in quadrant C | 3,943,817 | 358,777 |
| Events in quadrant D | 3,367,964 | 352,574 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15809 | 3 |
| B | 0 | 17187 | 2 |
| C | 0 | 16974 | 2 |
| D | 0 | 15709 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7529 | 280 | 3.718953% |
| B | 7529 | 265 | 3.519724% |
| C | 7529 | 310 | 4.117413% |
| D | 7529 | 219 | 2.908753% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 7531 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7659 | 7531 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7659 | 7531 | 60 | 60 | 0.78% | 0.80% |  |
| D | 7659 | 7531 | 3 | 3 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 84256 | 460.62 | 865 | 844 | 181.1 |
| A | 8 | 15 | 67184 | 366.34 | 865 | 844 | 181.1 |
| A | 0 | 31 | 22055 | 117.13 | 865 | 844 | 181.1 |
| B | 15 | 204 | 658978 | 3814.0 | 881 | 859 | 172.6 |
| B | 14 | 167 | 44718 | 254.18 | 881 | 859 | 172.6 |
| B | 0 | 229 | 20865 | 115.94 | 881 | 859 | 172.6 |
| C | 7 | 220 | 481280 | 2419.53 | 843 | 845 | 198.6 |
| C | 14 | 223 | 50165 | 248.38 | 843 | 845 | 198.6 |
| C | 1 | 16 | 48184 | 238.4 | 843 | 845 | 198.6 |
| D | 2 | 37 | 91271 | 440.31 | 840 | 812 | 205.4 |
| D | 12 | 246 | 23815 | 111.96 | 840 | 812 | 205.4 |
| D | 5 | 233 | 21891 | 102.6 | 840 | 812 | 205.4 |

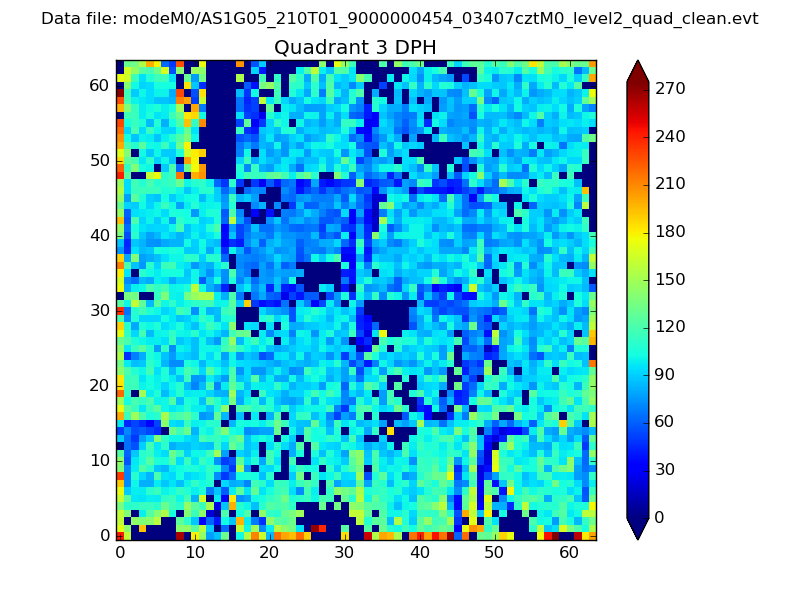

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

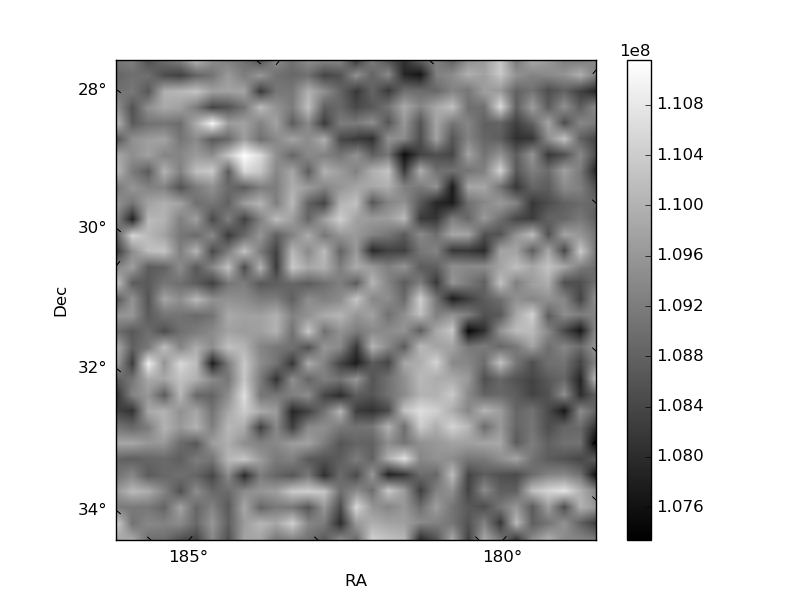

| Plot type | Count rate plots | Images |
|---|---|---|

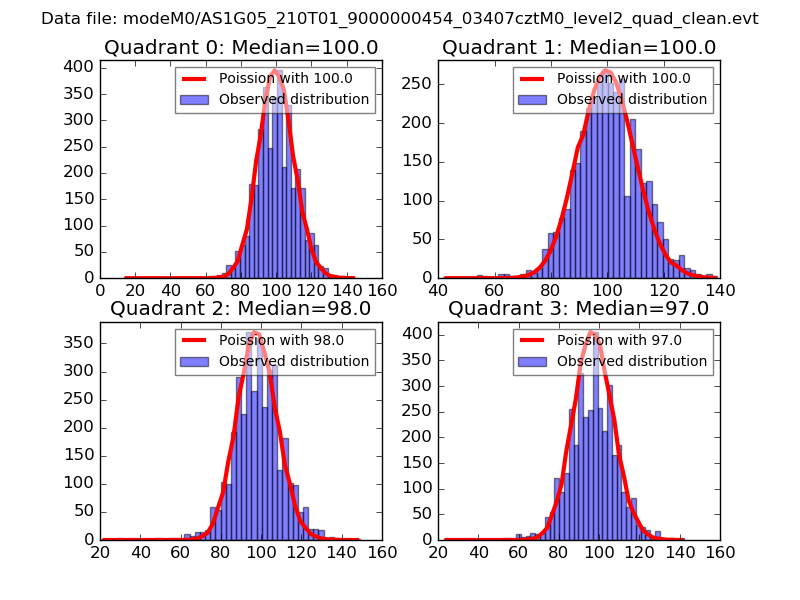

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

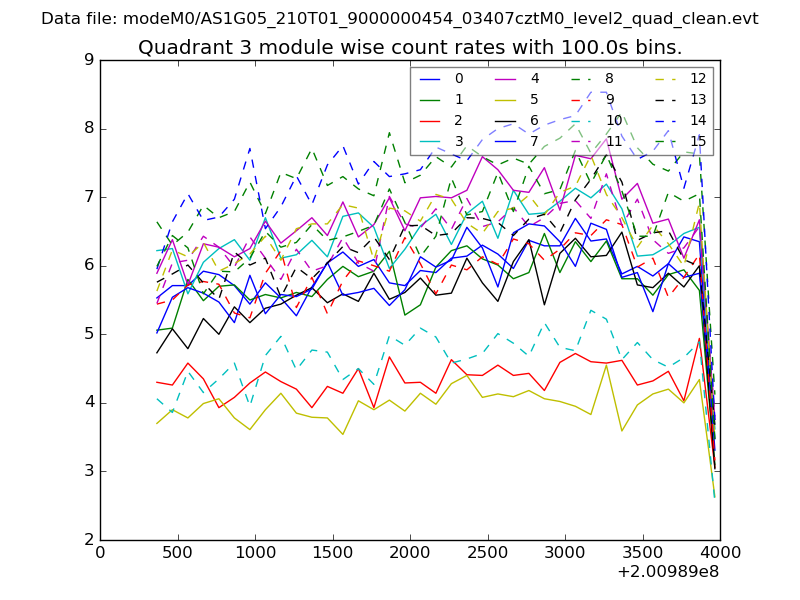

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

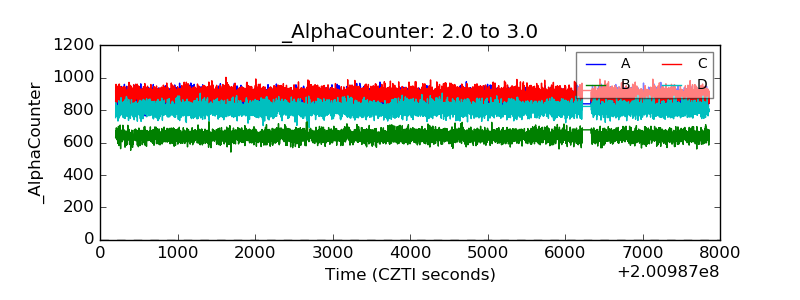

| Alpha Counter |  |

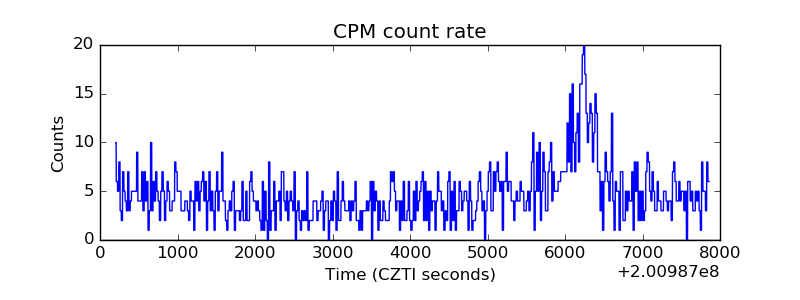

| _CPM_Rate |  |

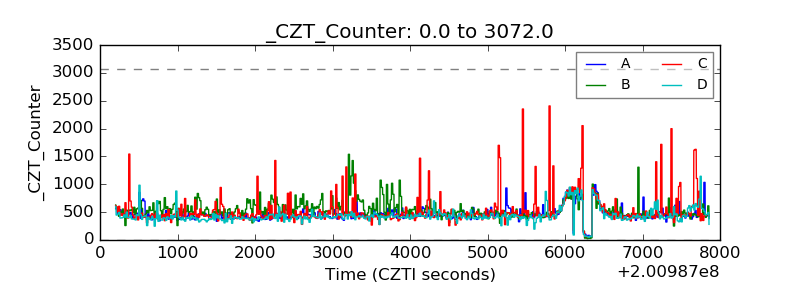

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

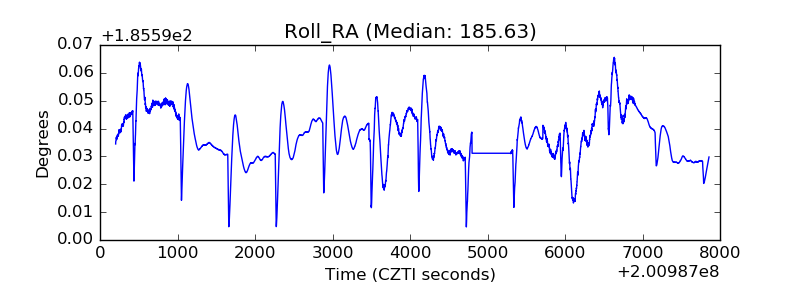

| _Roll_RA |  |
| Veto Counter |  |
