| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_210T01_9000000454_03410cztM0_level2.evt | modeM0/AS1G05_210T01_9000000454_03410cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,504,640 | 74,995,200 |
| Size | 394.3 MB | 71.5 MB |
| Events in quadrant A | 2,957,888 | 465,681 |
| Events in quadrant B | 3,262,020 | 462,878 |
| Events in quadrant C | 3,013,545 | 456,729 |
| Events in quadrant D | 2,861,991 | 447,069 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13046 | 2 |
| B | 0 | 13720 | 1 |
| C | 0 | 13409 | 1 |
| D | 0 | 13094 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6282 | 54 | 0.859599% |
| B | 6282 | 73 | 1.162050% |
| C | 6282 | 68 | 1.082458% |
| D | 6282 | 62 | 0.986947% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

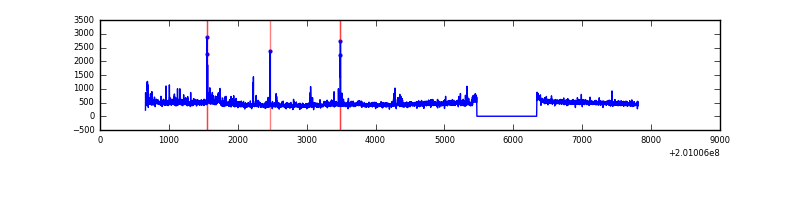

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7152 | 6283 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7152 | 6283 | 25 | 25 | 0.35% | 0.40% |  |
| C | 7152 | 6283 | 27 | 27 | 0.38% | 0.43% |  |
| D | 7152 | 6283 | 26 | 26 | 0.36% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 105382 | 706.7 | 714 | 697 | 148.1 |
| A | 0 | 149 | 37316 | 247.2 | 714 | 697 | 148.1 |
| A | 15 | 174 | 29214 | 192.51 | 714 | 697 | 148.1 |
| B | 14 | 167 | 266117 | 1850.47 | 720 | 701 | 143.4 |
| B | 15 | 204 | 128600 | 891.71 | 720 | 701 | 143.4 |
| B | 4 | 200 | 40841 | 279.85 | 720 | 701 | 143.4 |
| C | 7 | 220 | 137297 | 841.51 | 692 | 695 | 162.3 |
| C | 14 | 223 | 129175 | 791.47 | 692 | 695 | 162.3 |
| C | 10 | 19 | 12411 | 72.17 | 692 | 695 | 162.3 |
| D | 9 | 85 | 58271 | 342.75 | 690 | 669 | 168.1 |
| D | 2 | 37 | 55183 | 324.38 | 690 | 669 | 168.1 |
| D | 2 | 175 | 42052 | 246.25 | 690 | 669 | 168.1 |

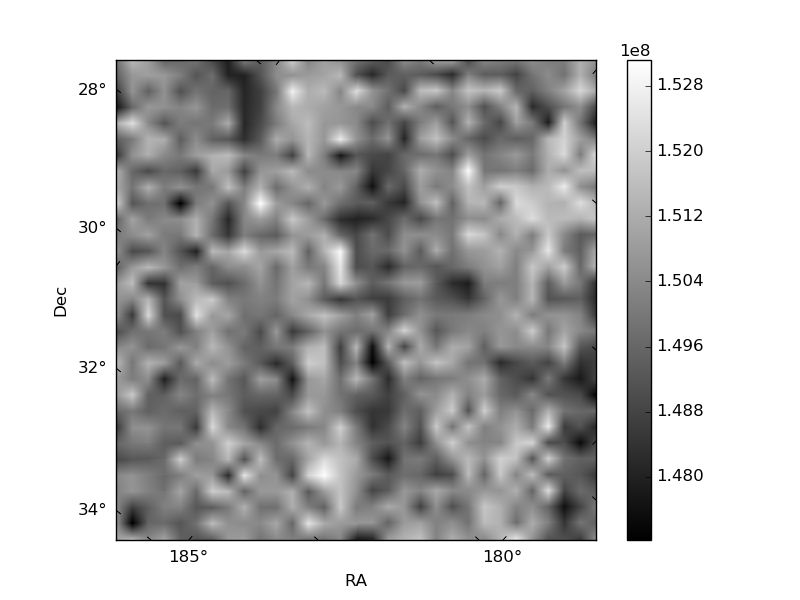

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

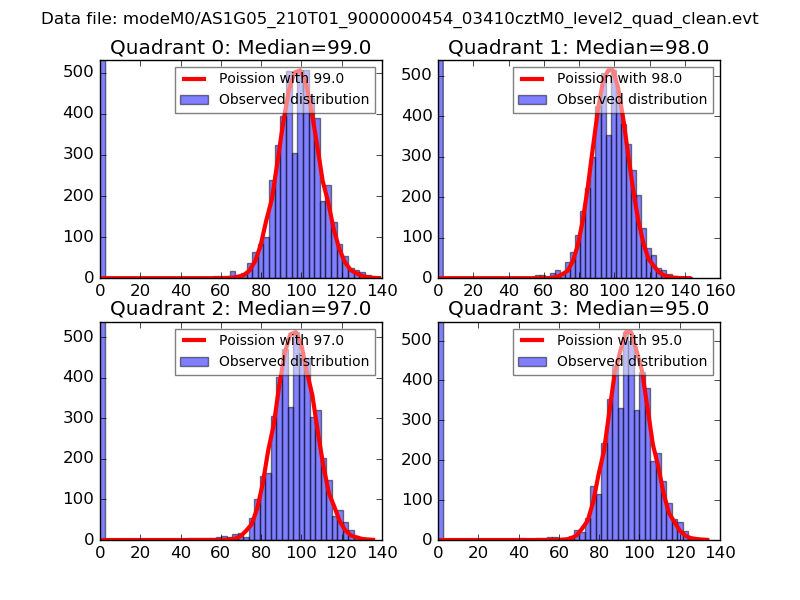

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

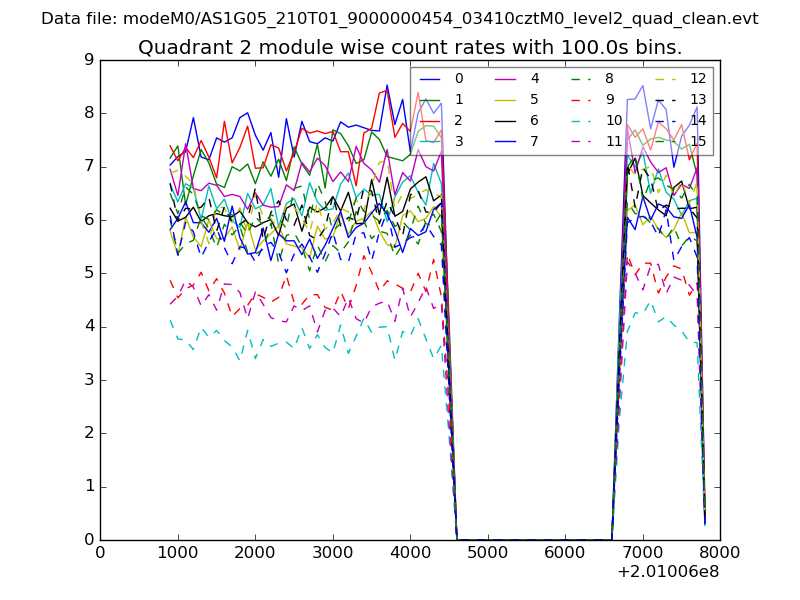

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

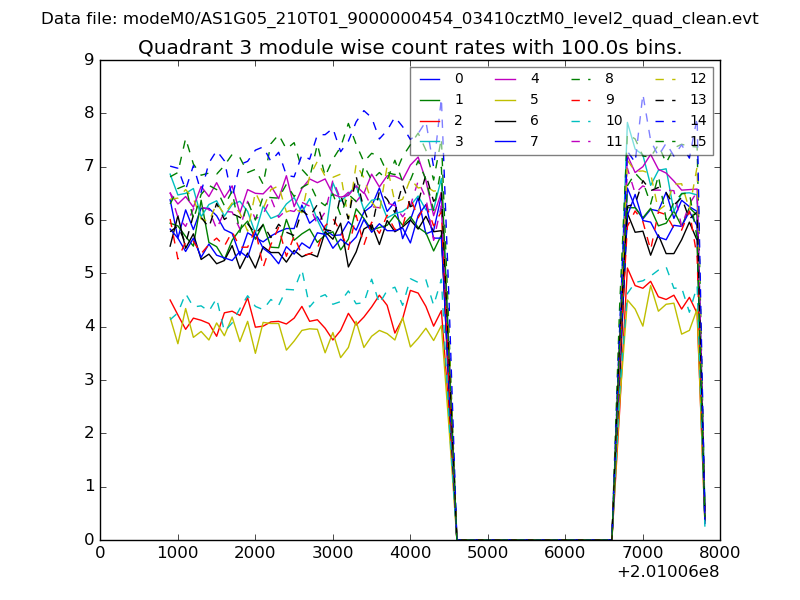

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

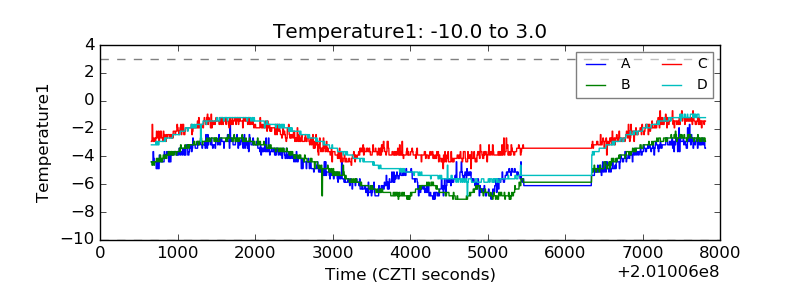

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

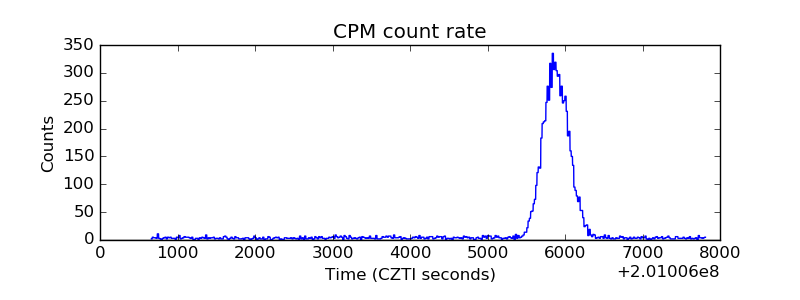

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

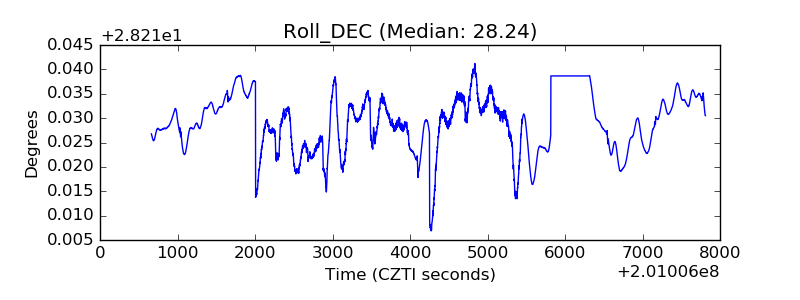

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
