| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000456_03417cztM0_level2.evt | modeM0/AS1G05_167T01_9000000456_03417cztM0_level2_quad_clean.evt |
| Size (bytes) | 384,125,760 | 71,544,960 |
| Size | 366.3 MB | 68.2 MB |
| Events in quadrant A | 2,399,305 | 457,488 |
| Events in quadrant B | 2,654,218 | 457,896 |
| Events in quadrant C | 3,598,056 | 444,975 |
| Events in quadrant D | 2,621,912 | 435,736 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10880 | 2 |
| B | 0 | 11474 | 1 |
| C | 0 | 14269 | 1 |
| D | 0 | 11647 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5292 | 21 | 0.396825% |
| B | 5292 | 43 | 0.812547% |
| C | 5292 | 232 | 4.383976% |
| D | 5292 | 88 | 1.662887% |

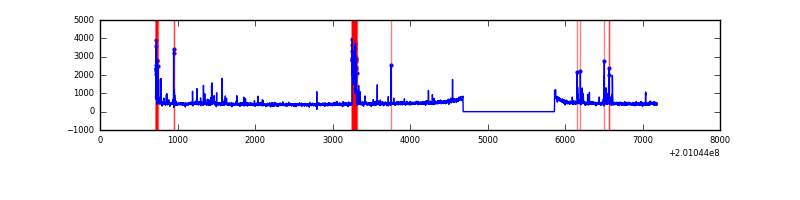

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6472 | 5293 | 1 | 1 | 0.02% | 0.02% |  |
| B | 6472 | 5293 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6472 | 5293 | 188 | 188 | 2.90% | 3.55% |  |
| D | 6472 | 5293 | 61 | 61 | 0.94% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 8321 | 60.69 | 619 | 607 | 127.1 |
| A | 12 | 194 | 6444 | 45.92 | 619 | 607 | 127.1 |
| A | 0 | 226 | 6292 | 44.72 | 619 | 607 | 127.1 |
| B | 5 | 70 | 85787 | 696.89 | 631 | 619 | 122.2 |
| B | 15 | 204 | 75105 | 609.49 | 631 | 619 | 122.2 |
| B | 14 | 167 | 26543 | 212.12 | 631 | 619 | 122.2 |
| C | 7 | 220 | 1234957 | 8855.64 | 596 | 599 | 139.4 |
| C | 8 | 208 | 18614 | 129.24 | 596 | 599 | 139.4 |
| C | 10 | 19 | 5578 | 35.72 | 596 | 599 | 139.4 |
| D | 9 | 85 | 152156 | 1035.31 | 594 | 577 | 146.4 |
| D | 13 | 223 | 135300 | 920.18 | 594 | 577 | 146.4 |
| D | 2 | 37 | 51998 | 351.21 | 594 | 577 | 146.4 |

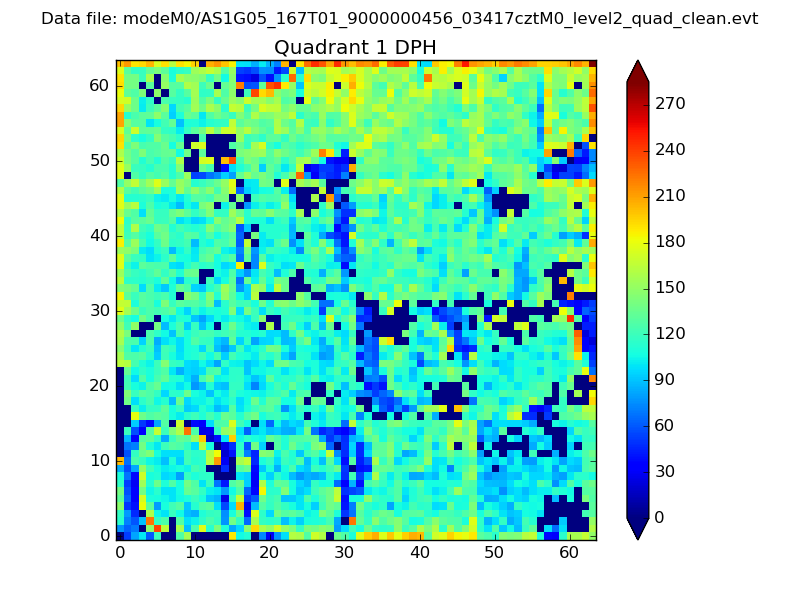

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

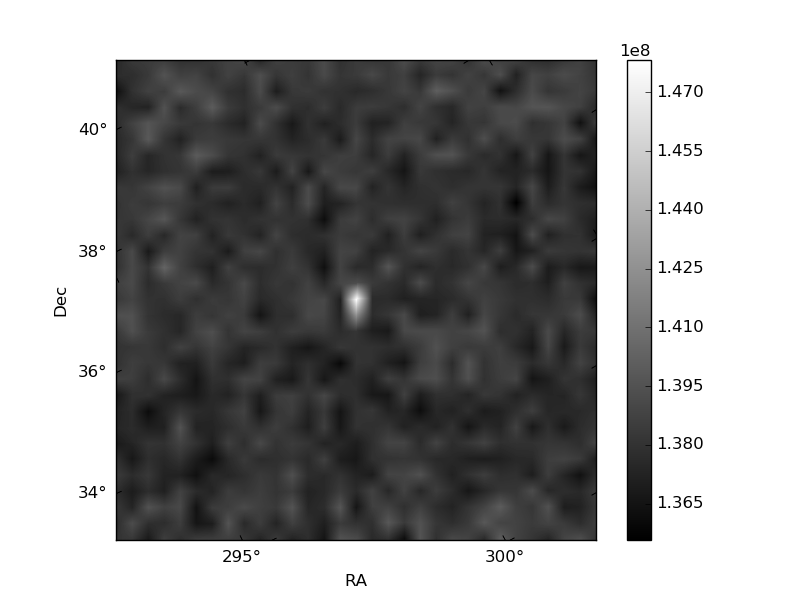

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

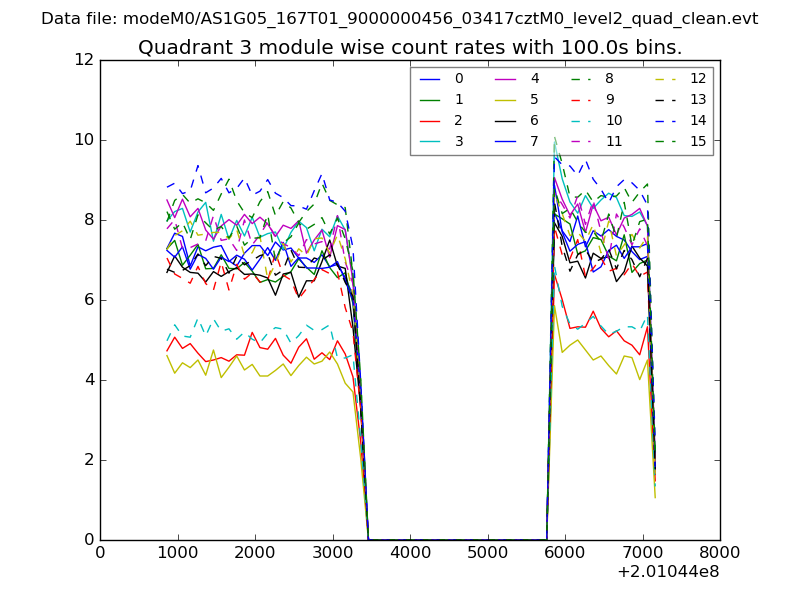

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

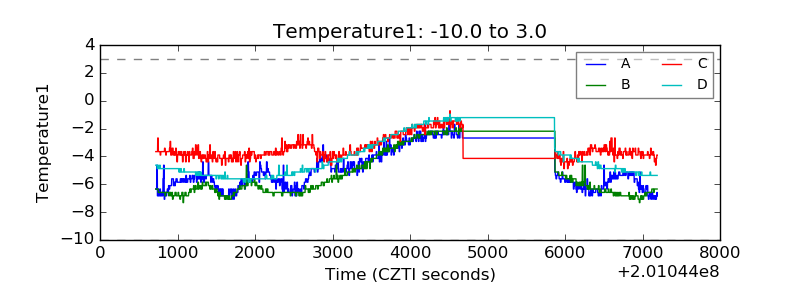

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

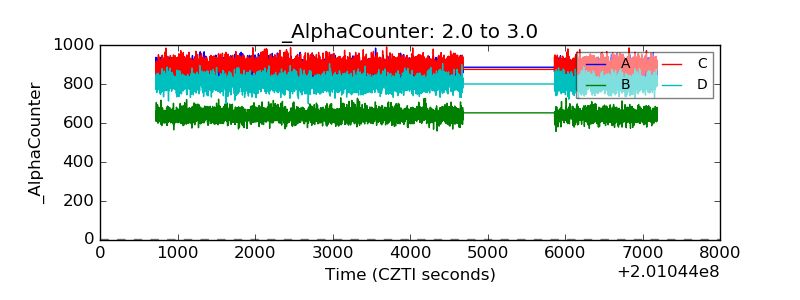

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

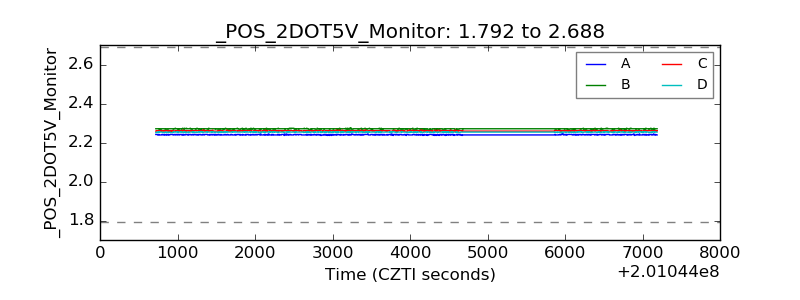

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

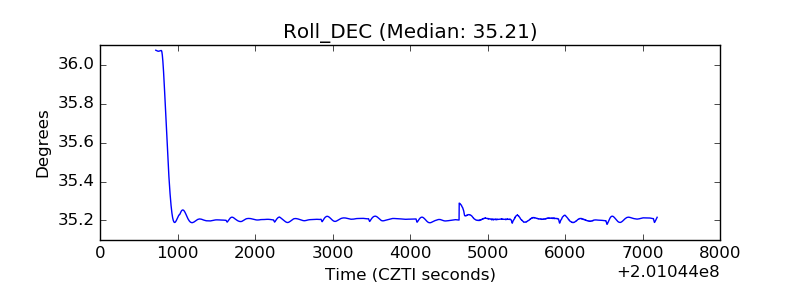

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
