| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000456_03425cztM0_level2.evt | modeM0/AS1G05_167T01_9000000456_03425cztM0_level2_quad_clean.evt |
| Size (bytes) | 607,043,520 | 63,789,120 |
| Size | 578.9 MB | 60.8 MB |
| Events in quadrant A | 3,437,825 | 377,782 |
| Events in quadrant B | 3,831,155 | 375,287 |
| Events in quadrant C | 7,447,598 | 336,658 |
| Events in quadrant D | 3,205,690 | 365,950 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14583 | 3 |
| B | 0 | 15659 | 2 |
| C | 0 | 26707 | 2 |
| D | 0 | 14339 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6821 | 93 | 1.363436% |
| B | 6821 | 90 | 1.319455% |
| C | 6821 | 1504 | 22.049553% |
| D | 6821 | 87 | 1.275473% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

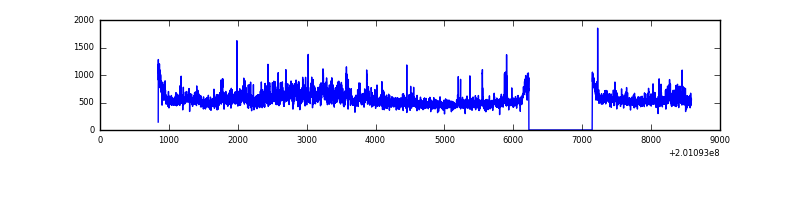

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7741 | 6821 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7741 | 6821 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7741 | 6821 | 1085 | 1085 | 14.02% | 15.91% |  |
| D | 7741 | 6822 | 21 | 21 | 0.27% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 217052 | 1295.59 | 818 | 803 | 166.9 |
| A | 15 | 249 | 22214 | 128.28 | 818 | 803 | 166.9 |
| A | 0 | 118 | 21605 | 124.63 | 818 | 803 | 166.9 |
| B | 15 | 204 | 547632 | 3407.81 | 824 | 806 | 160.5 |
| B | 14 | 167 | 40736 | 248.84 | 824 | 806 | 160.5 |
| B | 15 | 85 | 21729 | 130.39 | 824 | 806 | 160.5 |
| C | 15 | 208 | 2686359 | 16311.8 | 707 | 712 | 164.6 |
| C | 7 | 220 | 1824819 | 11079.07 | 707 | 712 | 164.6 |
| C | 1 | 192 | 76286 | 459.01 | 707 | 712 | 164.6 |
| D | 13 | 223 | 76905 | 396.6 | 790 | 768 | 192.0 |
| D | 9 | 85 | 60473 | 311.01 | 790 | 768 | 192.0 |
| D | 12 | 246 | 37190 | 189.73 | 790 | 768 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

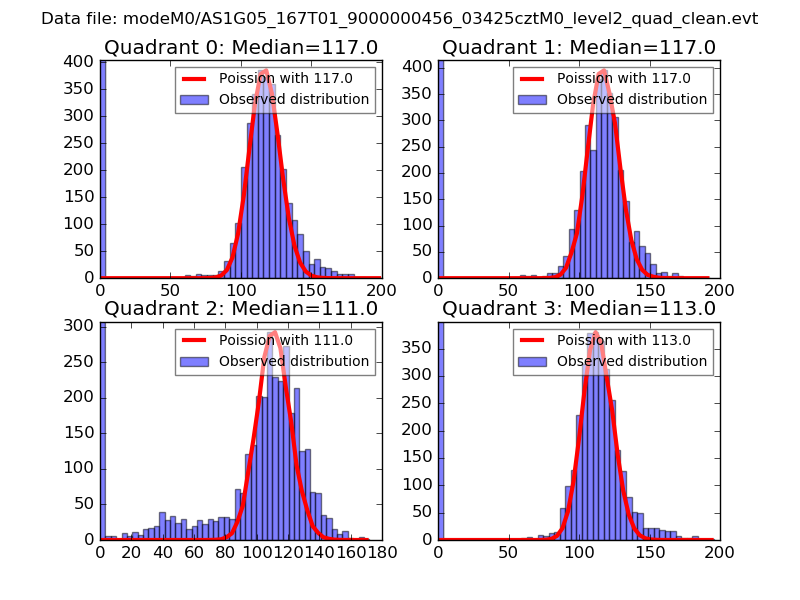

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

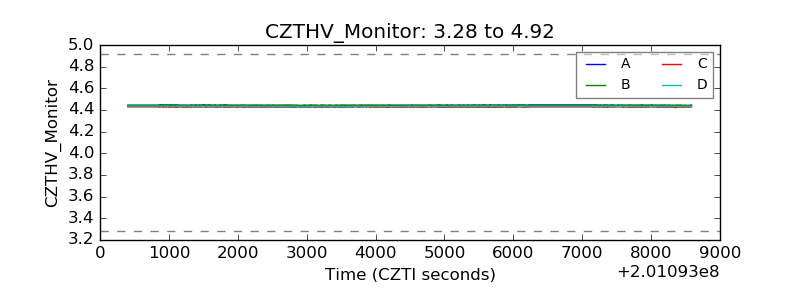

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

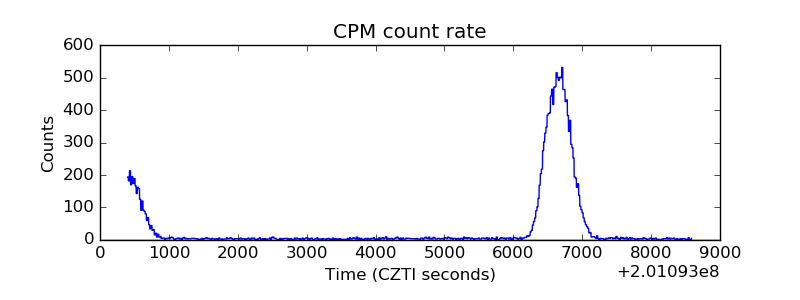

| _CPM_Rate |  |

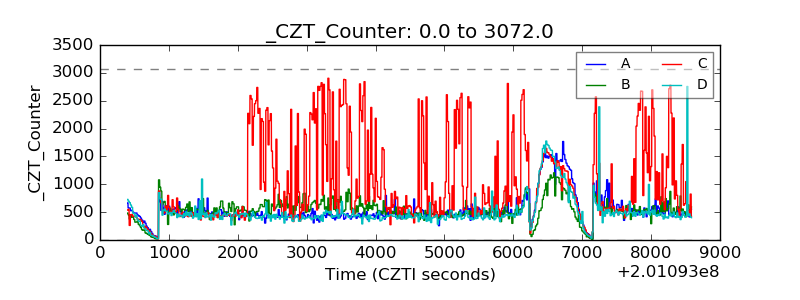

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

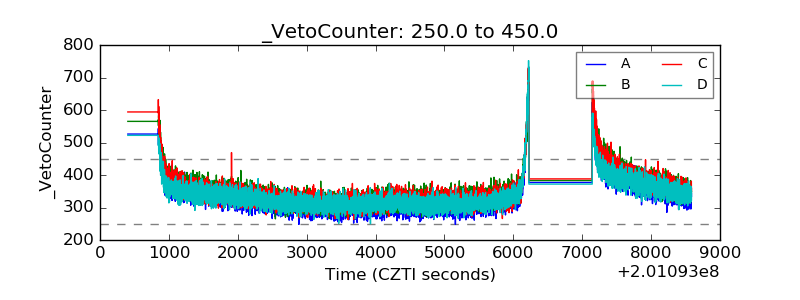

| Veto Counter |  |
