| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000456_03431cztM0_level2.evt | modeM0/AS1G05_167T01_9000000456_03431cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,293,440 | 96,143,040 |
| Size | 434.2 MB | 91.7 MB |
| Events in quadrant A | 3,095,522 | 625,414 |
| Events in quadrant B | 3,492,731 | 629,472 |
| Events in quadrant C | 3,370,904 | 629,495 |
| Events in quadrant D | 3,405,872 | 591,995 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13197 | 3 |
| B | 0 | 14345 | 2 |
| C | 0 | 14041 | 2 |
| D | 0 | 14435 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6238 | 44 | 0.705354% |
| B | 6238 | 76 | 1.218339% |
| C | 6238 | 52 | 0.833601% |
| D | 6238 | 202 | 3.238217% |

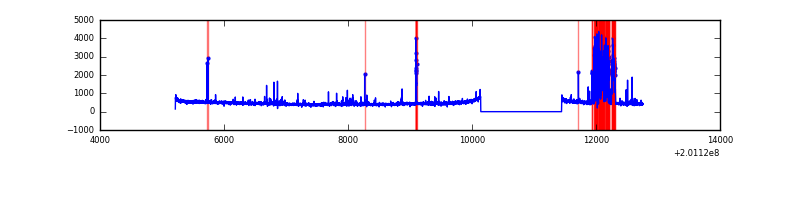

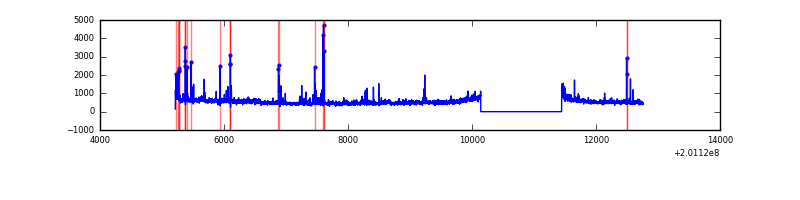

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7543 | 6239 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7543 | 6239 | 22 | 22 | 0.29% | 0.35% |  |
| C | 7543 | 6239 | 26 | 26 | 0.34% | 0.42% |  |
| D | 7543 | 6239 | 158 | 158 | 2.09% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 54304 | 340.43 | 763 | 750 | 157.3 |
| A | 0 | 50 | 50882 | 318.68 | 763 | 750 | 157.3 |
| A | 8 | 15 | 44825 | 280.17 | 763 | 750 | 157.3 |
| B | 15 | 204 | 185607 | 1255.19 | 778 | 764 | 147.3 |
| B | 4 | 81 | 100391 | 676.52 | 778 | 764 | 147.3 |
| B | 2 | 249 | 83514 | 561.92 | 778 | 764 | 147.3 |
| C | 7 | 220 | 325062 | 1837.38 | 760 | 767 | 176.5 |
| C | 6 | 80 | 30072 | 166.03 | 760 | 767 | 176.5 |
| C | 15 | 208 | 28217 | 155.52 | 760 | 767 | 176.5 |
| D | 13 | 223 | 481075 | 2684.03 | 738 | 720 | 179.0 |
| D | 9 | 85 | 54994 | 303.26 | 738 | 720 | 179.0 |
| D | 12 | 246 | 51100 | 281.5 | 738 | 720 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

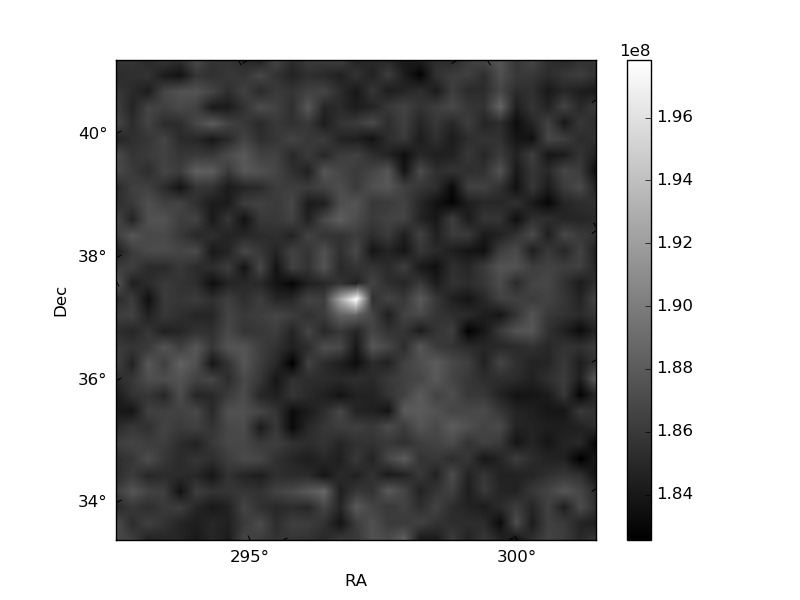

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

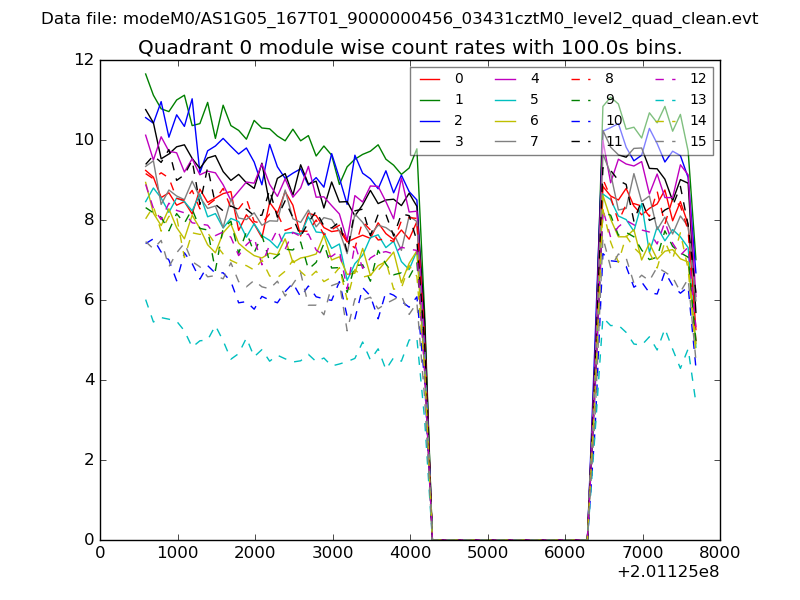

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

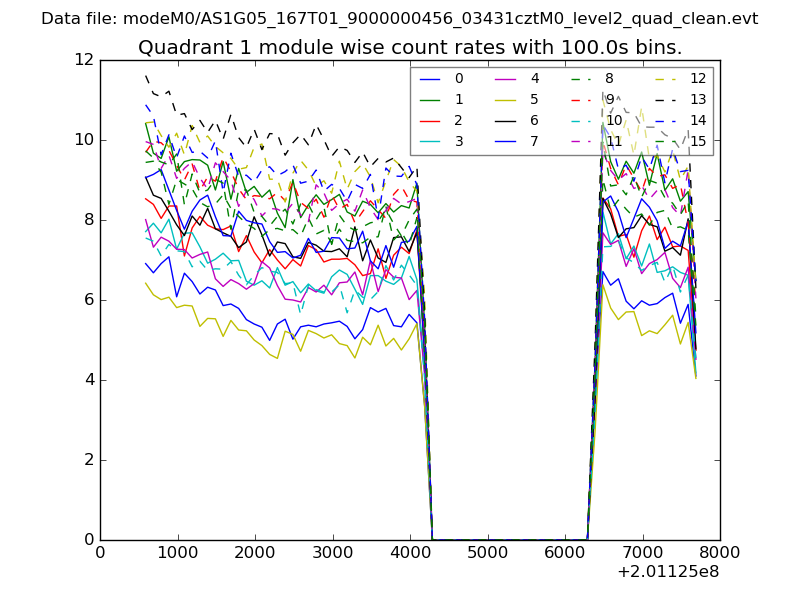

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

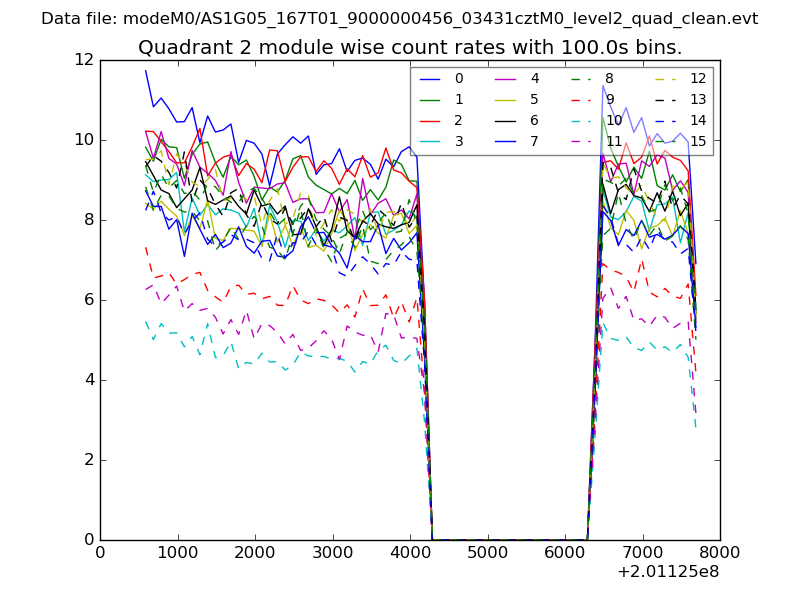

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

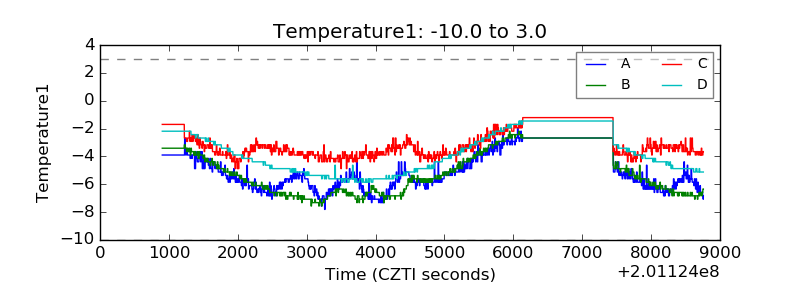

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

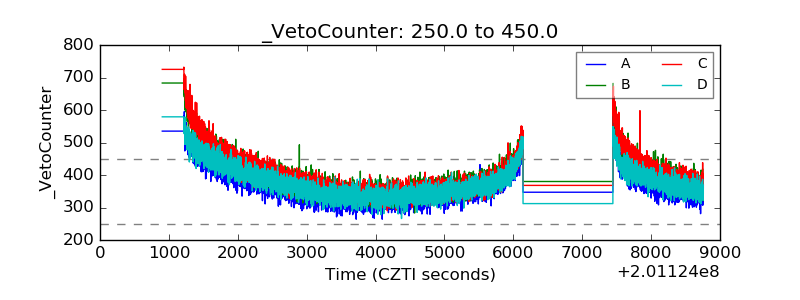

| Veto Counter |  |
