| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000456_03446cztM0_level2.evt | modeM0/AS1G05_167T01_9000000456_03446cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,611,200 | 96,166,080 |
| Size | 411.6 MB | 91.7 MB |
| Events in quadrant A | 3,002,984 | 620,187 |
| Events in quadrant B | 3,491,640 | 626,424 |
| Events in quadrant C | 3,059,108 | 625,451 |
| Events in quadrant D | 3,085,313 | 596,749 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13212 | 3 |
| B | 0 | 14583 | 2 |
| C | 0 | 13332 | 2 |
| D | 0 | 13717 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 24 | 0.376825% |
| B | 6369 | 44 | 0.690846% |
| C | 6369 | 28 | 0.439629% |
| D | 6369 | 52 | 0.816455% |

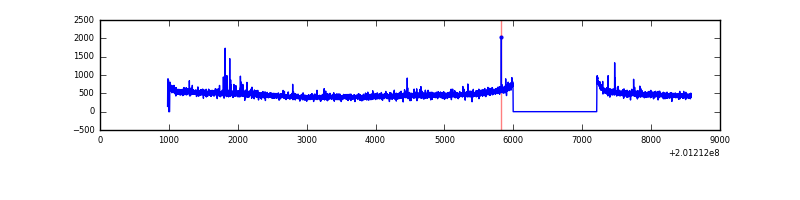

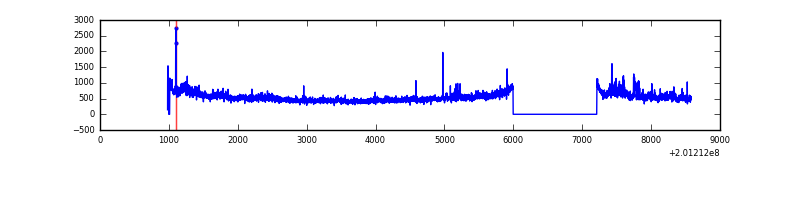

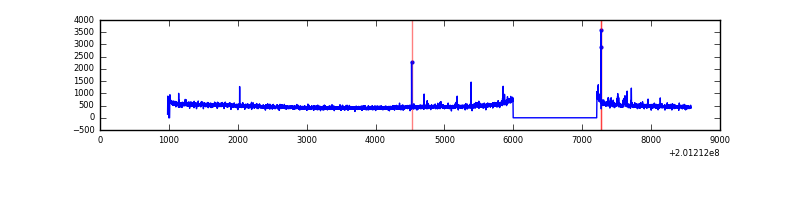

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6371 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7599 | 6371 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7599 | 6371 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7599 | 6371 | 36 | 36 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 24721 | 151.49 | 771 | 756 | 158.2 |
| A | 12 | 194 | 8024 | 45.94 | 771 | 756 | 158.2 |
| A | 0 | 226 | 7992 | 45.74 | 771 | 756 | 158.2 |
| B | 15 | 204 | 386550 | 2548.14 | 785 | 769 | 151.4 |
| B | 0 | 229 | 22394 | 142.84 | 785 | 769 | 151.4 |
| B | 14 | 167 | 20867 | 132.75 | 785 | 769 | 151.4 |
| C | 1 | 192 | 45701 | 253.71 | 764 | 773 | 177.1 |
| C | 15 | 208 | 14212 | 75.89 | 764 | 773 | 177.1 |
| C | 12 | 4 | 6427 | 31.93 | 764 | 773 | 177.1 |
| D | 13 | 223 | 141409 | 779.95 | 751 | 732 | 180.4 |
| D | 5 | 233 | 24449 | 131.49 | 751 | 732 | 180.4 |
| D | 9 | 85 | 17257 | 91.62 | 751 | 732 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

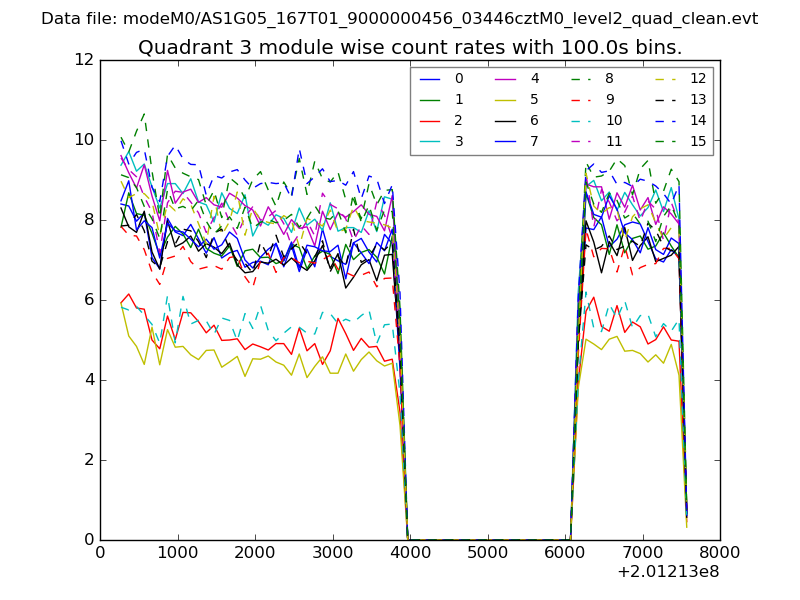

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

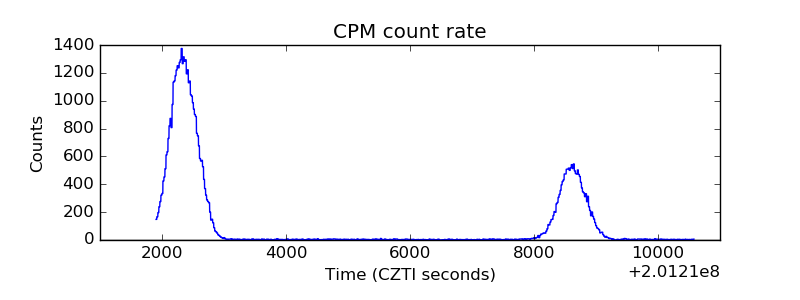

| _CPM_Rate |  |

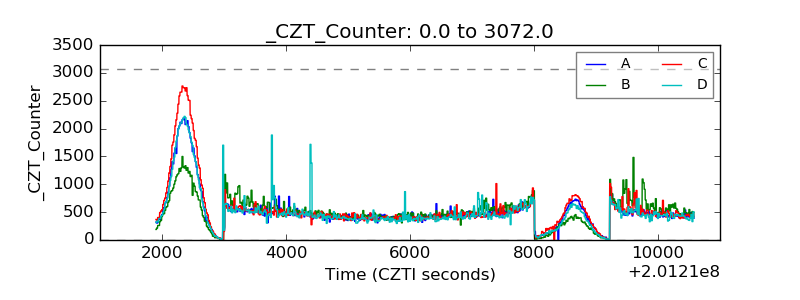

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

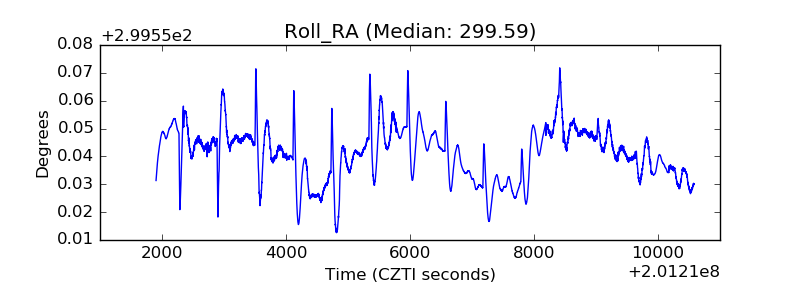

| _Roll_RA |  |

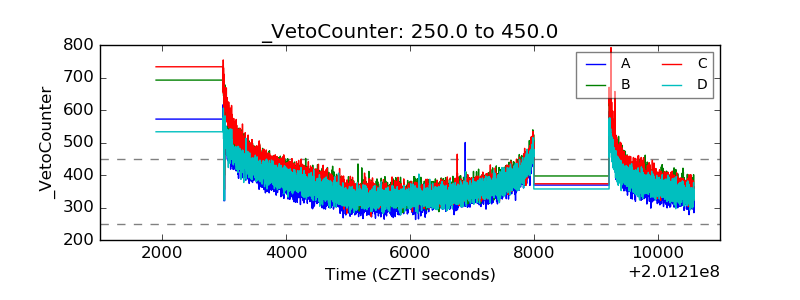

| Veto Counter |  |
