| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000456_03453cztM0_level2.evt | modeM0/AS1G05_167T01_9000000456_03453cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,242,803,520 | 206,009,280 |
| Size | 1.2 GB | 196.5 MB |
| Events in quadrant A | 9,292,521 | 1,253,323 |
| Events in quadrant B | 9,980,808 | 1,263,468 |
| Events in quadrant C | 8,823,336 | 1,259,152 |
| Events in quadrant D | 8,315,327 | 1,213,320 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40072 | 4 |
| B | 0 | 41249 | 3 |
| C | 0 | 38901 | 3 |
| D | 0 | 38372 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18135 | 473 | 2.608216% |
| B | 18135 | 271 | 1.494348% |
| C | 18135 | 324 | 1.786600% |
| D | 18135 | 282 | 1.555004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19845 | 18137 | 172 | 172 | 0.87% | 0.95% |  |
| B | 19845 | 18139 | 22 | 22 | 0.11% | 0.12% |  |
| C | 19845 | 18138 | 156 | 156 | 0.79% | 0.86% |  |
| D | 19845 | 18137 | 99 | 99 | 0.50% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 1134604 | 2617.23 | 2093 | 2049 | 432.7 |
| A | 8 | 15 | 84902 | 191.46 | 2093 | 2049 | 432.7 |
| A | 12 | 194 | 21747 | 45.52 | 2093 | 2049 | 432.7 |
| B | 15 | 204 | 1201860 | 2901.13 | 2129 | 2080 | 413.6 |
| B | 14 | 167 | 257577 | 617.8 | 2129 | 2080 | 413.6 |
| B | 5 | 200 | 97757 | 231.35 | 2129 | 2080 | 413.6 |
| C | 1 | 192 | 696653 | 1480.42 | 2034 | 2051 | 469.2 |
| C | 14 | 234 | 124969 | 261.98 | 2034 | 2051 | 469.2 |
| C | 13 | 61 | 17333 | 32.57 | 2034 | 2051 | 469.2 |
| D | 13 | 223 | 380750 | 773.97 | 2032 | 1973 | 489.4 |
| D | 9 | 85 | 78378 | 156.12 | 2032 | 1973 | 489.4 |
| D | 12 | 2 | 50724 | 99.61 | 2032 | 1973 | 489.4 |

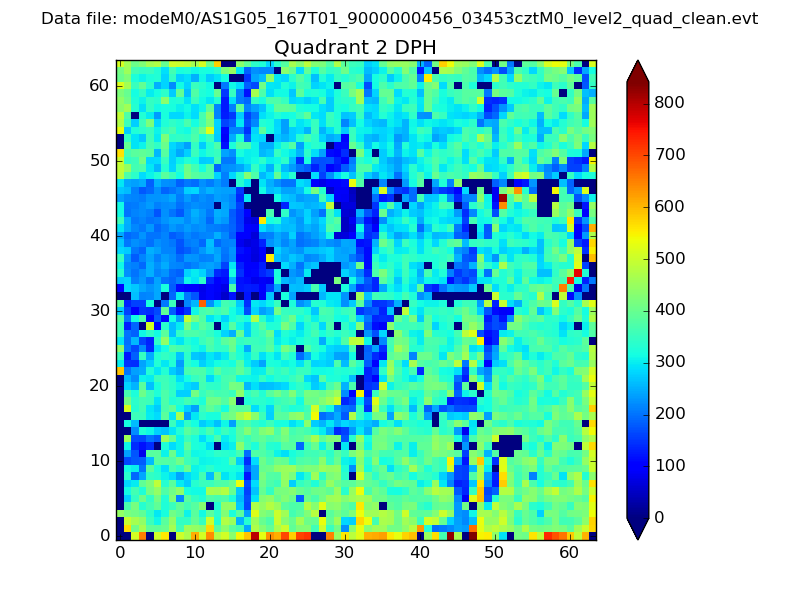

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

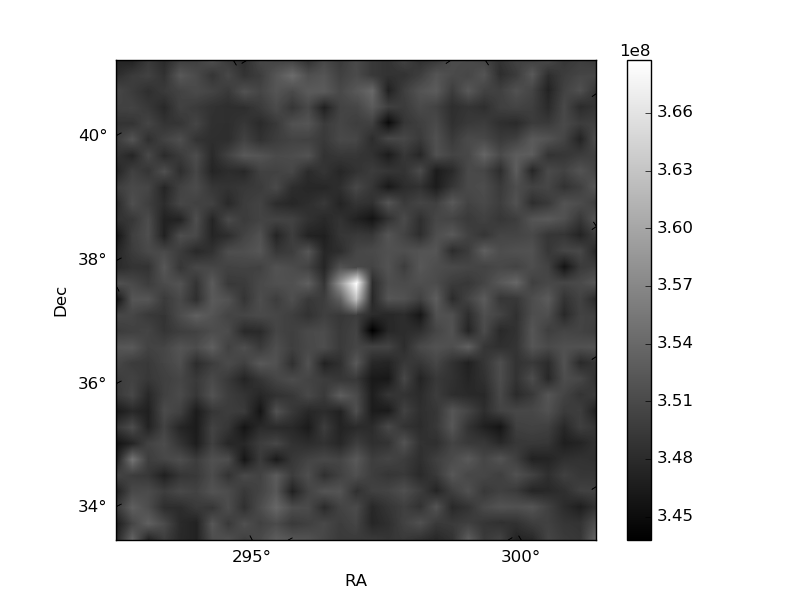

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

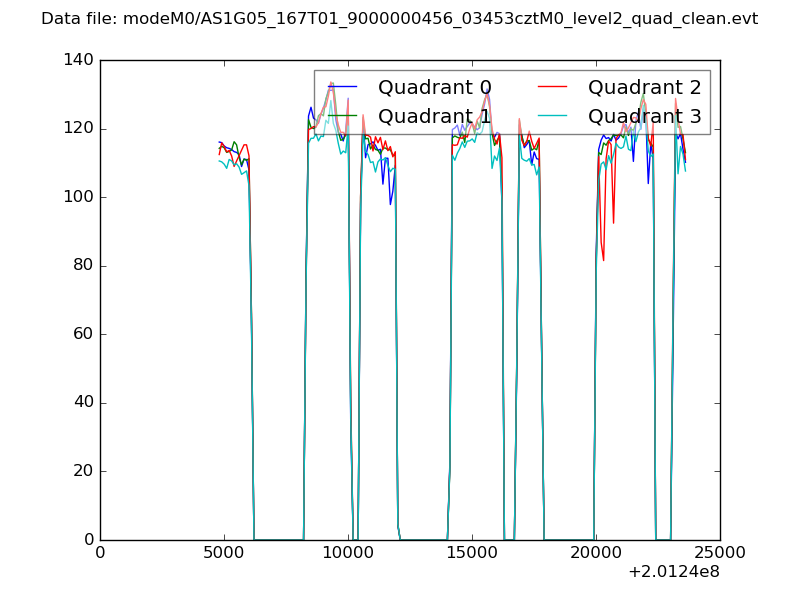

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

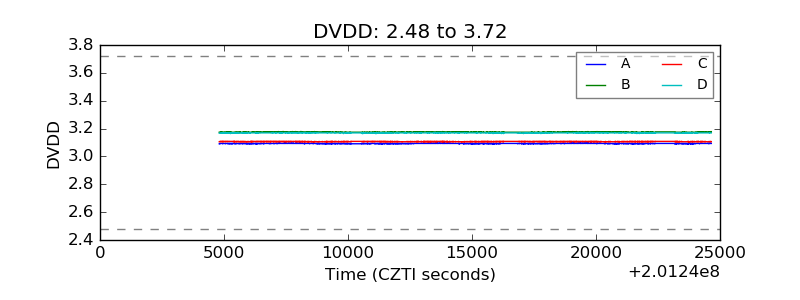

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

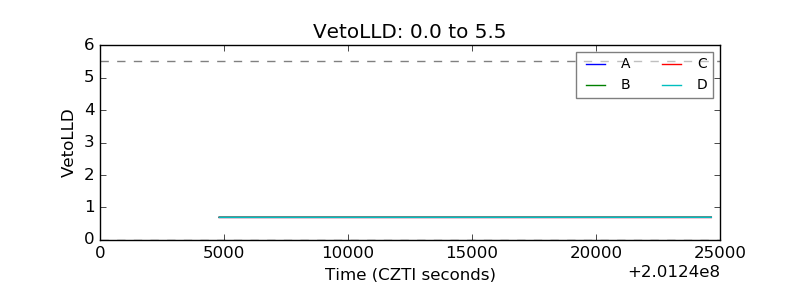

| Veto LLD |  |
| Alpha Counter |  |

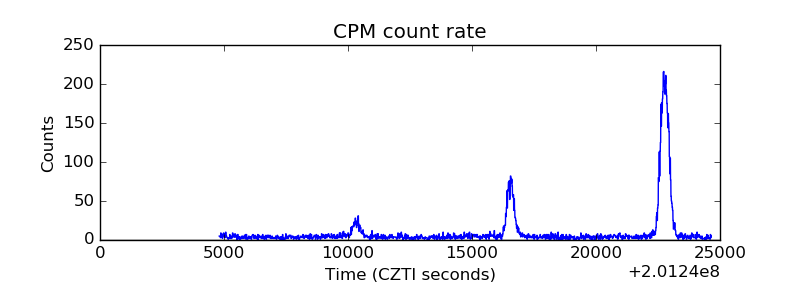

| _CPM_Rate |  |

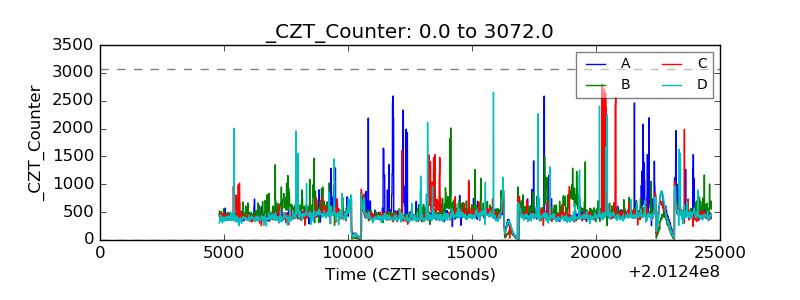

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

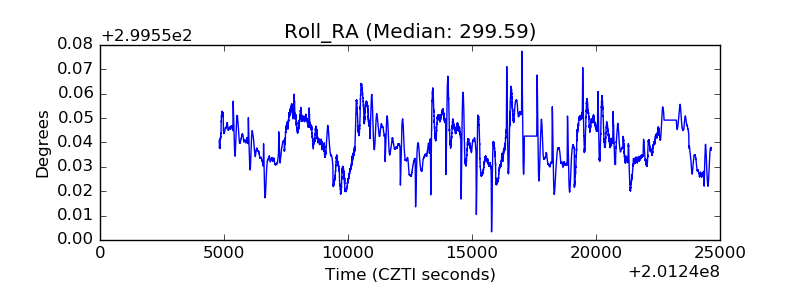

| _Roll_RA |  |
| Veto Counter |  |
