| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_209T01_9000000458_03460cztM0_level2.evt | modeM0/AS1G05_209T01_9000000458_03460cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,256,640 | 106,623,360 |
| Size | 398.9 MB | 101.7 MB |
| Events in quadrant A | 2,889,215 | 691,060 |
| Events in quadrant B | 3,330,132 | 697,801 |
| Events in quadrant C | 3,145,029 | 716,913 |
| Events in quadrant D | 2,876,302 | 686,100 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13191 | 3 |
| B | 0 | 14387 | 2 |
| C | 0 | 13801 | 2 |
| D | 0 | 13285 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6273 | 78 | 1.243424% |
| B | 6273 | 73 | 1.163718% |
| C | 6273 | 112 | 1.785430% |
| D | 6273 | 55 | 0.876773% |

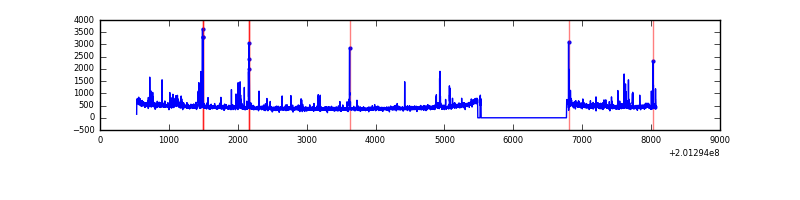

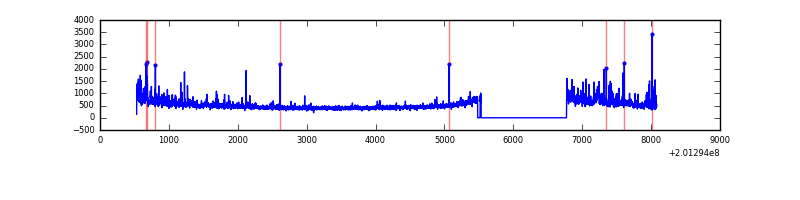

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6275 | 18 | 18 | 0.24% | 0.29% |  |
| B | 7548 | 6275 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7548 | 6274 | 52 | 52 | 0.69% | 0.83% |  |
| D | 7548 | 6275 | 9 | 9 | 0.12% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 63160 | 435.07 | 711 | 694 | 143.6 |
| A | 0 | 149 | 47681 | 327.26 | 711 | 694 | 143.6 |
| A | 0 | 226 | 17519 | 117.18 | 711 | 694 | 143.6 |
| B | 15 | 204 | 362465 | 2647.24 | 729 | 712 | 136.7 |
| B | 0 | 229 | 39281 | 282.24 | 729 | 712 | 136.7 |
| B | 4 | 81 | 29038 | 207.28 | 729 | 712 | 136.7 |
| C | 1 | 192 | 194637 | 1195.76 | 712 | 715 | 162.2 |
| C | 6 | 80 | 131885 | 808.82 | 712 | 715 | 162.2 |
| C | 9 | 144 | 20746 | 123.51 | 712 | 715 | 162.2 |
| D | 13 | 223 | 76633 | 449.2 | 703 | 683 | 169.1 |
| D | 10 | 172 | 63361 | 370.71 | 703 | 683 | 169.1 |
| D | 5 | 233 | 31411 | 181.74 | 703 | 683 | 169.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

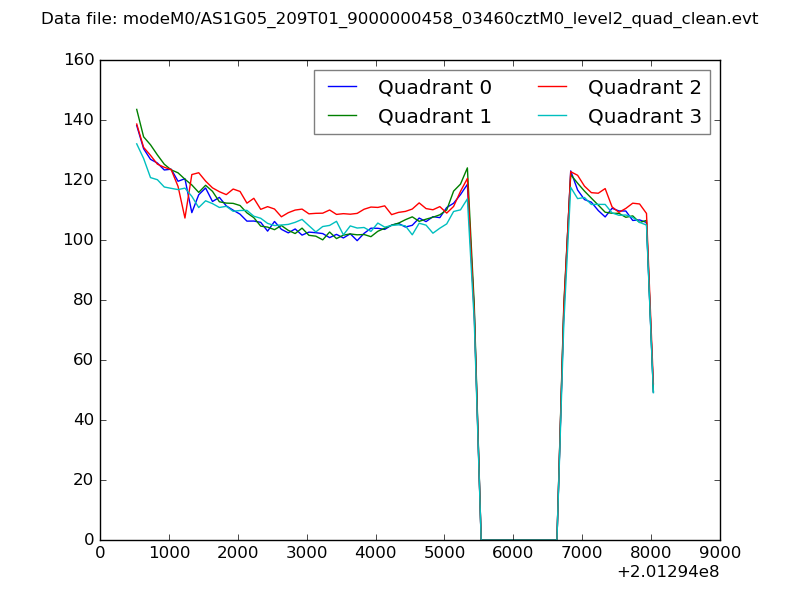

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
