| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_211T01_9000000464_03482cztM0_level2.evt | modeM0/AS1G05_211T01_9000000464_03482cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,446,989,760 | 204,419,520 |
| Size | 1.3 GB | 194.9 MB |
| Events in quadrant A | 10,664,931 | 1,225,169 |
| Events in quadrant B | 10,486,536 | 1,231,208 |
| Events in quadrant C | 11,817,571 | 1,198,873 |
| Events in quadrant D | 9,521,037 | 1,177,307 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 45886 | 5 |
| B | 0 | 43842 | 4 |
| C | 0 | 48991 | 4 |
| D | 0 | 43501 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 400 | 0 |
| B | 0 | 400 | 0 |
| C | 0 | 400 | 0 |
| D | 0 | 400 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19706 | 853 | 4.328631% |
| B | 19706 | 541 | 2.745357% |
| C | 19706 | 936 | 4.749822% |
| D | 19706 | 686 | 3.481173% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21461 | 19707 | 264 | 264 | 1.23% | 1.34% |  |
| B | 21461 | 19707 | 31 | 31 | 0.14% | 0.16% |  |
| C | 21461 | 19708 | 478 | 478 | 2.23% | 2.43% |  |
| D | 21461 | 19707 | 312 | 312 | 1.45% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 1527233 | 3303.14 | 2239 | 2184 | 461.7 |
| A | 8 | 15 | 216405 | 463.99 | 2239 | 2184 | 461.7 |
| A | 15 | 174 | 164578 | 351.73 | 2239 | 2184 | 461.7 |
| B | 15 | 204 | 1127760 | 2516.96 | 2285 | 2223 | 447.2 |
| B | 2 | 249 | 108932 | 238.62 | 2285 | 2223 | 447.2 |
| B | 4 | 200 | 86701 | 188.91 | 2285 | 2223 | 447.2 |
| C | 7 | 220 | 3128829 | 6196.52 | 2168 | 2177 | 504.6 |
| C | 1 | 16 | 56299 | 107.26 | 2168 | 2177 | 504.6 |
| C | 6 | 80 | 49005 | 92.81 | 2168 | 2177 | 504.6 |
| D | 13 | 46 | 1045082 | 1997.67 | 2168 | 2104 | 522.1 |
| D | 13 | 239 | 90066 | 168.48 | 2168 | 2104 | 522.1 |
| D | 2 | 37 | 83974 | 156.81 | 2168 | 2104 | 522.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

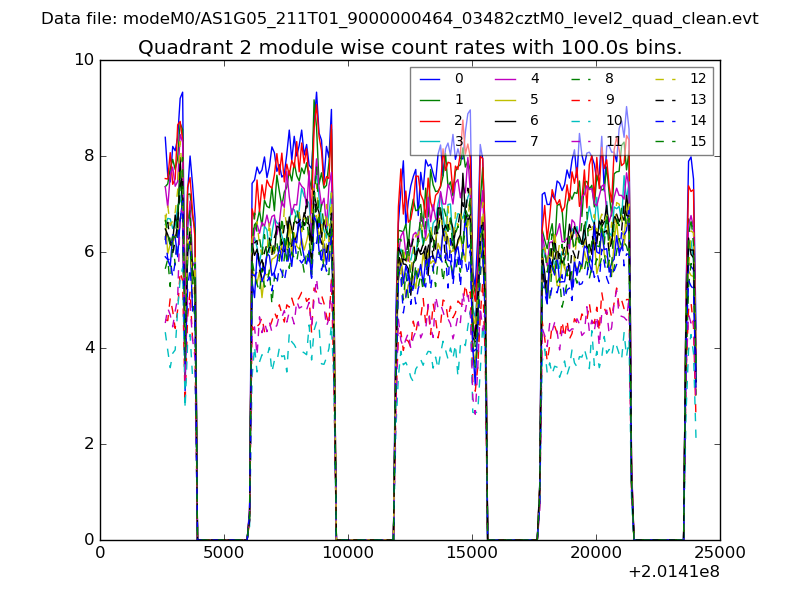

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

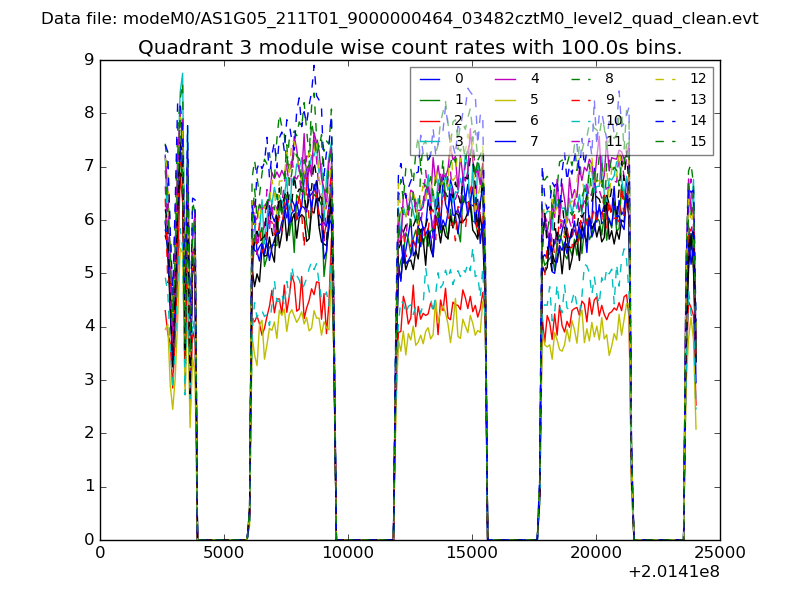

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

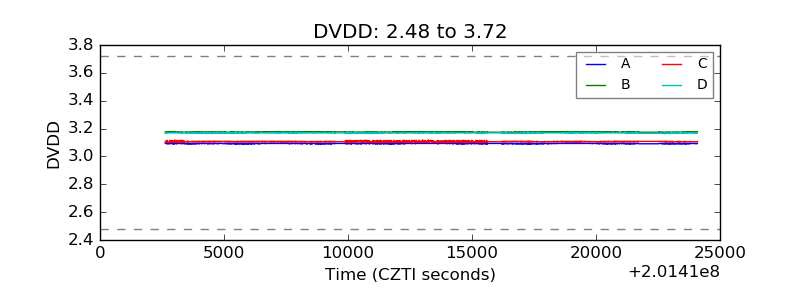

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

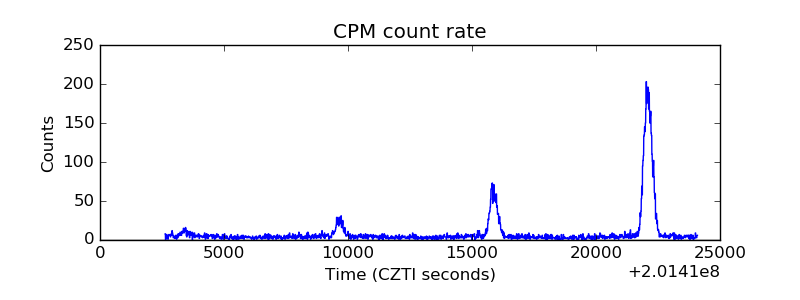

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

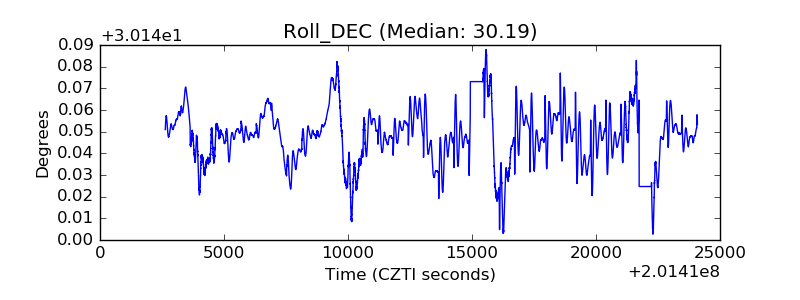

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
