| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_211T01_9000000464_03485cztM0_level2.evt | modeM0/AS1G05_211T01_9000000464_03485cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,221,440 | 78,952,320 |
| Size | 459.9 MB | 75.3 MB |
| Events in quadrant A | 3,057,294 | 503,765 |
| Events in quadrant B | 3,255,274 | 503,042 |
| Events in quadrant C | 5,084,910 | 469,351 |
| Events in quadrant D | 2,787,108 | 483,276 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13441 | 2 |
| B | 0 | 13692 | 1 |
| C | 0 | 19336 | 1 |
| D | 0 | 12890 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6175 | 90 | 1.457490% |
| B | 6175 | 84 | 1.360324% |
| C | 6175 | 710 | 11.497976% |
| D | 6175 | 64 | 1.036437% |

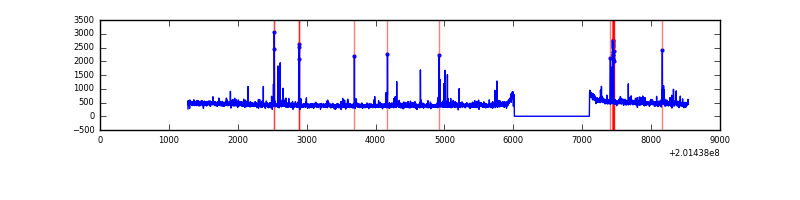

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

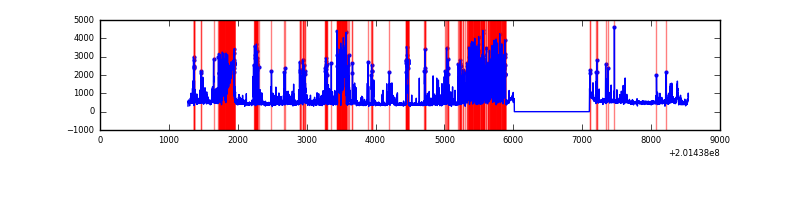

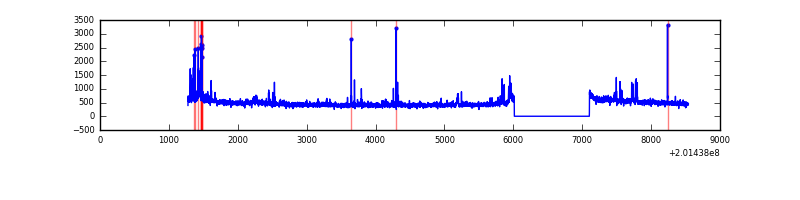

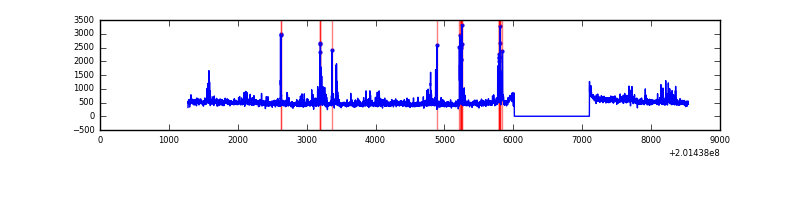

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7265 | 6175 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7265 | 6175 | 23 | 23 | 0.32% | 0.37% |  |
| C | 7265 | 6175 | 558 | 558 | 7.68% | 9.04% |  |
| D | 7265 | 6175 | 22 | 22 | 0.30% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 133918 | 917.32 | 712 | 700 | 145.2 |
| A | 0 | 50 | 96083 | 656.79 | 712 | 700 | 145.2 |
| A | 14 | 111 | 52571 | 357.17 | 712 | 700 | 145.2 |
| B | 15 | 204 | 216845 | 1564.05 | 716 | 701 | 138.2 |
| B | 5 | 70 | 122655 | 882.48 | 716 | 701 | 138.2 |
| B | 4 | 200 | 57952 | 414.28 | 716 | 701 | 138.2 |
| C | 7 | 220 | 2430727 | 15751.99 | 659 | 663 | 154.3 |
| C | 1 | 192 | 24210 | 152.63 | 659 | 663 | 154.3 |
| C | 1 | 16 | 22555 | 141.91 | 659 | 663 | 154.3 |
| D | 12 | 110 | 45189 | 264.18 | 695 | 673 | 168.5 |
| D | 5 | 233 | 40209 | 234.63 | 695 | 673 | 168.5 |
| D | 13 | 223 | 29214 | 169.38 | 695 | 673 | 168.5 |

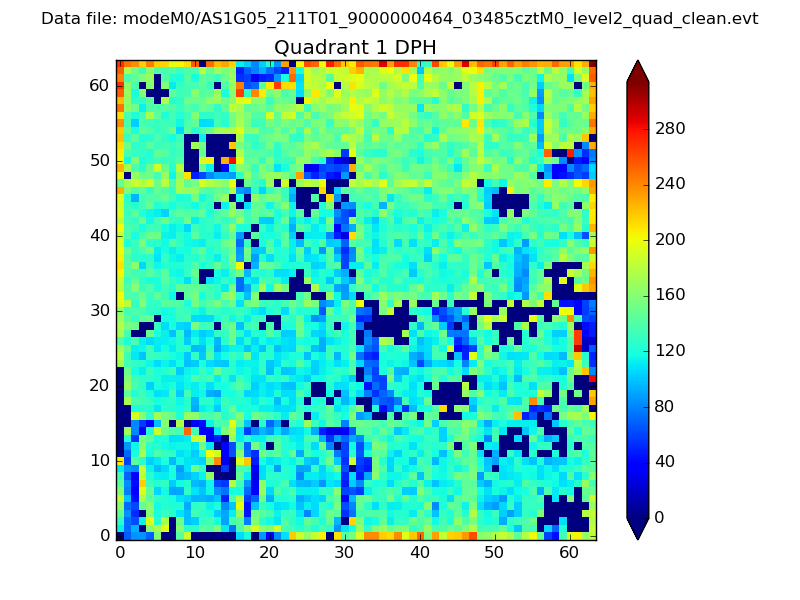

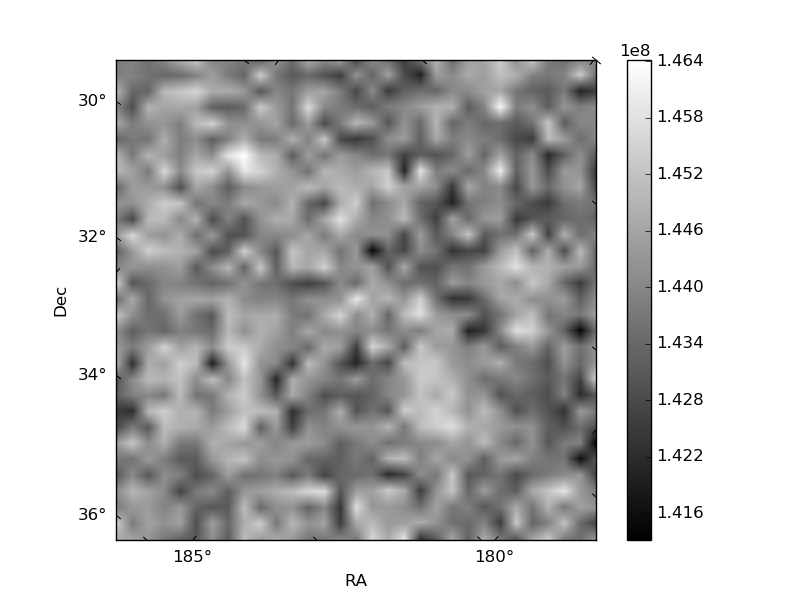

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

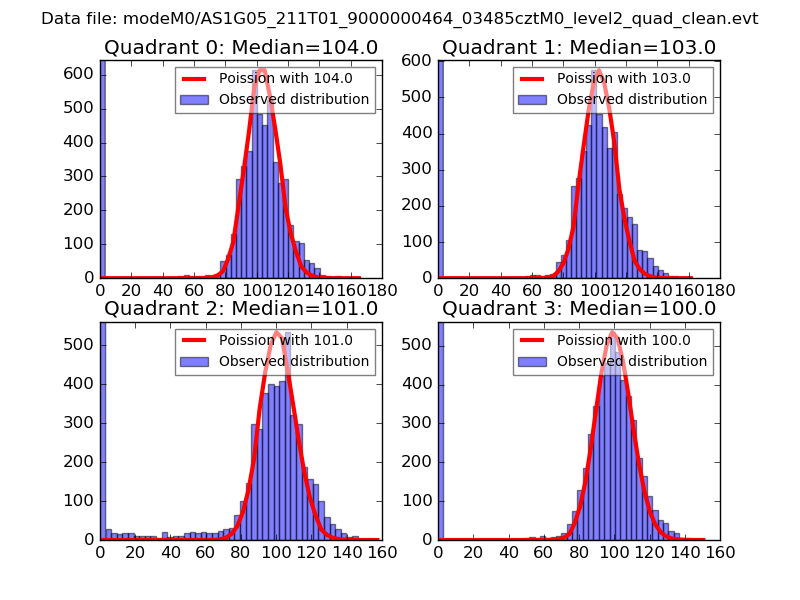

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

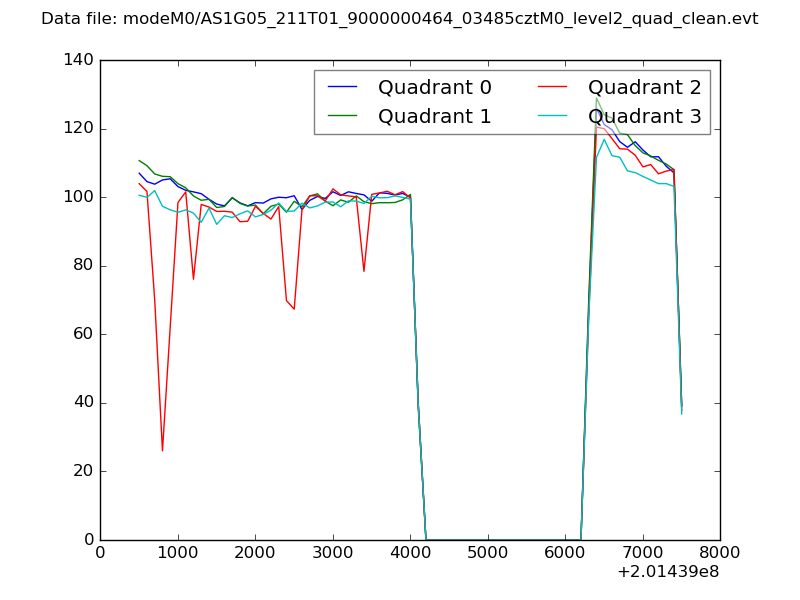

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

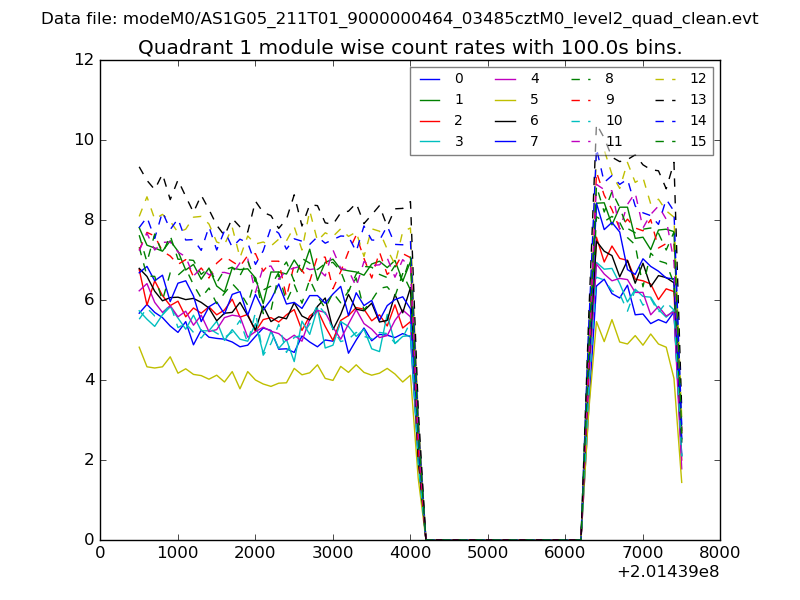

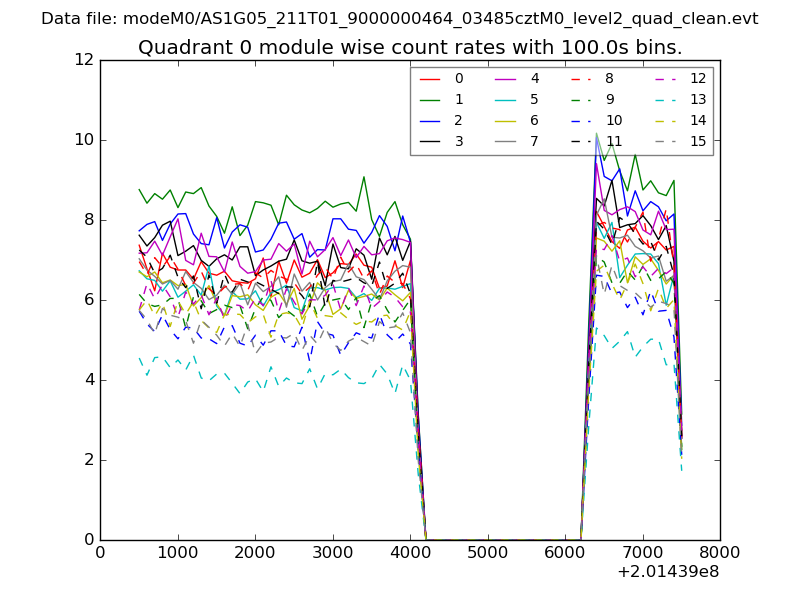

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

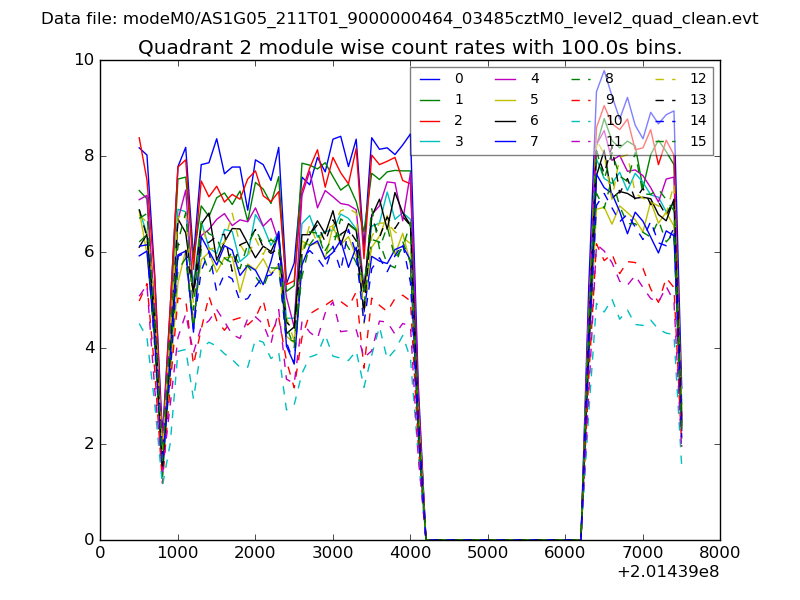

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

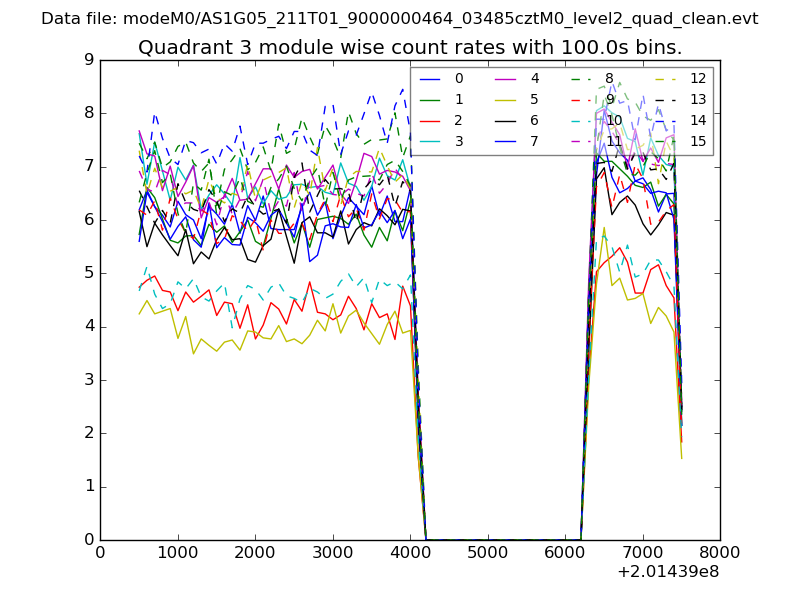

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

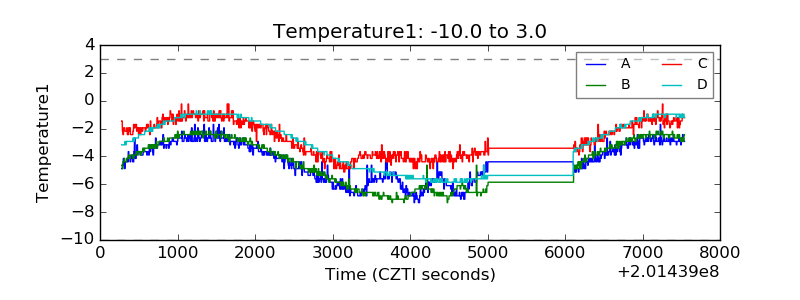

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

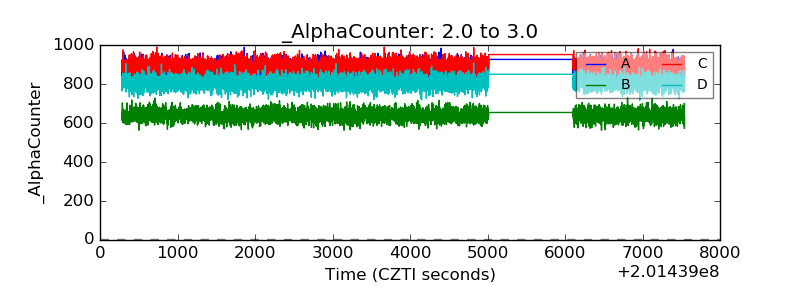

| Alpha Counter |  |
| _CPM_Rate |  |

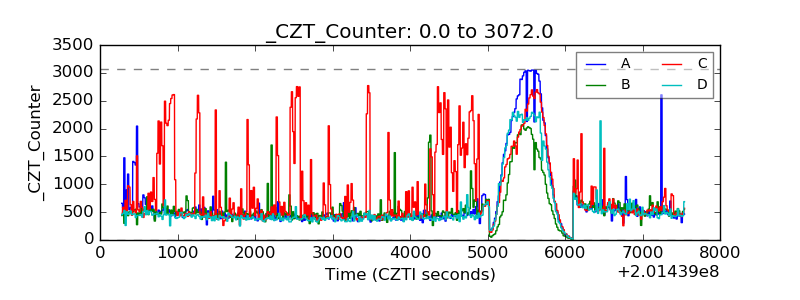

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

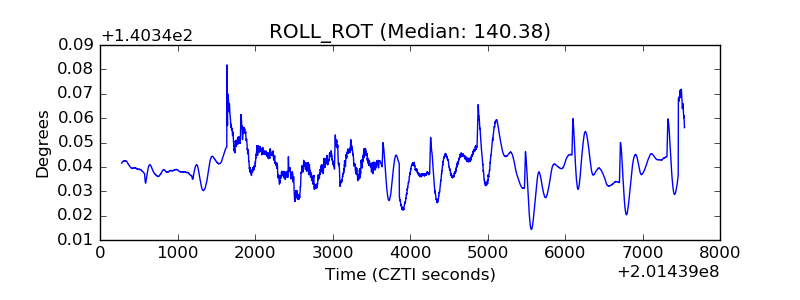

| _ROLL_ROT |  |

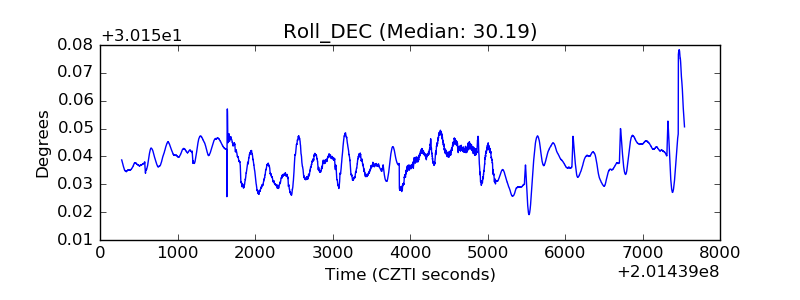

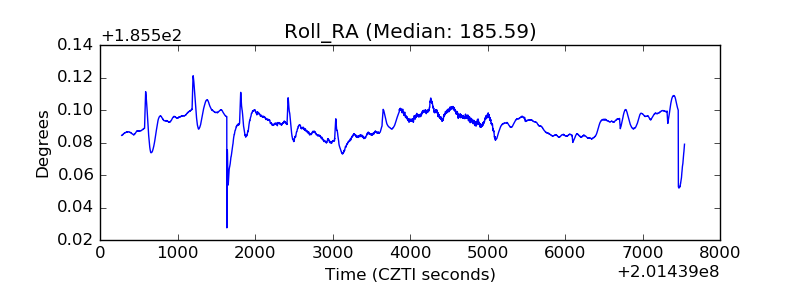

| _Roll_DEC |  |
| _Roll_RA |  |

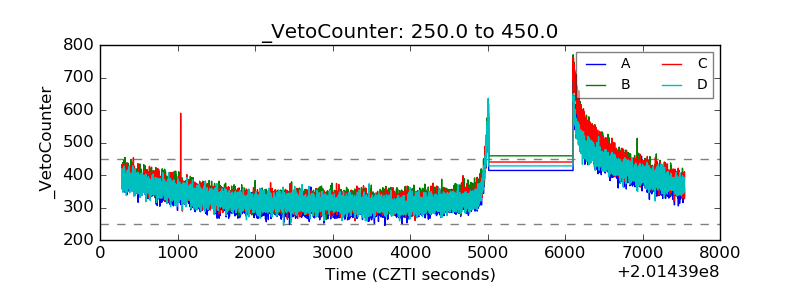

| Veto Counter |  |
