| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_211T01_9000000464_03497cztM0_level2.evt | modeM0/AS1G05_211T01_9000000464_03497cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,105,920 | 76,155,840 |
| Size | 507.5 MB | 72.6 MB |
| Events in quadrant A | 3,802,034 | 460,791 |
| Events in quadrant B | 3,707,678 | 465,622 |
| Events in quadrant C | 5,008,782 | 445,526 |
| Events in quadrant D | 3,120,930 | 445,897 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16255 | 3 |
| B | 0 | 15360 | 2 |
| C | 0 | 19616 | 2 |
| D | 0 | 14553 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 261 | 3.724847% |
| B | 7007 | 139 | 1.983731% |
| C | 7007 | 430 | 6.136720% |
| D | 7007 | 89 | 1.270158% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7842 | 7007 | 85 | 85 | 1.08% | 1.21% |  |
| B | 7842 | 7007 | 9 | 9 | 0.11% | 0.13% |  |
| C | 7842 | 7007 | 326 | 326 | 4.16% | 4.65% |  |
| D | 7842 | 7007 | 16 | 16 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 642347 | 3829.35 | 804 | 786 | 167.5 |
| A | 0 | 118 | 34252 | 199.75 | 804 | 786 | 167.5 |
| A | 8 | 15 | 13553 | 76.2 | 804 | 786 | 167.5 |
| B | 15 | 204 | 339416 | 2111.68 | 816 | 796 | 160.4 |
| B | 4 | 81 | 120779 | 748.23 | 816 | 796 | 160.4 |
| B | 15 | 85 | 23741 | 143.09 | 816 | 796 | 160.4 |
| C | 1 | 192 | 1669276 | 9302.32 | 765 | 768 | 179.4 |
| C | 7 | 220 | 255108 | 1418.0 | 765 | 768 | 179.4 |
| C | 14 | 223 | 45545 | 249.64 | 765 | 768 | 179.4 |
| D | 10 | 231 | 39704 | 204.79 | 780 | 754 | 190.2 |
| D | 2 | 37 | 38572 | 198.84 | 780 | 754 | 190.2 |
| D | 13 | 239 | 38343 | 197.64 | 780 | 754 | 190.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

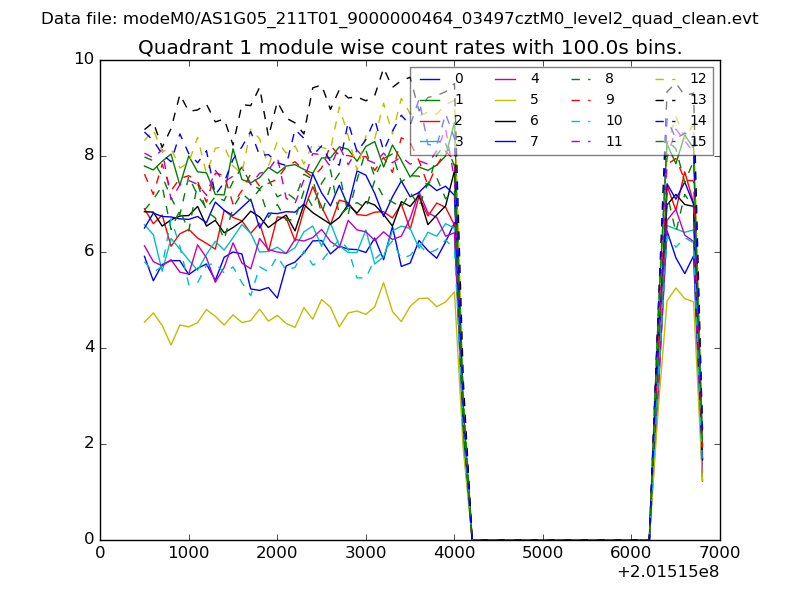

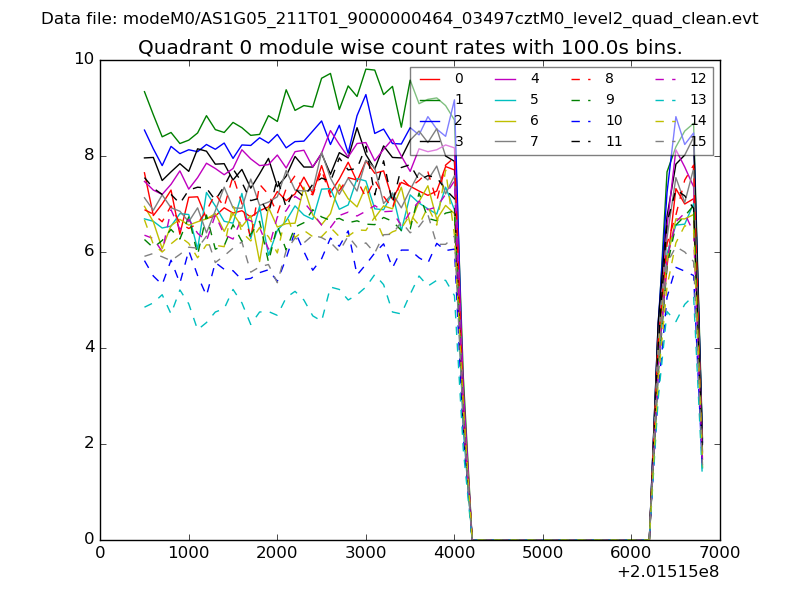

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

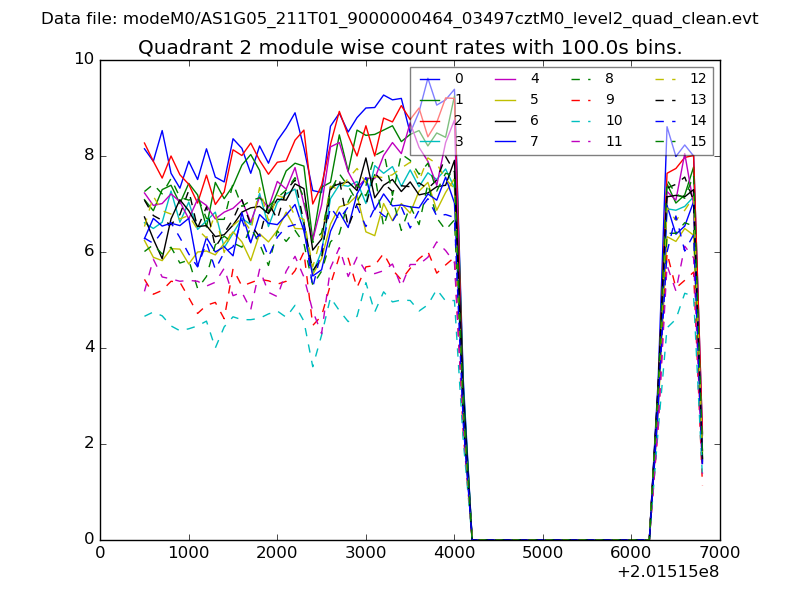

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

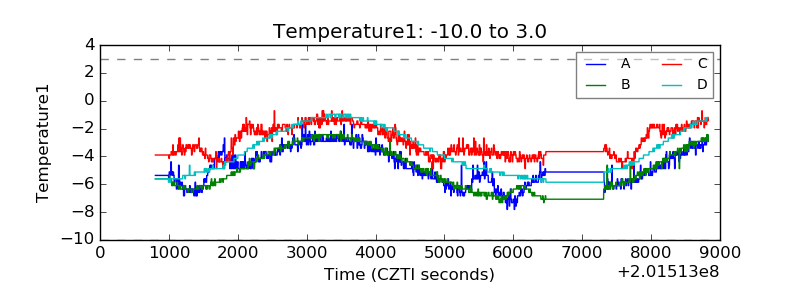

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

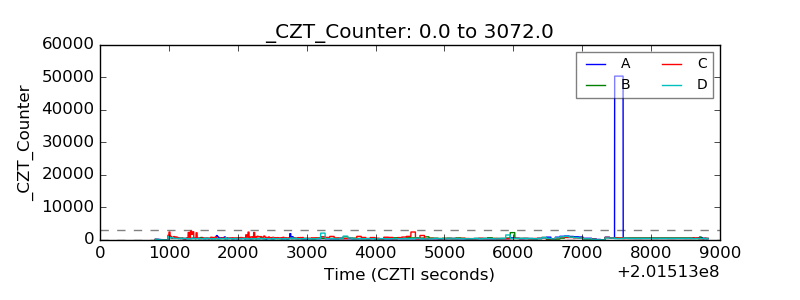

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

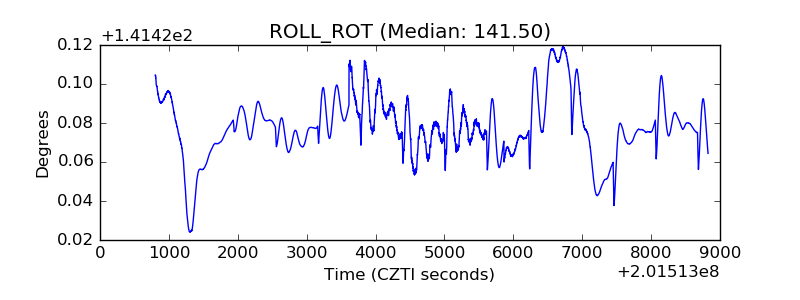

| _ROLL_ROT |  |

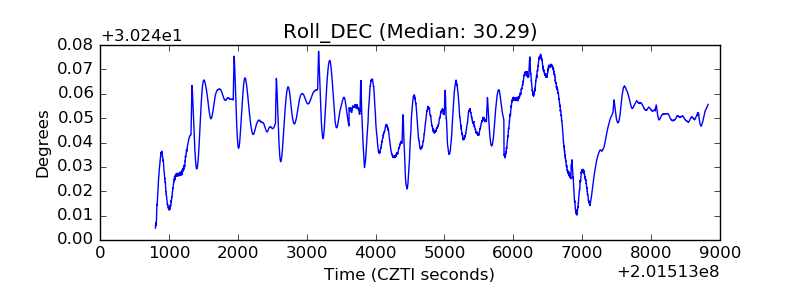

| _Roll_DEC |  |

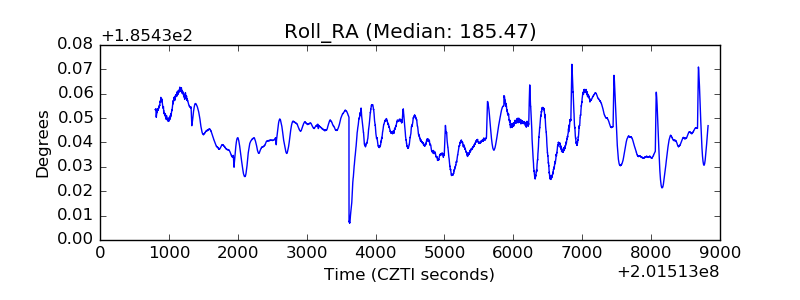

| _Roll_RA |  |
| Veto Counter |  |
