| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03515cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03515cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,458,240 | 94,017,600 |
| Size | 381.9 MB | 89.7 MB |
| Events in quadrant A | 2,854,833 | 615,142 |
| Events in quadrant B | 3,272,175 | 616,830 |
| Events in quadrant C | 2,894,421 | 604,721 |
| Events in quadrant D | 2,696,705 | 590,044 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12749 | 2 |
| B | 0 | 13781 | 1 |
| C | 0 | 12793 | 1 |
| D | 0 | 12468 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6017 | 88 | 1.462523% |
| B | 6017 | 70 | 1.163370% |
| C | 6017 | 66 | 1.096892% |
| D | 6017 | 70 | 1.163370% |

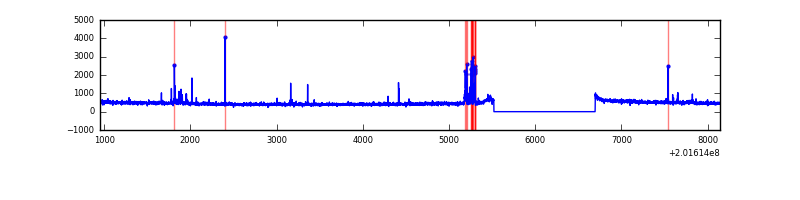

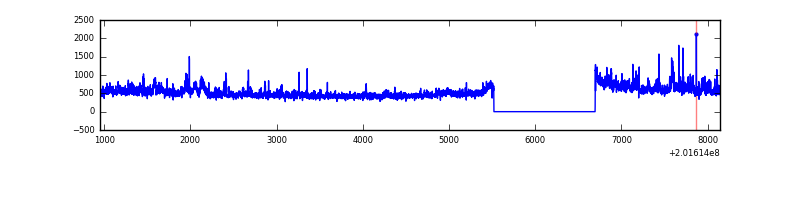

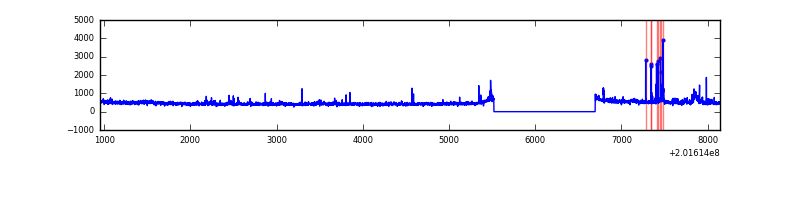

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

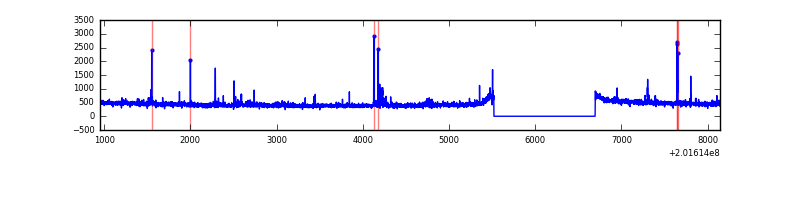

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7192 | 6017 | 18 | 18 | 0.25% | 0.30% |  |
| B | 7192 | 6017 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7192 | 6017 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7192 | 6017 | 7 | 7 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 84167 | 580.99 | 700 | 686 | 143.7 |
| A | 7 | 16 | 28366 | 192.64 | 700 | 686 | 143.7 |
| A | 14 | 238 | 13084 | 86.28 | 700 | 686 | 143.7 |
| B | 15 | 204 | 459387 | 3393.84 | 707 | 690 | 135.2 |
| B | 4 | 81 | 29868 | 215.88 | 707 | 690 | 135.2 |
| B | 15 | 54 | 16041 | 113.58 | 707 | 690 | 135.2 |
| C | 1 | 192 | 139846 | 877.61 | 683 | 685 | 158.6 |
| C | 15 | 208 | 29861 | 184.0 | 683 | 685 | 158.6 |
| C | 1 | 16 | 19197 | 116.74 | 683 | 685 | 158.6 |
| D | 13 | 223 | 41974 | 250.33 | 684 | 664 | 165.0 |
| D | 10 | 34 | 14762 | 85.43 | 684 | 664 | 165.0 |
| D | 5 | 233 | 13813 | 79.68 | 684 | 664 | 165.0 |

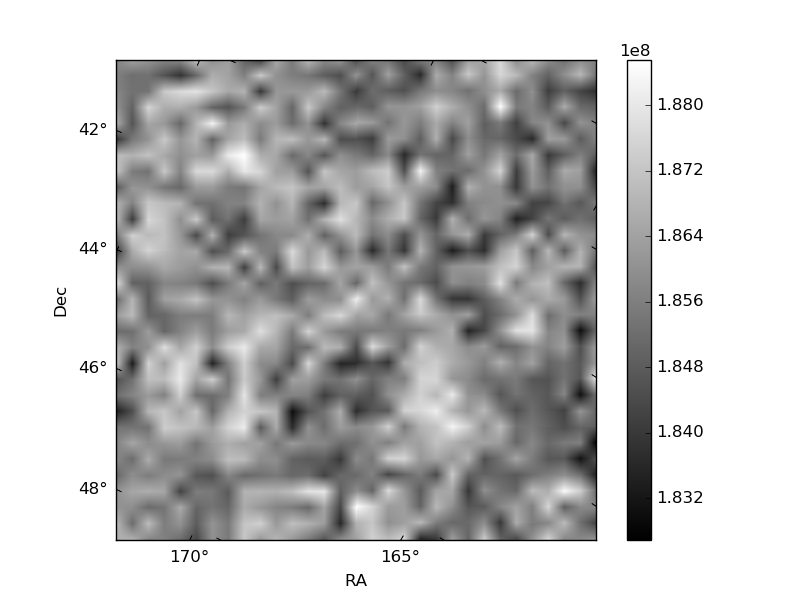

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

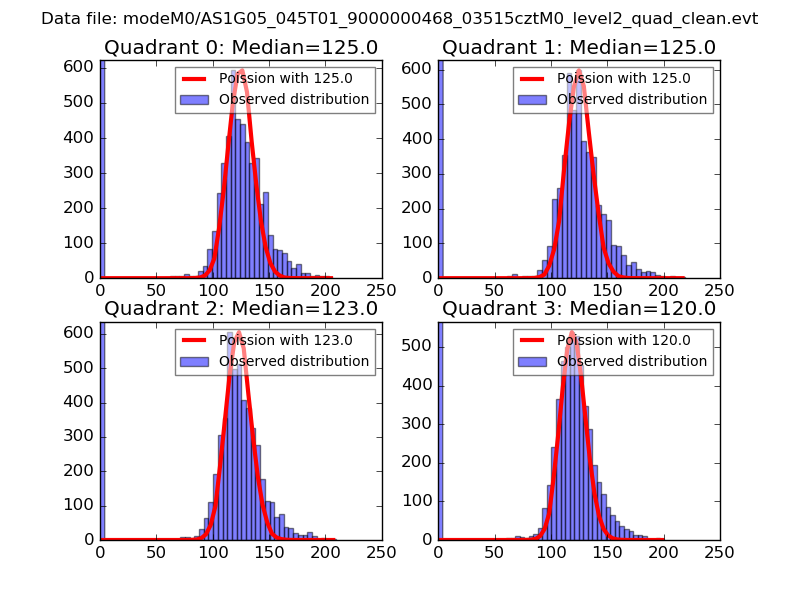

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

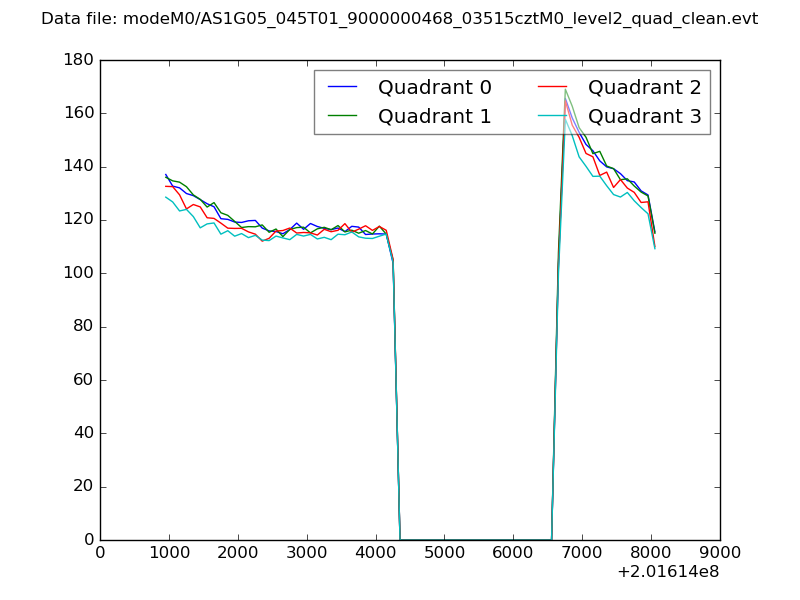

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

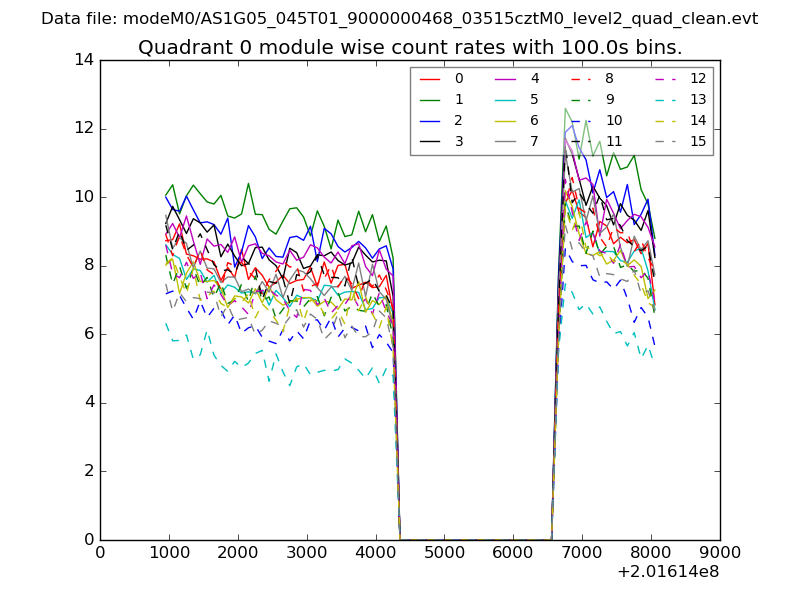

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

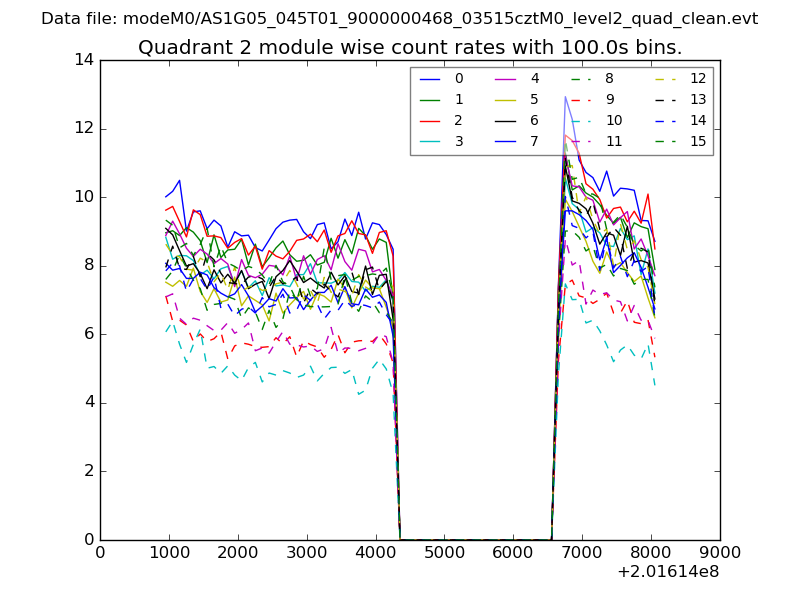

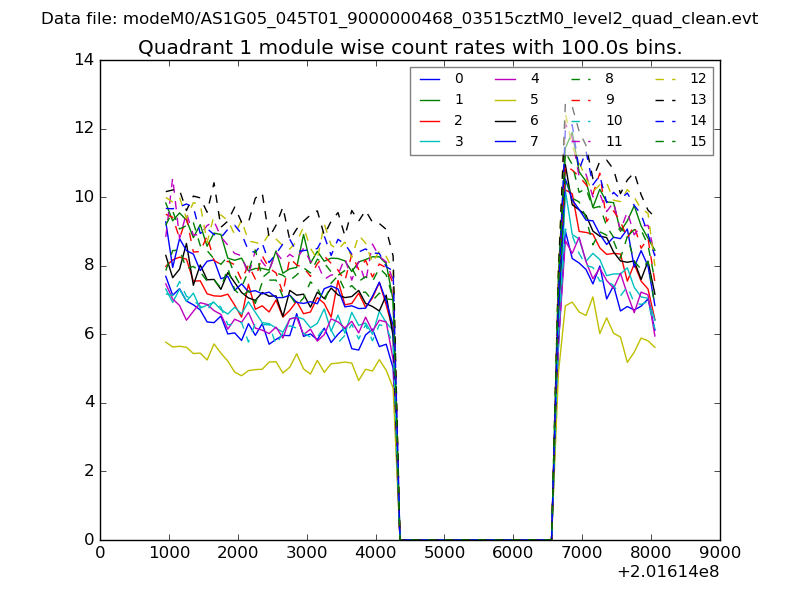

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

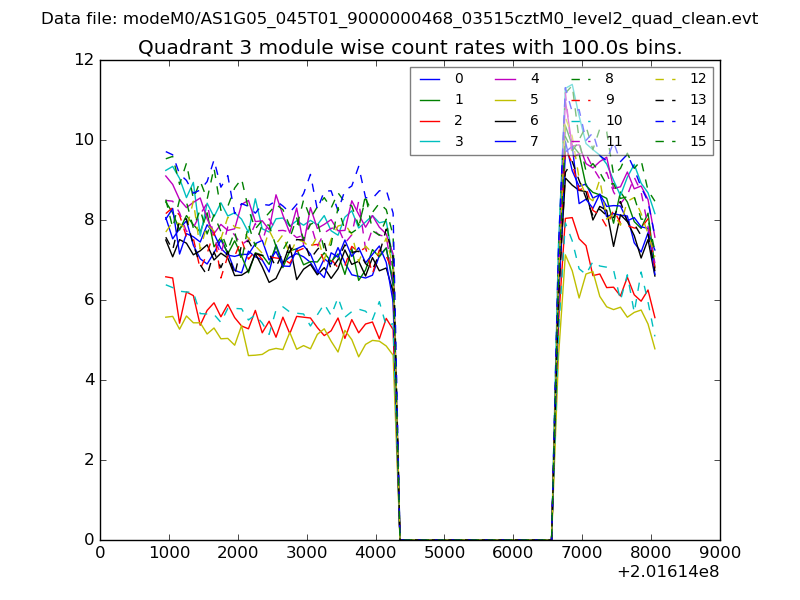

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

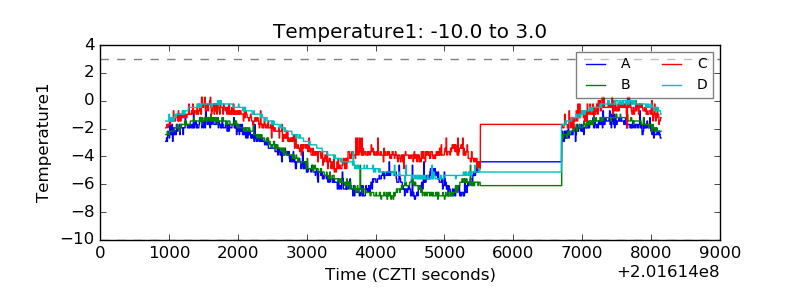

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

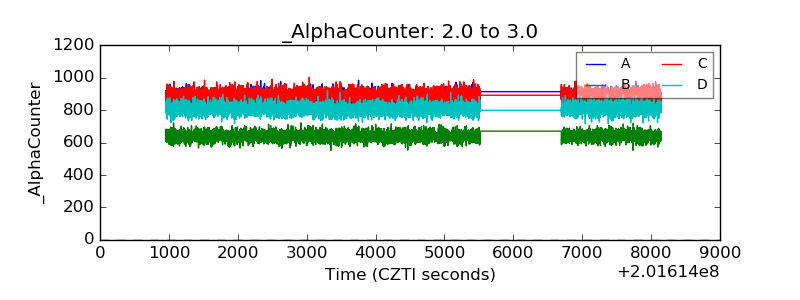

| Alpha Counter |  |

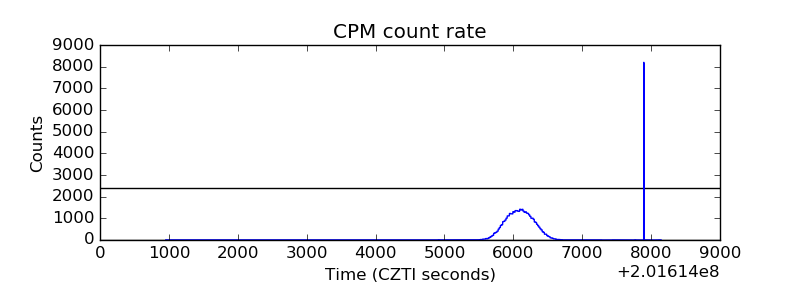

| _CPM_Rate |  |

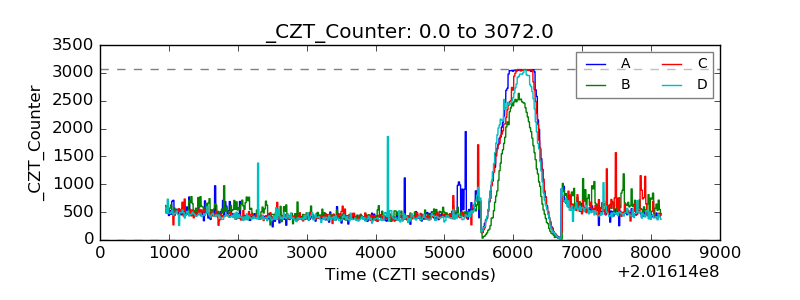

| CZT Counter |  |

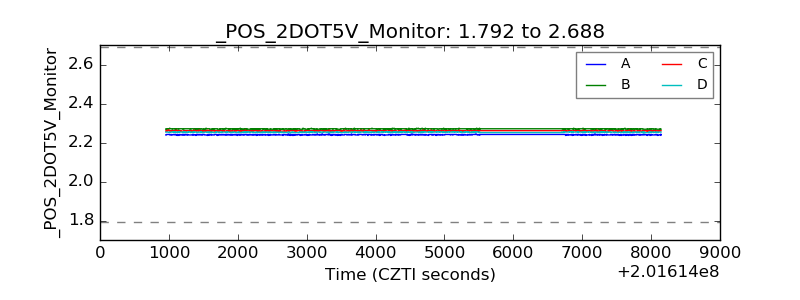

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

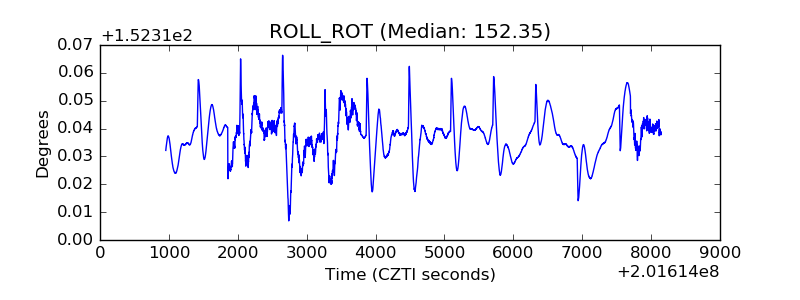

| _ROLL_ROT |  |

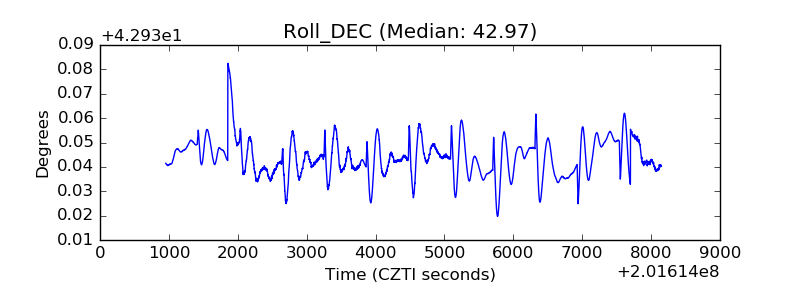

| _Roll_DEC |  |

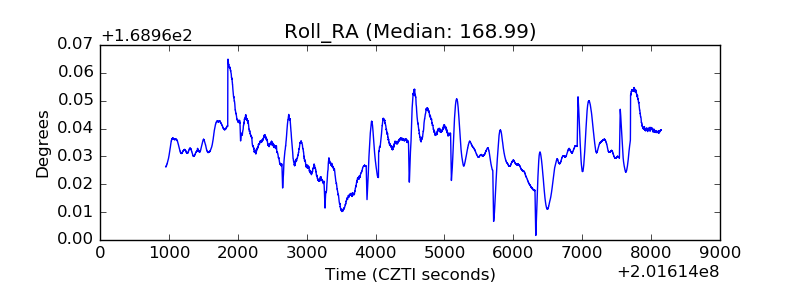

| _Roll_RA |  |

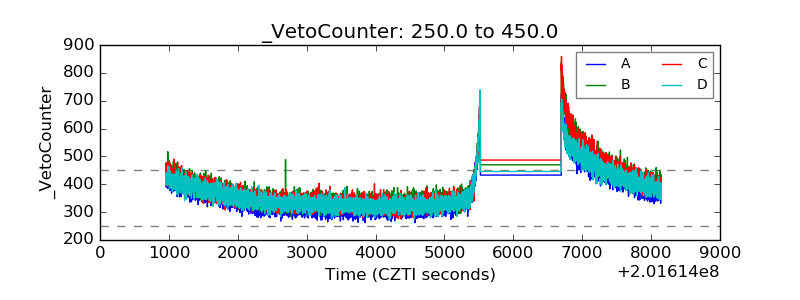

| Veto Counter |  |
