| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03521cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03521cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,502,400 | 98,524,800 |
| Size | 487.8 MB | 94.0 MB |
| Events in quadrant A | 3,821,519 | 618,207 |
| Events in quadrant B | 4,120,258 | 617,250 |
| Events in quadrant C | 3,593,810 | 615,734 |
| Events in quadrant D | 3,430,333 | 595,148 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16942 | 4 |
| B | 0 | 17730 | 3 |
| C | 0 | 16427 | 3 |
| D | 0 | 16261 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7720 | 106 | 1.373057% |
| B | 7720 | 211 | 2.733161% |
| C | 7720 | 68 | 0.880829% |
| D | 7720 | 33 | 0.427461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8540 | 7723 | 41 | 41 | 0.48% | 0.53% |  |
| B | 8540 | 7722 | 25 | 25 | 0.29% | 0.32% |  |
| C | 8540 | 7723 | 16 | 16 | 0.19% | 0.21% |  |
| D | 8540 | 7723 | 22 | 22 | 0.26% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 386558 | 2151.49 | 866 | 844 | 179.3 |
| A | 8 | 15 | 56900 | 312.68 | 866 | 844 | 179.3 |
| A | 3 | 1 | 12115 | 62.87 | 866 | 844 | 179.3 |
| B | 15 | 204 | 378180 | 2185.43 | 883 | 859 | 172.7 |
| B | 2 | 249 | 170103 | 980.25 | 883 | 859 | 172.7 |
| B | 4 | 81 | 64276 | 367.31 | 883 | 859 | 172.7 |
| C | 15 | 208 | 75958 | 372.58 | 856 | 859 | 201.6 |
| C | 1 | 192 | 73480 | 360.29 | 856 | 859 | 201.6 |
| C | 1 | 16 | 50690 | 247.22 | 856 | 859 | 201.6 |
| D | 13 | 223 | 72325 | 348.4 | 849 | 822 | 205.2 |
| D | 2 | 37 | 27208 | 128.57 | 849 | 822 | 205.2 |
| D | 13 | 25 | 25428 | 119.89 | 849 | 822 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

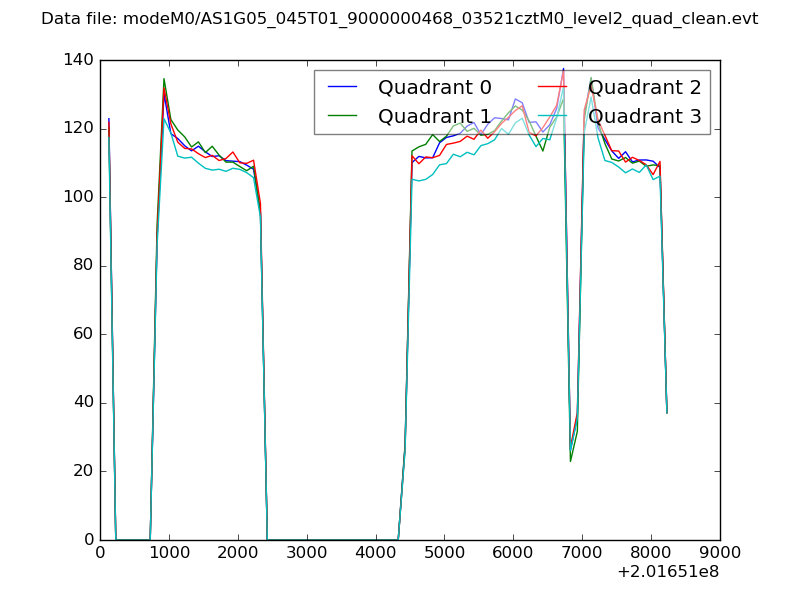

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

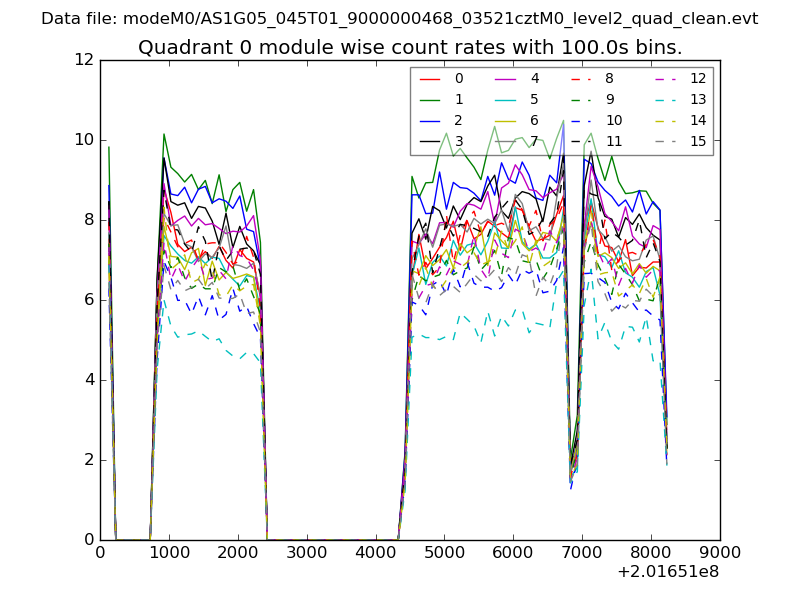

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

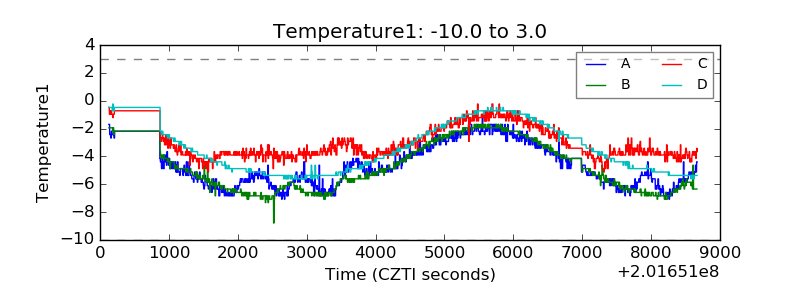

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

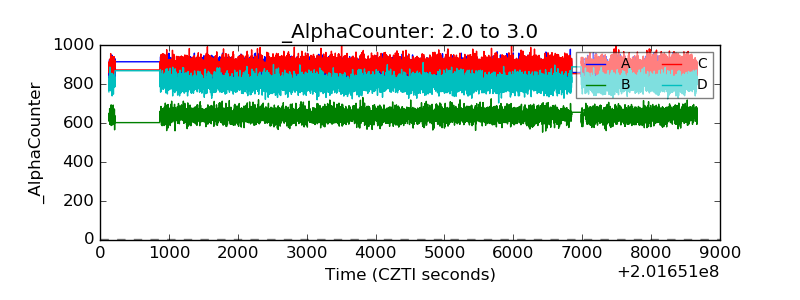

| Alpha Counter |  |
| _CPM_Rate |  |

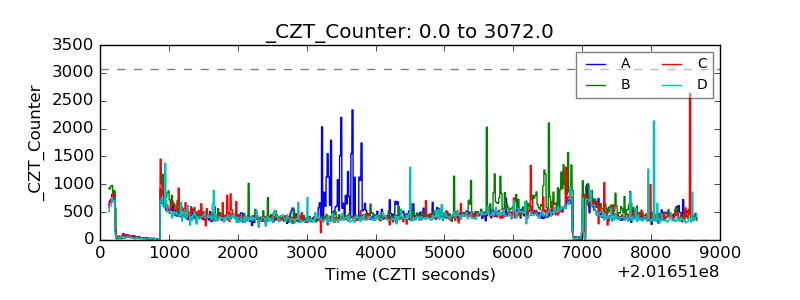

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

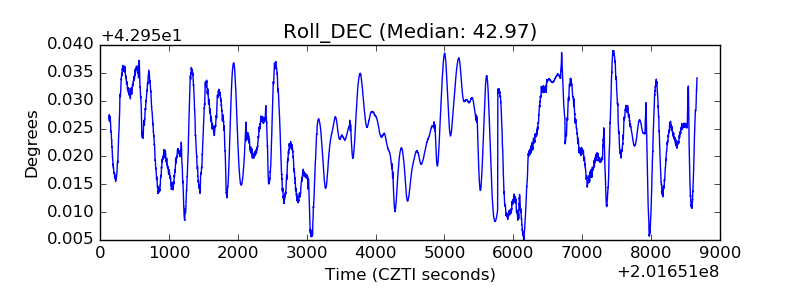

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
