| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03525cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03525cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,245,760 | 76,164,480 |
| Size | 406.5 MB | 72.6 MB |
| Events in quadrant A | 2,969,051 | 468,932 |
| Events in quadrant B | 3,321,985 | 472,454 |
| Events in quadrant C | 3,186,298 | 467,985 |
| Events in quadrant D | 3,003,439 | 457,712 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13438 | 3 |
| B | 0 | 13967 | 2 |
| C | 0 | 13945 | 2 |
| D | 0 | 13732 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6289 | 189 | 3.005247% |
| B | 6289 | 189 | 3.005247% |
| C | 6289 | 140 | 2.226109% |
| D | 6289 | 151 | 2.401018% |

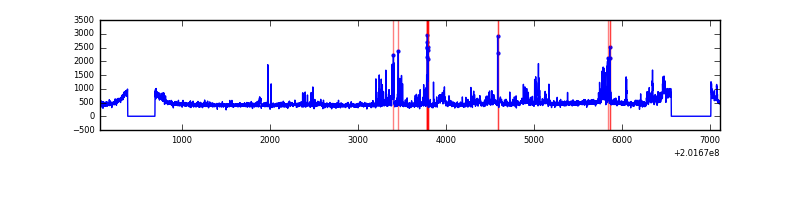

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7049 | 6289 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7049 | 6289 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7049 | 6290 | 15 | 15 | 0.21% | 0.24% |  |
| D | 7049 | 6289 | 35 | 35 | 0.50% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 179916 | 1195.09 | 720 | 699 | 150.0 |
| A | 8 | 15 | 10308 | 64.08 | 720 | 699 | 150.0 |
| A | 12 | 194 | 7781 | 47.23 | 720 | 699 | 150.0 |
| B | 15 | 204 | 256763 | 1770.49 | 731 | 711 | 144.6 |
| B | 15 | 85 | 83793 | 574.48 | 731 | 711 | 144.6 |
| B | 14 | 167 | 37742 | 256.05 | 731 | 711 | 144.6 |
| C | 4 | 248 | 283176 | 1693.0 | 705 | 706 | 166.8 |
| C | 1 | 192 | 114182 | 680.12 | 705 | 706 | 166.8 |
| C | 15 | 208 | 22249 | 129.12 | 705 | 706 | 166.8 |
| D | 5 | 233 | 120575 | 705.39 | 700 | 679 | 170.0 |
| D | 2 | 31 | 106706 | 623.8 | 700 | 679 | 170.0 |
| D | 13 | 223 | 64158 | 373.47 | 700 | 679 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

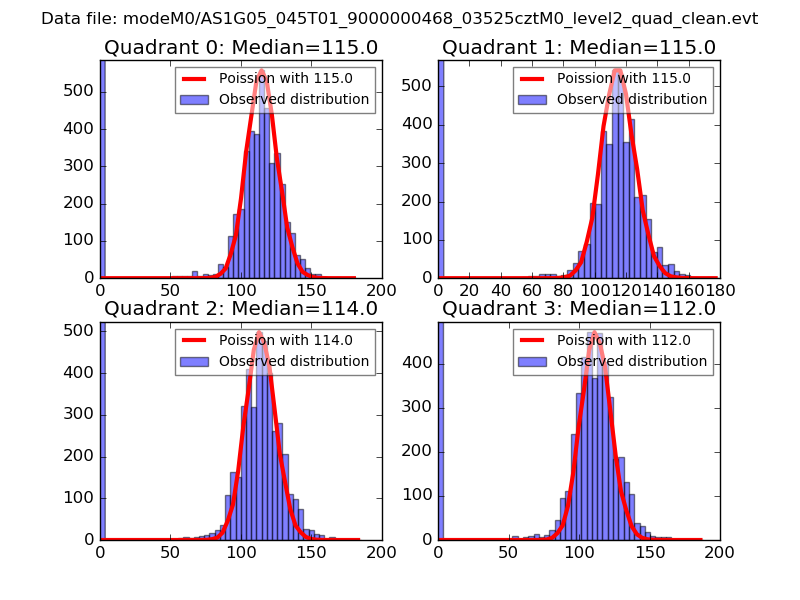

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

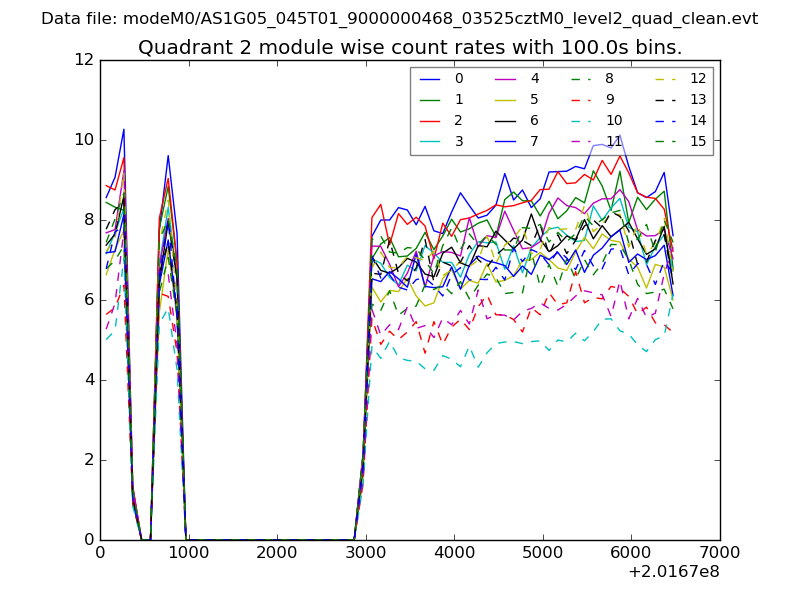

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

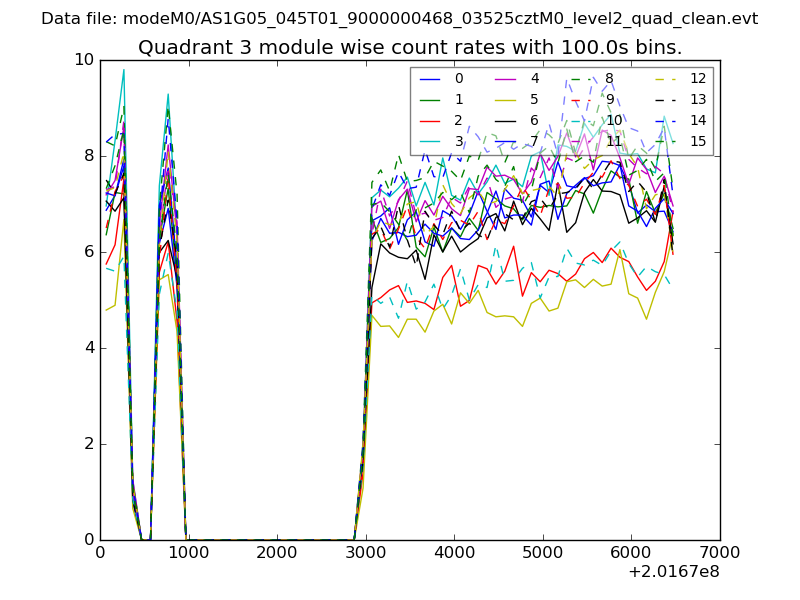

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

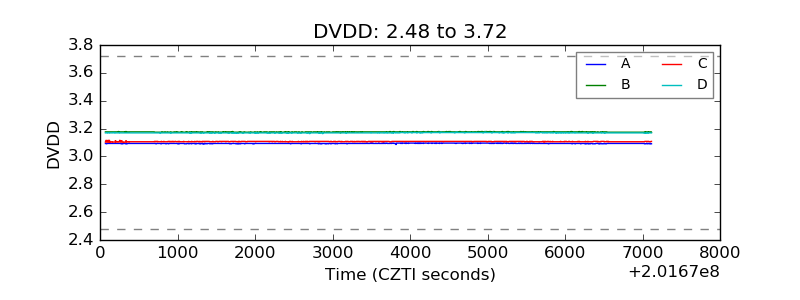

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

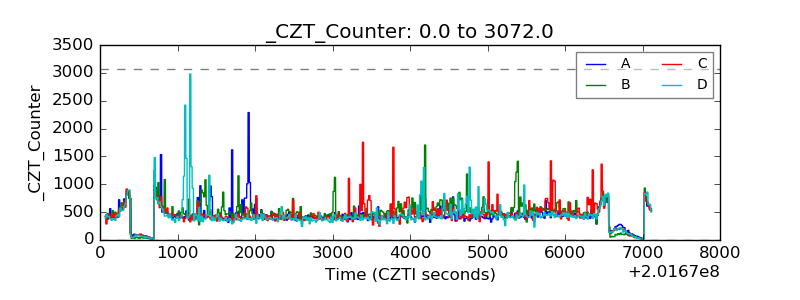

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

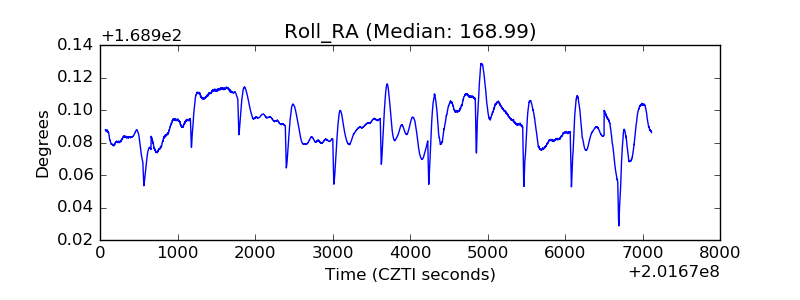

| _Roll_RA |  |

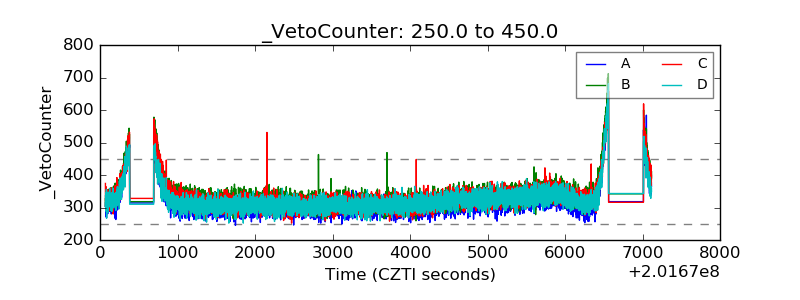

| Veto Counter |  |
