| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03526cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03526cztM0_level2_quad_clean.evt |
| Size (bytes) | 914,100,480 | 160,430,400 |
| Size | 871.8 MB | 153.0 MB |
| Events in quadrant A | 6,823,131 | 991,640 |
| Events in quadrant B | 6,786,866 | 998,413 |
| Events in quadrant C | 7,341,210 | 984,576 |
| Events in quadrant D | 5,827,754 | 961,064 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28984 | 3 |
| B | 0 | 28607 | 2 |
| C | 0 | 31233 | 2 |
| D | 0 | 27621 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 270 | 0 |
| B | 0 | 270 | 0 |
| C | 0 | 270 | 0 |
| D | 0 | 270 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13369 | 379 | 2.834917% |
| B | 13369 | 277 | 2.071958% |
| C | 13369 | 361 | 2.700277% |
| D | 13369 | 200 | 1.495998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15350 | 13370 | 59 | 59 | 0.38% | 0.44% |  |
| B | 15350 | 13371 | 14 | 14 | 0.09% | 0.10% |  |
| C | 15350 | 13371 | 154 | 154 | 1.00% | 1.15% |  |
| D | 15350 | 13371 | 22 | 22 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 495112 | 1587.5 | 1515 | 1476 | 311.0 |
| A | 8 | 15 | 449572 | 1441.05 | 1515 | 1476 | 311.0 |
| A | 0 | 226 | 16802 | 49.29 | 1515 | 1476 | 311.0 |
| B | 15 | 204 | 449988 | 1490.34 | 1541 | 1498 | 300.9 |
| B | 3 | 0 | 87320 | 285.19 | 1541 | 1498 | 300.9 |
| B | 15 | 85 | 82957 | 270.69 | 1541 | 1498 | 300.9 |
| C | 4 | 248 | 1468570 | 4269.82 | 1474 | 1484 | 343.6 |
| C | 15 | 208 | 52685 | 149.02 | 1474 | 1484 | 343.6 |
| C | 9 | 54 | 26443 | 72.64 | 1474 | 1484 | 343.6 |
| D | 5 | 233 | 61711 | 169.02 | 1474 | 1426 | 356.7 |
| D | 13 | 223 | 38725 | 104.57 | 1474 | 1426 | 356.7 |
| D | 2 | 37 | 29422 | 78.49 | 1474 | 1426 | 356.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

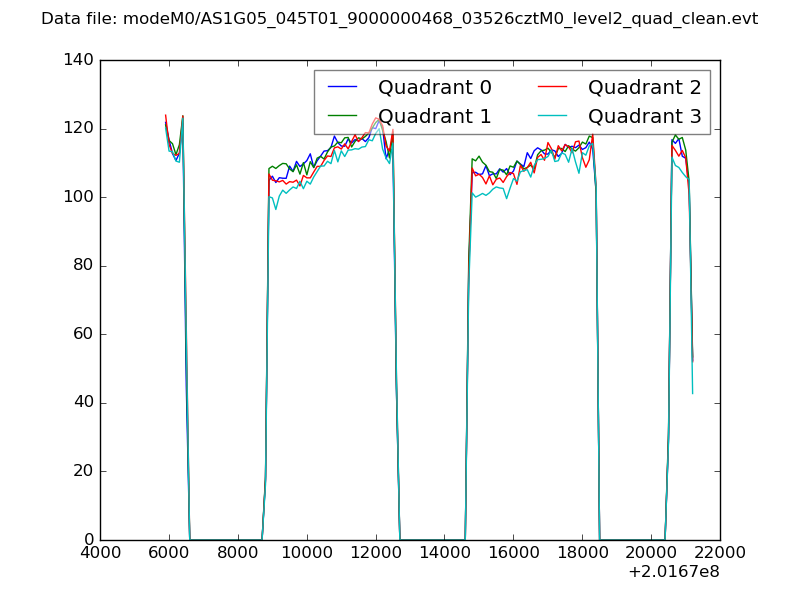

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

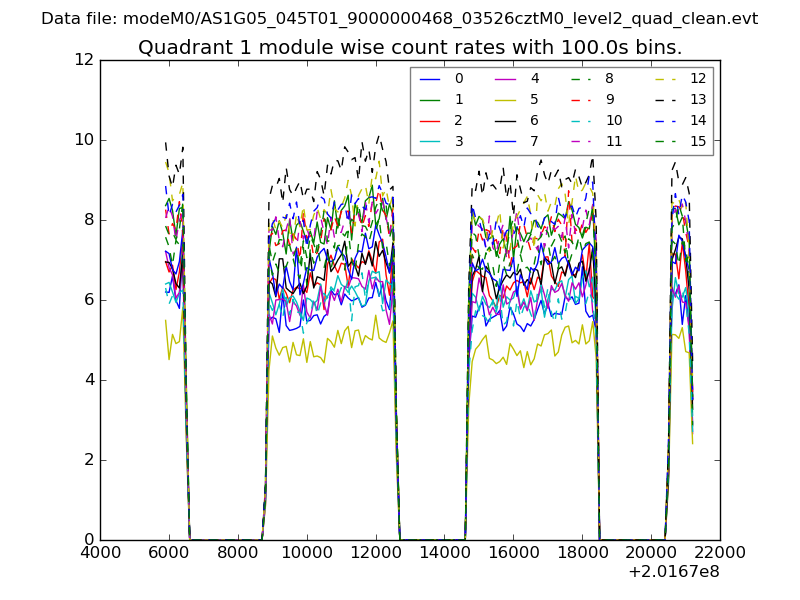

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

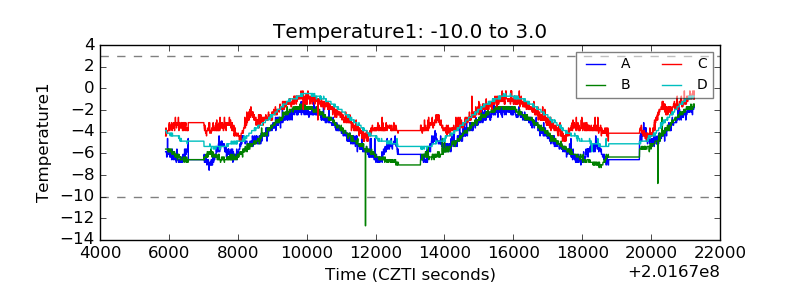

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

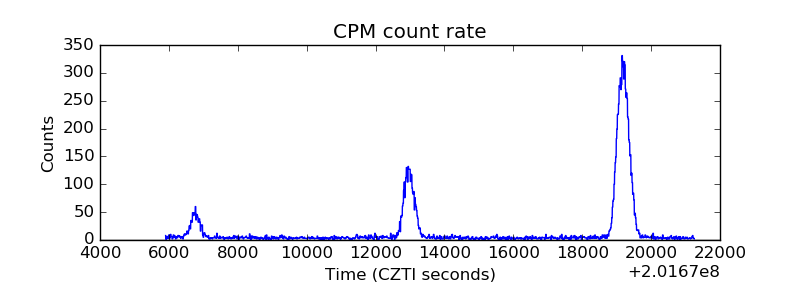

| _CPM_Rate |  |

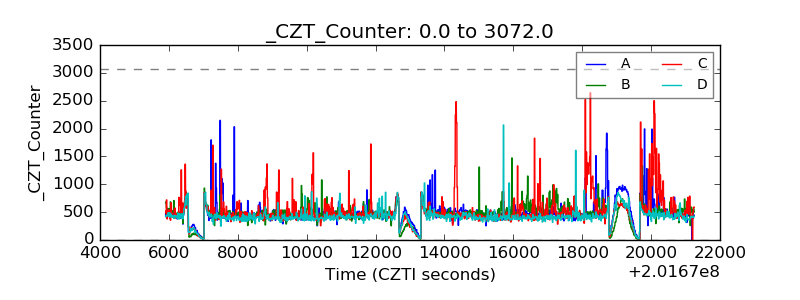

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
