| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03530cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03530cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,297,600 | 85,896,000 |
| Size | 440.9 MB | 81.9 MB |
| Events in quadrant A | 3,179,468 | 556,025 |
| Events in quadrant B | 3,732,394 | 550,589 |
| Events in quadrant C | 3,828,560 | 535,461 |
| Events in quadrant D | 2,846,282 | 533,254 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13522 | 2 |
| B | 0 | 15251 | 1 |
| C | 0 | 15625 | 1 |
| D | 0 | 12840 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6097 | 108 | 1.771363% |
| B | 6096 | 96 | 1.574803% |
| C | 6097 | 264 | 4.329998% |
| D | 6097 | 63 | 1.033295% |

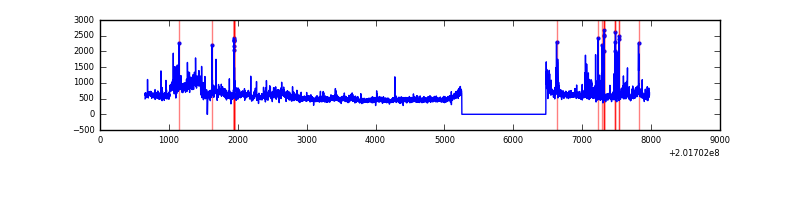

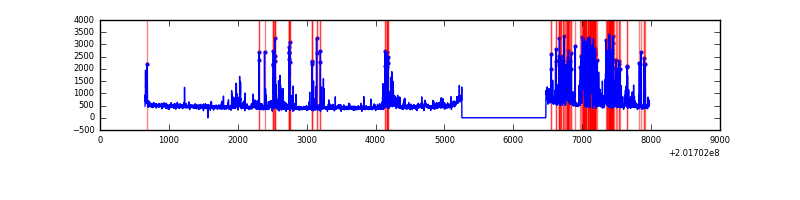

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7323 | 6098 | 23 | 23 | 0.31% | 0.38% |  |
| B | 7323 | 6097 | 21 | 21 | 0.29% | 0.34% |  |
| C | 7323 | 6098 | 191 | 191 | 2.61% | 3.13% |  |
| D | 7323 | 6098 | 7 | 7 | 0.10% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 223223 | 1514.84 | 721 | 706 | 146.9 |
| A | 8 | 15 | 86708 | 585.48 | 721 | 706 | 146.9 |
| A | 0 | 118 | 46799 | 313.79 | 721 | 706 | 146.9 |
| B | 3 | 0 | 426304 | 3086.46 | 726 | 710 | 137.9 |
| B | 15 | 204 | 212282 | 1534.35 | 726 | 710 | 137.9 |
| B | 4 | 81 | 112912 | 813.7 | 726 | 710 | 137.9 |
| C | 4 | 248 | 1017365 | 6316.09 | 696 | 701 | 161.0 |
| C | 1 | 16 | 69455 | 427.14 | 696 | 701 | 161.0 |
| C | 1 | 192 | 10566 | 61.29 | 696 | 701 | 161.0 |
| D | 1 | 20 | 66171 | 389.4 | 706 | 687 | 168.2 |
| D | 13 | 223 | 33437 | 194.75 | 706 | 687 | 168.2 |
| D | 13 | 70 | 26990 | 156.41 | 706 | 687 | 168.2 |

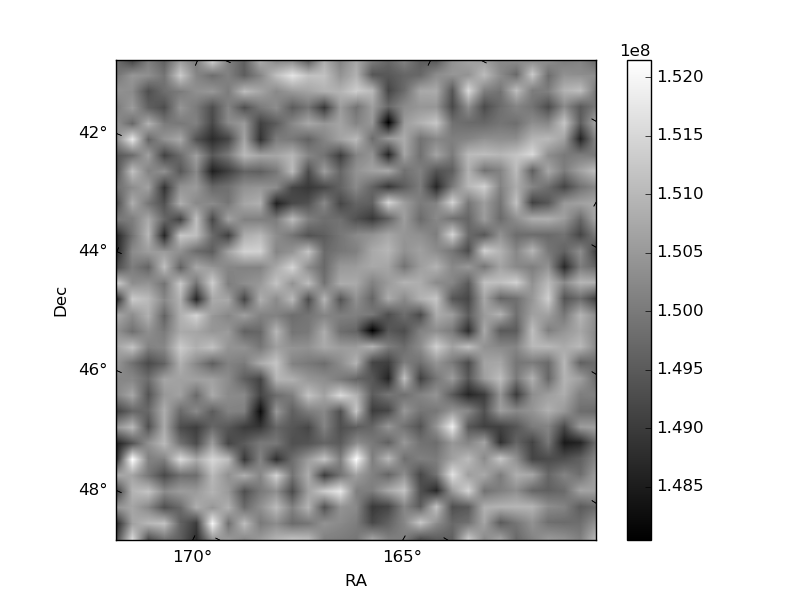

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

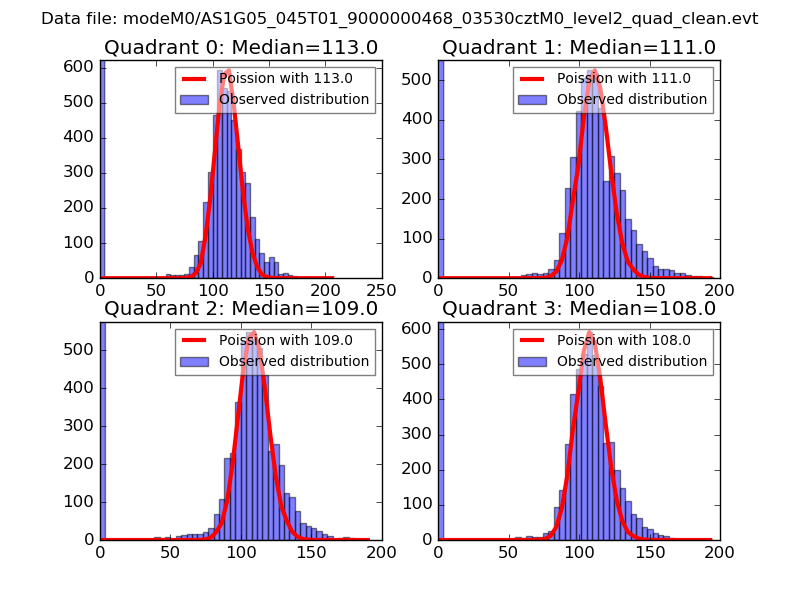

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

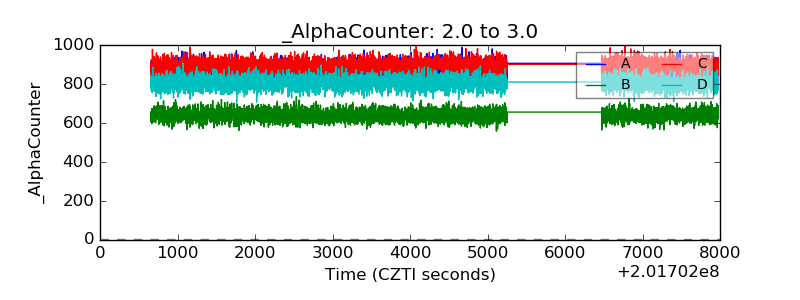

| Alpha Counter |  |
| _CPM_Rate |  |

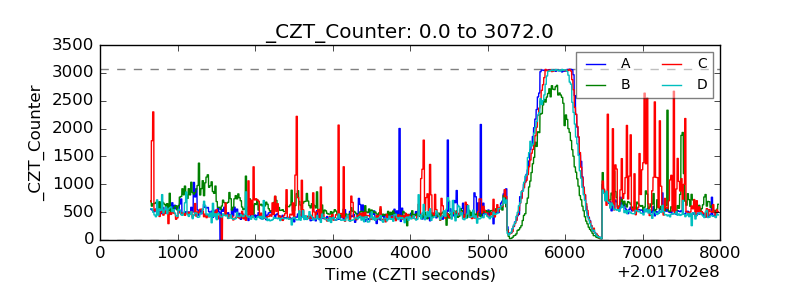

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

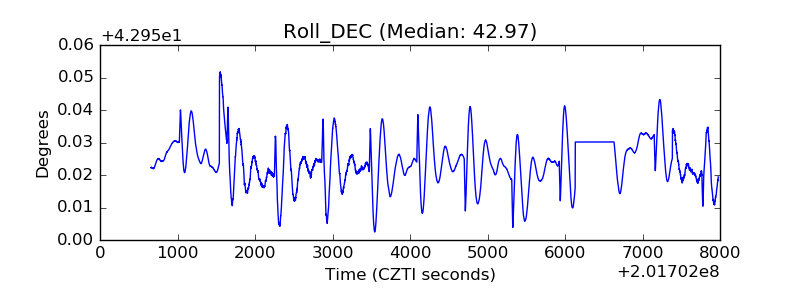

| _Roll_DEC |  |

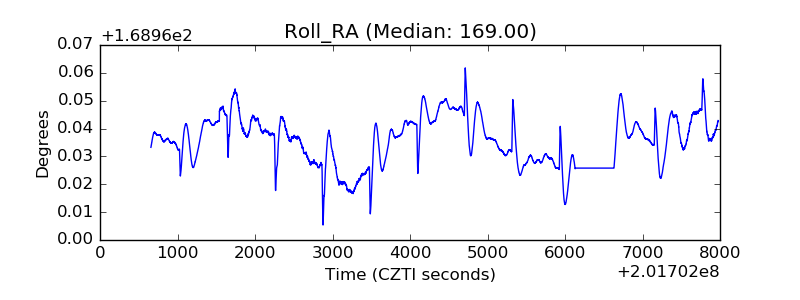

| _Roll_RA |  |
| Veto Counter |  |
