| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03531cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03531cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,216,960 | 84,340,800 |
| Size | 552.4 MB | 80.4 MB |
| Events in quadrant A | 4,419,674 | 539,801 |
| Events in quadrant B | 3,792,601 | 538,763 |
| Events in quadrant C | 5,877,712 | 520,084 |
| Events in quadrant D | 3,031,553 | 521,937 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17273 | 2 |
| B | 0 | 15593 | 1 |
| C | 0 | 21718 | 1 |
| D | 0 | 13425 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6208 | 178 | 2.867268% |
| B | 6208 | 110 | 1.771907% |
| C | 6208 | 763 | 12.290593% |
| D | 6208 | 92 | 1.481959% |

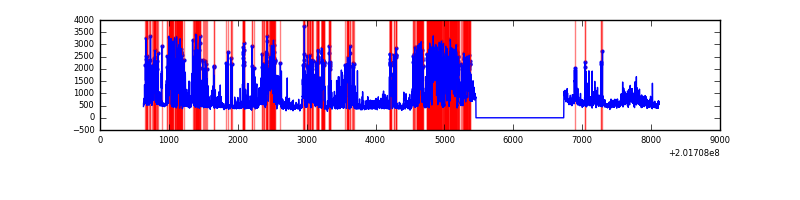

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7483 | 6208 | 27 | 27 | 0.36% | 0.43% |  |
| B | 7483 | 6208 | 23 | 23 | 0.31% | 0.37% |  |
| C | 7483 | 6208 | 666 | 666 | 8.90% | 10.73% |  |
| D | 7482 | 6207 | 30 | 30 | 0.40% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1350903 | 9002.22 | 739 | 724 | 150.0 |
| A | 0 | 50 | 193207 | 1283.37 | 739 | 724 | 150.0 |
| A | 0 | 118 | 14925 | 94.68 | 739 | 724 | 150.0 |
| B | 15 | 204 | 291821 | 2044.3 | 753 | 736 | 142.4 |
| B | 8 | 3 | 145198 | 1014.56 | 753 | 736 | 142.4 |
| B | 3 | 0 | 112090 | 782.04 | 753 | 736 | 142.4 |
| C | 4 | 248 | 3046980 | 18793.33 | 706 | 710 | 162.1 |
| C | 1 | 16 | 54208 | 330.04 | 706 | 710 | 162.1 |
| C | 13 | 61 | 6024 | 32.78 | 706 | 710 | 162.1 |
| D | 13 | 70 | 185901 | 1064.67 | 731 | 711 | 173.9 |
| D | 13 | 223 | 27638 | 154.81 | 731 | 711 | 173.9 |
| D | 13 | 239 | 12854 | 69.81 | 731 | 711 | 173.9 |

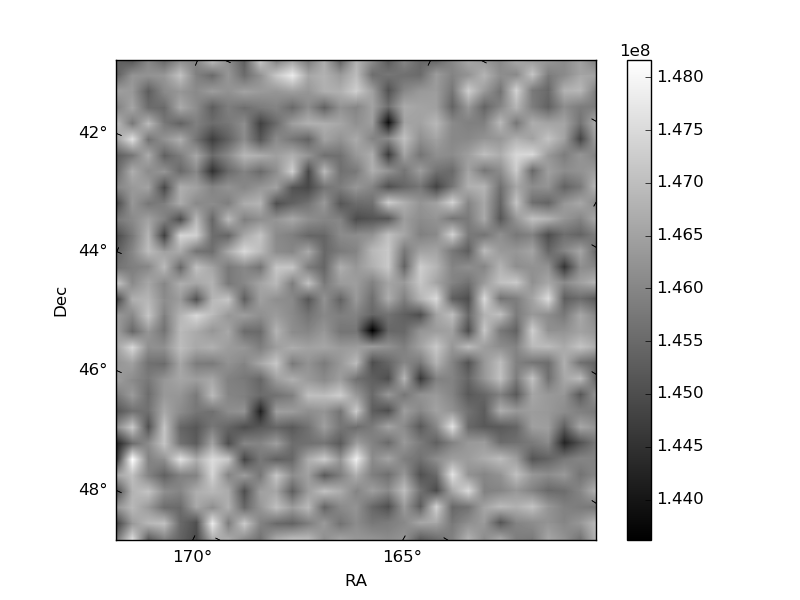

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

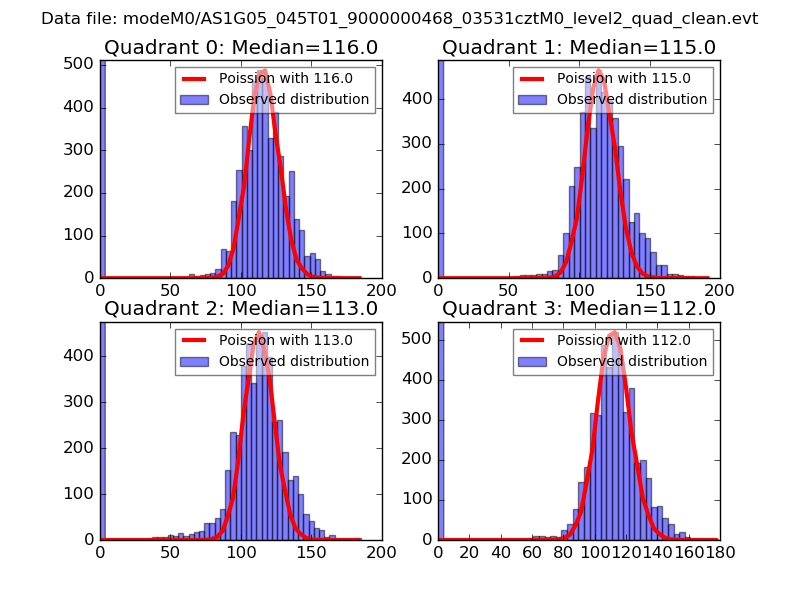

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

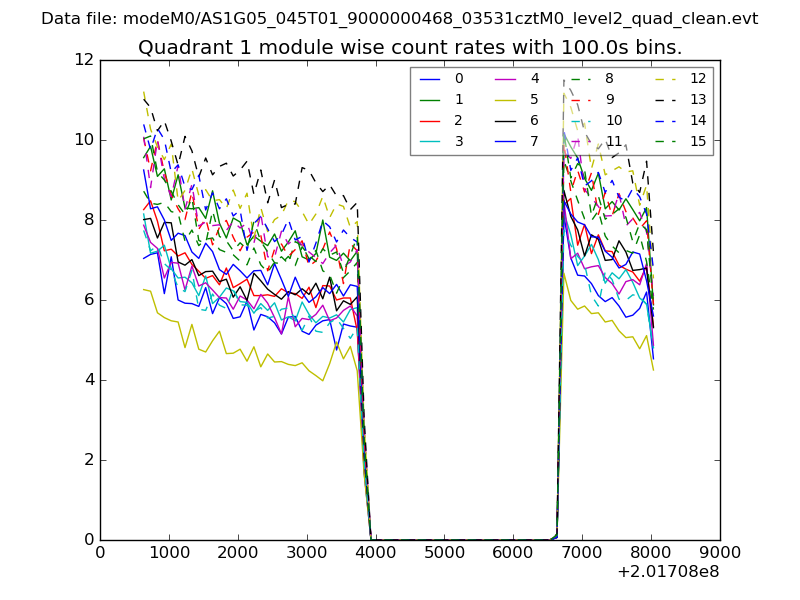

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

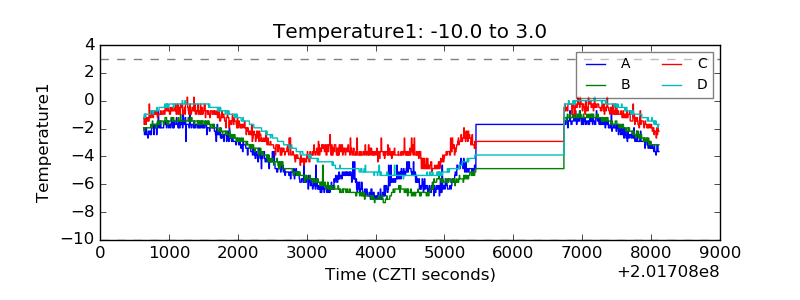

| Temperature 1 |  |

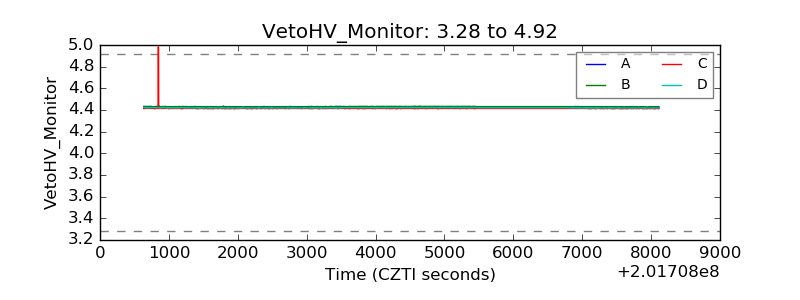

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

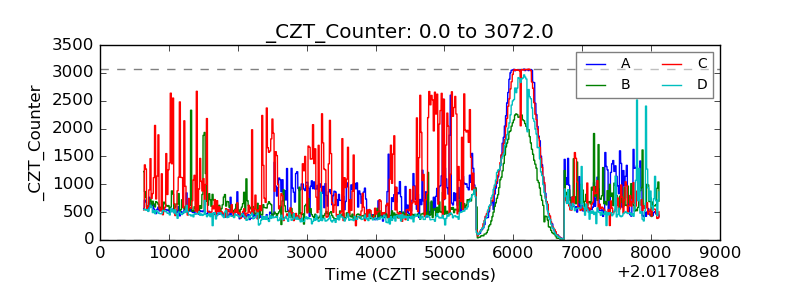

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

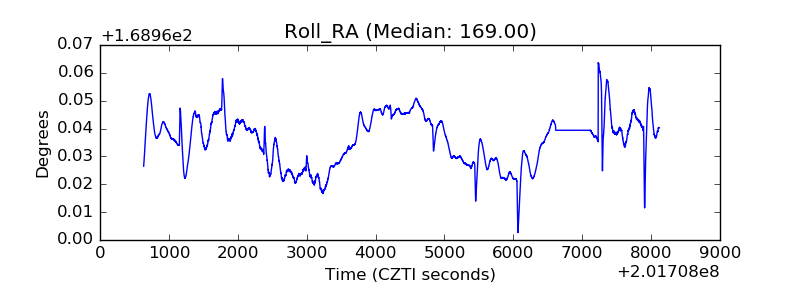

| _Roll_RA |  |
| Veto Counter |  |
