| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03543cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03543cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,251,520 | 78,592,320 |
| Size | 603.9 MB | 75.0 MB |
| Events in quadrant A | 3,213,321 | 512,582 |
| Events in quadrant B | 3,623,479 | 509,595 |
| Events in quadrant C | 8,814,588 | 394,656 |
| Events in quadrant D | 3,067,028 | 489,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14205 | 3 |
| B | 0 | 14913 | 2 |
| C | 0 | 30558 | 2 |
| D | 0 | 14119 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6774 | 99 | 1.461470% |
| B | 6774 | 89 | 1.313847% |
| C | 6774 | 2341 | 34.558606% |
| D | 6774 | 89 | 1.313847% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 6774 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7829 | 6774 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7829 | 6774 | 2242 | 2242 | 28.64% | 33.10% |  |
| D | 7829 | 6774 | 20 | 20 | 0.26% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 70721 | 427.6 | 798 | 779 | 163.6 |
| A | 3 | 1 | 31170 | 185.8 | 798 | 779 | 163.6 |
| A | 0 | 118 | 21108 | 124.28 | 798 | 779 | 163.6 |
| B | 15 | 204 | 264463 | 1706.33 | 801 | 783 | 154.5 |
| B | 14 | 167 | 71883 | 460.1 | 801 | 783 | 154.5 |
| B | 0 | 228 | 47241 | 300.64 | 801 | 783 | 154.5 |
| C | 1 | 192 | 6238613 | 42065.56 | 633 | 636 | 148.3 |
| C | 4 | 248 | 94121 | 630.41 | 633 | 636 | 148.3 |
| C | 13 | 61 | 5307 | 31.5 | 633 | 636 | 148.3 |
| D | 13 | 223 | 61924 | 329.08 | 770 | 747 | 185.9 |
| D | 2 | 206 | 24330 | 126.86 | 770 | 747 | 185.9 |
| D | 13 | 25 | 19978 | 103.45 | 770 | 747 | 185.9 |

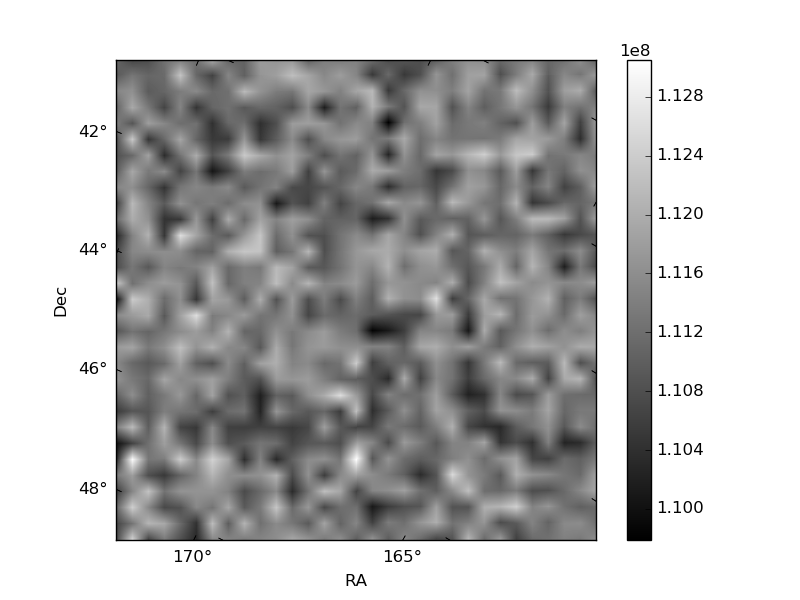

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

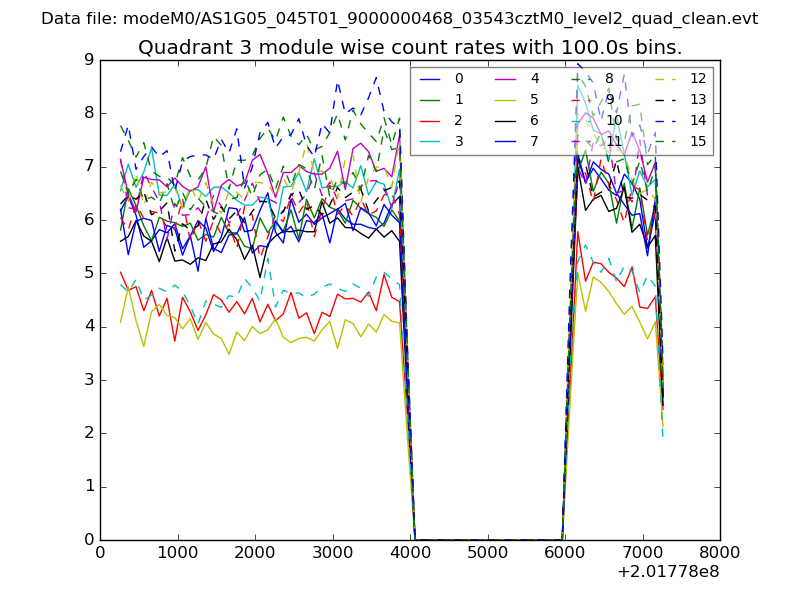

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

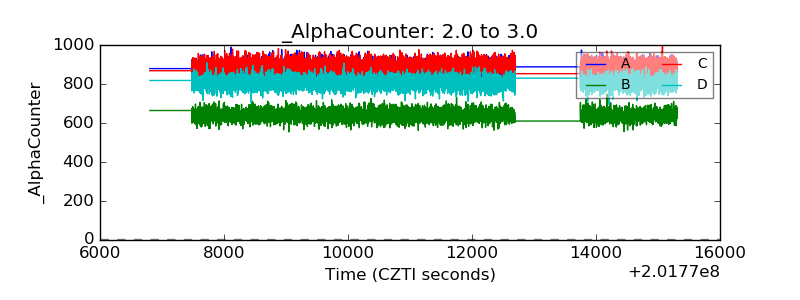

| Alpha Counter |  |

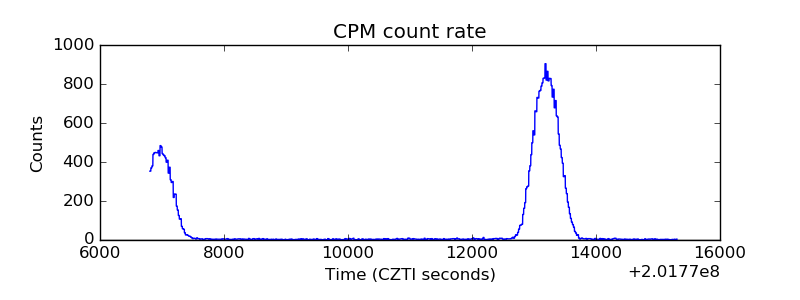

| _CPM_Rate |  |
| CZT Counter |  |

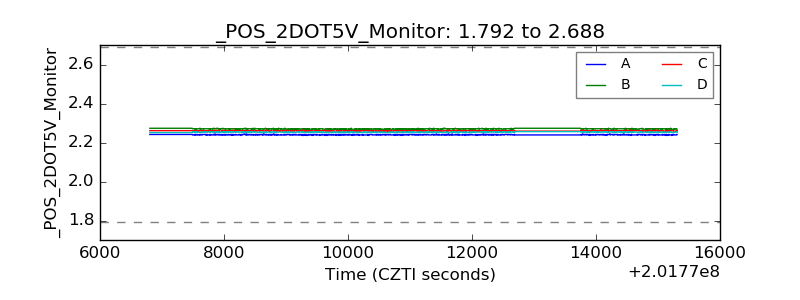

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

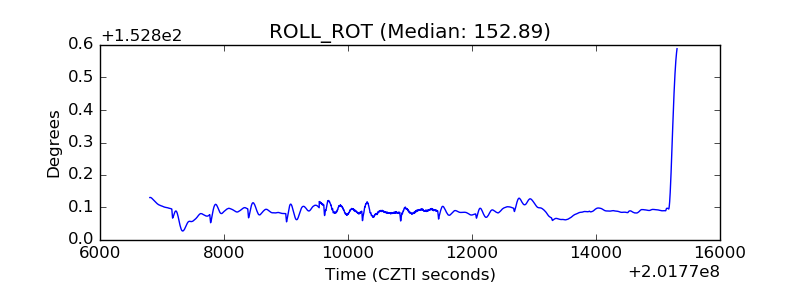

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

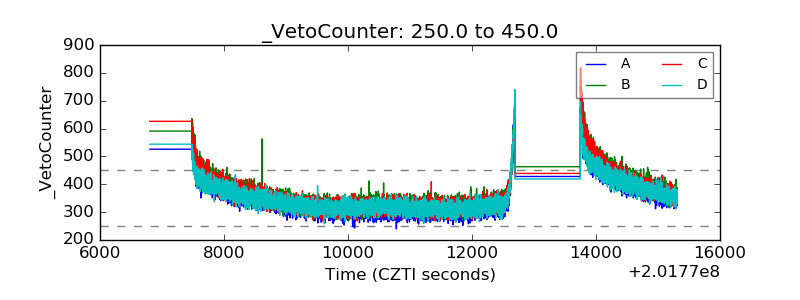

| Veto Counter |  |
