| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03545cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03545cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,101,760 | 93,510,720 |
| Size | 449.3 MB | 89.2 MB |
| Events in quadrant A | 3,232,852 | 604,751 |
| Events in quadrant B | 3,569,254 | 604,918 |
| Events in quadrant C | 4,021,217 | 587,202 |
| Events in quadrant D | 3,003,497 | 582,613 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13935 | 2 |
| B | 0 | 15126 | 1 |
| C | 0 | 16278 | 1 |
| D | 0 | 13503 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 85 | 1.312133% |
| B | 6478 | 68 | 1.049707% |
| C | 6478 | 164 | 2.531646% |
| D | 6478 | 55 | 0.849027% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7743 | 6478 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7743 | 6478 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7743 | 6478 | 85 | 85 | 1.10% | 1.31% |  |
| D | 7743 | 6478 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 57070 | 354.55 | 785 | 766 | 158.8 |
| A | 8 | 15 | 52886 | 328.2 | 785 | 766 | 158.8 |
| A | 0 | 50 | 47239 | 292.64 | 785 | 766 | 158.8 |
| B | 15 | 204 | 240388 | 1618.89 | 788 | 770 | 148.0 |
| B | 4 | 81 | 100620 | 674.6 | 788 | 770 | 148.0 |
| B | 0 | 229 | 33359 | 220.18 | 788 | 770 | 148.0 |
| C | 1 | 192 | 678345 | 3887.64 | 756 | 759 | 174.3 |
| C | 4 | 248 | 362977 | 2078.22 | 756 | 759 | 174.3 |
| C | 14 | 48 | 11693 | 62.73 | 756 | 759 | 174.3 |
| D | 13 | 223 | 33646 | 181.83 | 765 | 744 | 180.9 |
| D | 5 | 233 | 21748 | 116.08 | 765 | 744 | 180.9 |
| D | 13 | 239 | 19275 | 102.41 | 765 | 744 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

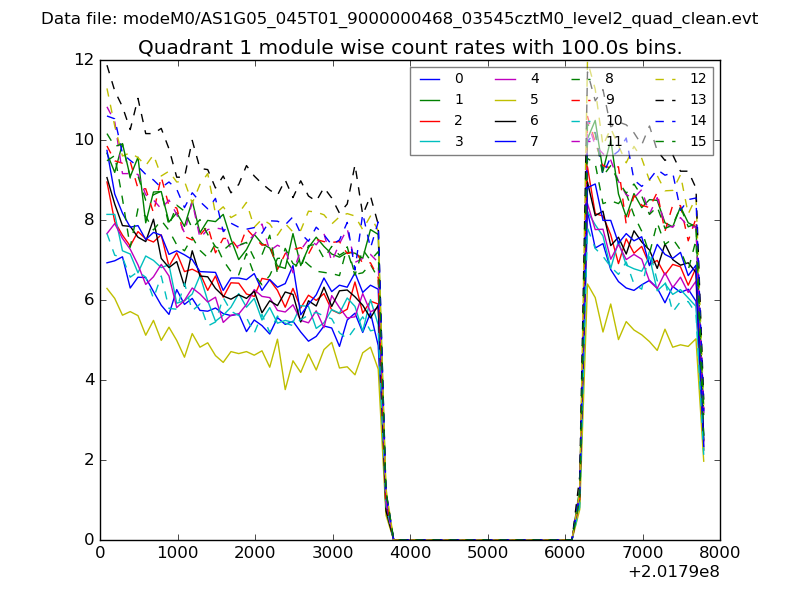

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

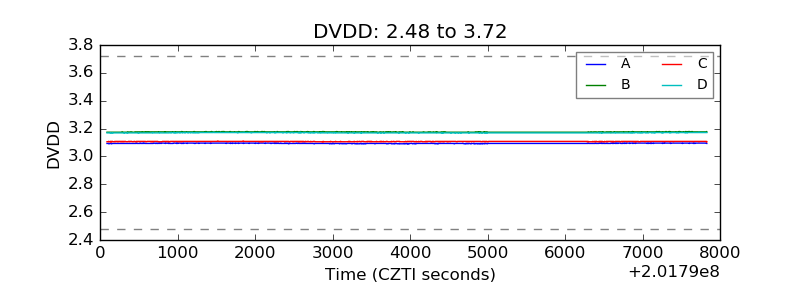

| D_VDD |  |

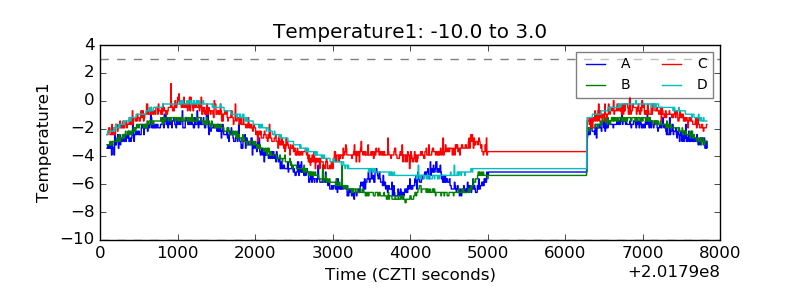

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

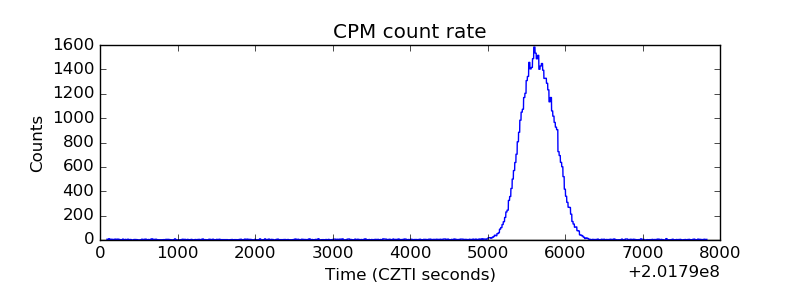

| _CPM_Rate |  |

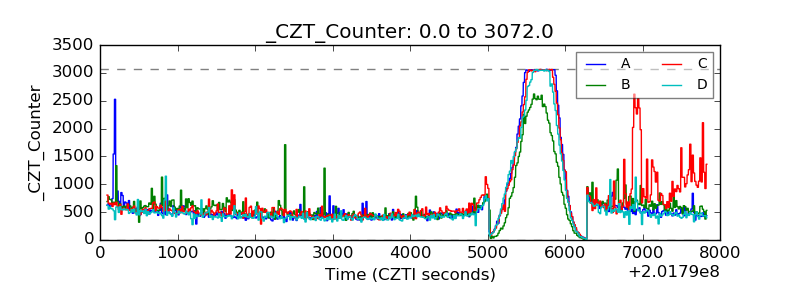

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

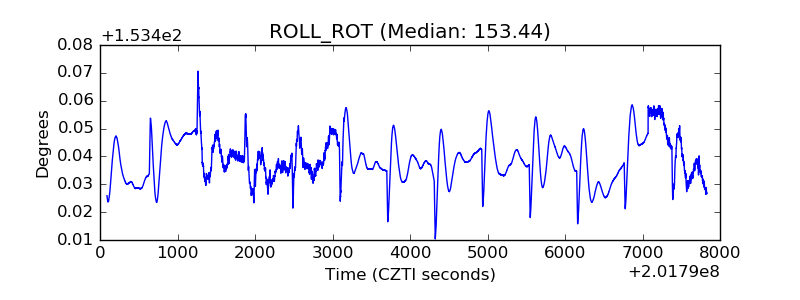

| _ROLL_ROT |  |

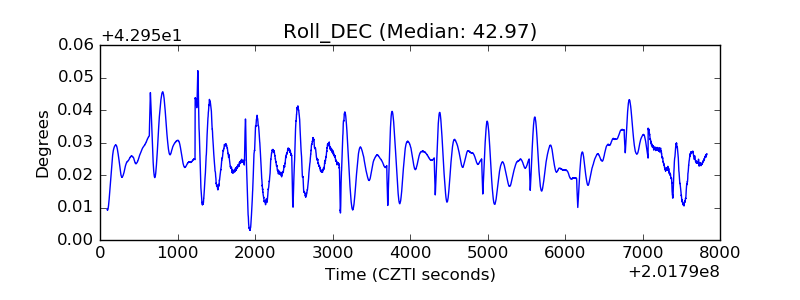

| _Roll_DEC |  |

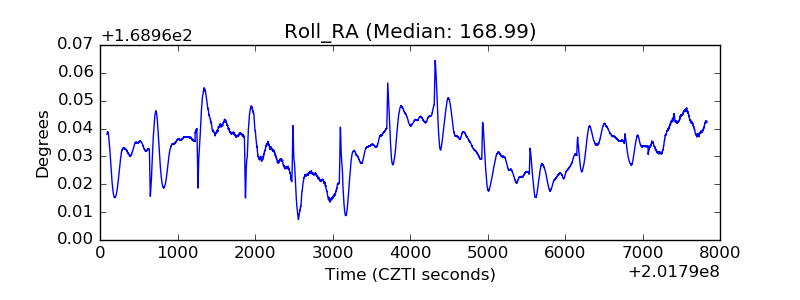

| _Roll_RA |  |
| Veto Counter |  |
