| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03570cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03570cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,320,640 | 70,297,920 |
| Size | 415.2 MB | 67.0 MB |
| Events in quadrant A | 3,076,668 | 420,671 |
| Events in quadrant B | 3,463,229 | 418,363 |
| Events in quadrant C | 3,228,358 | 413,935 |
| Events in quadrant D | 2,957,012 | 405,643 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13773 | 2 |
| B | 0 | 14371 | 1 |
| C | 0 | 14131 | 1 |
| D | 0 | 13802 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6736 | 81 | 1.202494% |
| B | 6736 | 100 | 1.484561% |
| C | 6736 | 59 | 0.875891% |
| D | 6736 | 62 | 0.920428% |

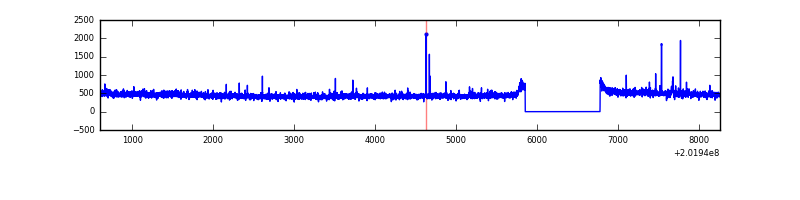

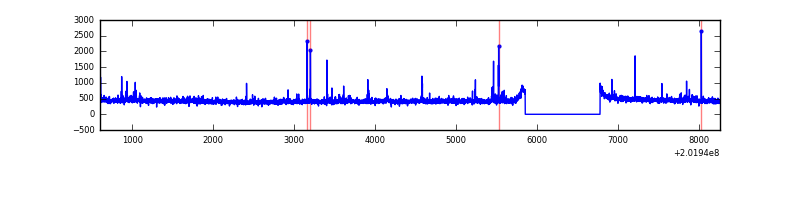

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7660 | 6736 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7660 | 6735 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7660 | 6735 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7660 | 6735 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 40558 | 246.64 | 781 | 761 | 161.4 |
| A | 3 | 1 | 12474 | 72.59 | 781 | 761 | 161.4 |
| A | 0 | 226 | 11502 | 66.56 | 781 | 761 | 161.4 |
| B | 15 | 204 | 184482 | 1196.84 | 788 | 768 | 153.5 |
| B | 4 | 200 | 38321 | 244.65 | 788 | 768 | 153.5 |
| B | 4 | 81 | 30194 | 191.7 | 788 | 768 | 153.5 |
| C | 15 | 208 | 268978 | 1511.9 | 754 | 757 | 177.4 |
| C | 13 | 61 | 6508 | 32.42 | 754 | 757 | 177.4 |
| C | 5 | 175 | 5879 | 28.87 | 754 | 757 | 177.4 |
| D | 13 | 223 | 32699 | 175.74 | 752 | 729 | 181.9 |
| D | 5 | 233 | 26802 | 143.33 | 752 | 729 | 181.9 |
| D | 13 | 239 | 22906 | 121.91 | 752 | 729 | 181.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

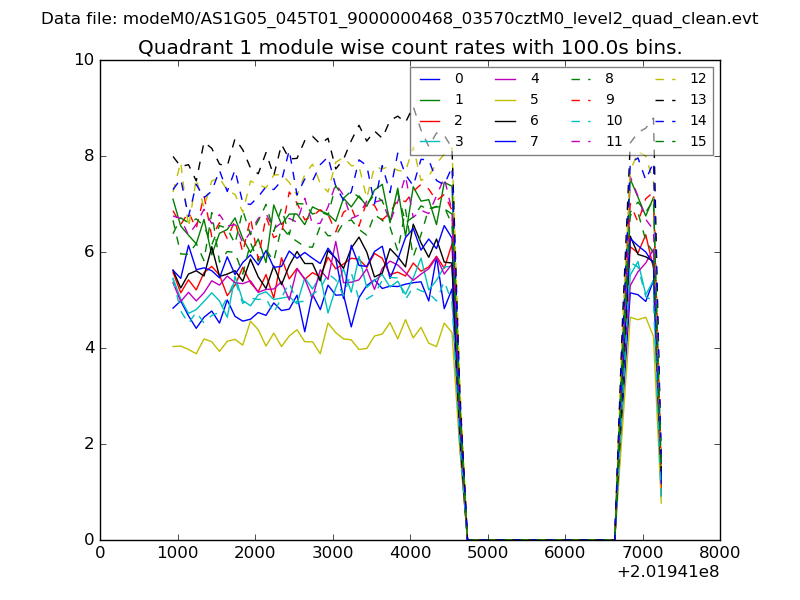

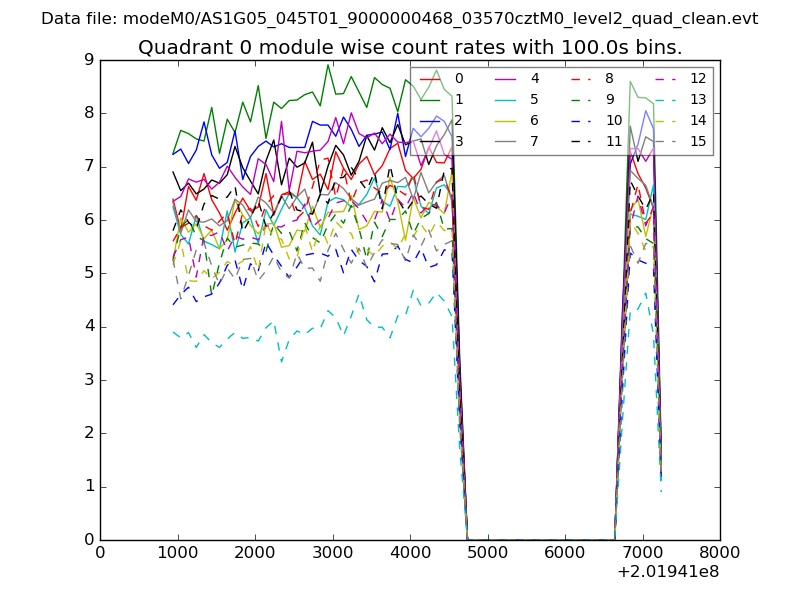

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

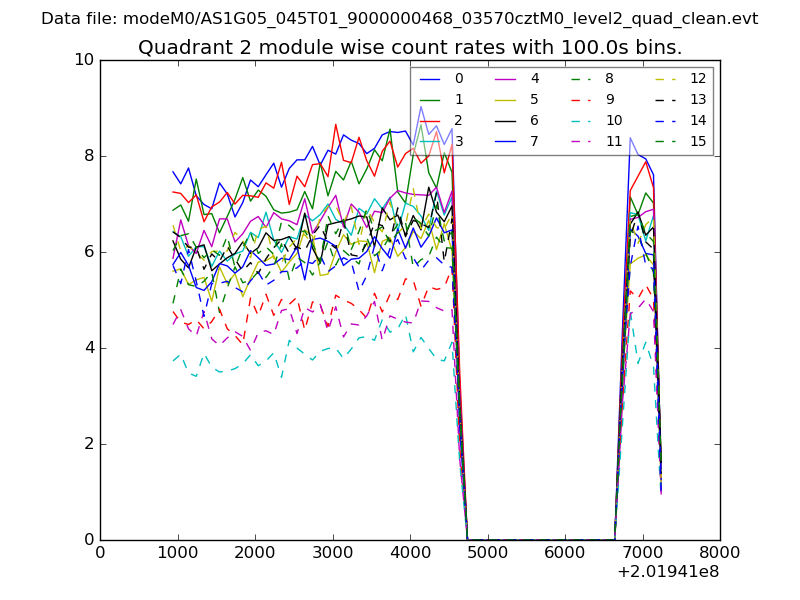

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

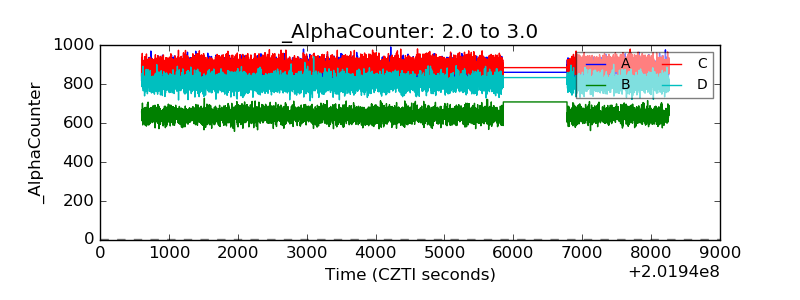

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

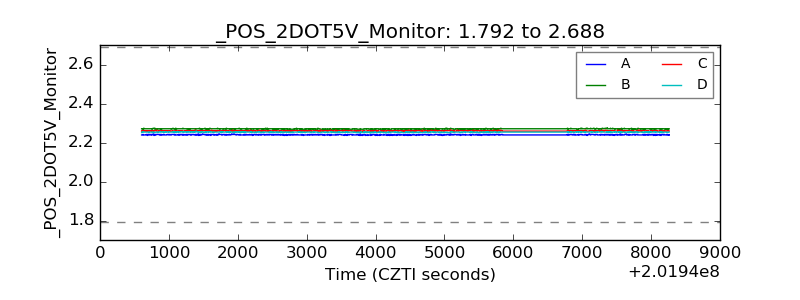

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

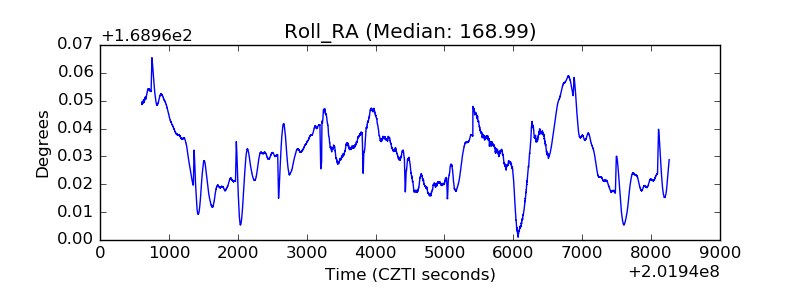

| _Roll_RA |  |
| Veto Counter |  |
