| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03578cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03578cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,520,320 | 90,864,000 |
| Size | 452.5 MB | 86.7 MB |
| Events in quadrant A | 3,397,941 | 569,692 |
| Events in quadrant B | 4,054,525 | 573,543 |
| Events in quadrant C | 3,060,845 | 572,854 |
| Events in quadrant D | 3,386,258 | 552,325 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15120 | 2 |
| B | 0 | 16845 | 1 |
| C | 0 | 14231 | 1 |
| D | 0 | 15374 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6934 | 106 | 1.528699% |
| B | 6934 | 96 | 1.384482% |
| C | 6934 | 24 | 0.346121% |
| D | 6934 | 60 | 0.865301% |

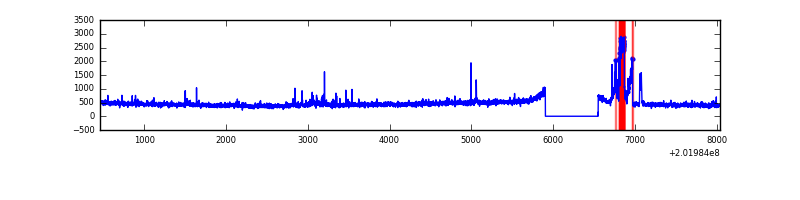

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7579 | 6935 | 64 | 64 | 0.84% | 0.92% |  |
| B | 7579 | 6935 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7579 | 6935 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7579 | 6935 | 40 | 40 | 0.53% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 337311 | 2081.31 | 778 | 758 | 161.7 |
| A | 0 | 118 | 19905 | 118.41 | 778 | 758 | 161.7 |
| A | 3 | 1 | 16835 | 99.42 | 778 | 758 | 161.7 |
| B | 15 | 204 | 678574 | 4427.61 | 792 | 772 | 153.1 |
| B | 12 | 0 | 105860 | 686.47 | 792 | 772 | 153.1 |
| B | 4 | 81 | 72088 | 465.86 | 792 | 772 | 153.1 |
| C | 1 | 16 | 36078 | 196.85 | 767 | 770 | 179.4 |
| C | 15 | 208 | 12039 | 62.83 | 767 | 770 | 179.4 |
| C | 13 | 61 | 6600 | 32.5 | 767 | 770 | 179.4 |
| D | 13 | 70 | 247413 | 1333.16 | 760 | 736 | 185.0 |
| D | 13 | 223 | 62154 | 331.93 | 760 | 736 | 185.0 |
| D | 14 | 34 | 48517 | 258.23 | 760 | 736 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

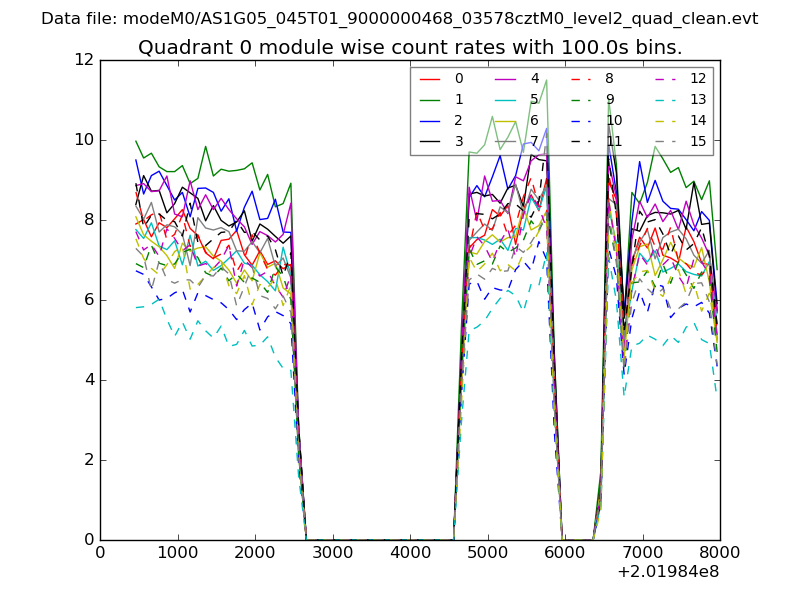

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

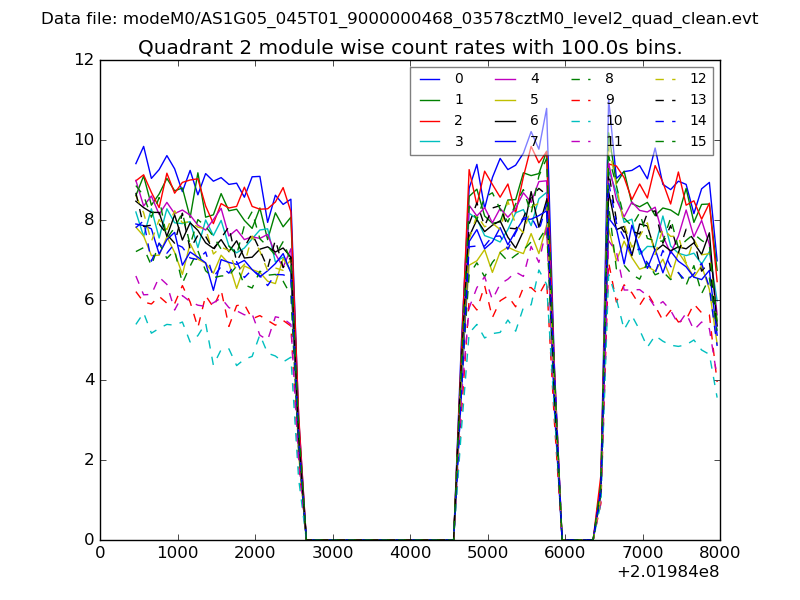

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

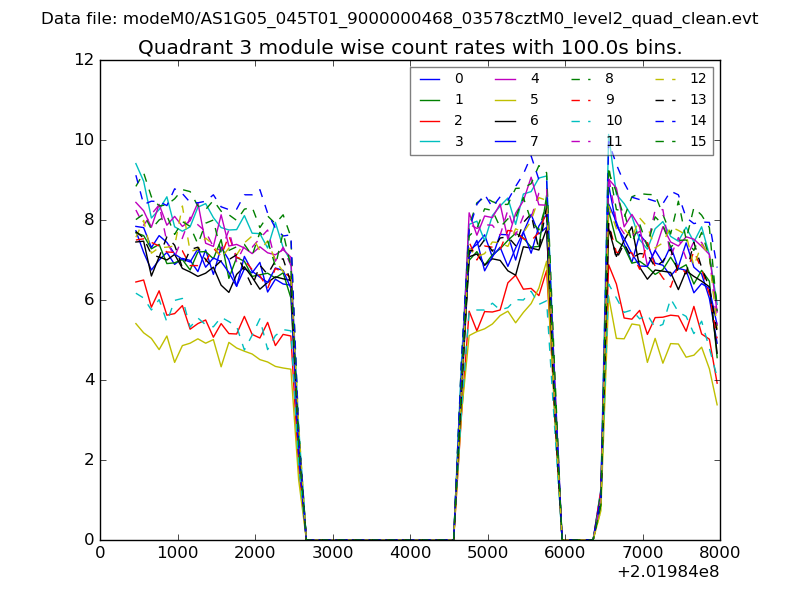

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

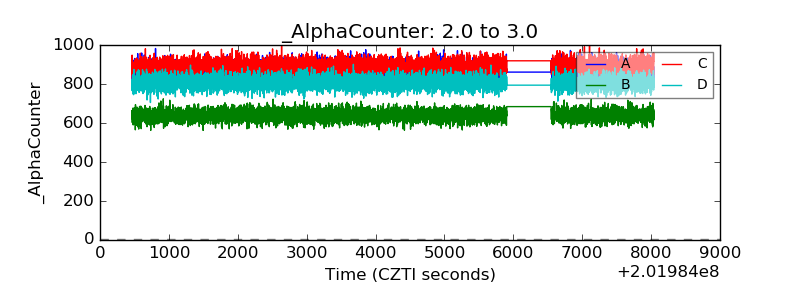

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

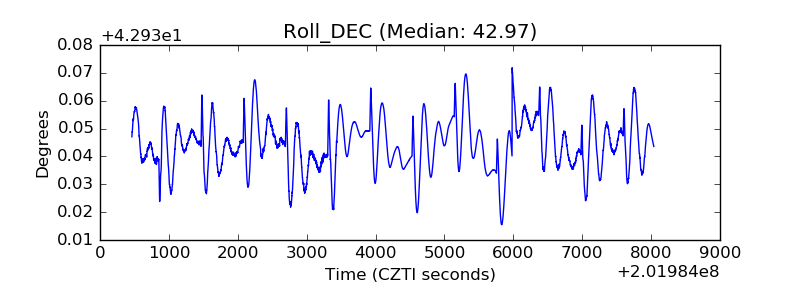

| _Roll_DEC |  |

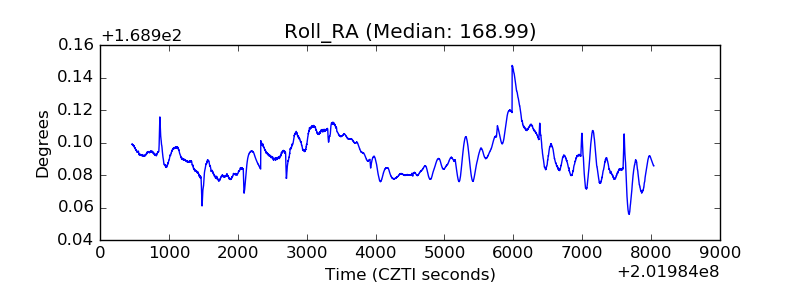

| _Roll_RA |  |

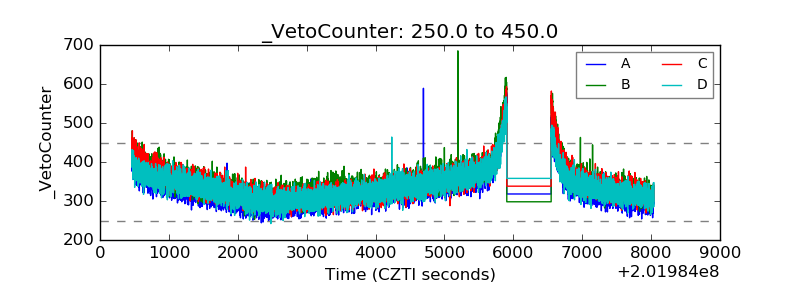

| Veto Counter |  |
