| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_045T01_9000000468_03579cztM0_level2.evt | modeM0/AS1G05_045T01_9000000468_03579cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,444,480 | 87,189,120 |
| Size | 441.0 MB | 83.2 MB |
| Events in quadrant A | 3,306,932 | 545,497 |
| Events in quadrant B | 3,785,091 | 551,552 |
| Events in quadrant C | 3,040,074 | 550,165 |
| Events in quadrant D | 3,416,319 | 524,564 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14726 | 2 |
| B | 0 | 15901 | 2 |
| C | 0 | 13934 | 2 |
| D | 0 | 15248 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 94 | 1.397977% |
| B | 6724 | 110 | 1.635931% |
| C | 6724 | 33 | 0.490779% |
| D | 6724 | 100 | 1.487210% |

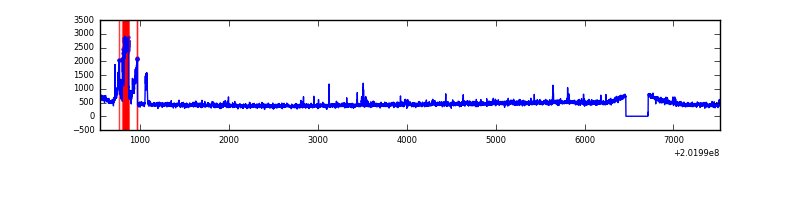

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6974 | 6725 | 64 | 64 | 0.92% | 0.95% |  |
| B | 6974 | 6725 | 7 | 7 | 0.10% | 0.10% |  |
| C | 6974 | 6725 | 5 | 5 | 0.07% | 0.07% |  |
| D | 6974 | 6725 | 78 | 78 | 1.12% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 318462 | 1998.73 | 763 | 744 | 159.0 |
| A | 15 | 234 | 12872 | 76.3 | 763 | 744 | 159.0 |
| A | 8 | 15 | 10673 | 62.46 | 763 | 744 | 159.0 |
| B | 15 | 204 | 542141 | 3617.0 | 780 | 760 | 149.7 |
| B | 12 | 0 | 59475 | 392.28 | 780 | 760 | 149.7 |
| B | 5 | 172 | 55913 | 368.48 | 780 | 760 | 149.7 |
| C | 1 | 16 | 51953 | 288.97 | 756 | 758 | 177.2 |
| C | 8 | 128 | 13860 | 73.95 | 756 | 758 | 177.2 |
| C | 2 | 53 | 6831 | 34.28 | 756 | 758 | 177.2 |
| D | 14 | 34 | 181499 | 1010.26 | 747 | 723 | 178.9 |
| D | 13 | 70 | 150600 | 837.58 | 747 | 723 | 178.9 |
| D | 13 | 223 | 44495 | 244.62 | 747 | 723 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

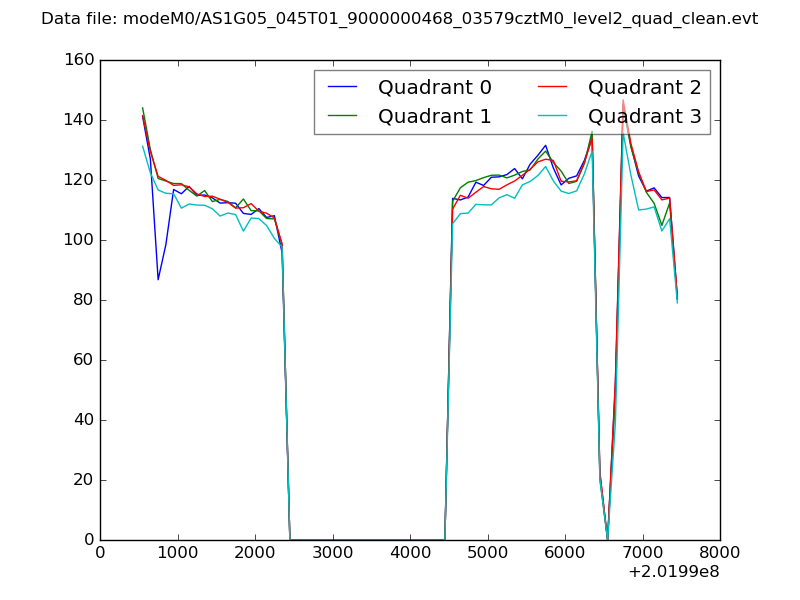

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

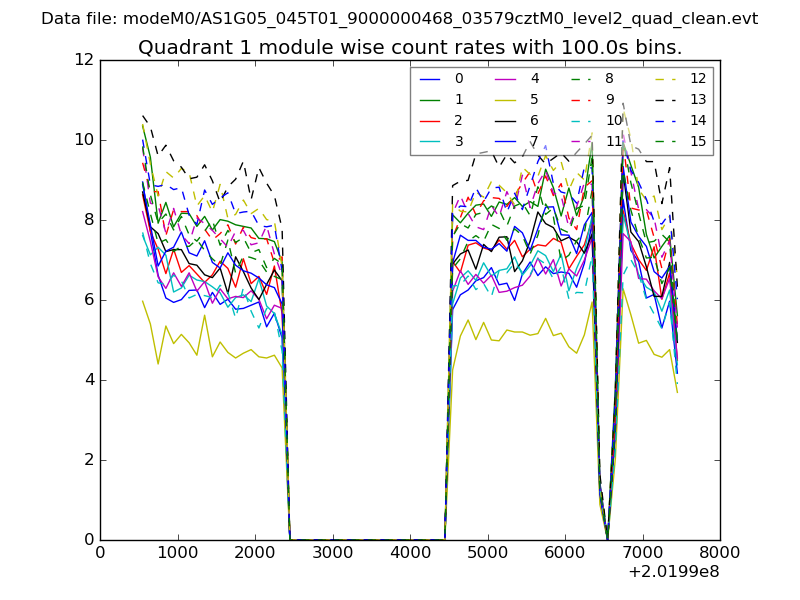

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

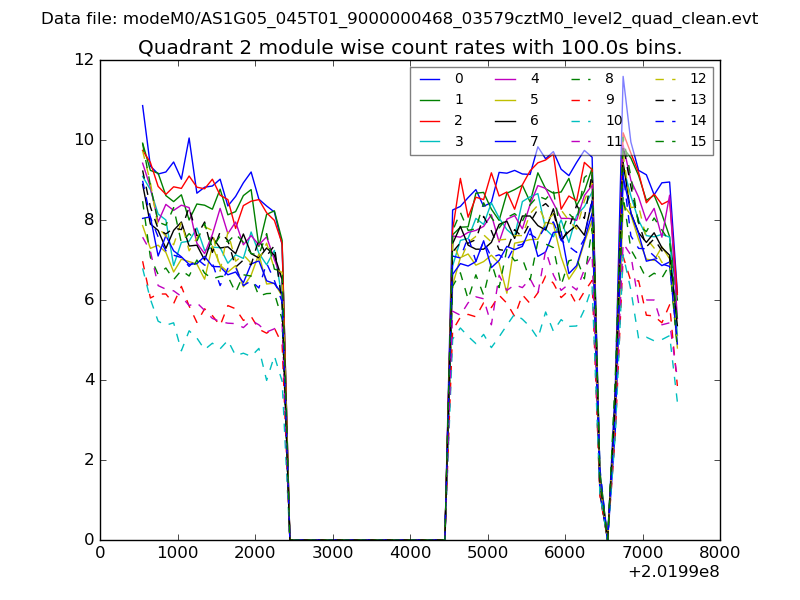

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

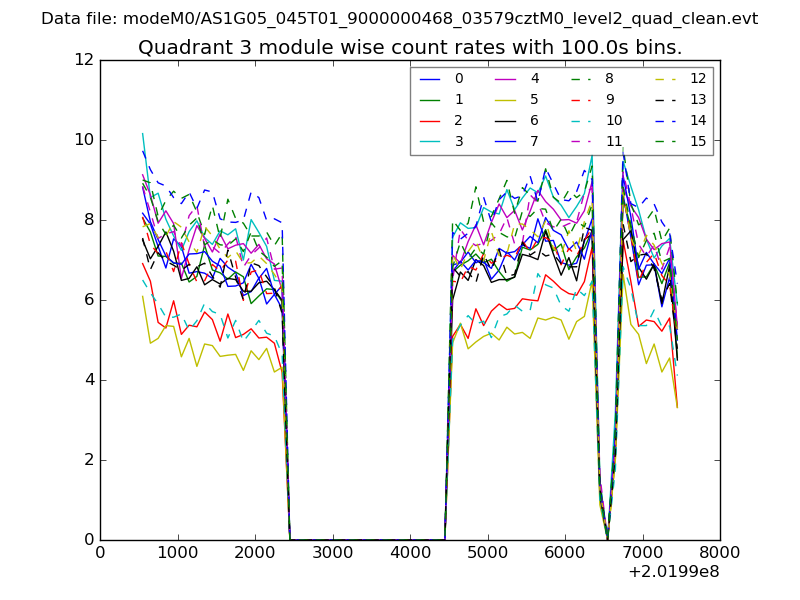

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

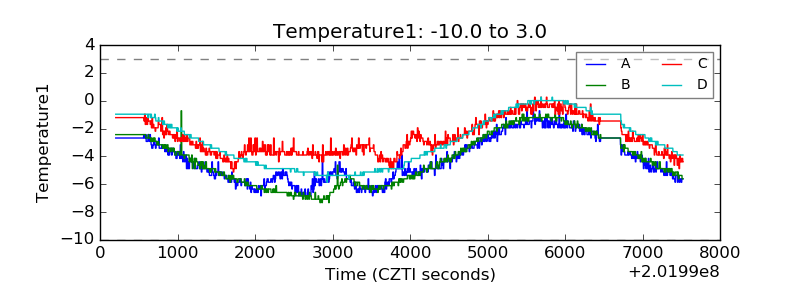

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

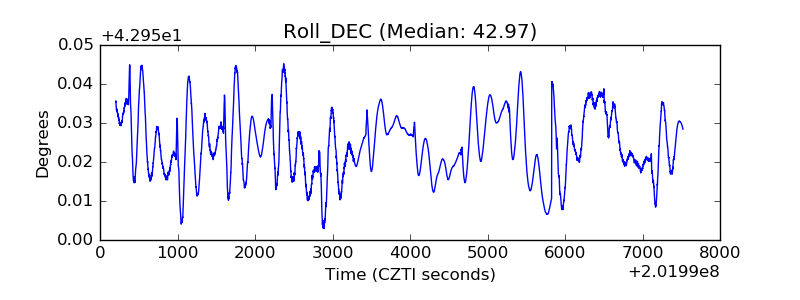

| _Roll_DEC |  |
| _Roll_RA |  |

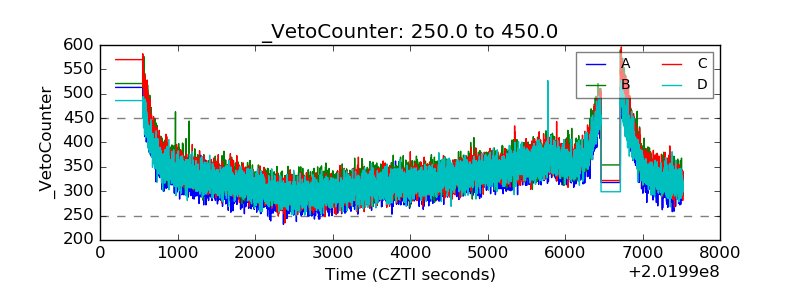

| Veto Counter |  |
