| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_234T02_9000000474_03647cztM0_level2.evt | modeM0/AS1G05_234T02_9000000474_03647cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,245,440 | 92,764,800 |
| Size | 437.0 MB | 88.5 MB |
| Events in quadrant A | 2,959,933 | 612,134 |
| Events in quadrant B | 4,043,125 | 591,898 |
| Events in quadrant C | 2,990,731 | 596,909 |
| Events in quadrant D | 3,468,548 | 581,227 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12740 | 2 |
| B | 0 | 16029 | 1 |
| C | 0 | 13060 | 1 |
| D | 0 | 14332 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6110 | 126 | 2.062193% |
| B | 6110 | 421 | 6.890344% |
| C | 6110 | 106 | 1.734861% |
| D | 6110 | 142 | 2.324059% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

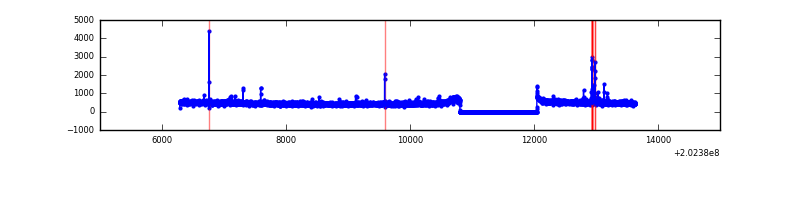

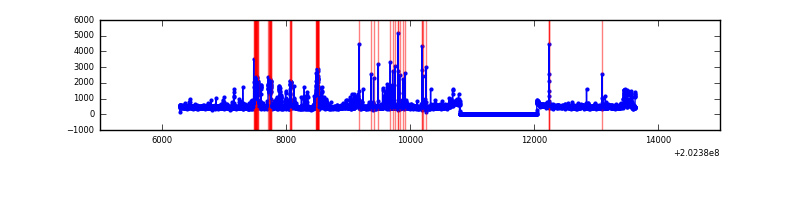

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7350 | 6111 | 11 | 11 | 0.15% | 0.18% |  |
| B | 7350 | 6111 | 188 | 188 | 2.56% | 3.08% |  |
| C | 7350 | 6111 | 15 | 15 | 0.20% | 0.25% |  |
| D | 7350 | 6111 | 72 | 72 | 0.98% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 52176 | 344.56 | 738 | 723 | 149.3 |
| A | 13 | 251 | 14904 | 94.96 | 738 | 723 | 149.3 |
| A | 8 | 15 | 12725 | 80.37 | 738 | 723 | 149.3 |
| B | 5 | 172 | 740916 | 5332.71 | 724 | 707 | 138.8 |
| B | 15 | 204 | 182459 | 1309.4 | 724 | 707 | 138.8 |
| B | 14 | 167 | 155444 | 1114.78 | 724 | 707 | 138.8 |
| C | 10 | 19 | 97561 | 587.26 | 711 | 714 | 164.9 |
| C | 2 | 53 | 92481 | 556.45 | 711 | 714 | 164.9 |
| C | 10 | 34 | 11720 | 66.73 | 711 | 714 | 164.9 |
| D | 1 | 84 | 270055 | 1586.46 | 717 | 697 | 169.8 |
| D | 13 | 25 | 179343 | 1052.18 | 717 | 697 | 169.8 |
| D | 11 | 132 | 104103 | 609.04 | 717 | 697 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

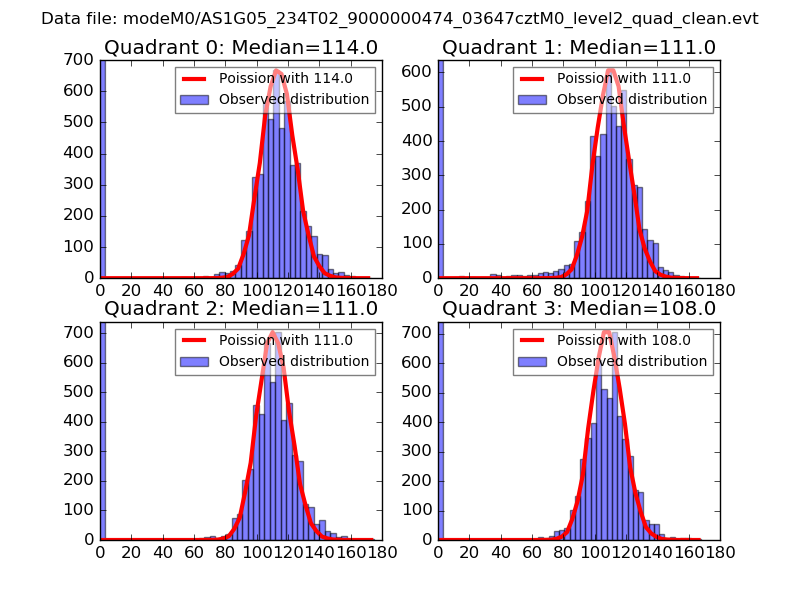

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

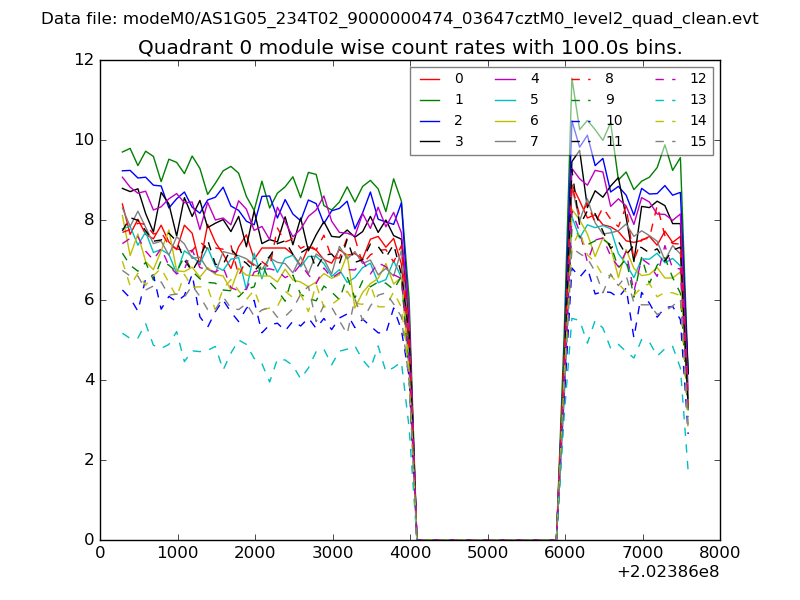

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

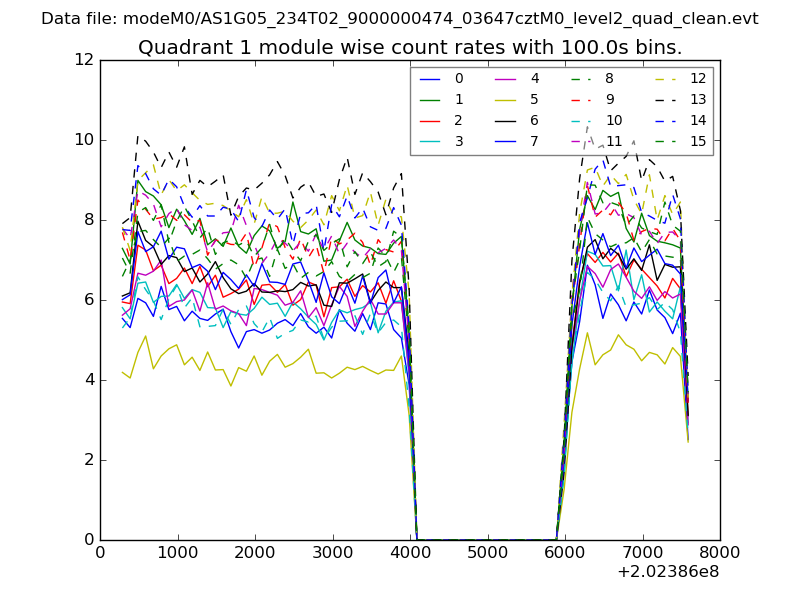

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

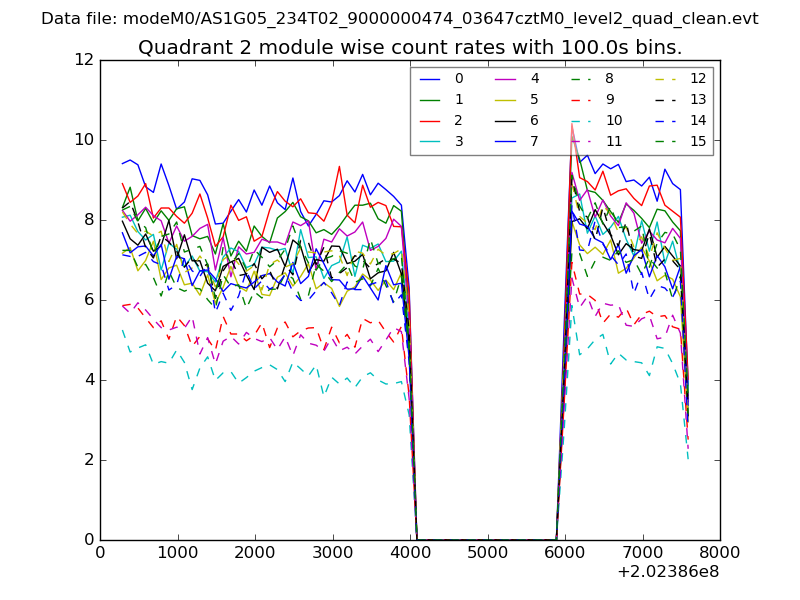

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

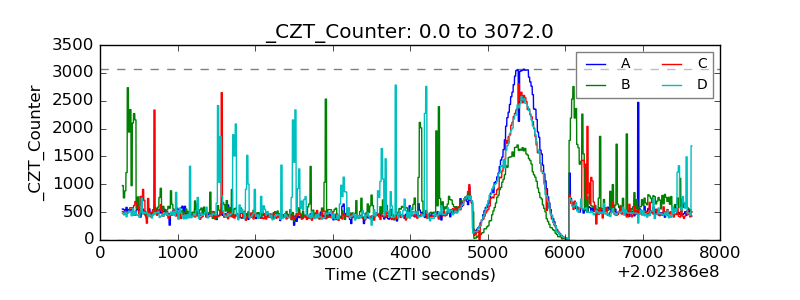

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

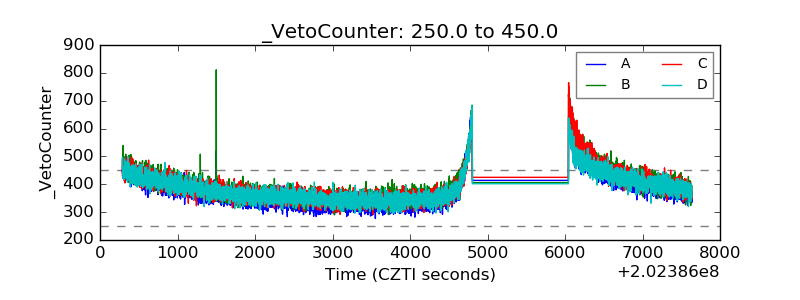

| Veto Counter |  |
