| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_234T02_9000000474_03648cztM0_level2.evt | modeM0/AS1G05_234T02_9000000474_03648cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,304,960 | 90,420,480 |
| Size | 451.4 MB | 86.2 MB |
| Events in quadrant A | 3,121,560 | 583,551 |
| Events in quadrant B | 4,157,008 | 576,082 |
| Events in quadrant C | 3,075,185 | 575,602 |
| Events in quadrant D | 3,547,339 | 558,199 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13525 | 2 |
| B | 0 | 16622 | 1 |
| C | 0 | 13558 | 1 |
| D | 0 | 14770 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6373 | 128 | 2.008473% |
| B | 6373 | 155 | 2.432136% |
| C | 6373 | 82 | 1.286678% |
| D | 6373 | 119 | 1.867252% |

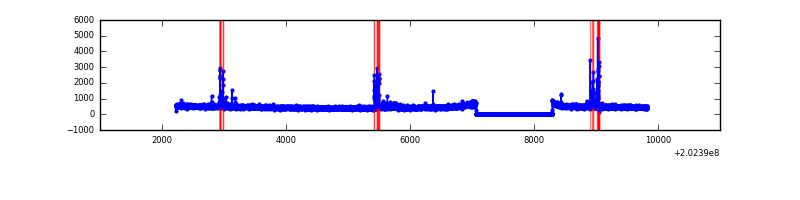

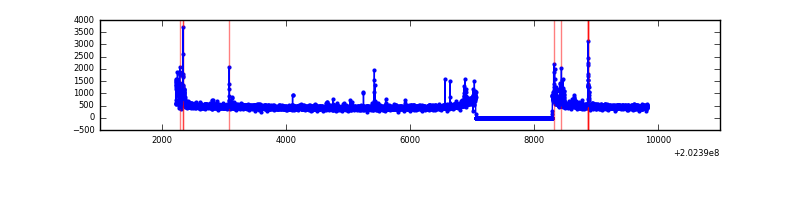

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 6374 | 35 | 35 | 0.46% | 0.55% |  |
| B | 7608 | 6374 | 31 | 31 | 0.41% | 0.49% |  |
| C | 7608 | 6374 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7608 | 6374 | 25 | 25 | 0.33% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 138050 | 897.35 | 757 | 743 | 153.0 |
| A | 13 | 251 | 30895 | 197.05 | 757 | 743 | 153.0 |
| A | 13 | 14 | 10846 | 66.03 | 757 | 743 | 153.0 |
| B | 15 | 204 | 582852 | 4030.26 | 758 | 740 | 144.4 |
| B | 14 | 167 | 335598 | 2318.4 | 758 | 740 | 144.4 |
| B | 5 | 172 | 155270 | 1069.89 | 758 | 740 | 144.4 |
| C | 10 | 19 | 111820 | 651.68 | 735 | 739 | 170.5 |
| C | 9 | 247 | 49132 | 283.91 | 735 | 739 | 170.5 |
| C | 7 | 220 | 18055 | 101.59 | 735 | 739 | 170.5 |
| D | 11 | 132 | 285339 | 1619.12 | 736 | 717 | 175.8 |
| D | 1 | 84 | 226559 | 1284.74 | 736 | 717 | 175.8 |
| D | 13 | 223 | 99868 | 564.04 | 736 | 717 | 175.8 |

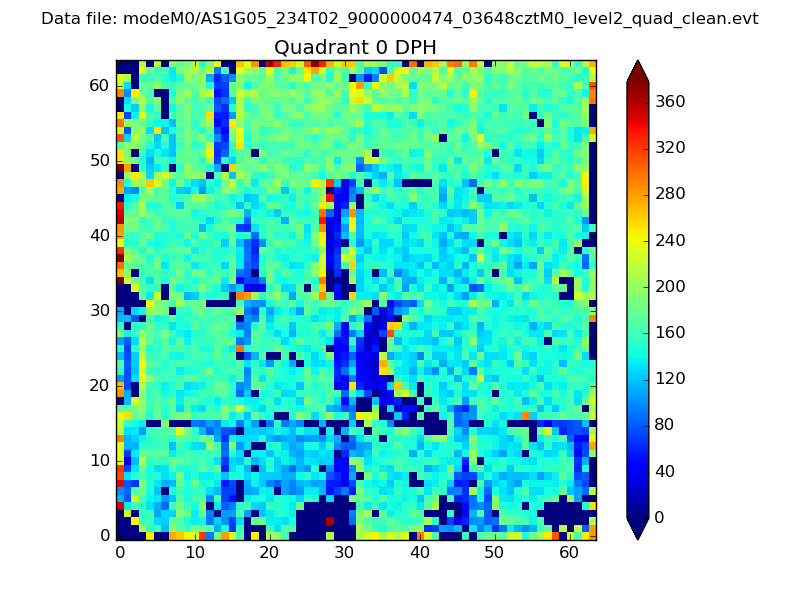

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

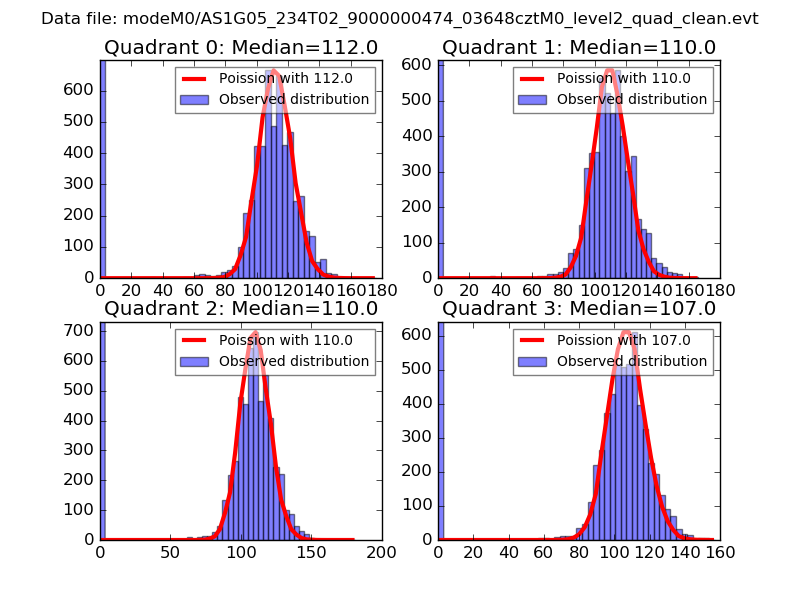

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

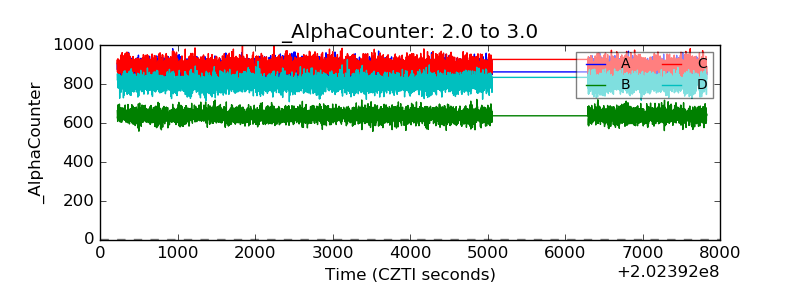

| Alpha Counter |  |

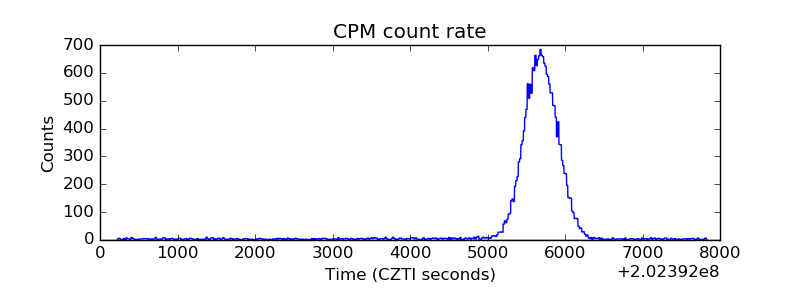

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
