| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_234T02_9000000474_03650cztM0_level2.evt | modeM0/AS1G05_234T02_9000000474_03650cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,375,360 | 78,465,600 |
| Size | 458.1 MB | 74.8 MB |
| Events in quadrant A | 3,135,433 | 488,163 |
| Events in quadrant B | 4,436,437 | 475,009 |
| Events in quadrant C | 3,475,437 | 479,656 |
| Events in quadrant D | 3,052,195 | 472,420 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 3 |
| B | 0 | 17733 | 2 |
| C | 0 | 15027 | 2 |
| D | 0 | 13984 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6606 | 49 | 0.741750% |
| B | 6606 | 148 | 2.240388% |
| C | 6606 | 148 | 2.240388% |
| D | 6606 | 65 | 0.983954% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7446 | 6608 | 15 | 15 | 0.20% | 0.23% |  |
| B | 7446 | 6608 | 56 | 56 | 0.75% | 0.85% |  |
| C | 7446 | 6608 | 96 | 96 | 1.29% | 1.45% |  |
| D | 7446 | 6608 | 31 | 31 | 0.42% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 172494 | 1119.0 | 746 | 729 | 153.5 |
| A | 0 | 50 | 67180 | 432.91 | 746 | 729 | 153.5 |
| A | 12 | 194 | 8046 | 47.67 | 746 | 729 | 153.5 |
| B | 15 | 204 | 1009938 | 6978.43 | 751 | 731 | 144.6 |
| B | 14 | 167 | 197842 | 1362.98 | 751 | 731 | 144.6 |
| B | 3 | 0 | 148585 | 1022.38 | 751 | 731 | 144.6 |
| C | 2 | 53 | 361749 | 2113.67 | 730 | 732 | 170.8 |
| C | 7 | 220 | 161594 | 941.81 | 730 | 732 | 170.8 |
| C | 9 | 247 | 84951 | 493.08 | 730 | 732 | 170.8 |
| D | 13 | 239 | 101984 | 569.46 | 731 | 707 | 177.8 |
| D | 3 | 247 | 46826 | 259.32 | 731 | 707 | 177.8 |
| D | 13 | 223 | 30737 | 168.85 | 731 | 707 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

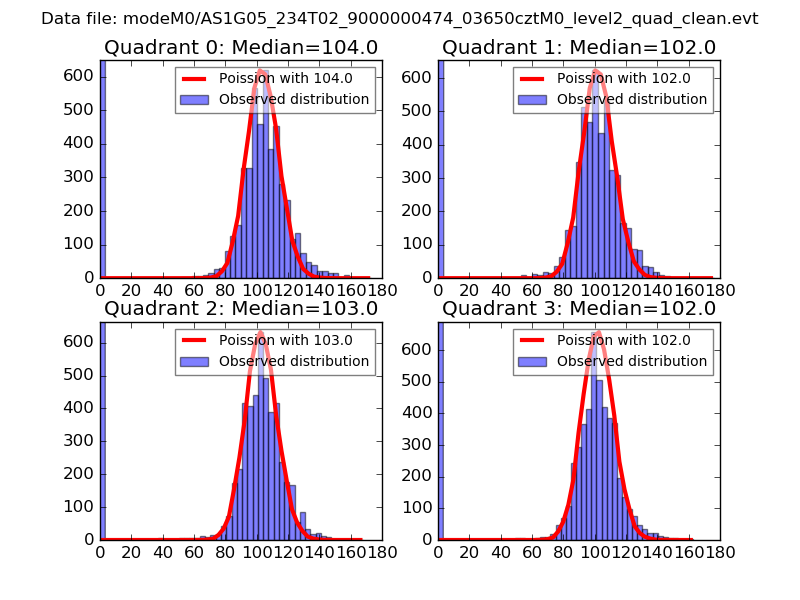

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

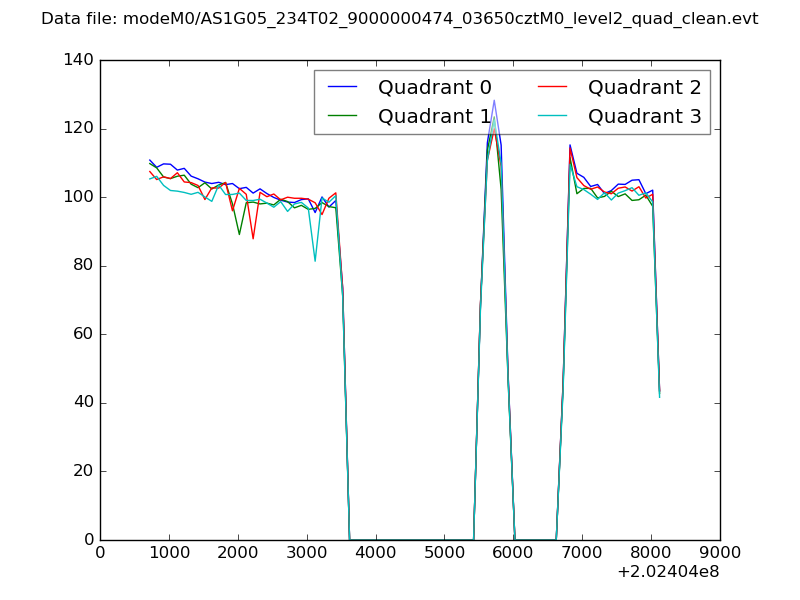

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

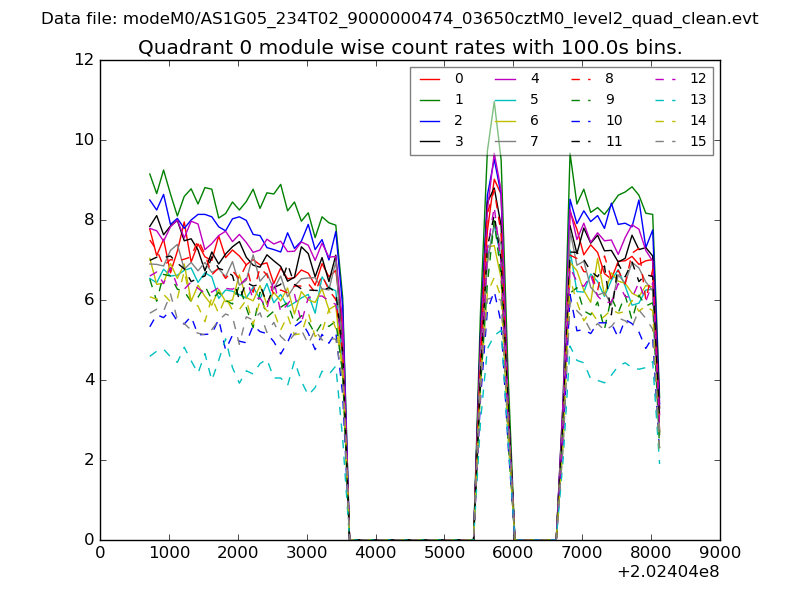

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

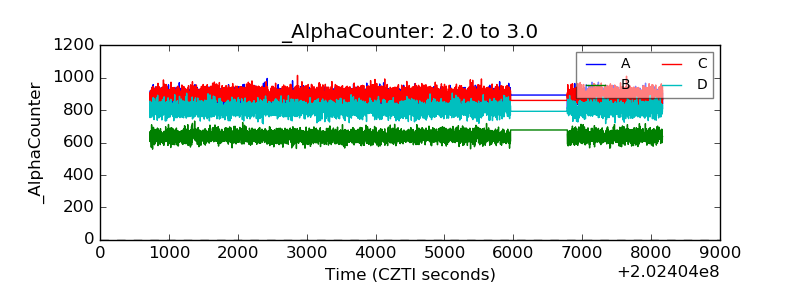

| Alpha Counter |  |

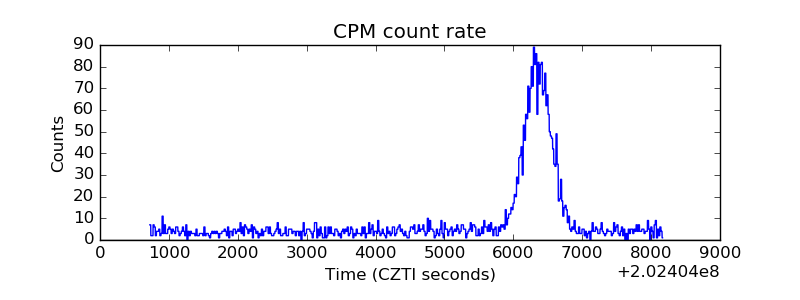

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
