| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_182T01_9000000484_03722cztM0_level2.evt | modeM0/AS1G05_182T01_9000000484_03722cztM0_level2_quad_clean.evt |
| Size (bytes) | 161,611,200 | 38,194,560 |
| Size | 154.1 MB | 36.4 MB |
| Events in quadrant A | 1,133,153 | 251,361 |
| Events in quadrant B | 1,354,803 | 250,330 |
| Events in quadrant C | 1,055,593 | 245,390 |
| Events in quadrant D | 1,187,002 | 238,226 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4909 | 0 |
| B | 0 | 5486 | 0 |
| C | 0 | 4758 | 0 |
| D | 0 | 5128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2371 | 10 | 0.421763% |
| B | 2371 | 20 | 0.843526% |
| C | 2371 | 0 | 0.000000% |
| D | 2371 | 16 | 0.674821% |

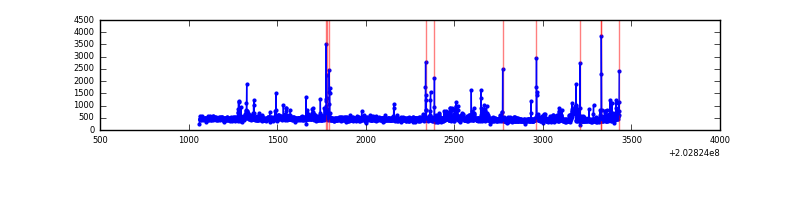

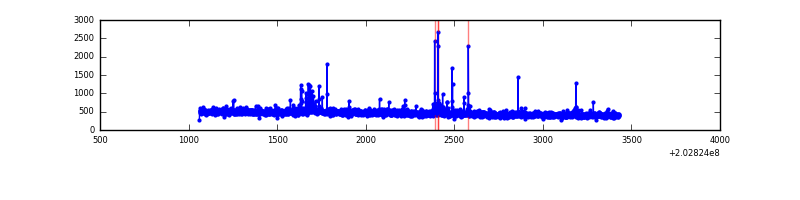

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2371 | 2371 | 4 | 4 | 0.17% | 0.17% |  |
| B | 2371 | 2371 | 16 | 16 | 0.67% | 0.67% |  |
| C | 2371 | 2371 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2371 | 2371 | 11 | 11 | 0.46% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 32963 | 561.41 | 275 | 270 | 58.2 |
| A | 13 | 248 | 14616 | 246.35 | 275 | 270 | 58.2 |
| A | 8 | 15 | 10663 | 178.47 | 275 | 270 | 58.2 |
| B | 15 | 204 | 142773 | 2628.38 | 273 | 267 | 54.2 |
| B | 2 | 249 | 63606 | 1168.22 | 273 | 267 | 54.2 |
| B | 4 | 81 | 39276 | 719.48 | 273 | 267 | 54.2 |
| C | 2 | 53 | 16512 | 258.53 | 264 | 264 | 62.8 |
| C | 9 | 144 | 5018 | 75.64 | 264 | 264 | 62.8 |
| C | 12 | 4 | 2554 | 36.43 | 264 | 264 | 62.8 |
| D | 2 | 37 | 55020 | 820.14 | 268 | 260 | 66.8 |
| D | 13 | 223 | 43791 | 651.97 | 268 | 260 | 66.8 |
| D | 9 | 35 | 35280 | 524.5 | 268 | 260 | 66.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

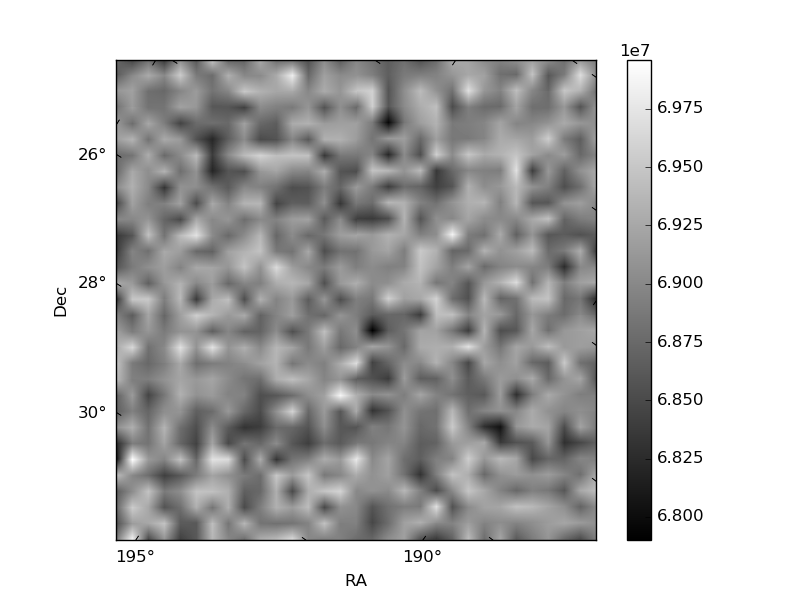

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

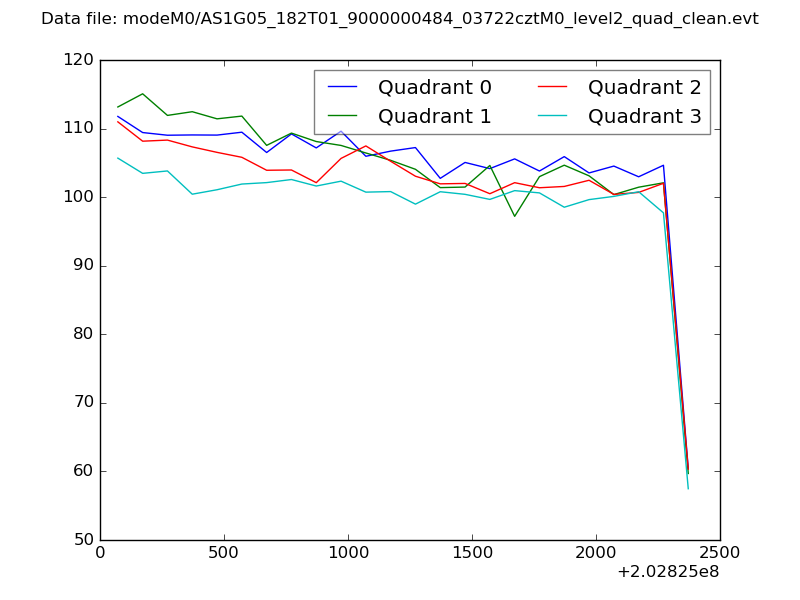

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

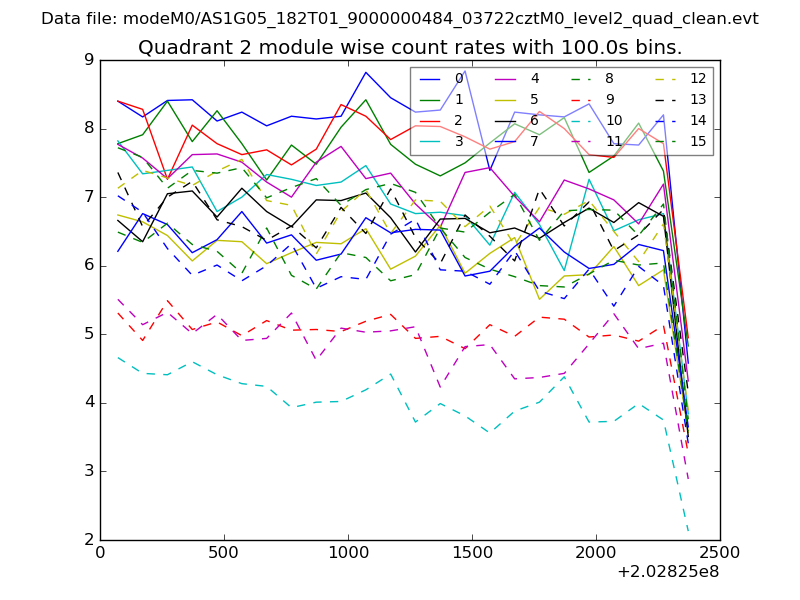

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

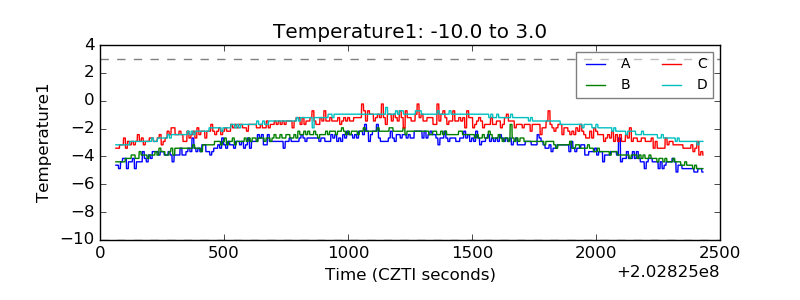

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

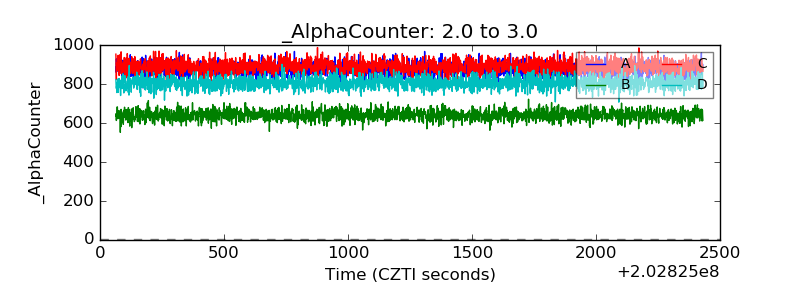

| Alpha Counter |  |
| _CPM_Rate |  |

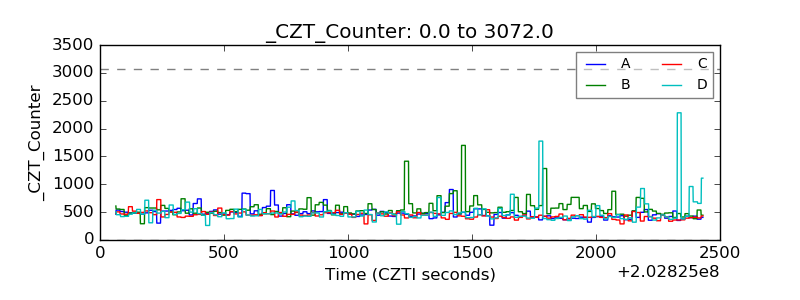

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
