| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_248T01_9000000486_03725cztM0_level2.evt | modeM0/AS1G05_248T01_9000000486_03725cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,077,120 | 92,113,920 |
| Size | 541.8 MB | 87.8 MB |
| Events in quadrant A | 4,180,959 | 570,442 |
| Events in quadrant B | 5,178,023 | 565,204 |
| Events in quadrant C | 3,498,970 | 569,905 |
| Events in quadrant D | 3,827,759 | 551,862 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17691 | 2 |
| B | 0 | 20650 | 1 |
| C | 0 | 15843 | 1 |
| D | 0 | 16927 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7649 | 152 | 1.987188% |
| B | 7649 | 362 | 4.732645% |
| C | 7649 | 26 | 0.339914% |
| D | 7649 | 67 | 0.875931% |

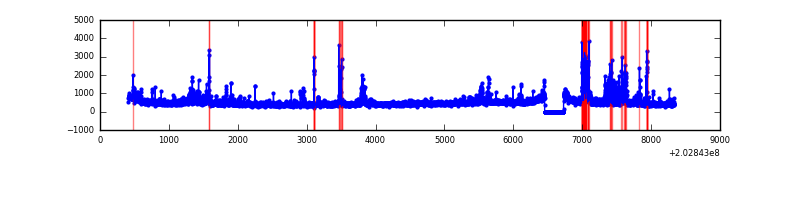

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7924 | 7650 | 71 | 71 | 0.90% | 0.93% |  |
| B | 7924 | 7650 | 193 | 193 | 2.44% | 2.52% |  |
| C | 7924 | 7650 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7924 | 7650 | 28 | 28 | 0.35% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 325295 | 1787.36 | 878 | 856 | 181.5 |
| A | 0 | 118 | 269800 | 1481.63 | 878 | 856 | 181.5 |
| A | 0 | 50 | 79521 | 433.37 | 878 | 856 | 181.5 |
| B | 15 | 204 | 686767 | 4045.55 | 876 | 855 | 169.5 |
| B | 0 | 173 | 511457 | 3011.56 | 876 | 855 | 169.5 |
| B | 5 | 172 | 241401 | 1418.75 | 876 | 855 | 169.5 |
| C | 2 | 53 | 81034 | 396.22 | 861 | 864 | 202.3 |
| C | 9 | 144 | 19694 | 93.06 | 861 | 864 | 202.3 |
| C | 14 | 67 | 12872 | 59.35 | 861 | 864 | 202.3 |
| D | 14 | 34 | 202119 | 961.14 | 859 | 833 | 209.4 |
| D | 6 | 16 | 94266 | 446.14 | 859 | 833 | 209.4 |
| D | 6 | 112 | 45923 | 215.3 | 859 | 833 | 209.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

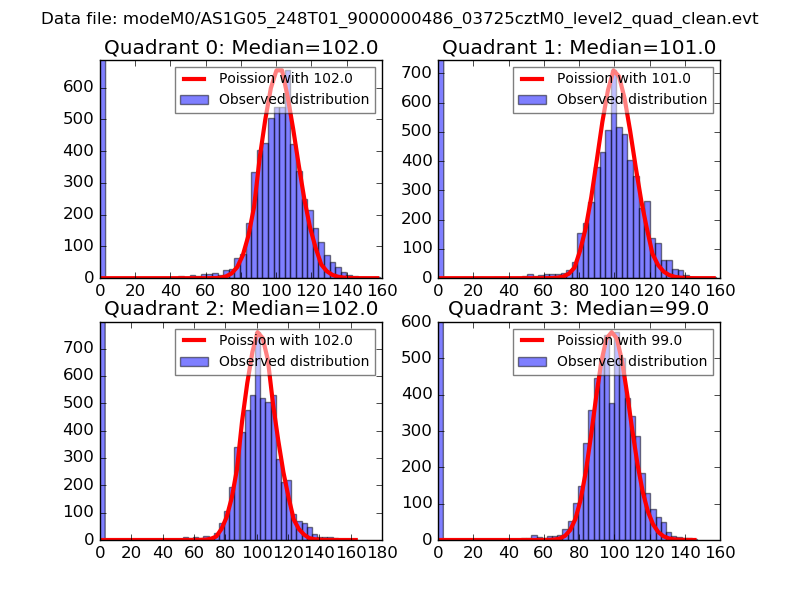

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

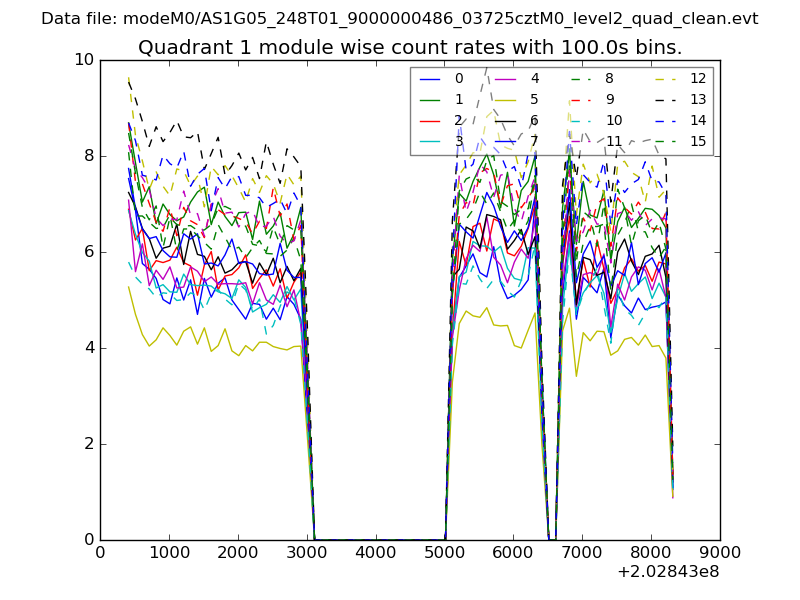

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

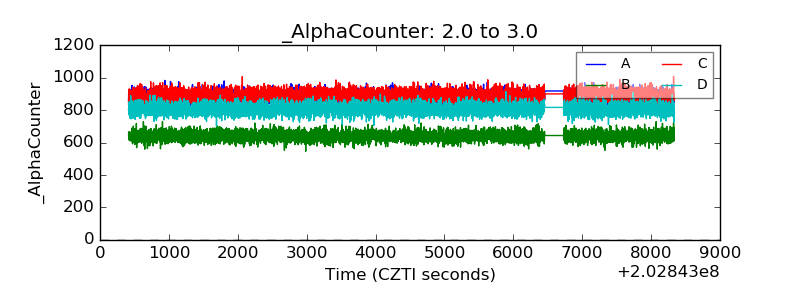

| Alpha Counter |  |

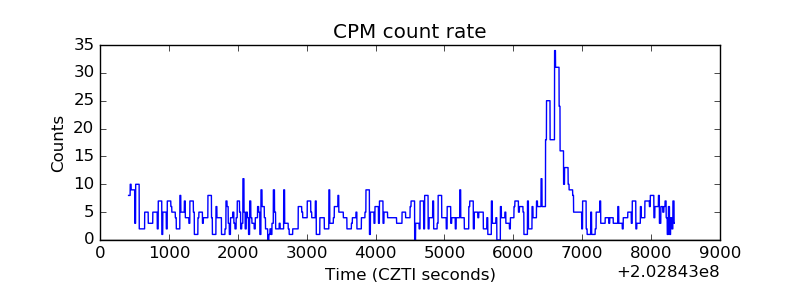

| _CPM_Rate |  |

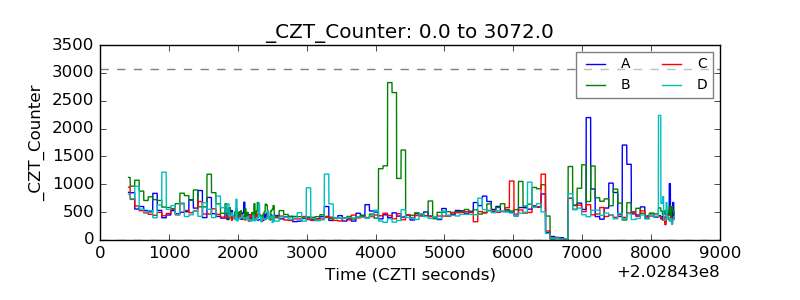

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

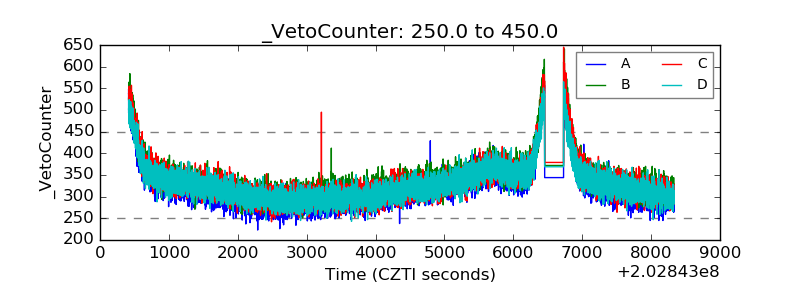

| Veto Counter |  |
