| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_248T01_9000000486_03734cztM0_level2.evt | modeM0/AS1G05_248T01_9000000486_03734cztM0_level2_quad_clean.evt |
| Size (bytes) | 711,120,960 | 72,815,040 |
| Size | 678.2 MB | 69.4 MB |
| Events in quadrant A | 3,718,589 | 493,120 |
| Events in quadrant B | 11,045,378 | 313,435 |
| Events in quadrant C | 3,031,328 | 483,932 |
| Events in quadrant D | 3,309,312 | 468,103 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14897 | 3 |
| B | 0 | 37340 | 2 |
| C | 0 | 13179 | 2 |
| D | 0 | 13994 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6383 | 168 | 2.631991% |
| B | 6383 | 3267 | 51.182829% |
| C | 6383 | 50 | 0.783331% |
| D | 6383 | 94 | 1.472662% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7653 | 6384 | 43 | 43 | 0.56% | 0.67% |  |
| B | 7652 | 6382 | 3064 | 3064 | 40.04% | 48.01% |  |
| C | 7653 | 6383 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7653 | 6384 | 26 | 26 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 287505 | 1769.93 | 803 | 785 | 162.0 |
| A | 8 | 15 | 215935 | 1328.13 | 803 | 785 | 162.0 |
| A | 13 | 251 | 42993 | 260.55 | 803 | 785 | 162.0 |
| B | 0 | 173 | 8180912 | 76956.9 | 559 | 547 | 106.3 |
| B | 4 | 81 | 376762 | 3539.25 | 559 | 547 | 106.3 |
| B | 15 | 204 | 182203 | 1708.93 | 559 | 547 | 106.3 |
| C | 1 | 16 | 10900 | 56.73 | 769 | 772 | 178.5 |
| C | 12 | 4 | 9752 | 50.3 | 769 | 772 | 178.5 |
| C | 2 | 53 | 7264 | 36.36 | 769 | 772 | 178.5 |
| D | 14 | 34 | 191689 | 1033.83 | 772 | 751 | 184.7 |
| D | 2 | 37 | 60843 | 325.37 | 772 | 751 | 184.7 |
| D | 13 | 171 | 41215 | 219.09 | 772 | 751 | 184.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

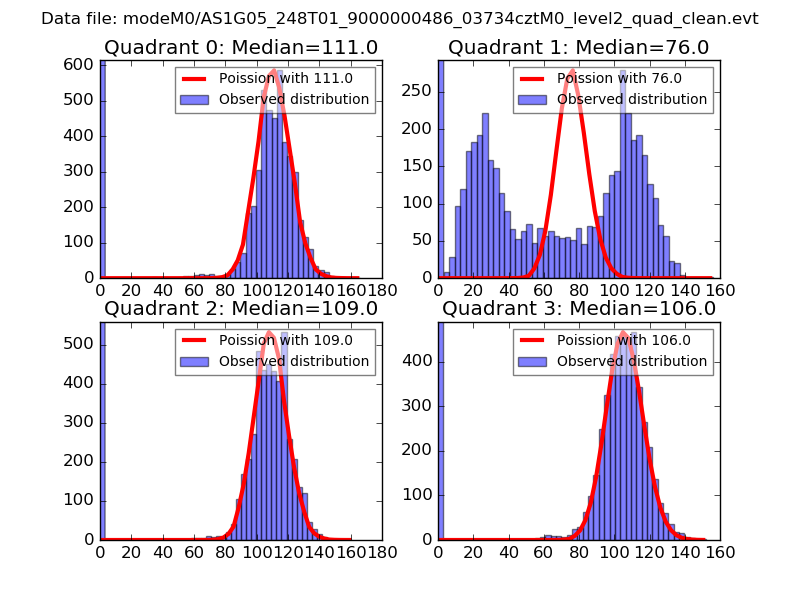

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

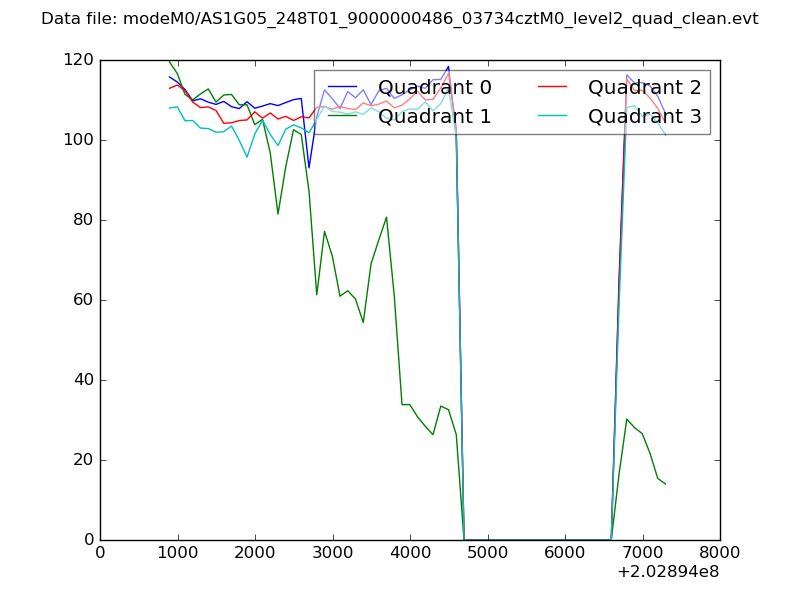

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

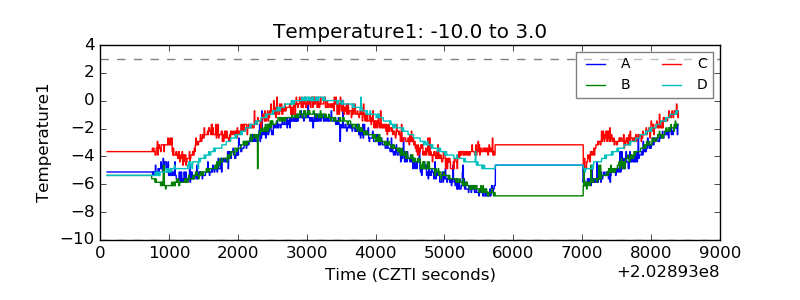

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
