| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_248T01_9000000486_03737cztM0_level2.evt | modeM0/AS1G05_248T01_9000000486_03737cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,707,520 | 74,640,960 |
| Size | 555.7 MB | 71.2 MB |
| Events in quadrant A | 6,439,102 | 412,402 |
| Events in quadrant B | 4,423,684 | 468,214 |
| Events in quadrant C | 2,956,727 | 467,224 |
| Events in quadrant D | 3,384,367 | 455,855 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23581 | 2 |
| B | 0 | 17559 | 1 |
| C | 0 | 13641 | 1 |
| D | 0 | 14799 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 1248 | 19.079651% |
| B | 6541 | 169 | 2.583703% |
| C | 6541 | 93 | 1.421801% |
| D | 6541 | 146 | 2.232075% |

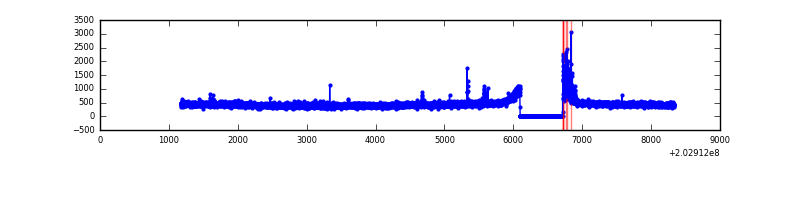

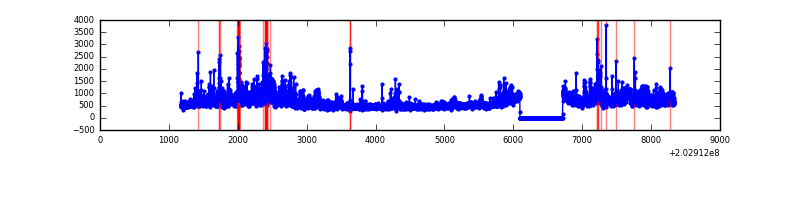

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7161 | 6541 | 973 | 973 | 13.59% | 14.88% |  |
| B | 7161 | 6542 | 49 | 49 | 0.68% | 0.75% |  |
| C | 7161 | 6542 | 7 | 7 | 0.10% | 0.11% |  |
| D | 7160 | 6541 | 57 | 57 | 0.80% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 3110442 | 21584.31 | 690 | 672 | 144.1 |
| A | 0 | 118 | 420255 | 2912.24 | 690 | 672 | 144.1 |
| A | 0 | 50 | 92840 | 639.72 | 690 | 672 | 144.1 |
| B | 0 | 173 | 592065 | 4005.05 | 759 | 741 | 147.6 |
| B | 15 | 204 | 546468 | 3696.22 | 759 | 741 | 147.6 |
| B | 14 | 167 | 159156 | 1072.95 | 759 | 741 | 147.6 |
| C | 9 | 247 | 58425 | 335.49 | 733 | 736 | 172.0 |
| C | 0 | 239 | 20381 | 114.24 | 733 | 736 | 172.0 |
| C | 12 | 4 | 13285 | 72.98 | 733 | 736 | 172.0 |
| D | 2 | 118 | 148106 | 820.17 | 738 | 716 | 179.7 |
| D | 9 | 35 | 142311 | 787.92 | 738 | 716 | 179.7 |
| D | 13 | 223 | 96485 | 532.92 | 738 | 716 | 179.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

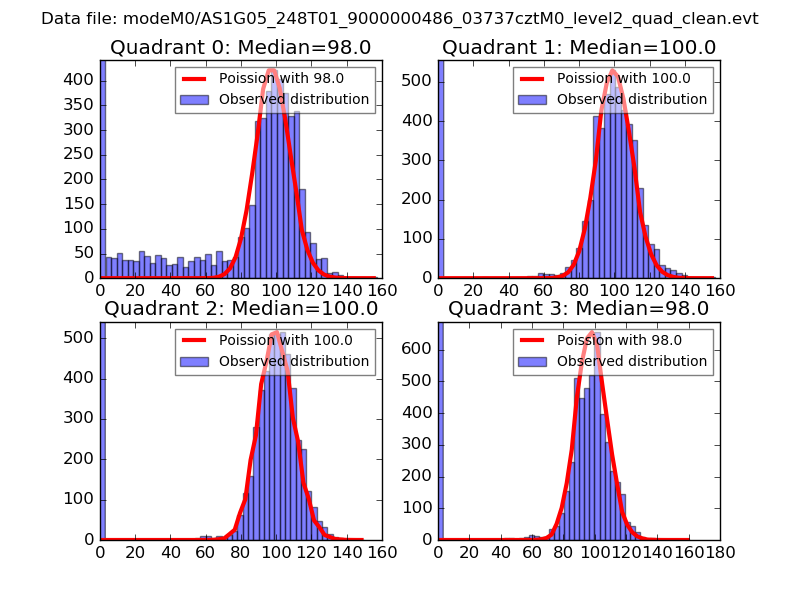

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

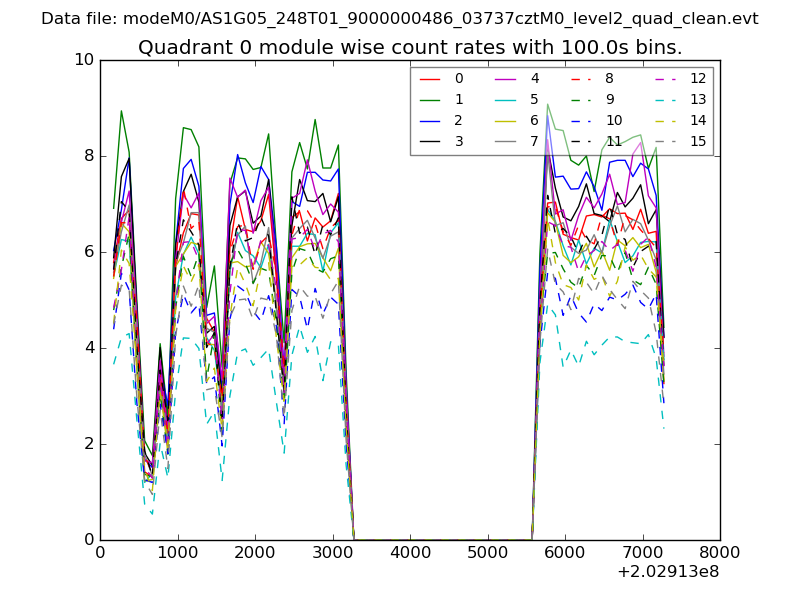

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

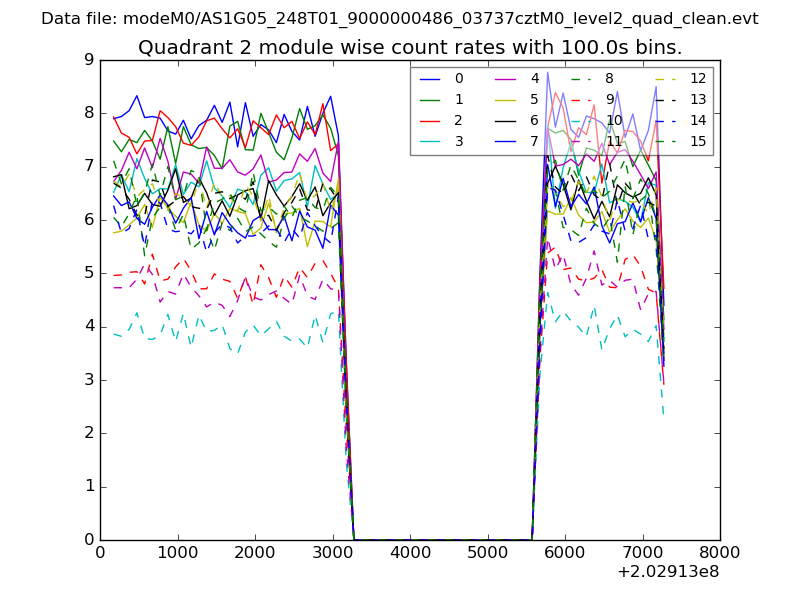

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

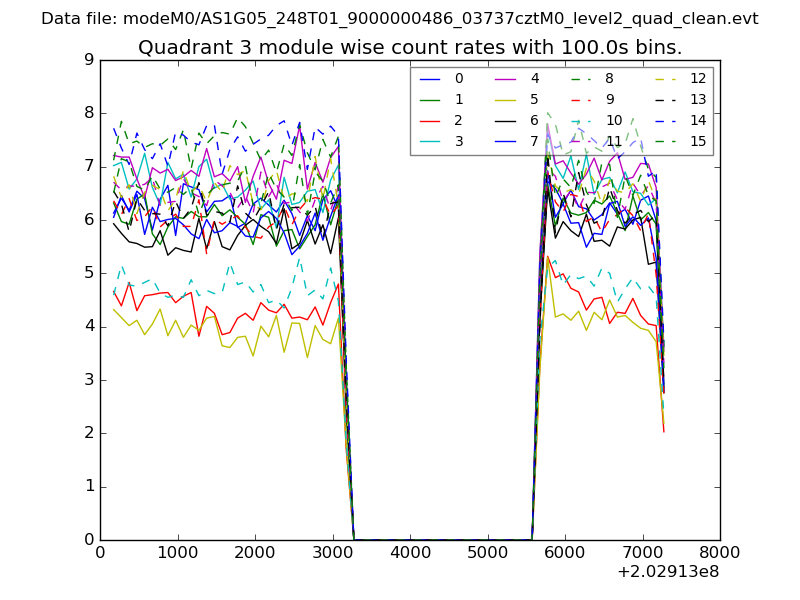

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

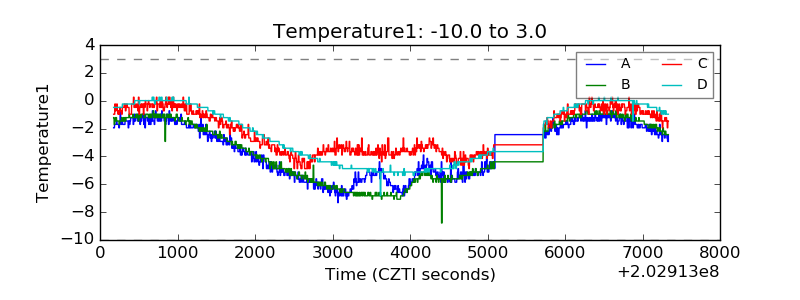

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

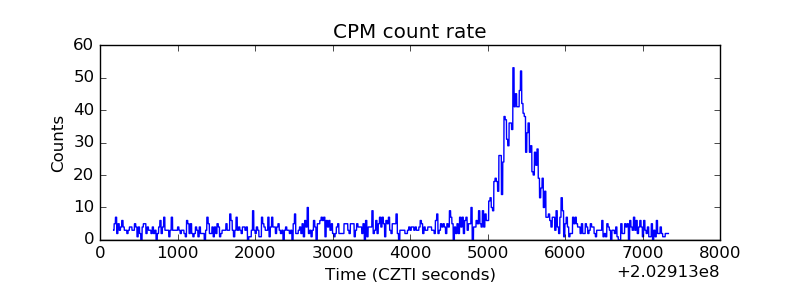

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
