| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_248T01_9000000486_03771cztM0_level2.evt | modeM0/AS1G05_248T01_9000000486_03771cztM0_level2_quad_clean.evt |
| Size (bytes) | 749,004,480 | 114,736,320 |
| Size | 714.3 MB | 109.4 MB |
| Events in quadrant A | 5,889,328 | 684,421 |
| Events in quadrant B | 6,252,975 | 687,361 |
| Events in quadrant C | 4,671,313 | 686,101 |
| Events in quadrant D | 5,136,687 | 666,942 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25166 | 2 |
| B | 0 | 26094 | 1 |
| C | 0 | 21943 | 1 |
| D | 0 | 23376 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10828 | 246 | 2.271888% |
| B | 10828 | 102 | 0.942002% |
| C | 10828 | 16 | 0.147765% |
| D | 10828 | 121 | 1.117473% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11403 | 10829 | 164 | 164 | 1.44% | 1.51% |  |
| B | 11403 | 10829 | 60 | 60 | 0.53% | 0.55% |  |
| C | 11403 | 10829 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11403 | 10828 | 91 | 91 | 0.80% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 539266 | 2188.89 | 1194 | 1164 | 245.8 |
| A | 13 | 251 | 520080 | 2110.84 | 1194 | 1164 | 245.8 |
| A | 0 | 50 | 124558 | 501.94 | 1194 | 1164 | 245.8 |
| B | 15 | 204 | 991852 | 4164.63 | 1221 | 1190 | 237.9 |
| B | 5 | 70 | 393081 | 1647.46 | 1221 | 1190 | 237.9 |
| B | 4 | 81 | 39678 | 161.8 | 1221 | 1190 | 237.9 |
| C | 14 | 234 | 52123 | 186.22 | 1173 | 1176 | 273.6 |
| C | 8 | 128 | 15939 | 53.96 | 1173 | 1176 | 273.6 |
| C | 13 | 61 | 9906 | 31.91 | 1173 | 1176 | 273.6 |
| D | 13 | 239 | 291800 | 1031.61 | 1162 | 1125 | 281.8 |
| D | 10 | 246 | 137901 | 485.42 | 1162 | 1125 | 281.8 |
| D | 1 | 84 | 87636 | 307.03 | 1162 | 1125 | 281.8 |

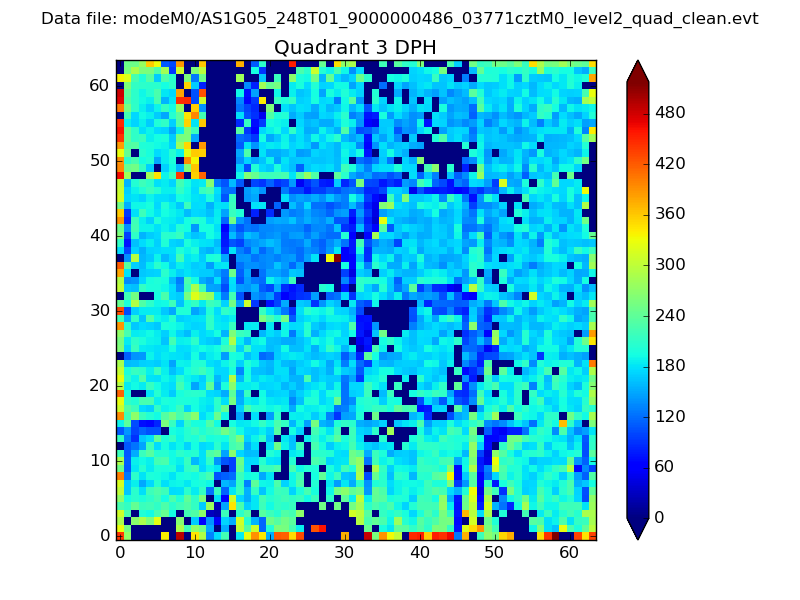

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

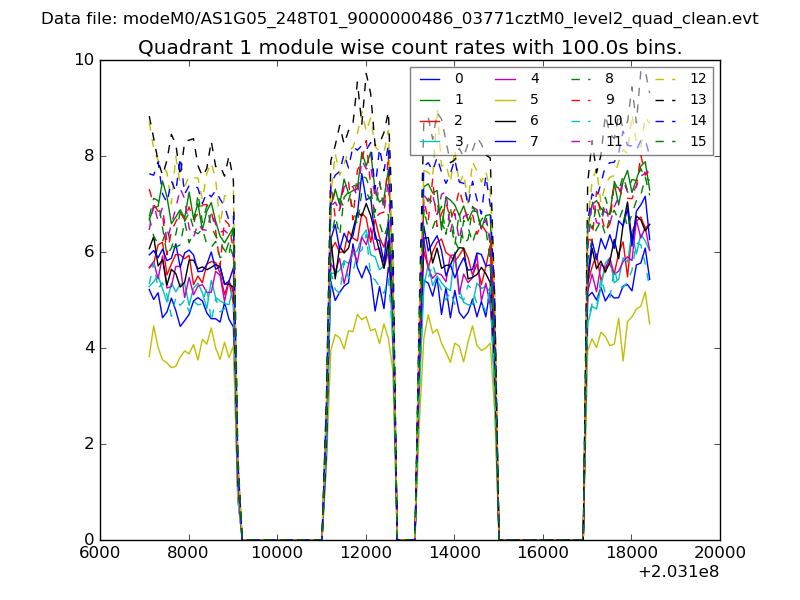

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

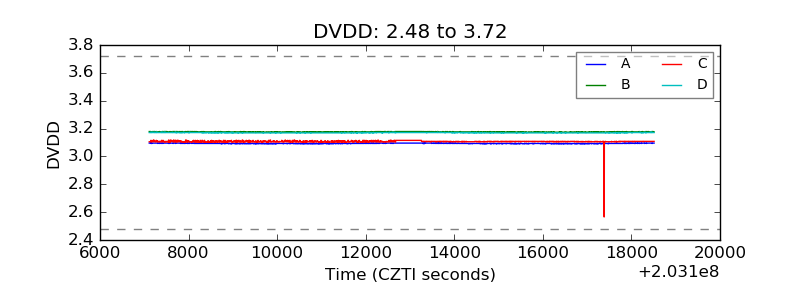

| D_VDD |  |

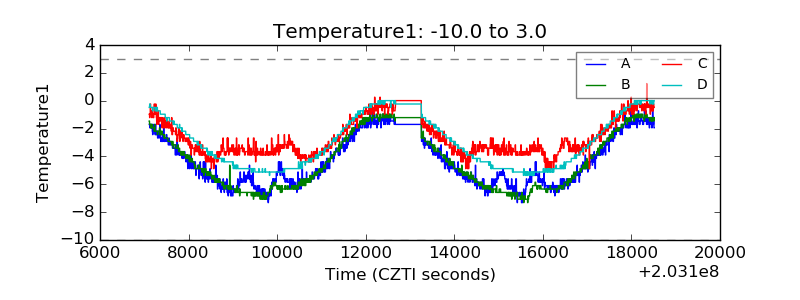

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

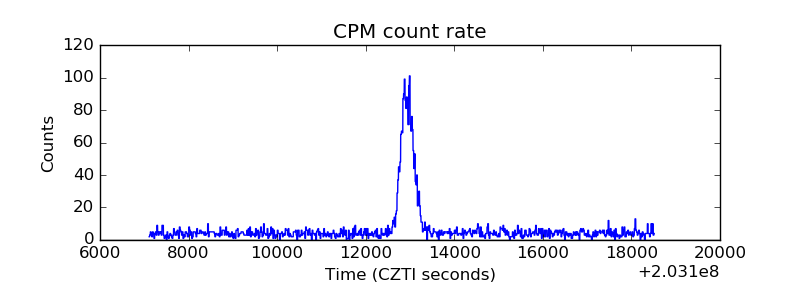

| _CPM_Rate |  |

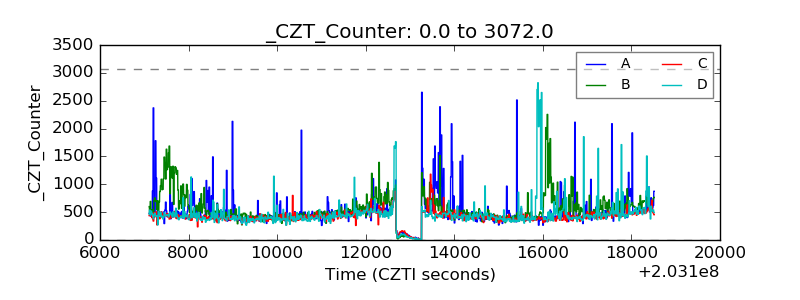

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

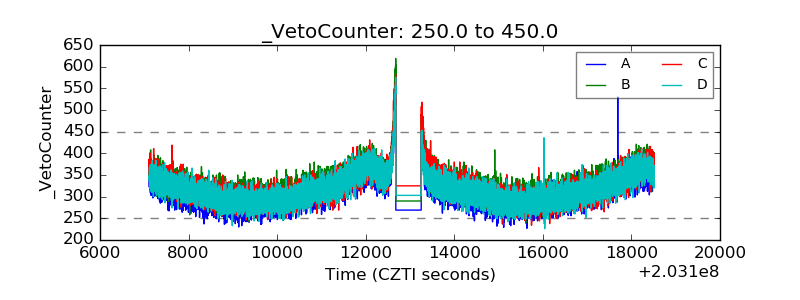

| Veto Counter |  |
