| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1SLEW_01234_9000000485_03722cztM0_level2.evt | modeM0/AS1SLEW_01234_9000000485_03722cztM0_level2_quad_clean.evt |
| Size (bytes) | 28,074,240 | 7,424,640 |
| Size | 26.8 MB | 7.1 MB |
| Events in quadrant A | 184,072 | 47,047 |
| Events in quadrant B | 203,443 | 46,422 |
| Events in quadrant C | 180,705 | 46,126 |
| Events in quadrant D | 247,423 | 44,971 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 913 | 0 |
| B | 0 | 930 | 0 |
| C | 0 | 913 | 0 |
| D | 0 | 1097 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 456 | 0 | 0.000000% |
| B | 456 | 0 | 0.000000% |
| C | 456 | 0 | 0.000000% |
| D | 456 | 9 | 1.973684% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 456 | 456 | 0 | 0 | 0.00% | 0.00% |  |
| B | 456 | 456 | 0 | 0 | 0.00% | 0.00% |  |
| C | 456 | 456 | 0 | 0 | 0.00% | 0.00% |  |
| D | 456 | 456 | 9 | 9 | 1.97% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 3039 | 256.65 | 46 | 45 | 11.7 |
| A | 0 | 118 | 964 | 78.78 | 46 | 45 | 11.7 |
| A | 0 | 226 | 552 | 43.46 | 46 | 45 | 11.7 |
| B | 15 | 204 | 14172 | 1251.59 | 47 | 46 | 11.3 |
| B | 5 | 172 | 6538 | 575.2 | 47 | 46 | 11.3 |
| B | 4 | 221 | 798 | 66.63 | 47 | 46 | 11.3 |
| C | 7 | 202 | 822 | 61.96 | 45 | 45 | 12.5 |
| C | 9 | 144 | 712 | 53.19 | 45 | 45 | 12.5 |
| C | 2 | 53 | 613 | 45.3 | 45 | 45 | 12.5 |
| D | 2 | 37 | 45102 | 3504.33 | 44 | 43 | 12.9 |
| D | 5 | 233 | 13455 | 1043.08 | 44 | 43 | 12.9 |
| D | 9 | 35 | 13004 | 1008.0 | 44 | 43 | 12.9 |

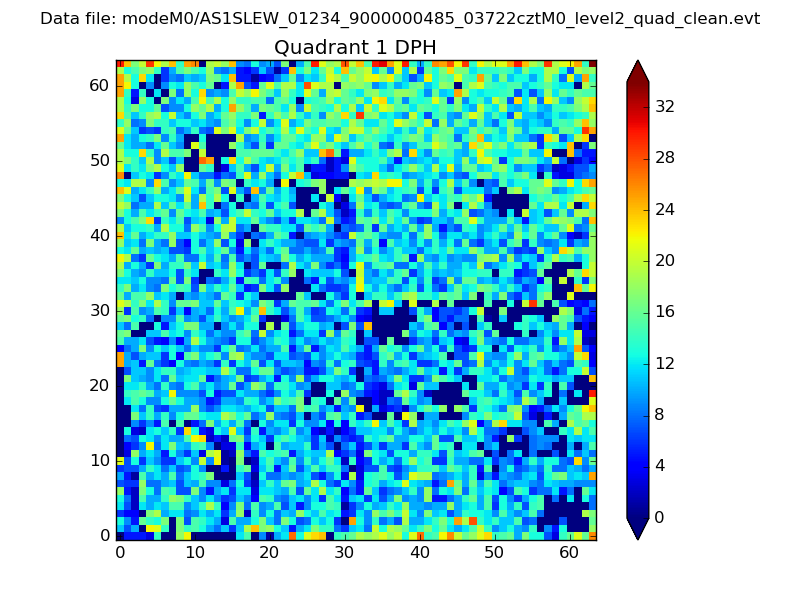

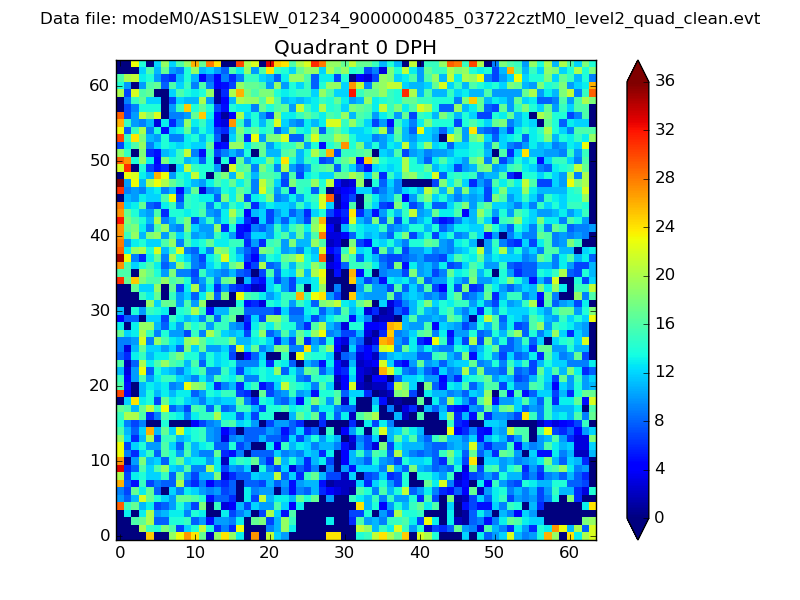

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

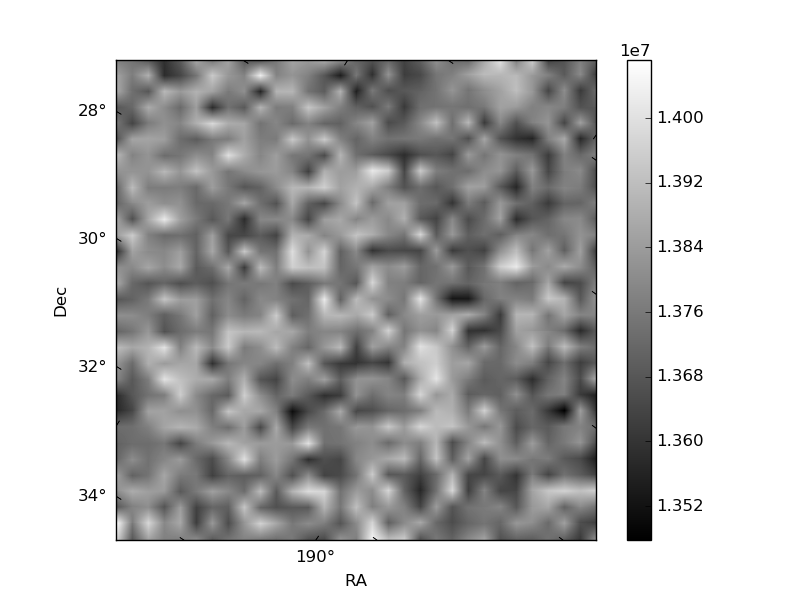

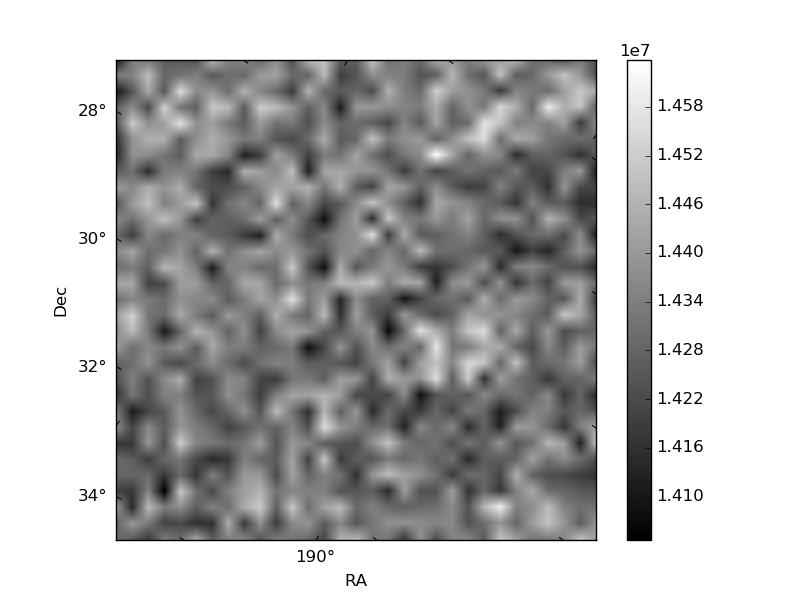

| Plot type | Count rate plots | Images |
|---|---|---|

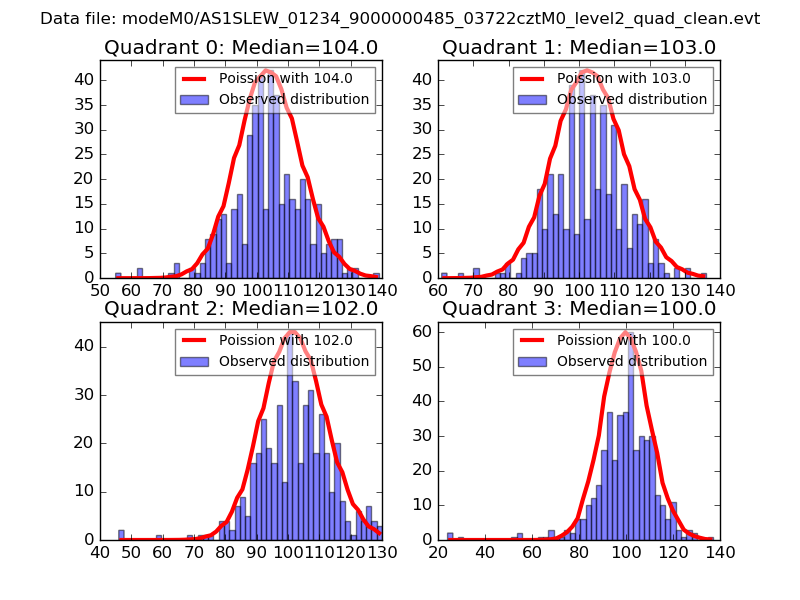

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

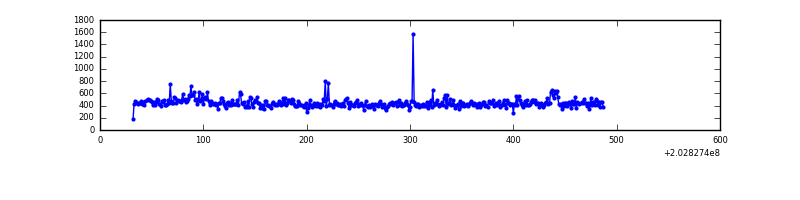

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

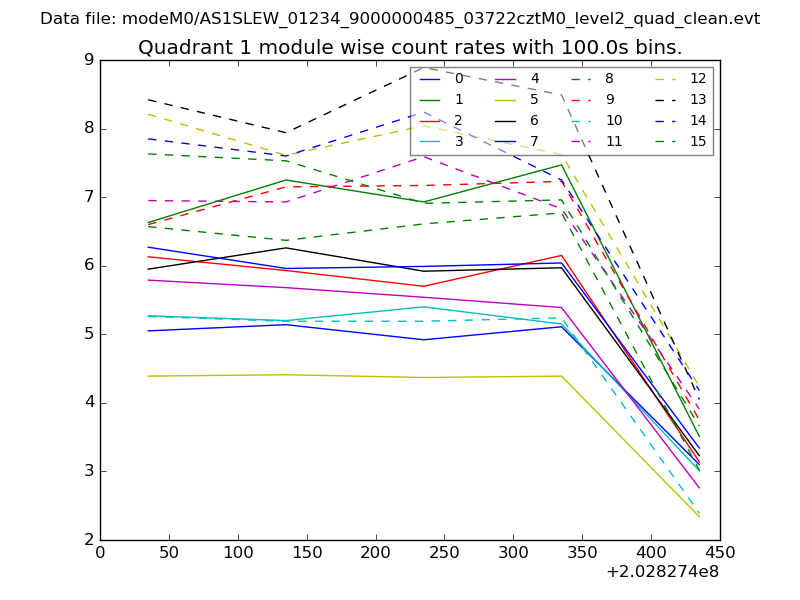

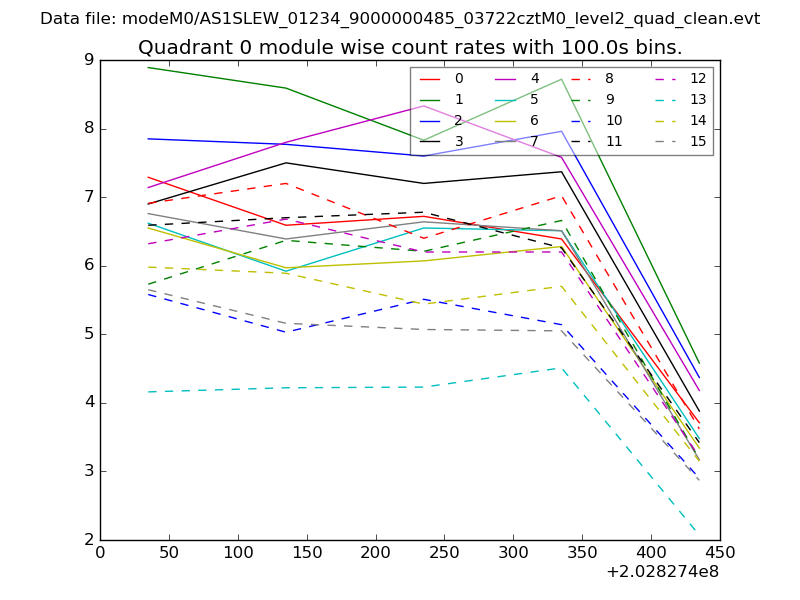

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
