| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_189T01_9000000492_03841cztM0_level2.evt | modeM0/AS1G05_189T01_9000000492_03841cztM0_level2_quad_clean.evt |
| Size (bytes) | 783,267,840 | 71,887,680 |
| Size | 747.0 MB | 68.6 MB |
| Events in quadrant A | 4,558,617 | 424,353 |
| Events in quadrant B | 3,950,135 | 423,137 |
| Events in quadrant C | 10,888,830 | 379,129 |
| Events in quadrant D | 3,795,570 | 405,407 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18929 | 3 |
| B | 0 | 16655 | 2 |
| C | 0 | 37881 | 2 |
| D | 0 | 16989 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7830 | 269 | 3.435504% |
| B | 7830 | 198 | 2.528736% |
| C | 7830 | 1259 | 16.079183% |
| D | 7830 | 148 | 1.890166% |

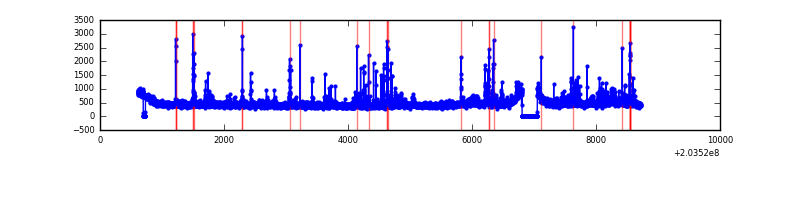

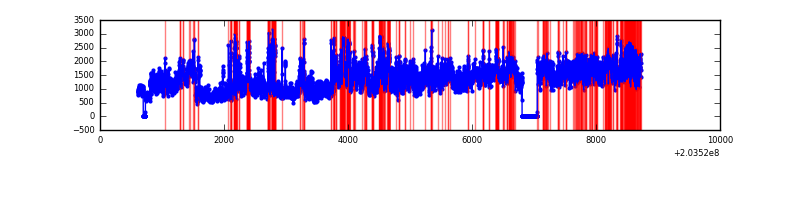

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8110 | 7831 | 56 | 56 | 0.69% | 0.72% |  |
| B | 8110 | 7831 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8110 | 7830 | 597 | 597 | 7.36% | 7.62% |  |
| D | 8110 | 7831 | 27 | 27 | 0.33% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 910385 | 4773.42 | 926 | 905 | 190.5 |
| A | 13 | 251 | 46319 | 238.36 | 926 | 905 | 190.5 |
| A | 0 | 50 | 14739 | 72.61 | 926 | 905 | 190.5 |
| B | 15 | 204 | 267960 | 1458.04 | 938 | 916 | 183.2 |
| B | 12 | 111 | 15966 | 82.17 | 938 | 916 | 183.2 |
| B | 0 | 229 | 14250 | 72.8 | 938 | 916 | 183.2 |
| C | 2 | 53 | 6856779 | 34286.61 | 853 | 854 | 200.0 |
| C | 1 | 241 | 600151 | 2997.1 | 853 | 854 | 200.0 |
| C | 1 | 16 | 37196 | 181.75 | 853 | 854 | 200.0 |
| D | 13 | 248 | 138669 | 632.3 | 896 | 868 | 217.9 |
| D | 8 | 112 | 75332 | 341.68 | 896 | 868 | 217.9 |
| D | 2 | 14 | 56308 | 254.39 | 896 | 868 | 217.9 |

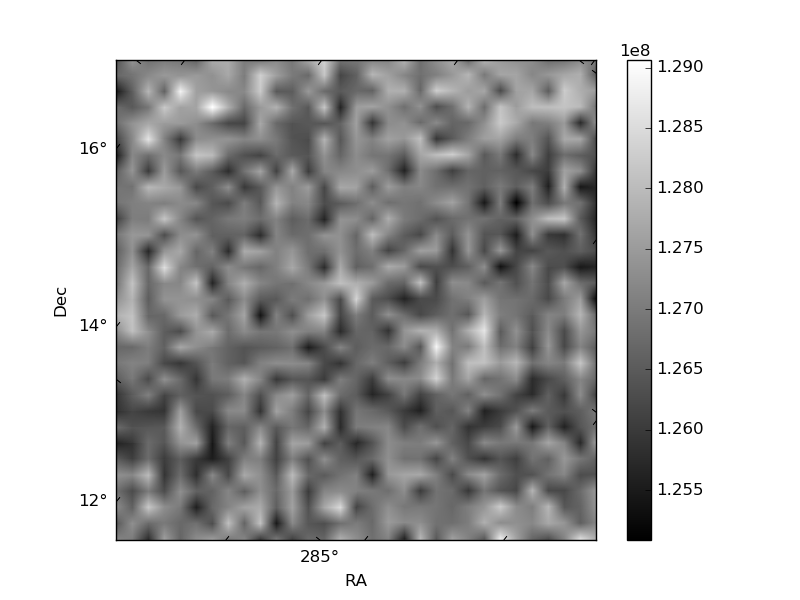

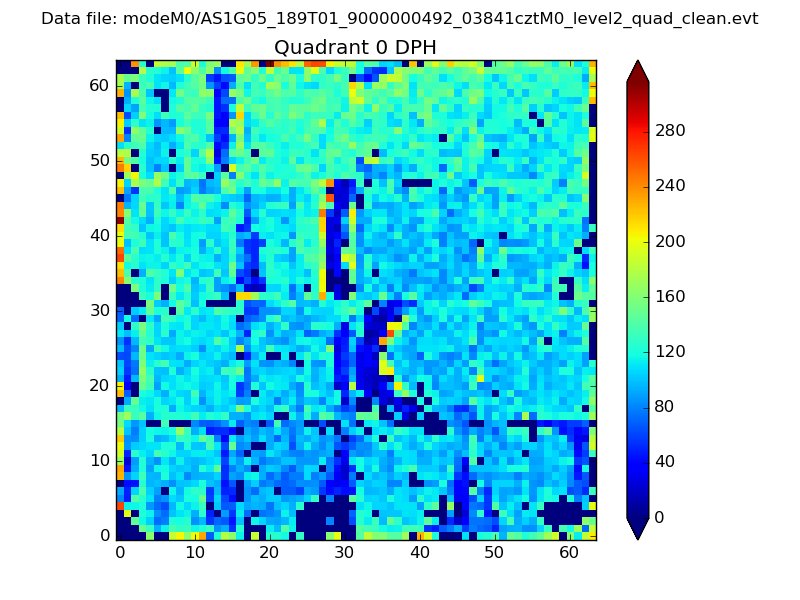

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

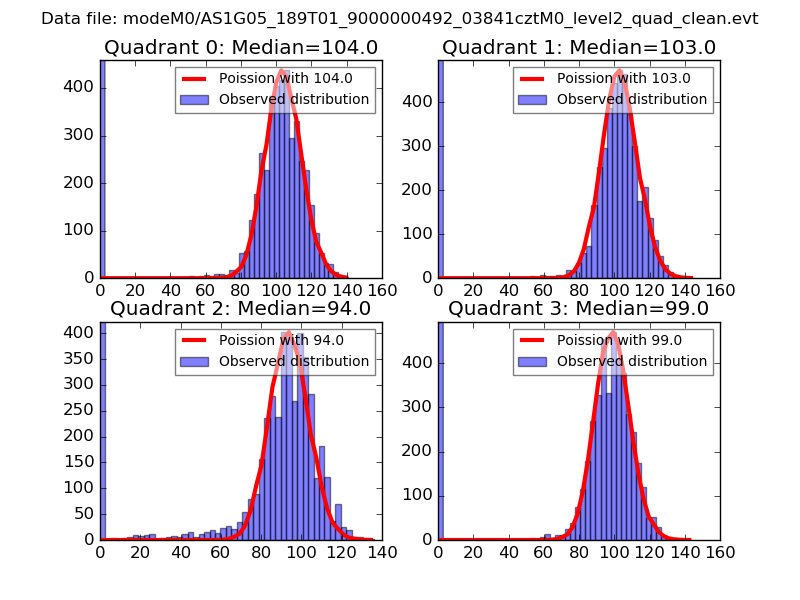

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

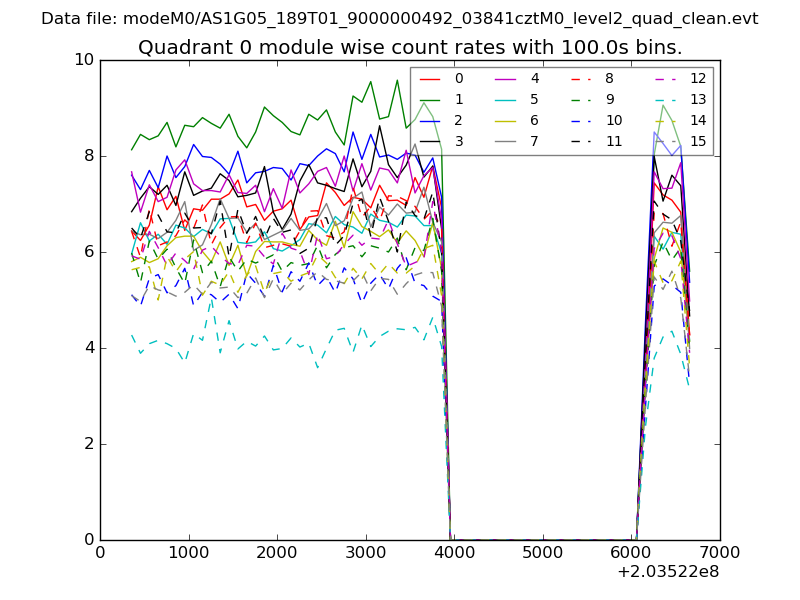

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

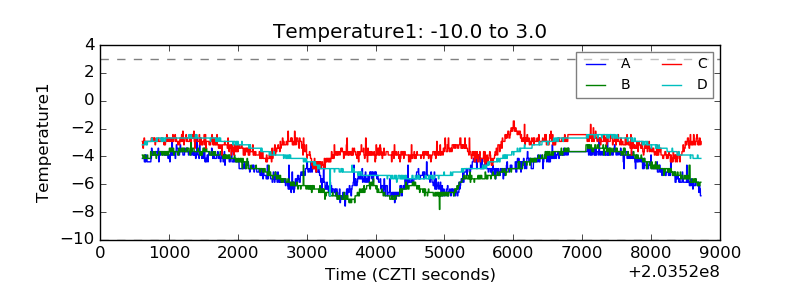

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

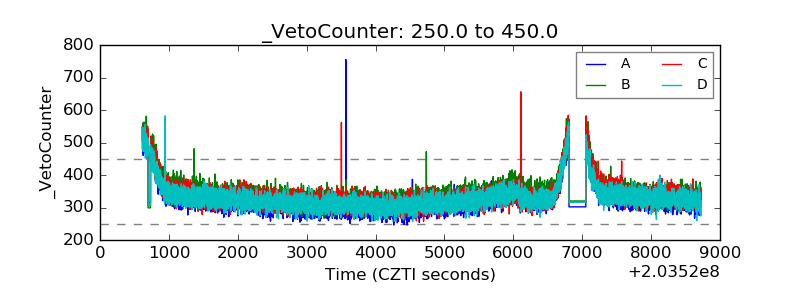

| Veto Counter |  |
