| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_172T01_9000000502_03935cztM0_level2.evt | modeM0/AS1G05_172T01_9000000502_03935cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,934,080 | 62,686,080 |
| Size | 527.3 MB | 59.8 MB |
| Events in quadrant A | 3,966,710 | 370,455 |
| Events in quadrant B | 3,882,244 | 379,268 |
| Events in quadrant C | 2,839,380 | 375,542 |
| Events in quadrant D | 5,628,945 | 330,987 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15886 | 3 |
| B | 0 | 15529 | 2 |
| C | 0 | 12872 | 2 |
| D | 0 | 21223 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6319 | 102 | 1.614179% |
| B | 6319 | 53 | 0.838740% |
| C | 6319 | 9 | 0.142428% |
| D | 6319 | 645 | 10.207311% |

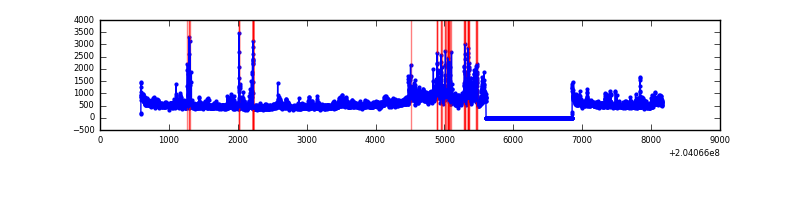

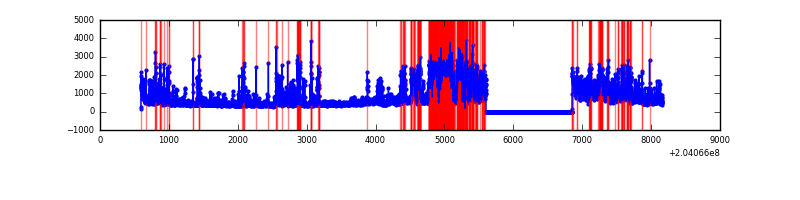

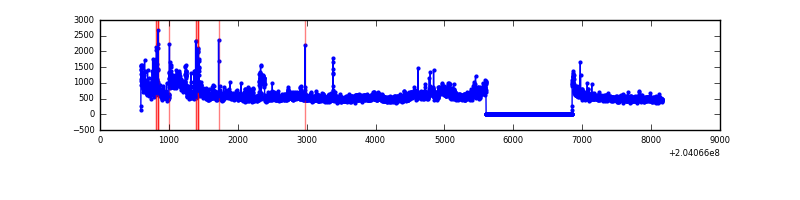

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6320 | 51 | 51 | 0.67% | 0.81% |  |
| B | 7569 | 6320 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7569 | 6320 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7569 | 6320 | 598 | 598 | 7.90% | 9.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 829812 | 5466.9 | 746 | 730 | 151.7 |
| A | 0 | 118 | 188401 | 1237.49 | 746 | 730 | 151.7 |
| A | 0 | 226 | 25972 | 166.44 | 746 | 730 | 151.7 |
| B | 3 | 0 | 687577 | 4748.61 | 759 | 742 | 144.6 |
| B | 4 | 81 | 66694 | 455.98 | 759 | 742 | 144.6 |
| B | 15 | 204 | 65774 | 449.62 | 759 | 742 | 144.6 |
| C | 7 | 222 | 15708 | 89.95 | 720 | 725 | 166.6 |
| C | 10 | 65 | 8163 | 44.65 | 720 | 725 | 166.6 |
| C | 13 | 61 | 6188 | 32.8 | 720 | 725 | 166.6 |
| D | 9 | 82 | 2552627 | 15203.32 | 689 | 670 | 167.9 |
| D | 2 | 232 | 270038 | 1604.76 | 689 | 670 | 167.9 |
| D | 13 | 223 | 77725 | 459.06 | 689 | 670 | 167.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

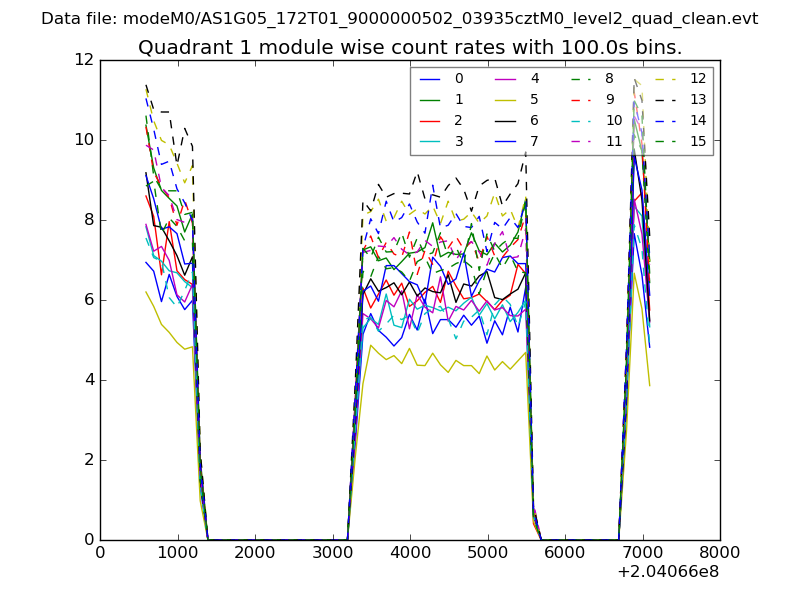

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

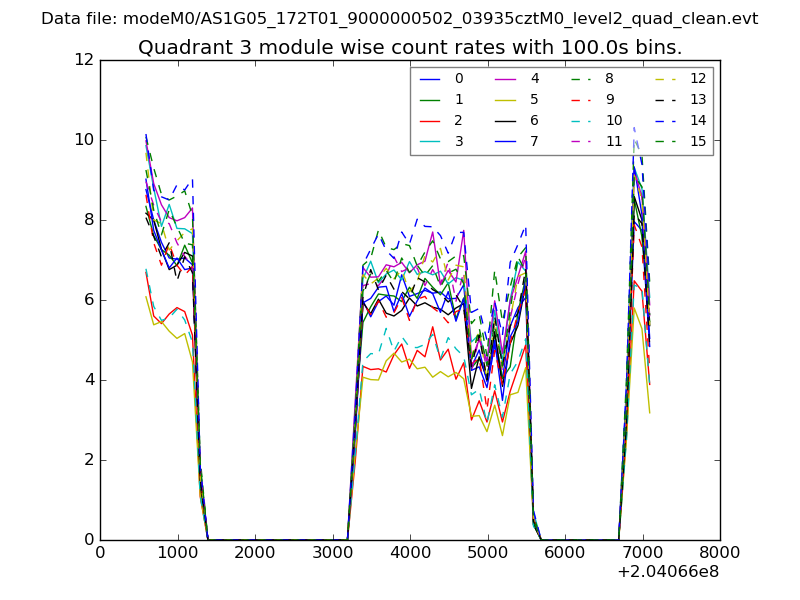

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

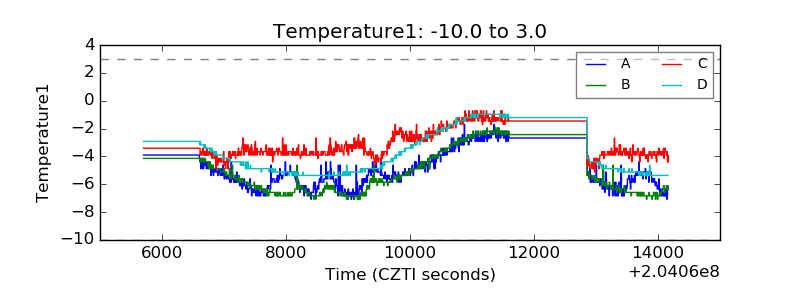

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

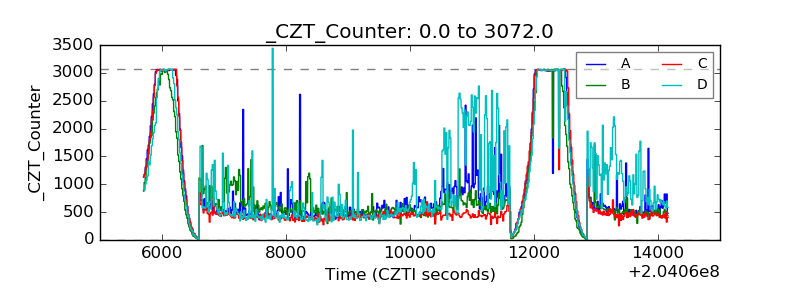

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
