| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_172T01_9000000502_03936cztM0_level2.evt | modeM0/AS1G05_172T01_9000000502_03936cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,524,480 | 56,923,200 |
| Size | 510.7 MB | 54.3 MB |
| Events in quadrant A | 3,394,892 | 326,658 |
| Events in quadrant B | 4,249,984 | 333,575 |
| Events in quadrant C | 2,926,934 | 329,634 |
| Events in quadrant D | 5,222,699 | 296,499 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13975 | 3 |
| B | 0 | 16613 | 2 |
| C | 0 | 12838 | 2 |
| D | 0 | 19817 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 88 | 1.405526% |
| B | 6261 | 239 | 3.817282% |
| C | 6261 | 28 | 0.447213% |
| D | 6261 | 343 | 5.478358% |

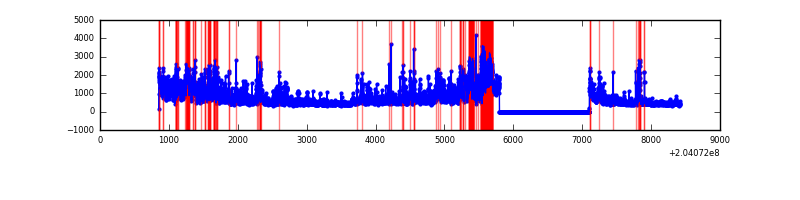

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6262 | 29 | 29 | 0.38% | 0.46% |  |
| B | 7566 | 6262 | 72 | 72 | 0.95% | 1.15% |  |
| C | 7566 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7566 | 6262 | 275 | 275 | 3.63% | 4.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 273753 | 1751.91 | 764 | 748 | 155.8 |
| A | 0 | 149 | 74928 | 476.02 | 764 | 748 | 155.8 |
| A | 0 | 118 | 70272 | 446.14 | 764 | 748 | 155.8 |
| B | 3 | 0 | 1180350 | 8192.57 | 773 | 757 | 144.0 |
| B | 15 | 204 | 25690 | 173.17 | 773 | 757 | 144.0 |
| B | 4 | 81 | 18239 | 121.42 | 773 | 757 | 144.0 |
| C | 10 | 65 | 18361 | 103.0 | 742 | 747 | 171.0 |
| C | 7 | 222 | 6763 | 35.18 | 742 | 747 | 171.0 |
| C | 13 | 61 | 6173 | 31.73 | 742 | 747 | 171.0 |
| D | 9 | 82 | 1836825 | 10575.99 | 717 | 697 | 173.6 |
| D | 2 | 232 | 376304 | 2163.47 | 717 | 697 | 173.6 |
| D | 13 | 223 | 140360 | 804.45 | 717 | 697 | 173.6 |

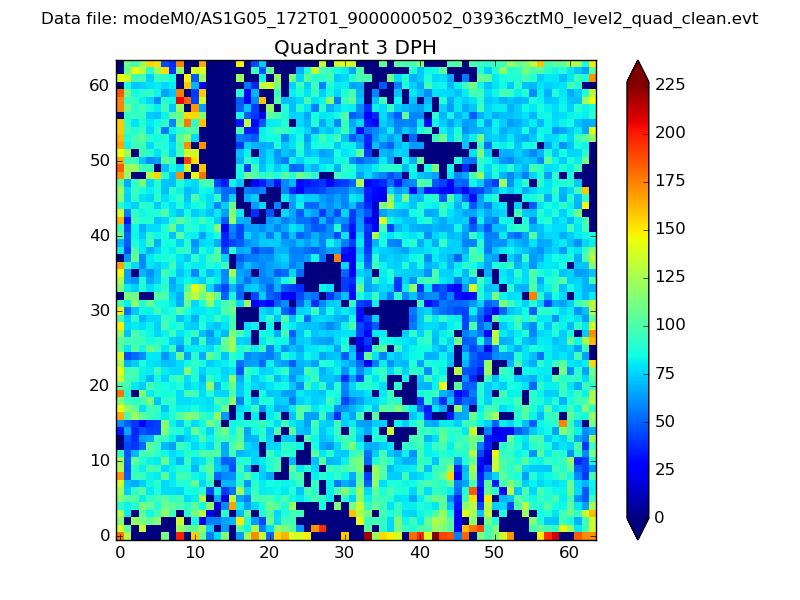

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

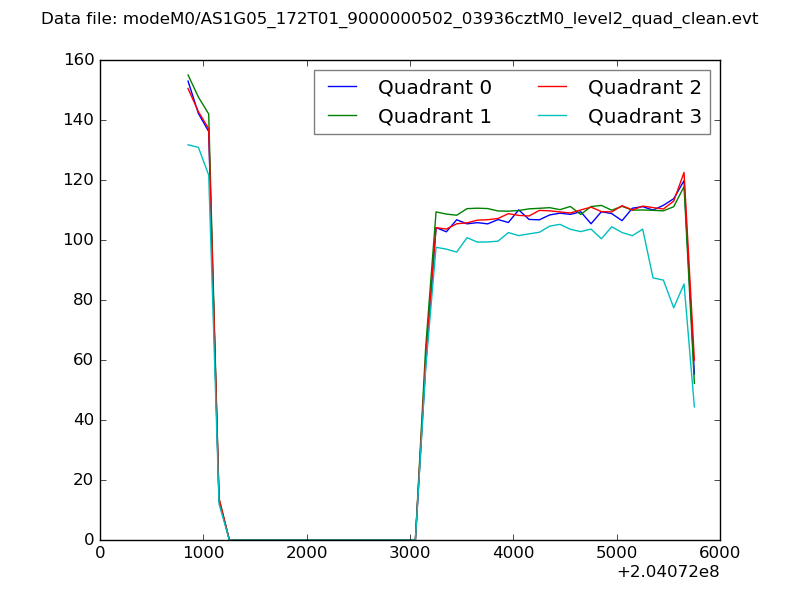

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

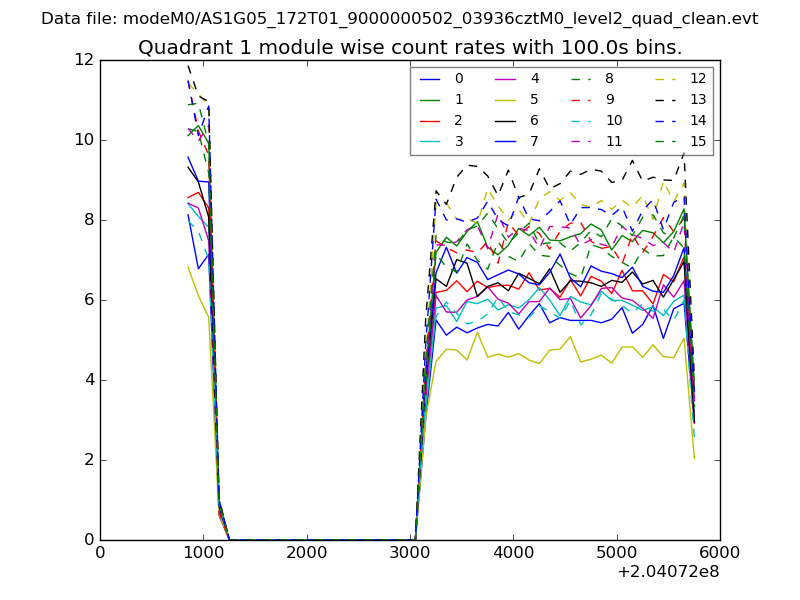

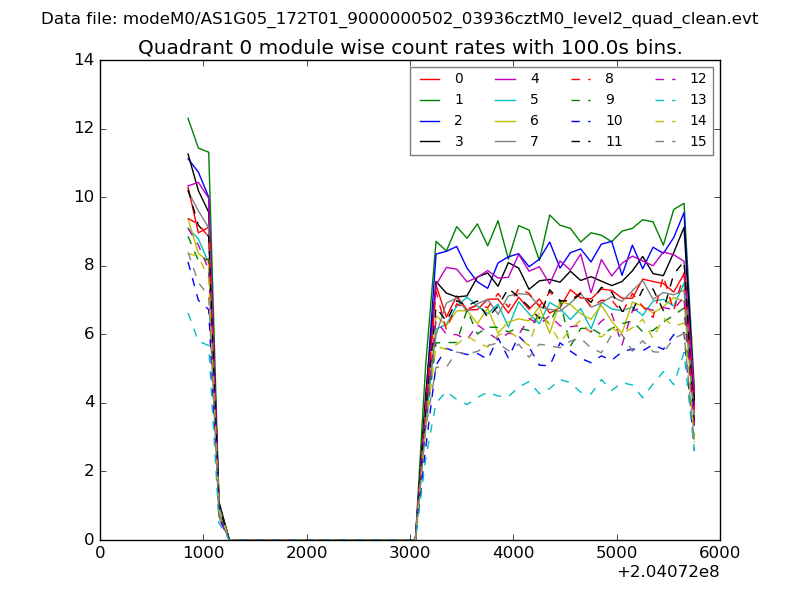

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

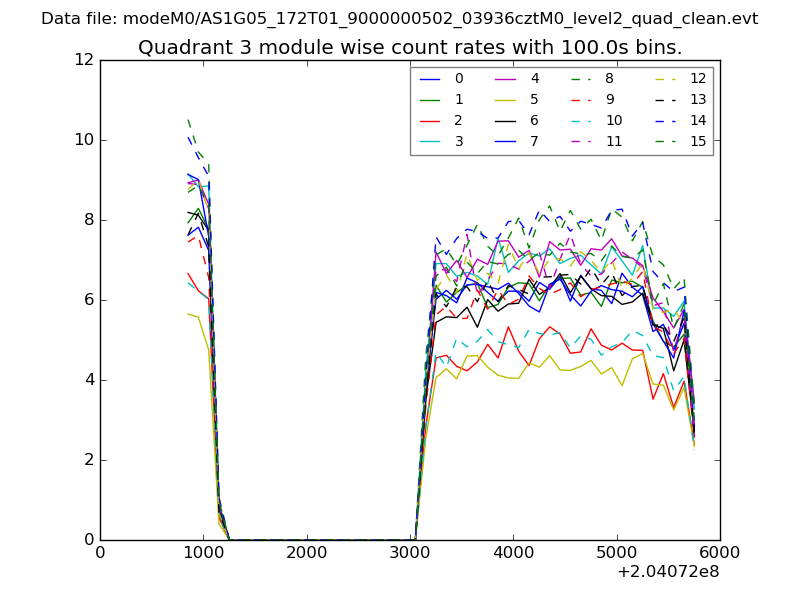

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

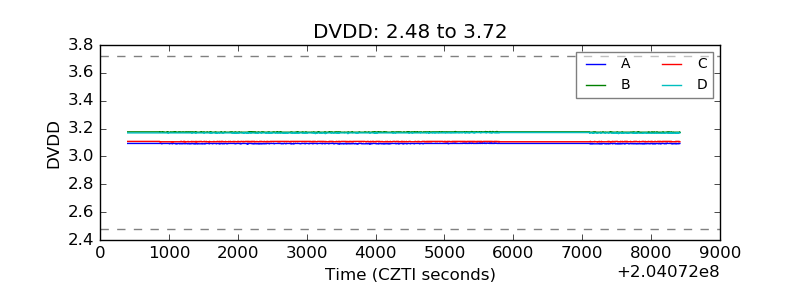

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

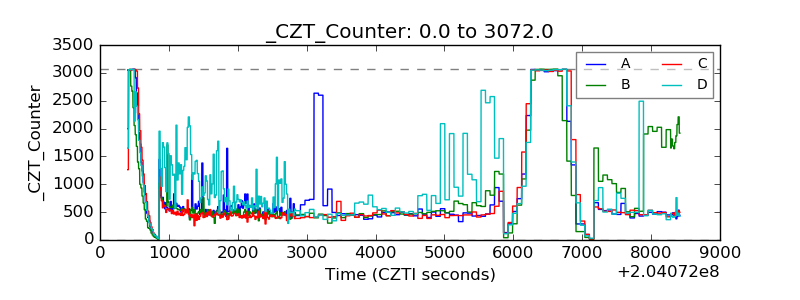

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
