| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_229T02_9000000508_03967cztM0_level2.evt | modeM0/AS1G05_229T02_9000000508_03967cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,409,600 | 51,871,680 |
| Size | 411.4 MB | 49.5 MB |
| Events in quadrant A | 3,277,460 | 284,096 |
| Events in quadrant B | 3,277,993 | 288,723 |
| Events in quadrant C | 2,889,877 | 283,294 |
| Events in quadrant D | 3,190,796 | 273,546 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13892 | 2 |
| B | 0 | 13584 | 1 |
| C | 0 | 12810 | 1 |
| D | 0 | 13675 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 90 | 1.426081% |
| B | 6311 | 25 | 0.396134% |
| C | 6311 | 10 | 0.158453% |
| D | 6311 | 29 | 0.459515% |

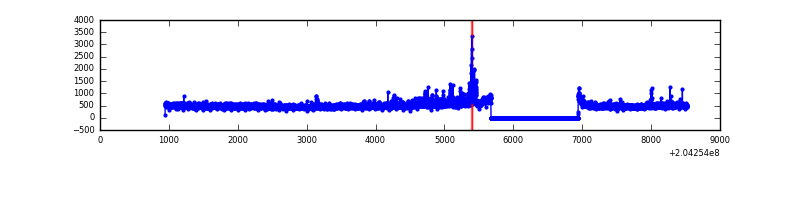

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6312 | 36 | 36 | 0.48% | 0.57% |  |
| B | 7576 | 6312 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7576 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7576 | 6312 | 19 | 19 | 0.25% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 198108 | 1278.82 | 748 | 731 | 154.3 |
| A | 0 | 50 | 156944 | 1012.12 | 748 | 731 | 154.3 |
| A | 0 | 226 | 25244 | 158.82 | 748 | 731 | 154.3 |
| B | 15 | 204 | 142166 | 976.12 | 763 | 746 | 144.9 |
| B | 3 | 0 | 54366 | 370.1 | 763 | 746 | 144.9 |
| B | 7 | 252 | 25001 | 167.41 | 763 | 746 | 144.9 |
| C | 8 | 128 | 19213 | 108.89 | 730 | 735 | 169.7 |
| C | 8 | 112 | 7755 | 41.37 | 730 | 735 | 169.7 |
| C | 8 | 144 | 7403 | 39.3 | 730 | 735 | 169.7 |
| D | 10 | 246 | 235653 | 1346.74 | 720 | 699 | 174.5 |
| D | 2 | 232 | 72668 | 412.52 | 720 | 699 | 174.5 |
| D | 13 | 239 | 42336 | 238.66 | 720 | 699 | 174.5 |

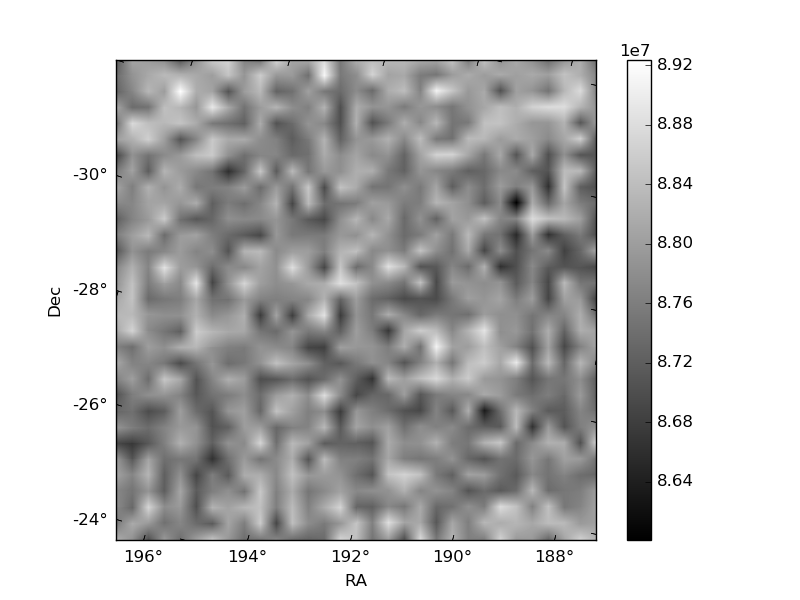

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

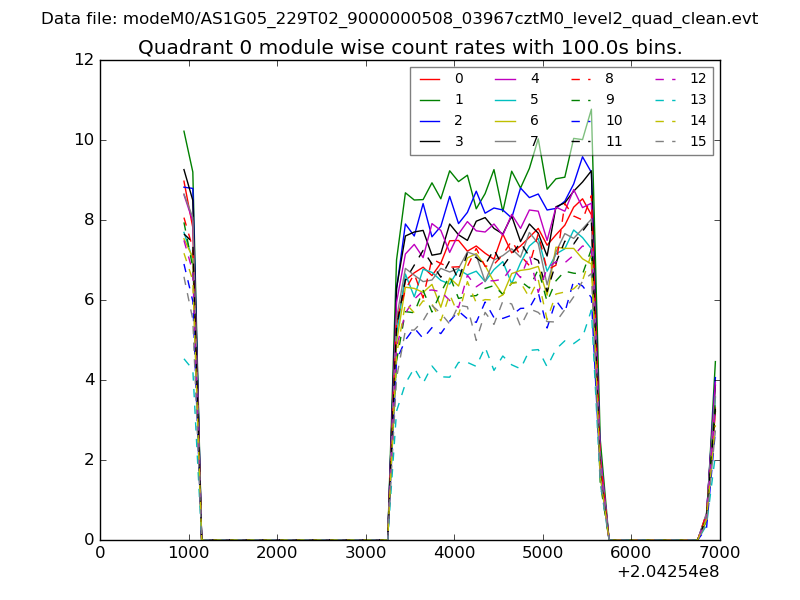

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

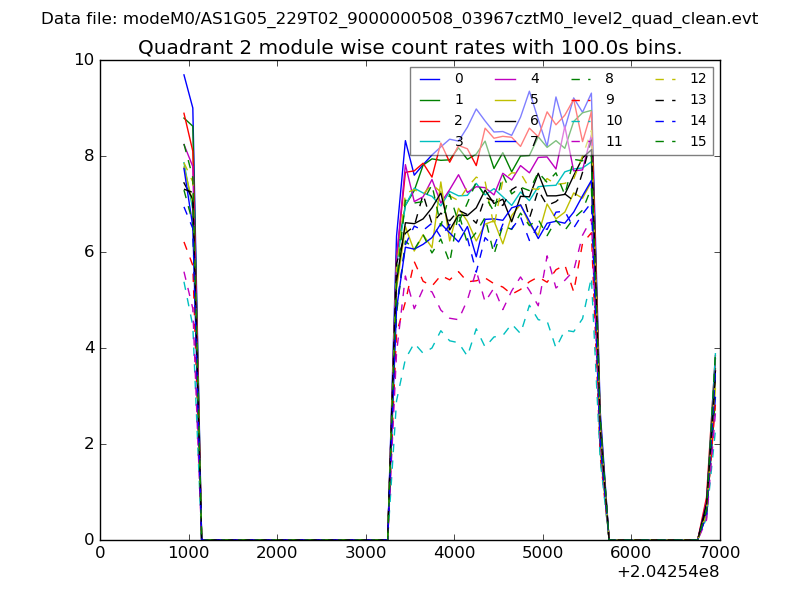

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

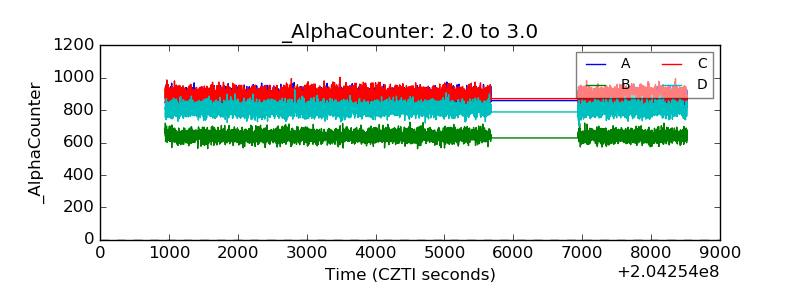

| Alpha Counter |  |

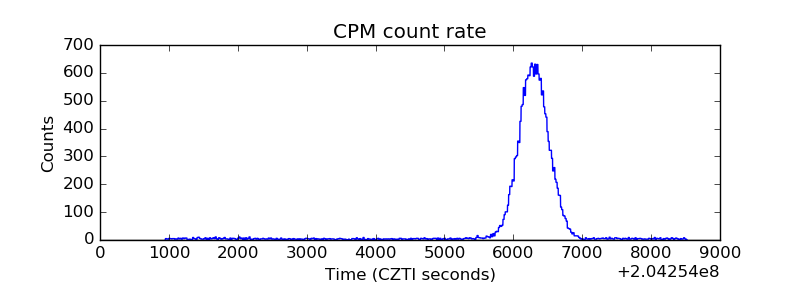

| _CPM_Rate |  |

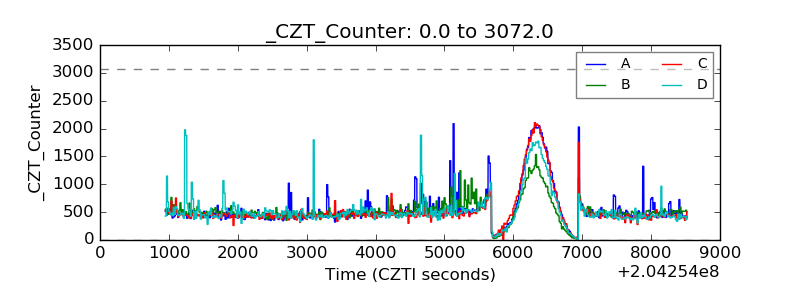

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

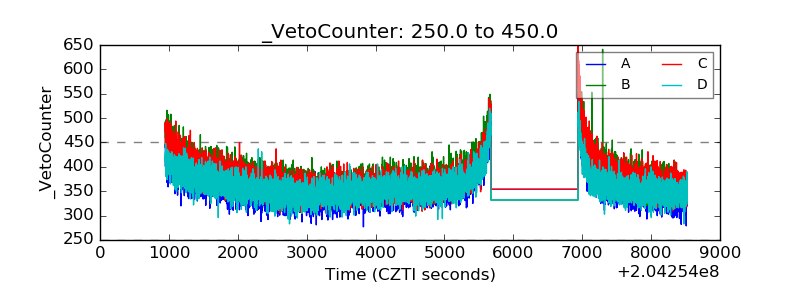

| Veto Counter |  |
