| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_247T01_9000000512_03993cztM0_level2.evt | modeM0/AS1G05_247T01_9000000512_03993cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,377,280 | 105,537,600 |
| Size | 420.9 MB | 100.6 MB |
| Events in quadrant A | 3,497,619 | 695,546 |
| Events in quadrant B | 3,010,183 | 711,487 |
| Events in quadrant C | 2,830,905 | 693,619 |
| Events in quadrant D | 3,602,276 | 658,161 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14616 | 3 |
| B | 0 | 13182 | 2 |
| C | 0 | 12809 | 2 |
| D | 0 | 15432 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6272 | 157 | 2.503189% |
| B | 6272 | 28 | 0.446429% |
| C | 6272 | 13 | 0.207270% |
| D | 6272 | 215 | 3.427934% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7512 | 6273 | 87 | 87 | 1.16% | 1.39% |  |
| B | 7512 | 6273 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7512 | 6273 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7512 | 6273 | 180 | 180 | 2.40% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 510887 | 3488.77 | 722 | 707 | 146.2 |
| A | 8 | 15 | 117155 | 796.31 | 722 | 707 | 146.2 |
| A | 0 | 118 | 66158 | 447.57 | 722 | 707 | 146.2 |
| B | 3 | 0 | 60371 | 428.44 | 737 | 720 | 139.2 |
| B | 15 | 204 | 58735 | 416.69 | 737 | 720 | 139.2 |
| B | 0 | 183 | 16794 | 115.45 | 737 | 720 | 139.2 |
| C | 9 | 144 | 43538 | 266.23 | 701 | 703 | 160.9 |
| C | 8 | 128 | 20894 | 125.49 | 701 | 703 | 160.9 |
| C | 10 | 65 | 11868 | 69.39 | 701 | 703 | 160.9 |
| D | 10 | 246 | 636475 | 3867.69 | 687 | 667 | 164.4 |
| D | 2 | 63 | 132350 | 801.04 | 687 | 667 | 164.4 |
| D | 13 | 239 | 56459 | 339.39 | 687 | 667 | 164.4 |

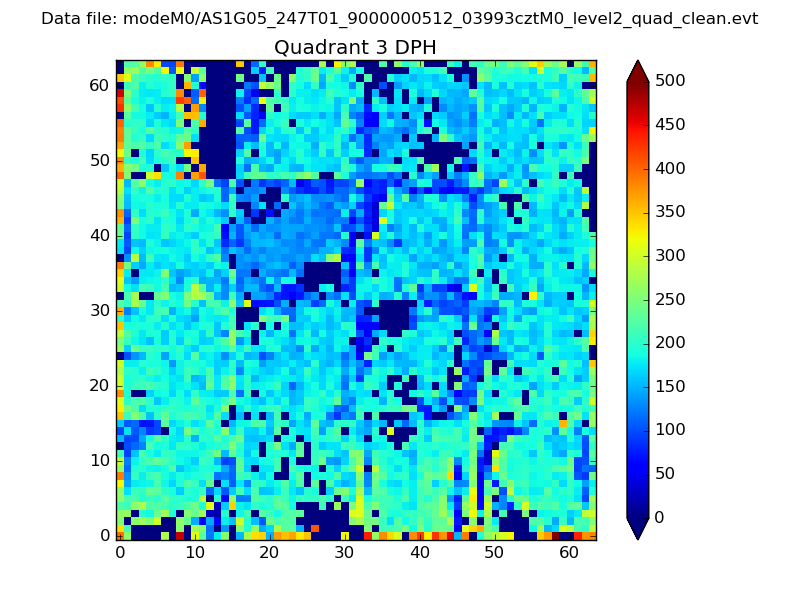

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

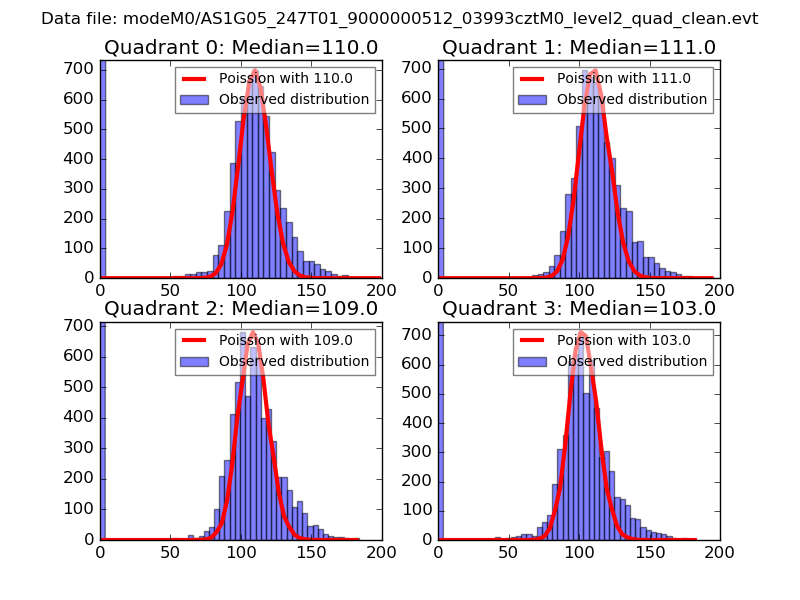

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

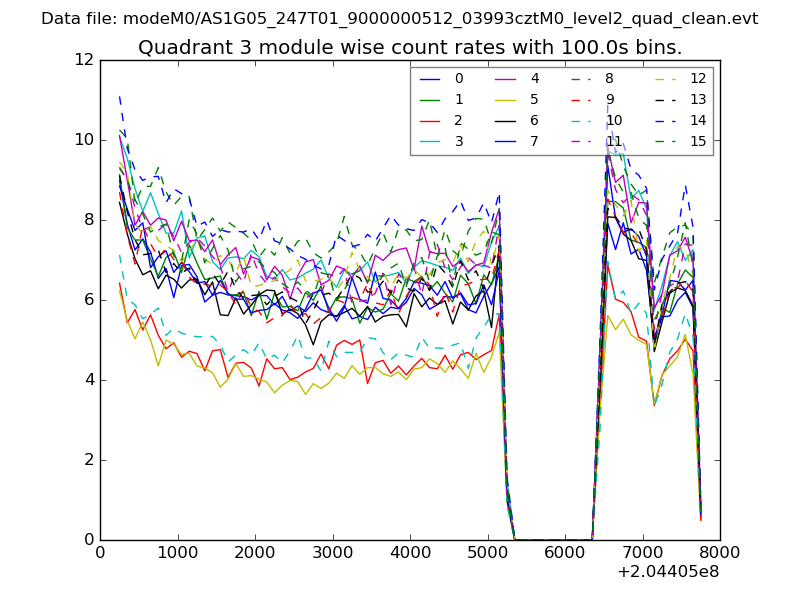

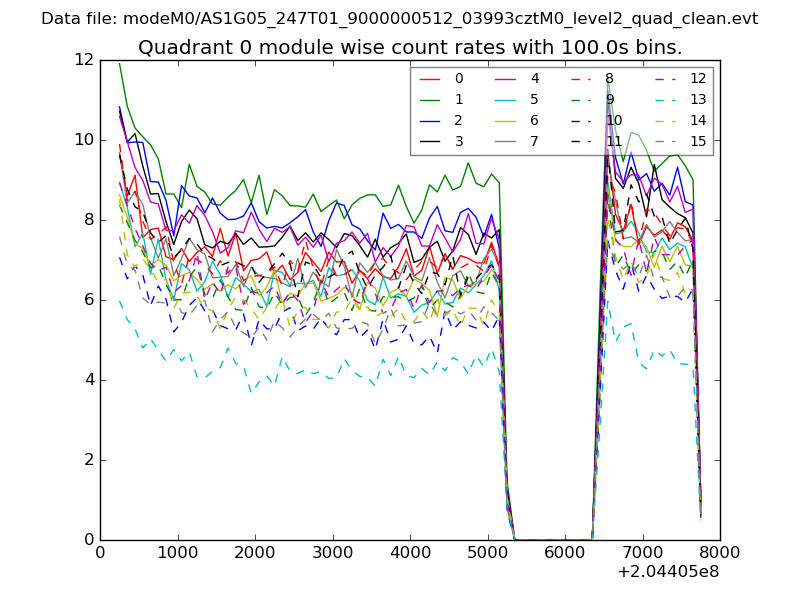

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

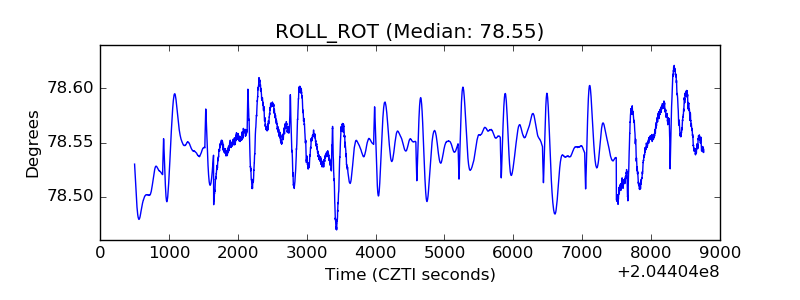

| _ROLL_ROT |  |
| _Roll_DEC |  |

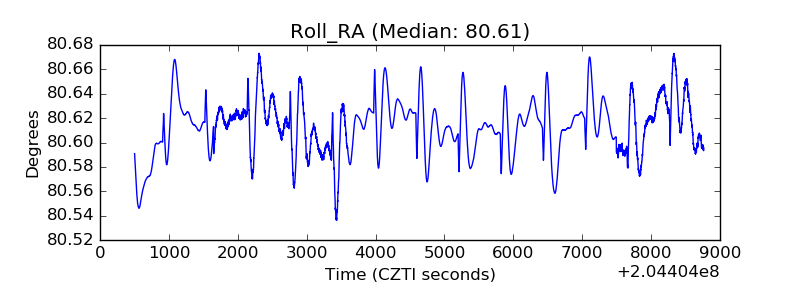

| _Roll_RA |  |

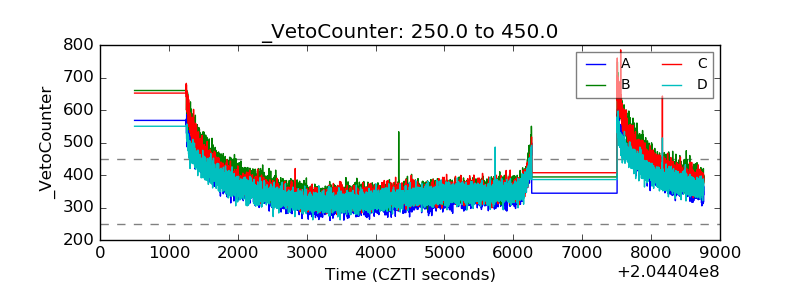

| Veto Counter |  |
