| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_173T01_9000000514_04019cztM0_level2.evt | modeM0/AS1G05_173T01_9000000514_04019cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,530,880 | 73,431,360 |
| Size | 406.8 MB | 70.0 MB |
| Events in quadrant A | 3,114,467 | 449,765 |
| Events in quadrant B | 3,037,794 | 453,982 |
| Events in quadrant C | 2,721,162 | 447,949 |
| Events in quadrant D | 3,610,116 | 426,542 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13690 | 2 |
| B | 0 | 13334 | 1 |
| C | 0 | 12898 | 1 |
| D | 0 | 15472 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 90 | 1.409333% |
| B | 6386 | 43 | 0.673348% |
| C | 6386 | 9 | 0.140933% |
| D | 6386 | 182 | 2.849984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7401 | 6387 | 38 | 38 | 0.51% | 0.59% |  |
| B | 7401 | 6387 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7401 | 6387 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7401 | 6387 | 135 | 135 | 1.82% | 2.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 137141 | 918.21 | 724 | 709 | 148.6 |
| A | 12 | 247 | 59012 | 392.39 | 724 | 709 | 148.6 |
| A | 13 | 251 | 48463 | 321.39 | 724 | 709 | 148.6 |
| B | 15 | 204 | 92107 | 642.34 | 730 | 710 | 142.3 |
| B | 14 | 167 | 85425 | 595.38 | 730 | 710 | 142.3 |
| B | 0 | 183 | 12555 | 83.25 | 730 | 710 | 142.3 |
| C | 9 | 144 | 8685 | 49.38 | 692 | 694 | 161.8 |
| C | 12 | 4 | 6088 | 33.33 | 692 | 694 | 161.8 |
| C | 13 | 61 | 5742 | 31.19 | 692 | 694 | 161.8 |
| D | 2 | 232 | 679831 | 4091.87 | 686 | 665 | 166.0 |
| D | 12 | 110 | 195431 | 1173.44 | 686 | 665 | 166.0 |
| D | 2 | 14 | 27504 | 161.7 | 686 | 665 | 166.0 |

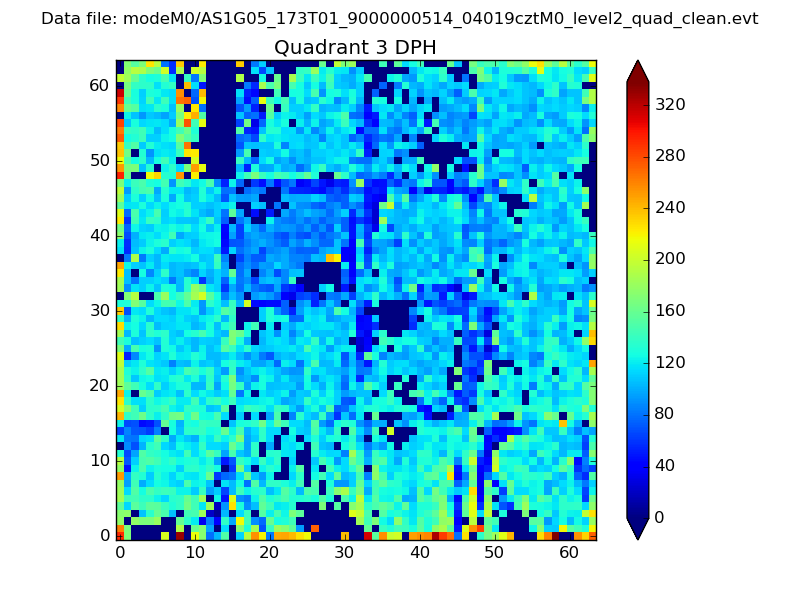

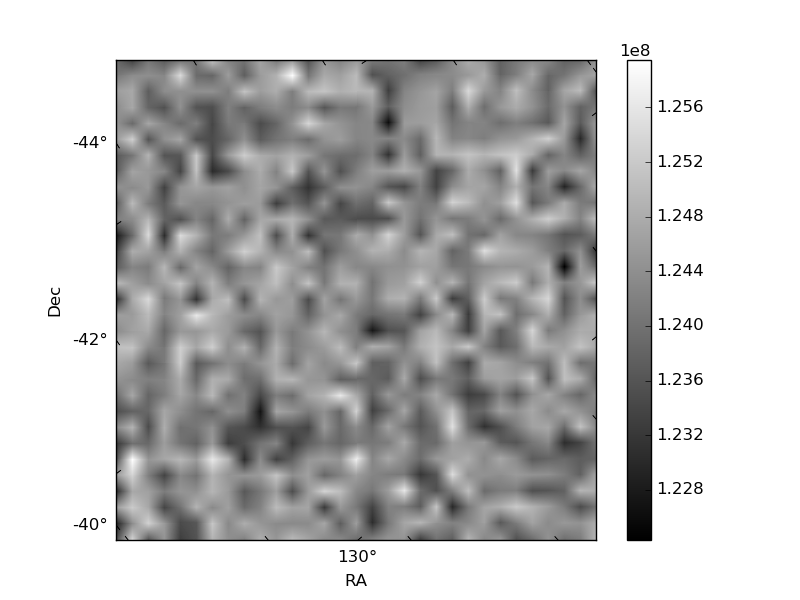

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

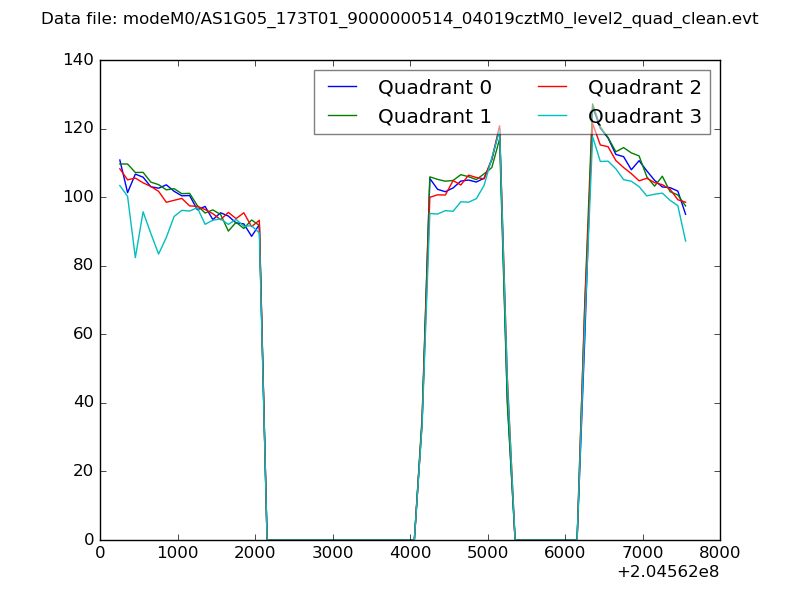

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

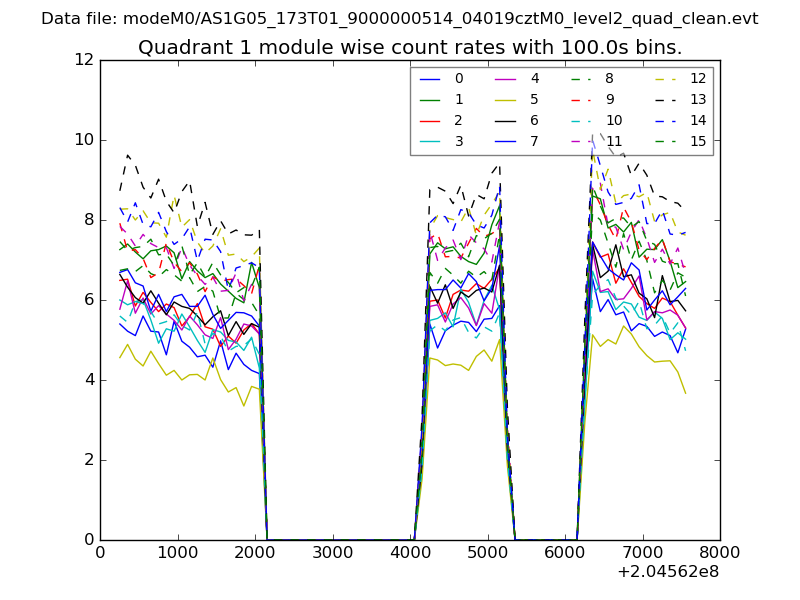

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

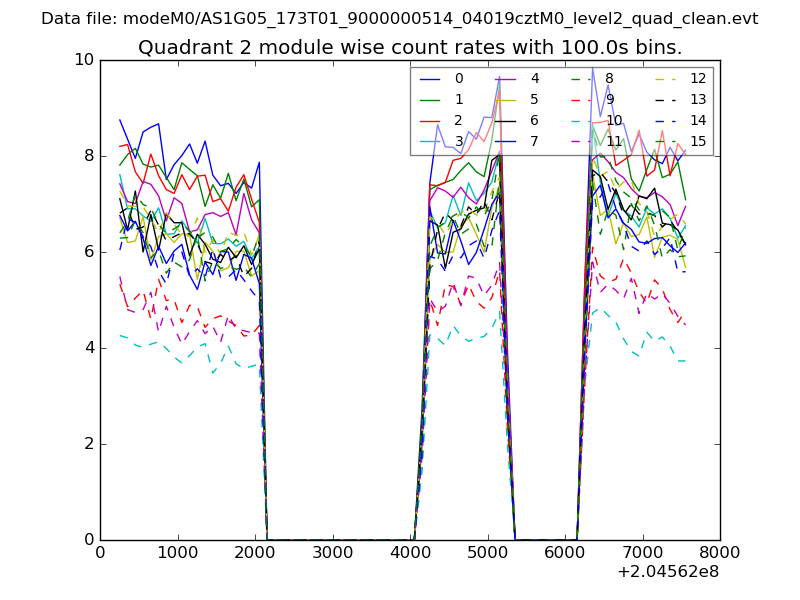

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

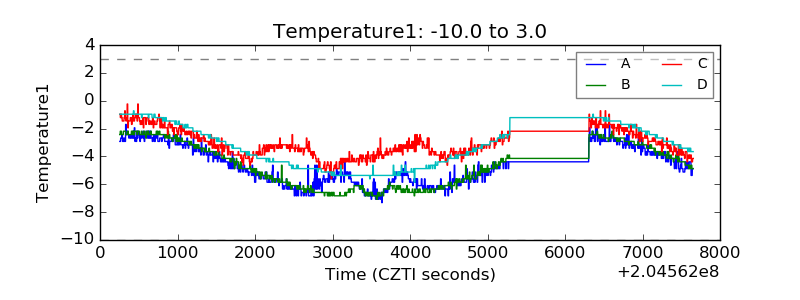

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

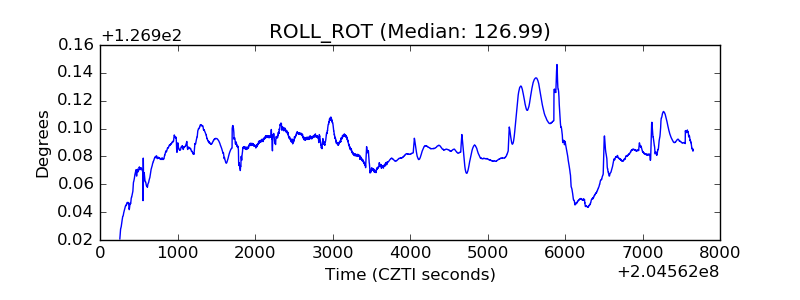

| _ROLL_ROT |  |

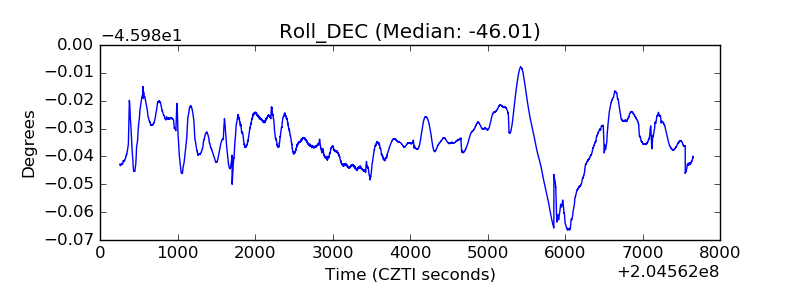

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
