| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_173T01_9000000514_04027cztM0_level2.evt | modeM0/AS1G05_173T01_9000000514_04027cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,936,960 | 71,974,080 |
| Size | 458.7 MB | 68.6 MB |
| Events in quadrant A | 3,380,355 | 425,201 |
| Events in quadrant B | 3,357,111 | 427,677 |
| Events in quadrant C | 3,202,501 | 421,579 |
| Events in quadrant D | 4,134,448 | 402,154 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15176 | 3 |
| B | 0 | 14923 | 2 |
| C | 0 | 14830 | 2 |
| D | 0 | 17510 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7219 | 170 | 2.354897% |
| B | 7219 | 164 | 2.271783% |
| C | 7219 | 147 | 2.036293% |
| D | 7219 | 251 | 3.476936% |

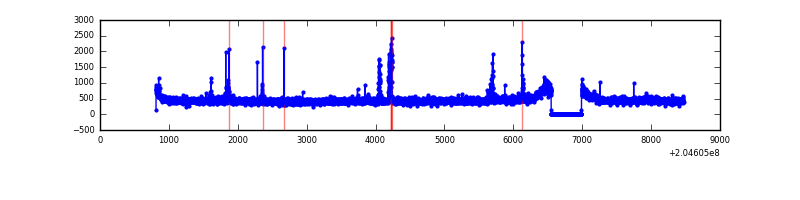

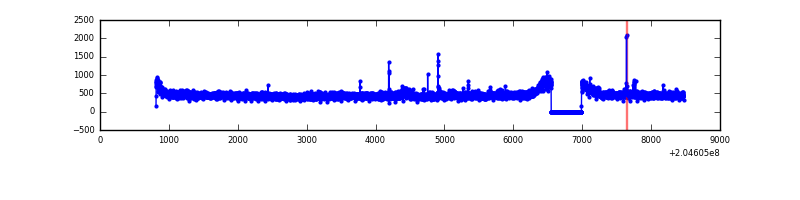

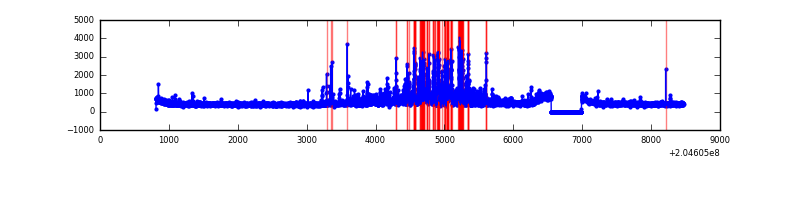

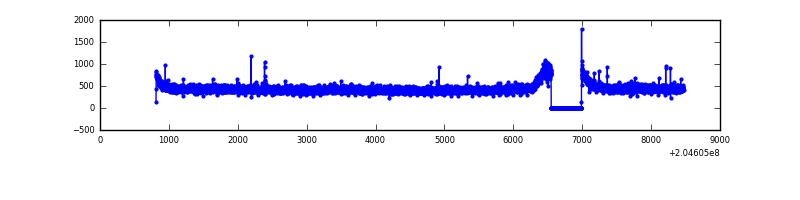

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 7220 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7659 | 7219 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7659 | 7219 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7659 | 7219 | 129 | 129 | 1.68% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 86945 | 499.32 | 834 | 813 | 172.5 |
| A | 14 | 111 | 28471 | 160.34 | 834 | 813 | 172.5 |
| A | 15 | 234 | 25561 | 143.47 | 834 | 813 | 172.5 |
| B | 4 | 81 | 28095 | 166.6 | 845 | 824 | 163.7 |
| B | 0 | 183 | 27657 | 163.93 | 845 | 824 | 163.7 |
| B | 15 | 204 | 20112 | 117.83 | 845 | 824 | 163.7 |
| C | 9 | 144 | 11799 | 58.05 | 813 | 816 | 189.2 |
| C | 12 | 4 | 8801 | 42.2 | 813 | 816 | 189.2 |
| C | 13 | 61 | 6809 | 31.67 | 813 | 816 | 189.2 |
| D | 2 | 63 | 471416 | 2416.26 | 805 | 780 | 194.8 |
| D | 11 | 132 | 426214 | 2184.19 | 805 | 780 | 194.8 |
| D | 2 | 232 | 62501 | 316.88 | 805 | 780 | 194.8 |

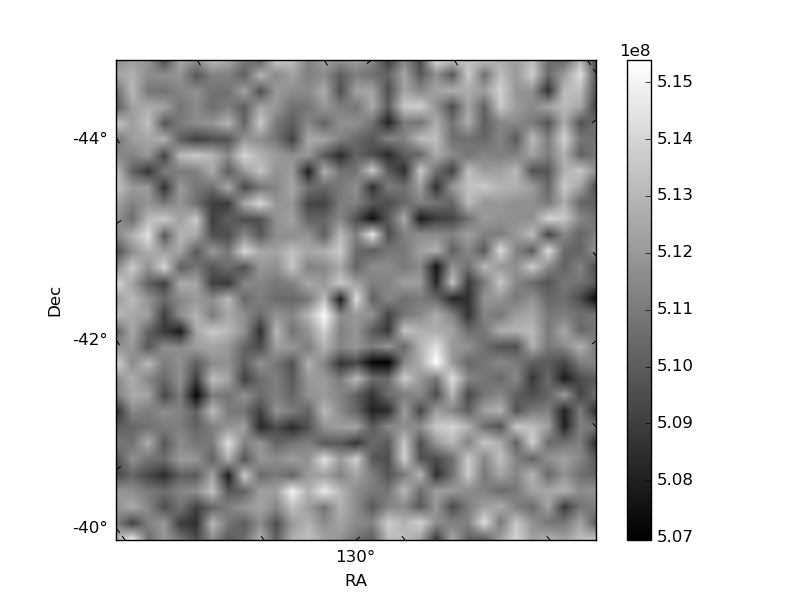

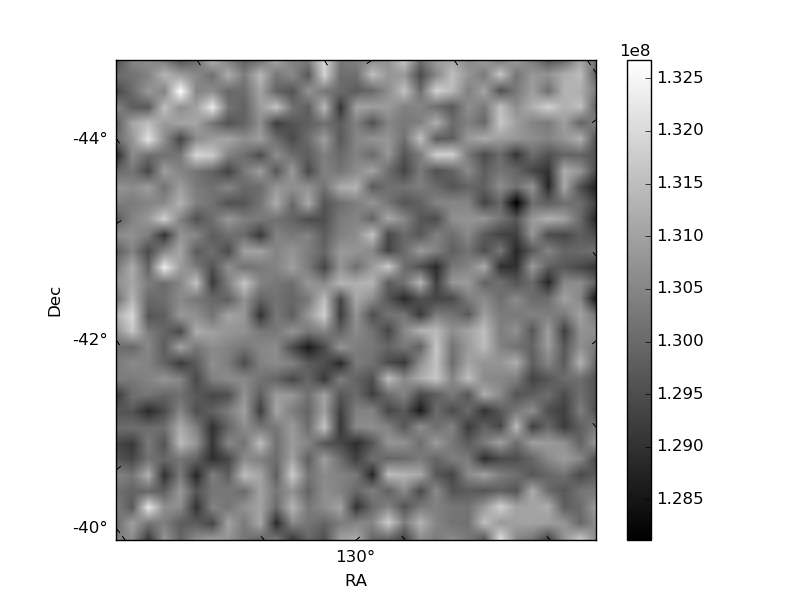

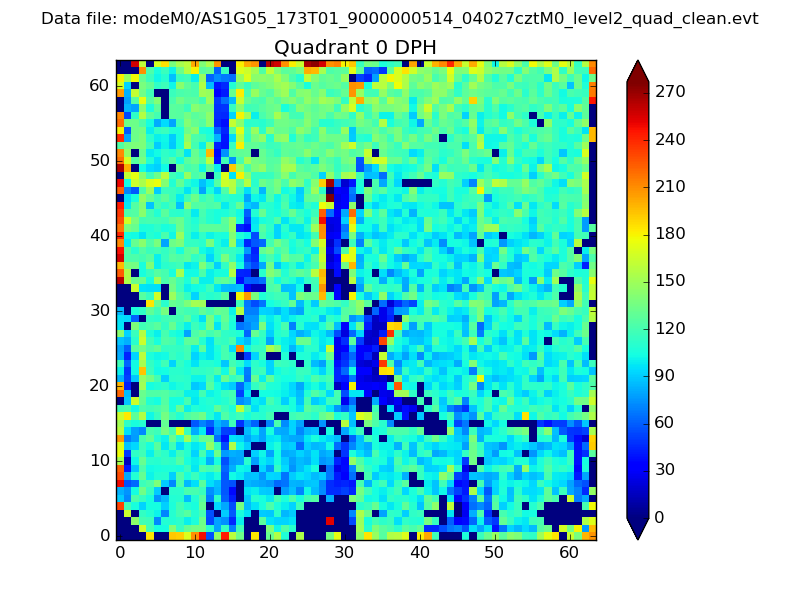

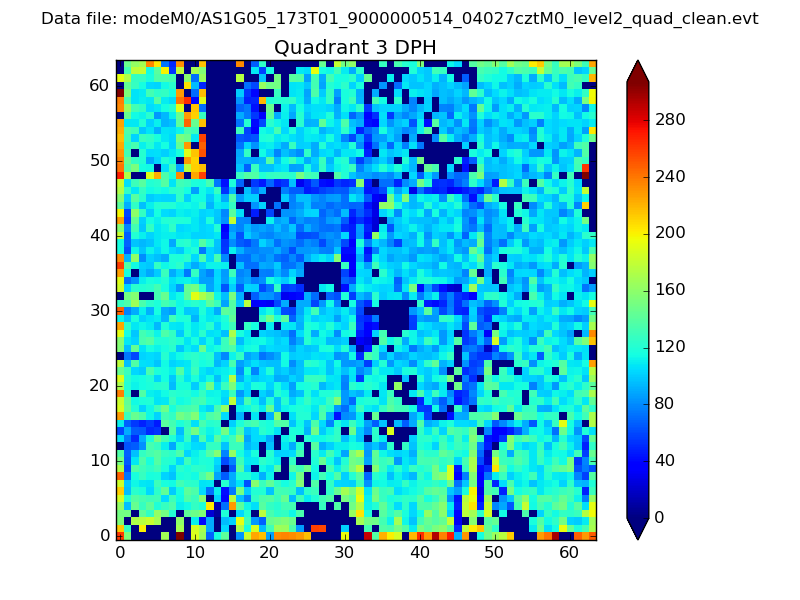

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

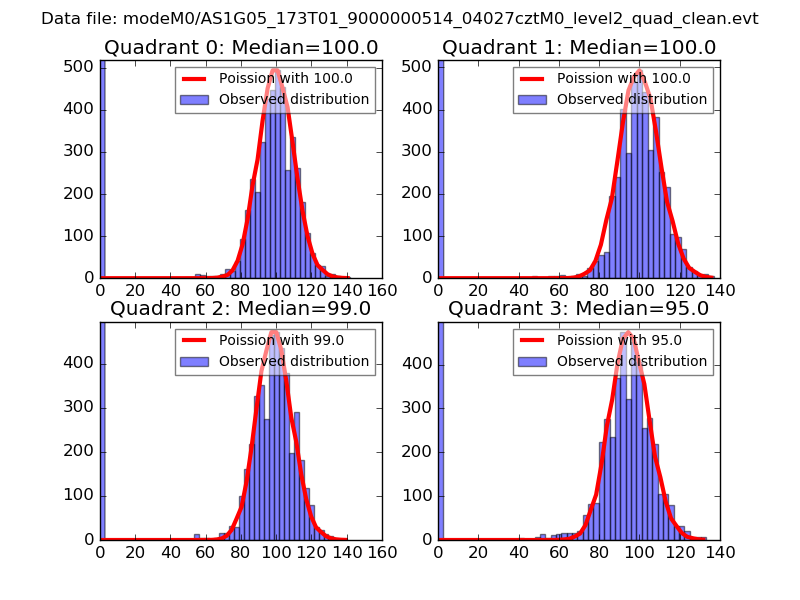

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

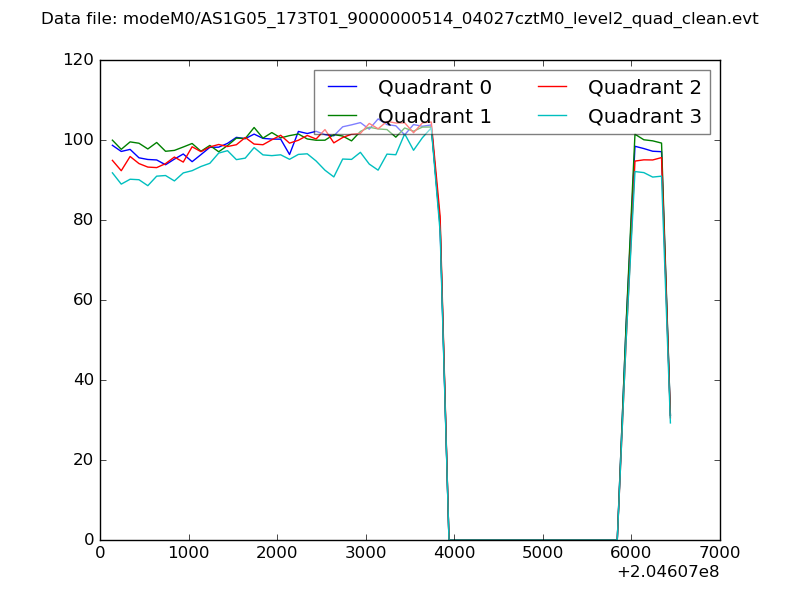

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

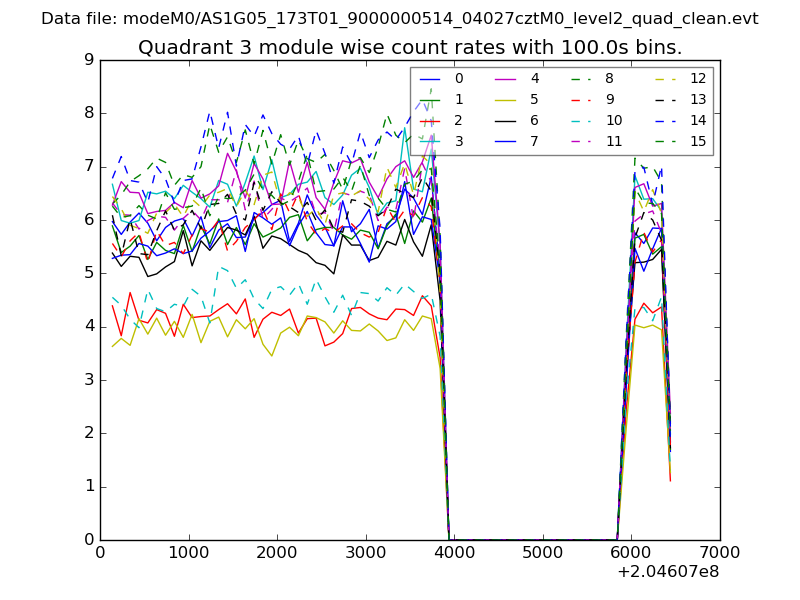

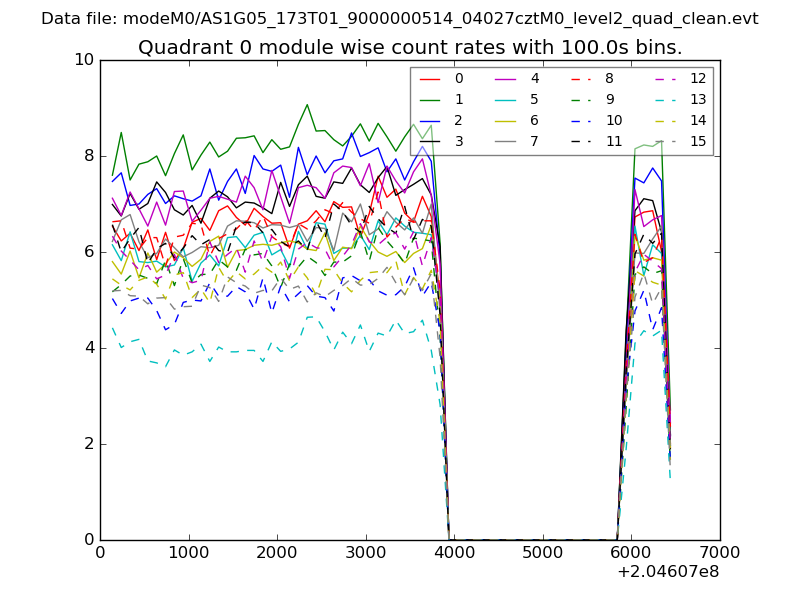

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

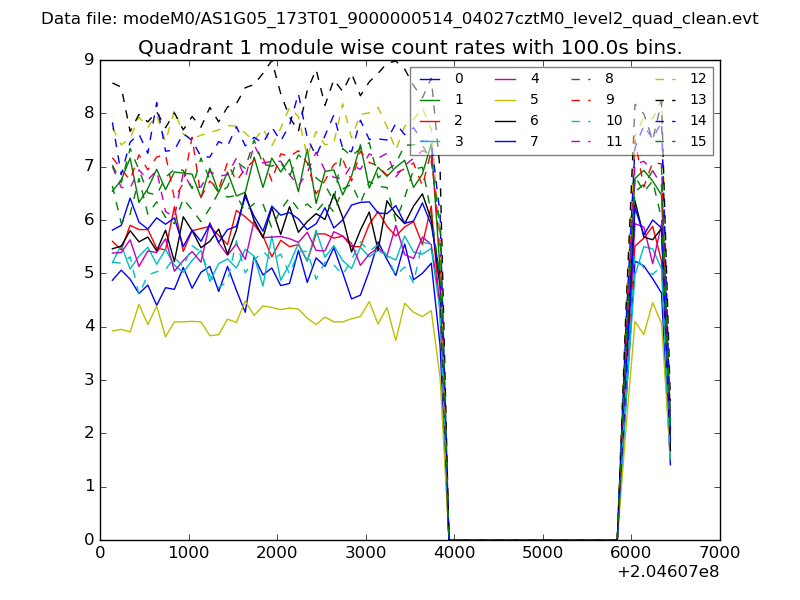

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

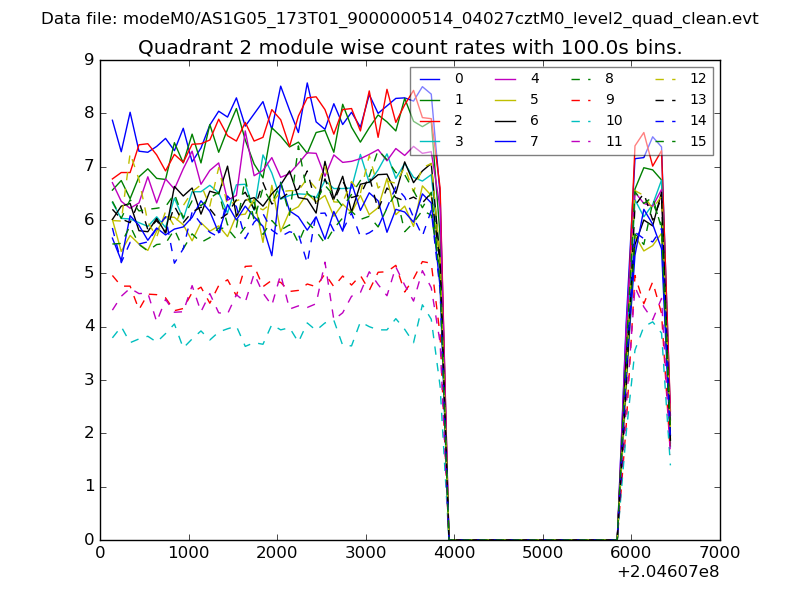

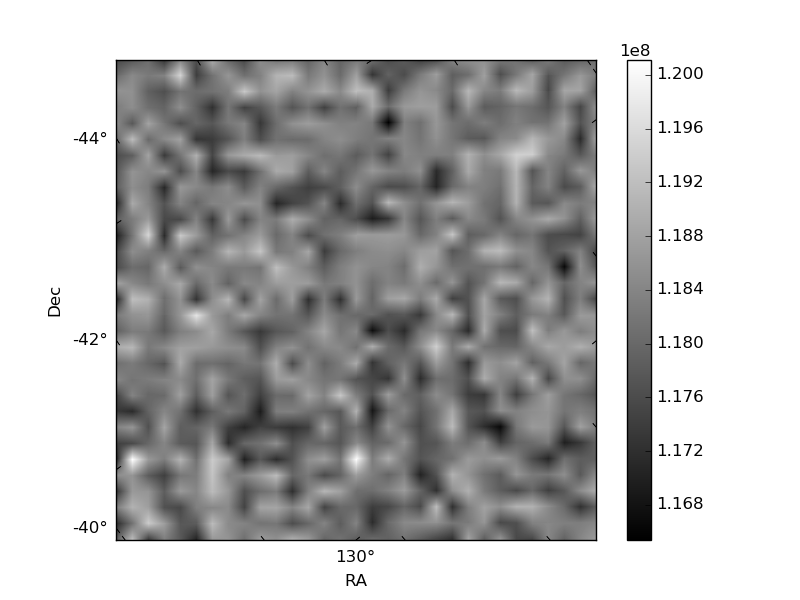

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

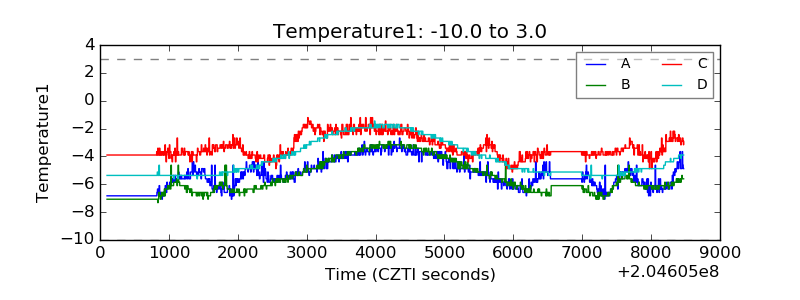

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

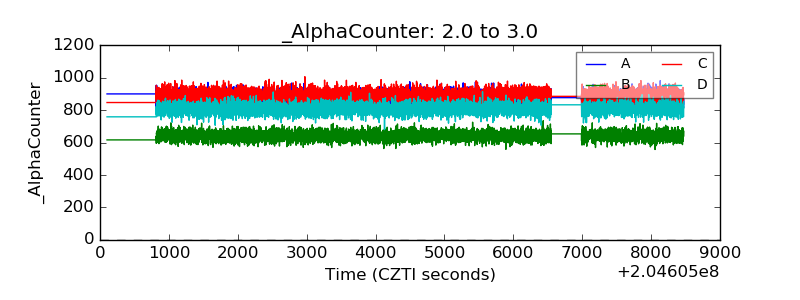

| Alpha Counter |  |

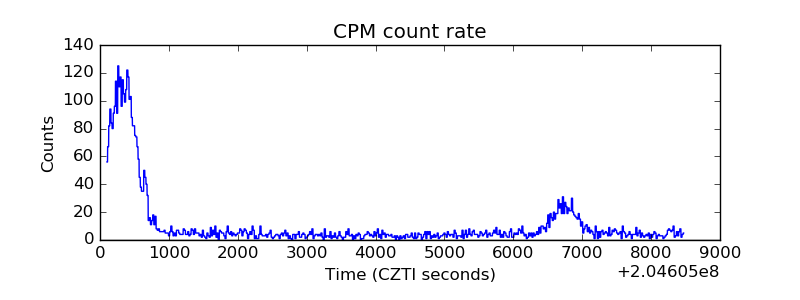

| _CPM_Rate |  |

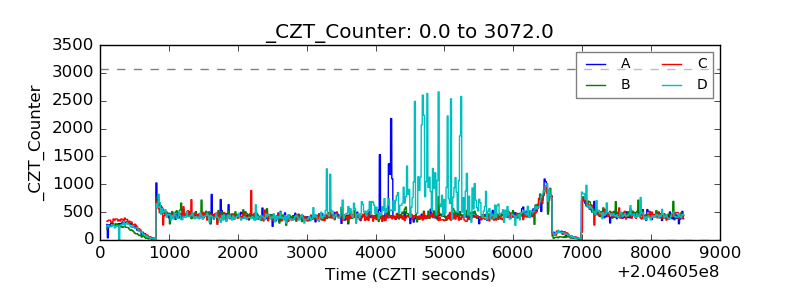

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

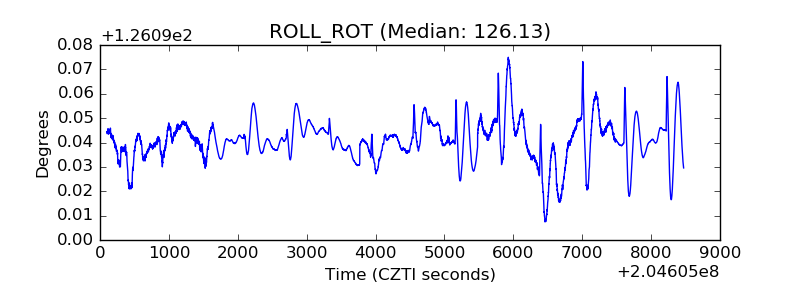

| _ROLL_ROT |  |

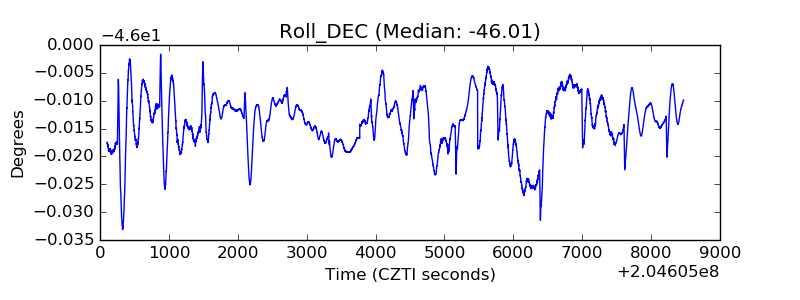

| _Roll_DEC |  |

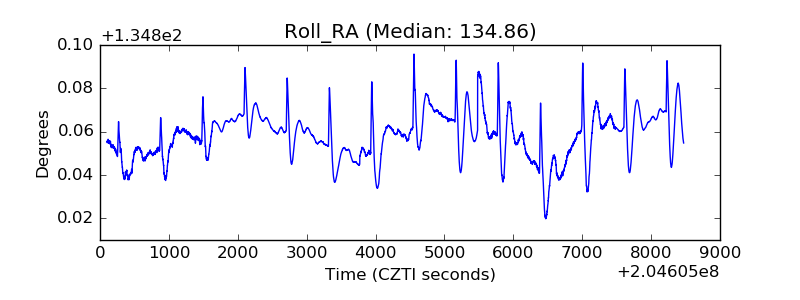

| _Roll_RA |  |

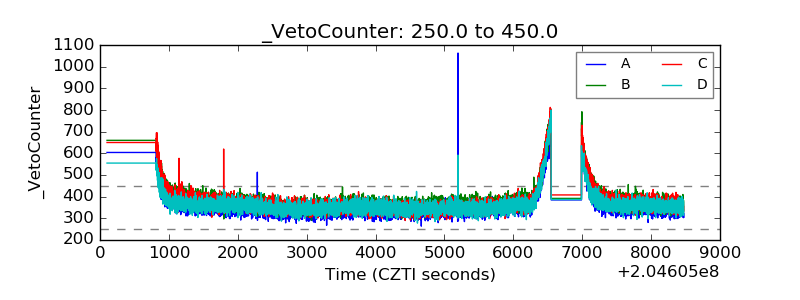

| Veto Counter |  |
