| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_173T01_9000000514_04029cztM0_level2.evt | modeM0/AS1G05_173T01_9000000514_04029cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,392,960 | 83,784,960 |
| Size | 470.5 MB | 79.9 MB |
| Events in quadrant A | 3,331,200 | 516,252 |
| Events in quadrant B | 3,463,742 | 518,573 |
| Events in quadrant C | 3,191,644 | 511,484 |
| Events in quadrant D | 4,467,200 | 490,161 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15006 | 14 |
| B | 0 | 15181 | 12 |
| C | 0 | 14763 | 7 |
| D | 0 | 18363 | 35 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7182 | 214 | 2.979671% |
| B | 7183 | 169 | 2.352777% |
| C | 7185 | 137 | 1.906750% |
| D | 7180 | 253 | 3.523677% |

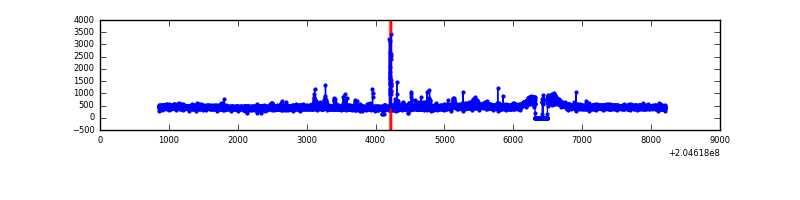

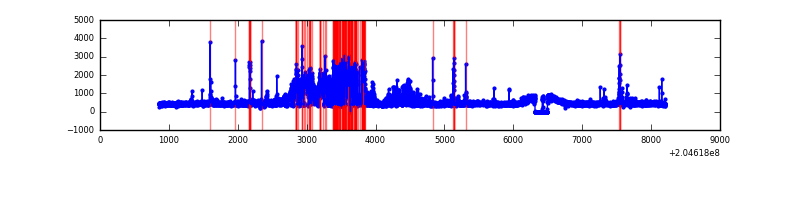

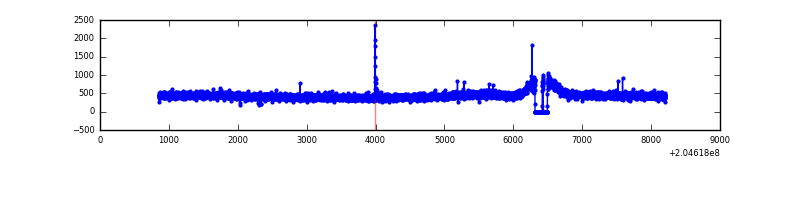

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7353 | 7189 | 8 | 8 | 0.11% | 0.11% |  |
| B | 7353 | 7190 | 6 | 6 | 0.08% | 0.08% |  |
| C | 7353 | 7190 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7353 | 7189 | 180 | 180 | 2.45% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 61084 | 352.9 | 824 | 803 | 170.8 |
| A | 8 | 15 | 48271 | 277.89 | 824 | 803 | 170.8 |
| A | 0 | 118 | 27693 | 157.42 | 824 | 803 | 170.8 |
| B | 4 | 81 | 126070 | 766.51 | 832 | 811 | 163.4 |
| B | 10 | 16 | 47305 | 284.51 | 832 | 811 | 163.4 |
| B | 15 | 204 | 45091 | 270.97 | 832 | 811 | 163.4 |
| C | 9 | 144 | 19227 | 97.44 | 804 | 805 | 189.1 |
| C | 8 | 128 | 16968 | 85.49 | 804 | 805 | 189.1 |
| C | 8 | 112 | 7993 | 38.02 | 804 | 805 | 189.1 |
| D | 11 | 132 | 1156070 | 6007.34 | 800 | 774 | 192.3 |
| D | 2 | 63 | 127742 | 660.21 | 800 | 774 | 192.3 |
| D | 2 | 14 | 37914 | 193.12 | 800 | 774 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

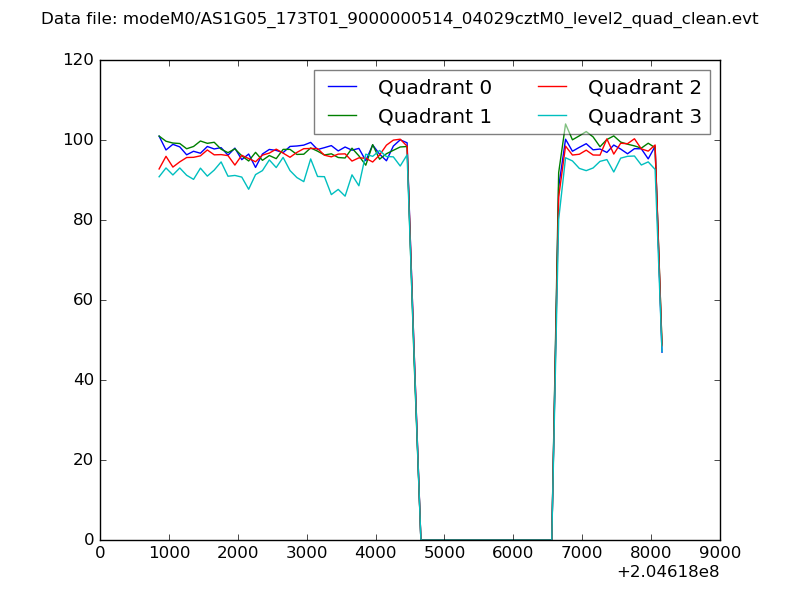

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

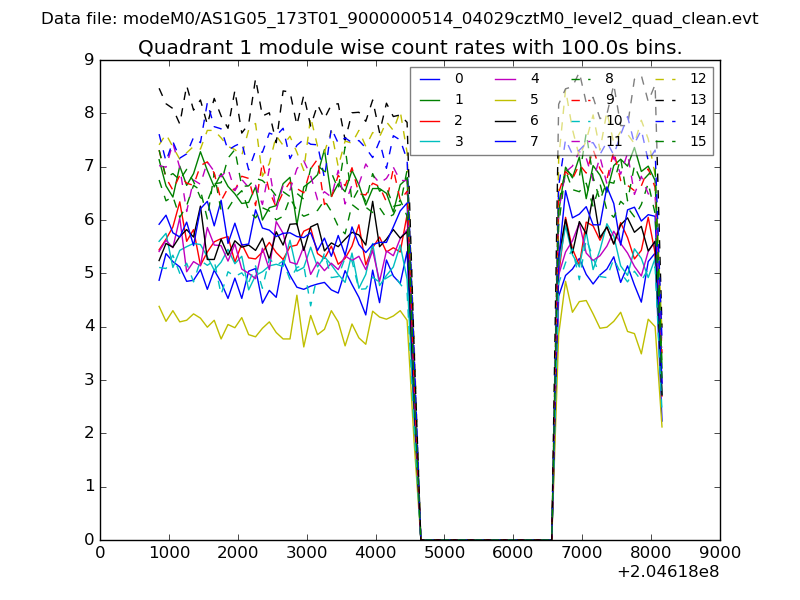

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

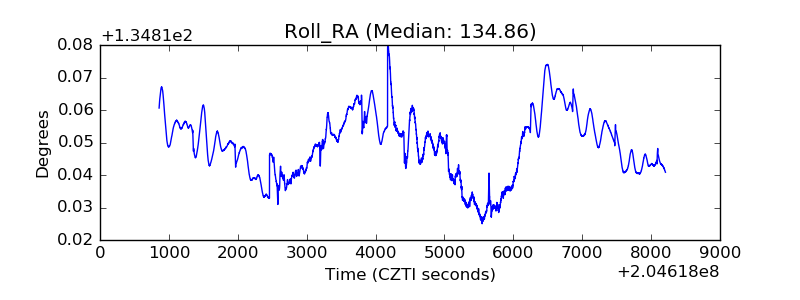

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
