| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T04_9000000518_04055cztM0_level2.evt | modeM0/AS1G05_241T04_9000000518_04055cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,306,880 | 80,087,040 |
| Size | 414.2 MB | 76.4 MB |
| Events in quadrant A | 3,143,072 | 494,263 |
| Events in quadrant B | 3,236,283 | 497,727 |
| Events in quadrant C | 3,058,881 | 491,690 |
| Events in quadrant D | 3,253,770 | 469,139 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13991 | 3 |
| B | 0 | 14123 | 2 |
| C | 0 | 13870 | 2 |
| D | 0 | 14695 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6781 | 40 | 0.589883% |
| B | 6781 | 63 | 0.929067% |
| C | 6781 | 35 | 0.516148% |
| D | 6781 | 124 | 1.828639% |

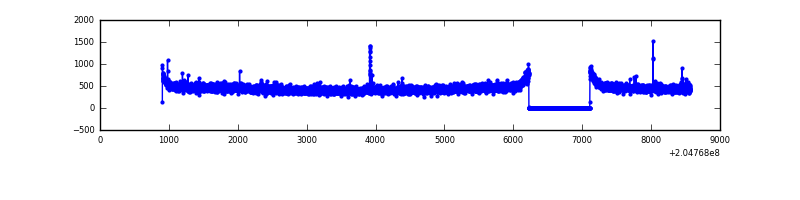

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6782 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7666 | 6782 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7666 | 6782 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7666 | 6782 | 84 | 84 | 1.10% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 80658 | 499.66 | 787 | 770 | 159.9 |
| A | 0 | 118 | 8846 | 50.51 | 787 | 770 | 159.9 |
| A | 0 | 226 | 8666 | 49.39 | 787 | 770 | 159.9 |
| B | 14 | 167 | 57976 | 368.19 | 800 | 781 | 155.3 |
| B | 15 | 204 | 53975 | 342.43 | 800 | 781 | 155.3 |
| B | 12 | 111 | 13567 | 82.31 | 800 | 781 | 155.3 |
| C | 9 | 144 | 21548 | 114.65 | 775 | 781 | 181.1 |
| C | 12 | 4 | 8291 | 41.46 | 775 | 781 | 181.1 |
| C | 13 | 61 | 6561 | 31.91 | 775 | 781 | 181.1 |
| D | 13 | 223 | 144071 | 771.81 | 764 | 742 | 185.7 |
| D | 2 | 37 | 88679 | 473.53 | 764 | 742 | 185.7 |
| D | 13 | 239 | 48309 | 256.14 | 764 | 742 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

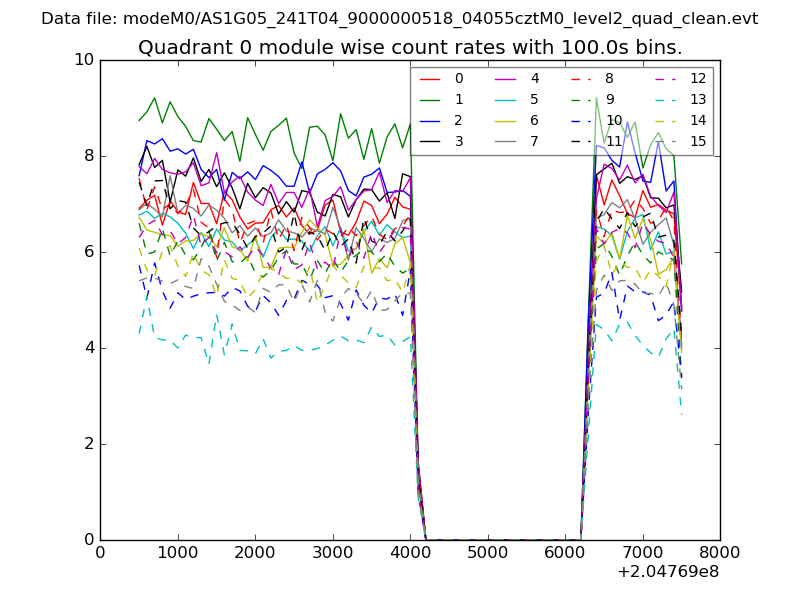

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

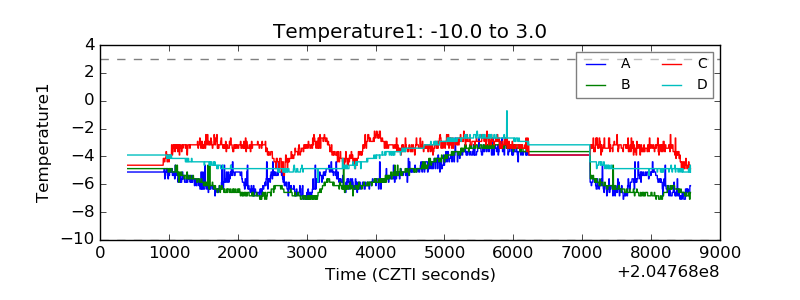

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

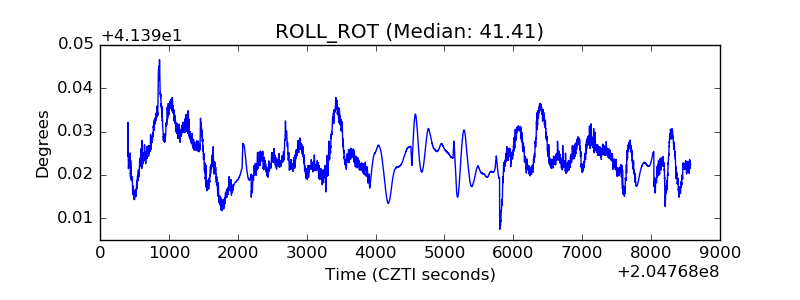

| _ROLL_ROT |  |

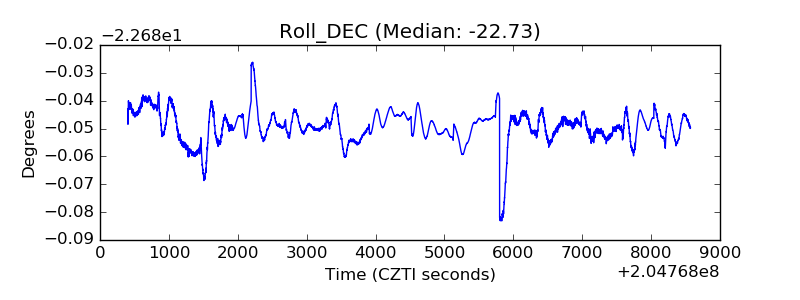

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
