| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T04_9000000518_04058cztM0_level2.evt | modeM0/AS1G05_241T04_9000000518_04058cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,311,680 | 86,918,400 |
| Size | 488.6 MB | 82.9 MB |
| Events in quadrant A | 3,976,282 | 527,221 |
| Events in quadrant B | 3,663,106 | 533,495 |
| Events in quadrant C | 3,445,541 | 531,114 |
| Events in quadrant D | 3,914,518 | 511,730 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16874 | 2 |
| B | 0 | 15982 | 1 |
| C | 0 | 15802 | 1 |
| D | 0 | 17078 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7591 | 167 | 2.199974% |
| B | 7591 | 168 | 2.213147% |
| C | 7591 | 134 | 1.765248% |
| D | 7591 | 233 | 3.069424% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 7591 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7781 | 7592 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7781 | 7592 | 7 | 7 | 0.09% | 0.09% |  |
| D | 7781 | 7592 | 87 | 87 | 1.12% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 575445 | 3181.58 | 874 | 854 | 180.6 |
| A | 0 | 50 | 20909 | 111.05 | 874 | 854 | 180.6 |
| A | 0 | 226 | 9479 | 47.76 | 874 | 854 | 180.6 |
| B | 14 | 167 | 104230 | 596.33 | 886 | 862 | 173.3 |
| B | 5 | 184 | 39216 | 221.26 | 886 | 862 | 173.3 |
| B | 15 | 204 | 35825 | 201.7 | 886 | 862 | 173.3 |
| C | 9 | 247 | 33893 | 162.61 | 860 | 865 | 203.1 |
| C | 9 | 144 | 18286 | 85.77 | 860 | 865 | 203.1 |
| C | 12 | 4 | 15947 | 74.26 | 860 | 865 | 203.1 |
| D | 13 | 239 | 346696 | 1660.53 | 852 | 826 | 208.3 |
| D | 2 | 122 | 173082 | 827.0 | 852 | 826 | 208.3 |
| D | 2 | 232 | 107224 | 510.82 | 852 | 826 | 208.3 |

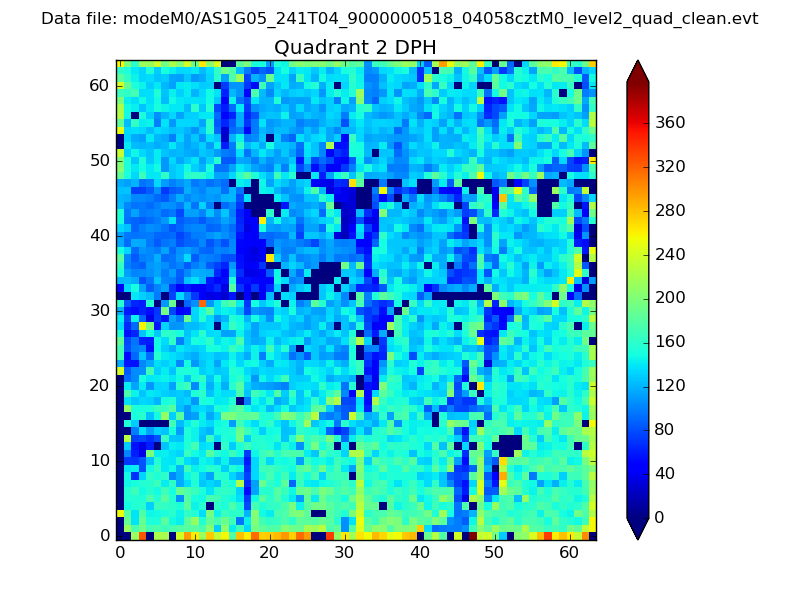

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

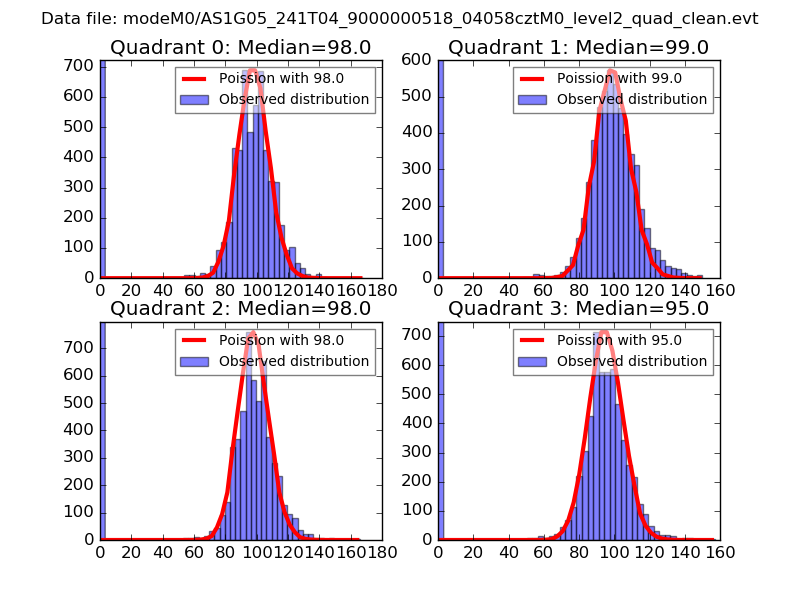

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

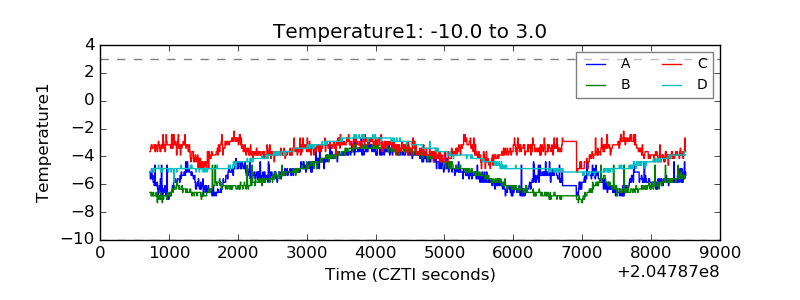

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

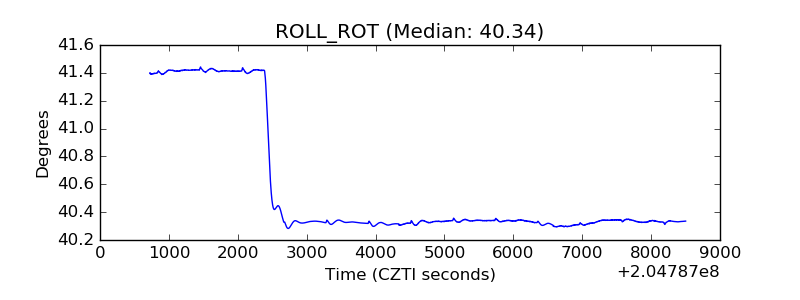

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
