| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T04_9000000518_04061cztM0_level2.evt | modeM0/AS1G05_241T04_9000000518_04061cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,158,635,520 | 183,850,560 |
| Size | 1.1 GB | 175.3 MB |
| Events in quadrant A | 9,337,920 | 1,068,572 |
| Events in quadrant B | 8,252,494 | 1,106,361 |
| Events in quadrant C | 7,751,085 | 1,103,762 |
| Events in quadrant D | 8,545,538 | 1,064,293 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 360 | 0 |
| B | 0 | 360 | 0 |
| C | 0 | 360 | 0 |
| D | 0 | 360 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39078 | 4 |
| B | 0 | 36425 | 3 |
| C | 0 | 35959 | 3 |
| D | 0 | 38619 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17767 | 633 | 3.562785% |
| B | 17767 | 154 | 0.866775% |
| C | 17767 | 93 | 0.523442% |
| D | 17767 | 255 | 1.435245% |

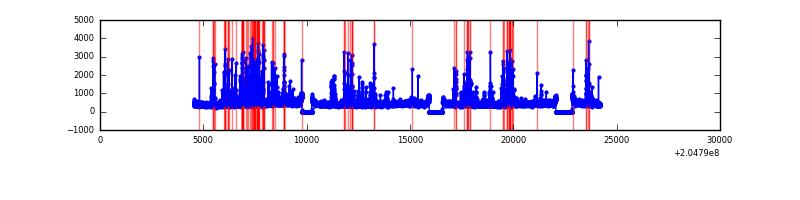

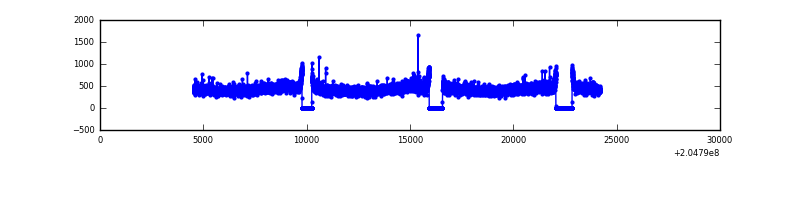

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19672 | 17768 | 261 | 261 | 1.33% | 1.47% |  |
| B | 19672 | 17768 | 3 | 3 | 0.02% | 0.02% |  |
| C | 19672 | 17769 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19672 | 17768 | 134 | 134 | 0.68% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 767121 | 1879.97 | 1984 | 1939 | 407.0 |
| A | 8 | 15 | 709197 | 1737.66 | 1984 | 1939 | 407.0 |
| A | 0 | 118 | 85600 | 205.55 | 1984 | 1939 | 407.0 |
| B | 15 | 204 | 126811 | 316.49 | 2036 | 1986 | 394.4 |
| B | 4 | 81 | 108316 | 269.6 | 2036 | 1986 | 394.4 |
| B | 14 | 167 | 49704 | 120.99 | 2036 | 1986 | 394.4 |
| C | 10 | 65 | 42255 | 87.98 | 1959 | 1965 | 457.9 |
| C | 8 | 128 | 21349 | 42.33 | 1959 | 1965 | 457.9 |
| C | 9 | 144 | 16847 | 32.5 | 1959 | 1965 | 457.9 |
| D | 13 | 239 | 627923 | 1320.82 | 1957 | 1897 | 474.0 |
| D | 2 | 232 | 186754 | 390.02 | 1957 | 1897 | 474.0 |
| D | 12 | 233 | 97293 | 201.27 | 1957 | 1897 | 474.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

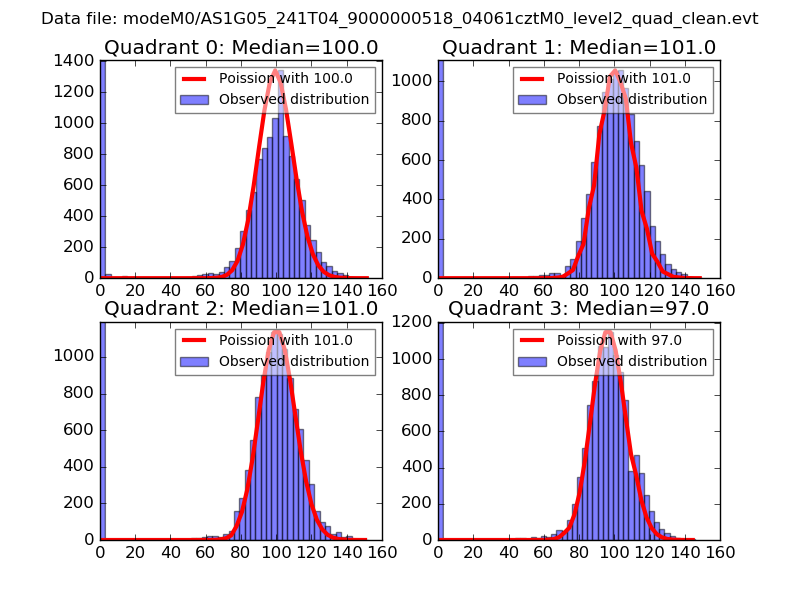

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

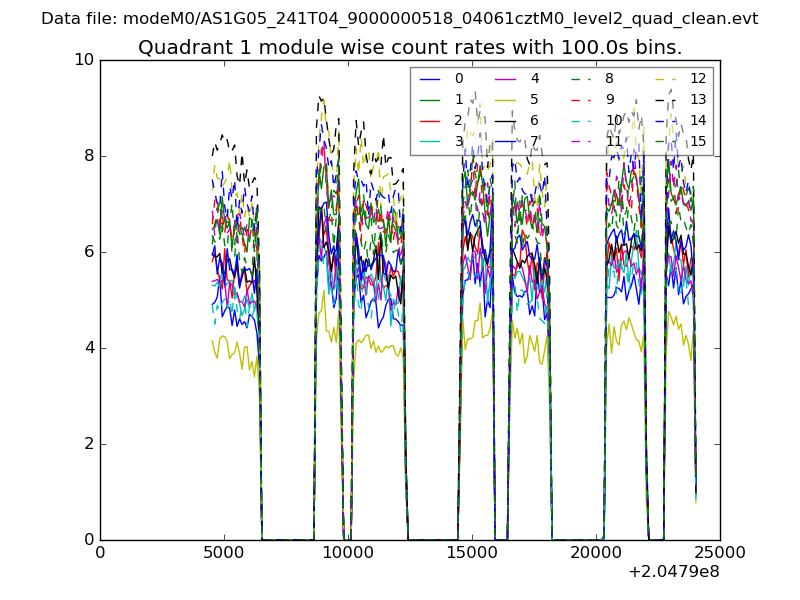

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

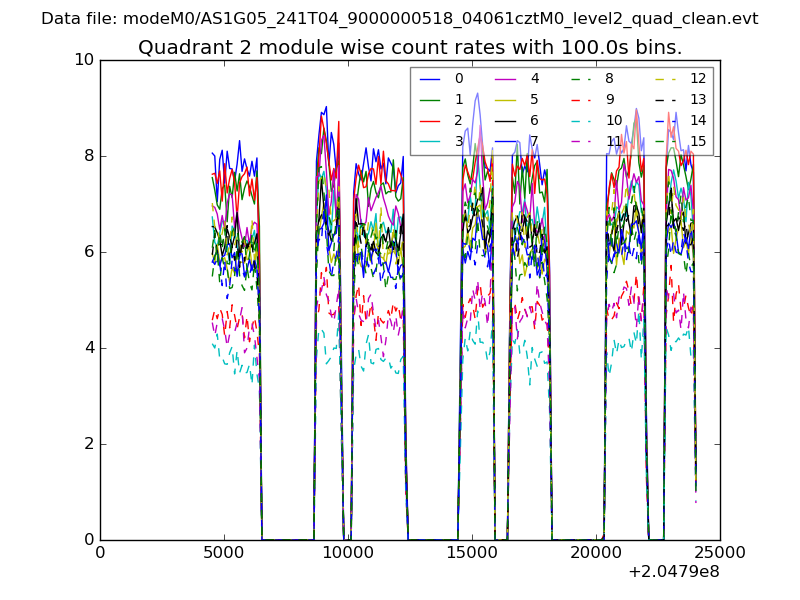

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

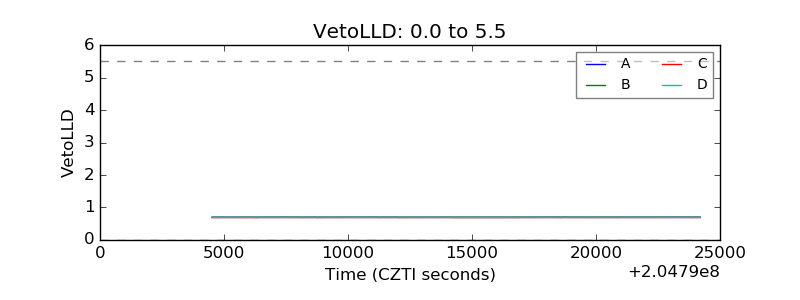

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

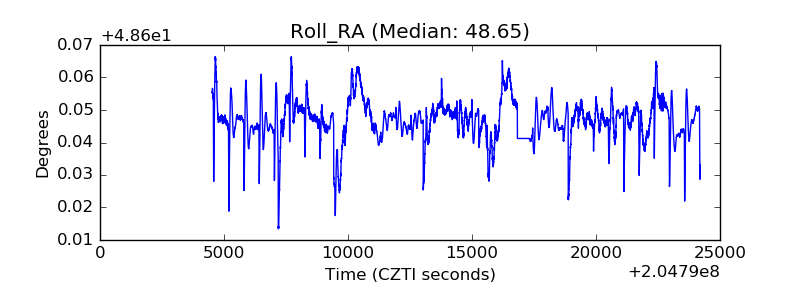

| _Roll_RA |  |
| Veto Counter |  |
