| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T04_9000000518_04065cztM0_level2.evt | modeM0/AS1G05_241T04_9000000518_04065cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,684,160 | 55,146,240 |
| Size | 500.4 MB | 52.6 MB |
| Events in quadrant A | 3,781,066 | 312,412 |
| Events in quadrant B | 3,340,979 | 316,227 |
| Events in quadrant C | 2,990,826 | 305,151 |
| Events in quadrant D | 5,343,066 | 288,955 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15481 | 3 |
| B | 0 | 14047 | 2 |
| C | 0 | 13201 | 2 |
| D | 0 | 20224 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6400 | 233 | 3.640625% |
| B | 6400 | 113 | 1.765625% |
| C | 6400 | 47 | 0.734375% |
| D | 6400 | 590 | 9.218750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6400 | 121 | 121 | 1.60% | 1.89% |  |
| B | 7575 | 6400 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7575 | 6400 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7575 | 6400 | 410 | 410 | 5.41% | 6.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 295487 | 1843.61 | 787 | 771 | 159.9 |
| A | 0 | 118 | 271511 | 1693.62 | 787 | 771 | 159.9 |
| A | 8 | 15 | 143266 | 891.38 | 787 | 771 | 159.9 |
| B | 4 | 81 | 89942 | 581.4 | 803 | 785 | 153.3 |
| B | 14 | 167 | 60508 | 389.46 | 803 | 785 | 153.3 |
| B | 15 | 204 | 26416 | 167.14 | 803 | 785 | 153.3 |
| C | 12 | 4 | 11706 | 61.98 | 761 | 766 | 176.5 |
| C | 9 | 144 | 6915 | 34.83 | 761 | 766 | 176.5 |
| C | 13 | 61 | 6370 | 31.75 | 761 | 766 | 176.5 |
| D | 10 | 172 | 1553215 | 8694.44 | 739 | 718 | 178.6 |
| D | 2 | 232 | 796061 | 4454.15 | 739 | 718 | 178.6 |
| D | 13 | 239 | 36964 | 202.99 | 739 | 718 | 178.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

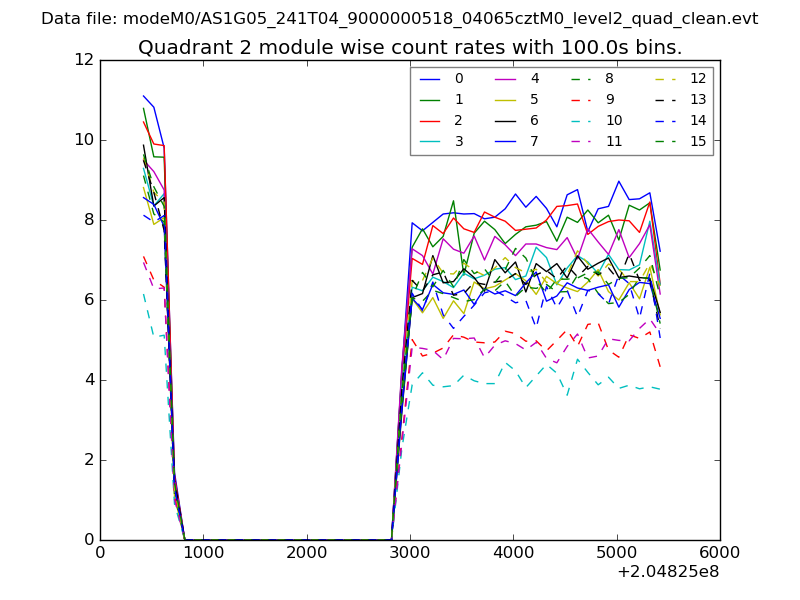

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

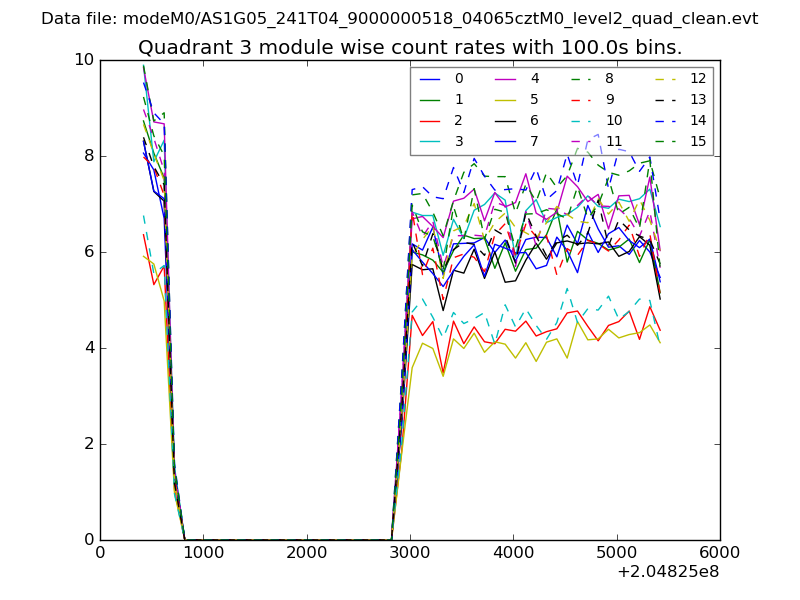

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

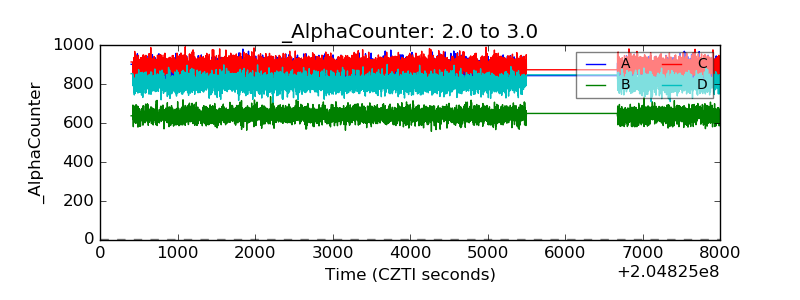

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

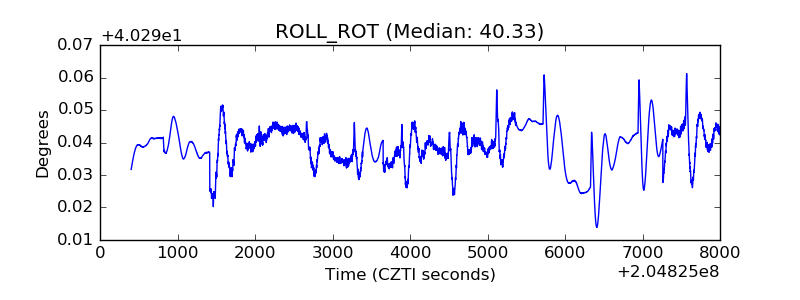

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

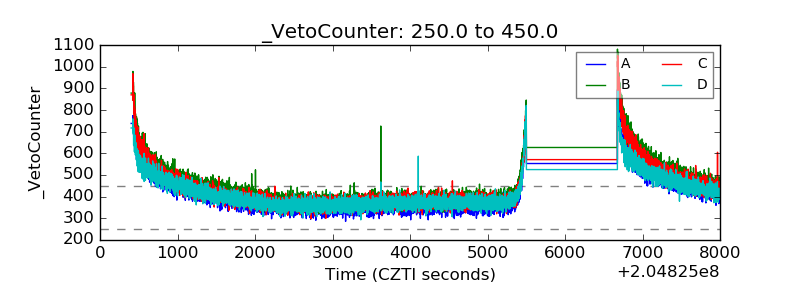

| Veto Counter |  |
