| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T04_9000000518_04067cztM0_level2.evt | modeM0/AS1G05_241T04_9000000518_04067cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,240,960 | 59,987,520 |
| Size | 469.4 MB | 57.2 MB |
| Events in quadrant A | 4,050,543 | 356,000 |
| Events in quadrant B | 3,368,052 | 360,393 |
| Events in quadrant C | 2,915,935 | 351,402 |
| Events in quadrant D | 4,158,379 | 321,935 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16003 | 3 |
| B | 0 | 14025 | 2 |
| C | 0 | 12563 | 2 |
| D | 0 | 16484 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6112 | 591 | 9.669503% |
| B | 6112 | 99 | 1.619764% |
| C | 6112 | 23 | 0.376309% |
| D | 6112 | 335 | 5.481021% |

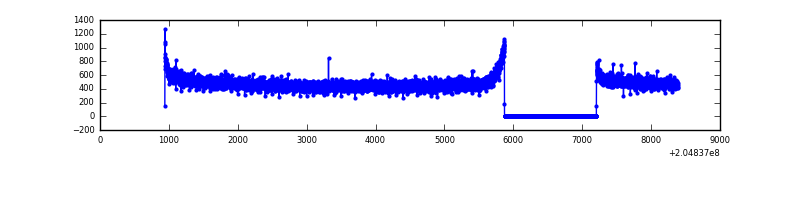

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6113 | 433 | 433 | 5.81% | 7.08% |  |
| B | 7447 | 6113 | 21 | 21 | 0.28% | 0.34% |  |
| C | 7447 | 6113 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7447 | 6113 | 263 | 263 | 3.53% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 1235841 | 8324.59 | 728 | 713 | 148.4 |
| A | 0 | 226 | 7749 | 47.42 | 728 | 713 | 148.4 |
| A | 12 | 194 | 7658 | 46.81 | 728 | 713 | 148.4 |
| B | 4 | 81 | 92933 | 628.2 | 779 | 763 | 146.7 |
| B | 15 | 204 | 77814 | 525.15 | 779 | 763 | 146.7 |
| B | 14 | 167 | 66147 | 445.63 | 779 | 763 | 146.7 |
| C | 13 | 61 | 6163 | 31.2 | 745 | 749 | 173.5 |
| C | 12 | 4 | 3153 | 13.85 | 745 | 749 | 173.5 |
| C | 9 | 144 | 3123 | 13.68 | 745 | 749 | 173.5 |
| D | 10 | 172 | 1146739 | 6592.55 | 722 | 701 | 173.8 |
| D | 2 | 122 | 93164 | 531.89 | 722 | 701 | 173.8 |
| D | 13 | 53 | 51748 | 293.64 | 722 | 701 | 173.8 |

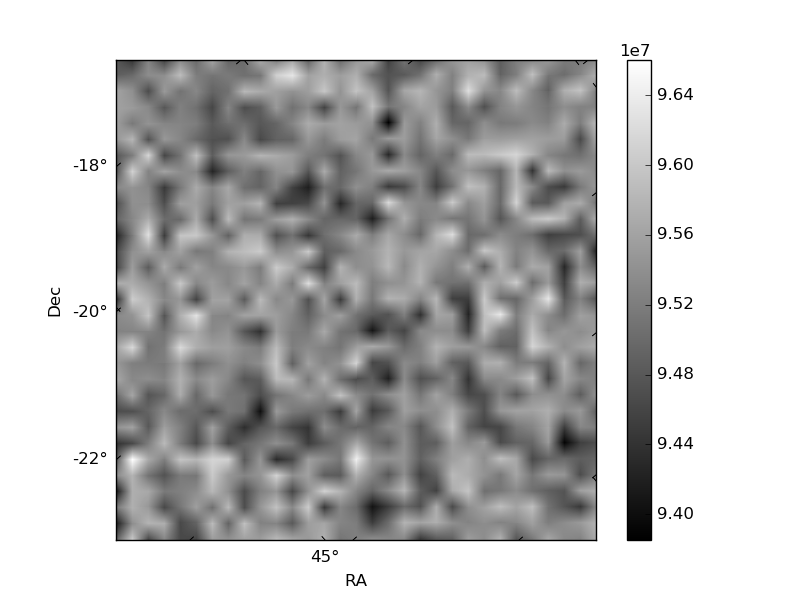

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

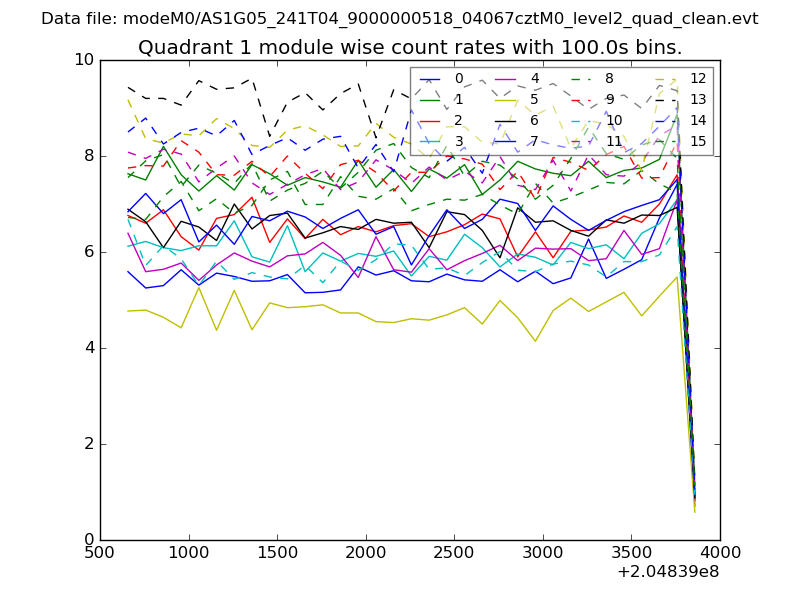

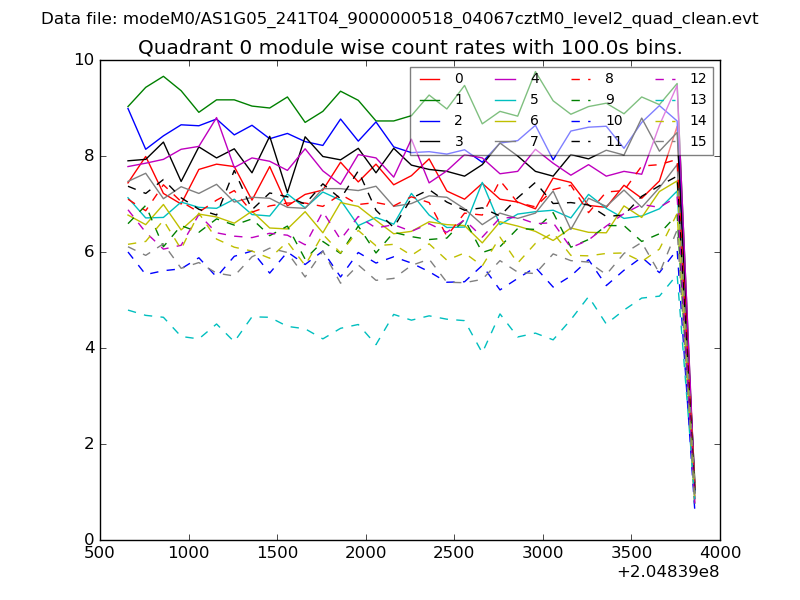

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

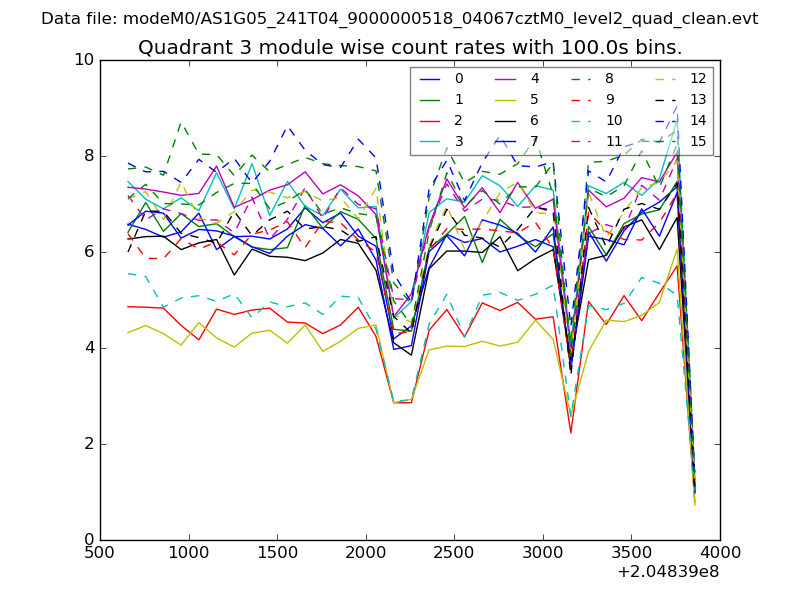

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

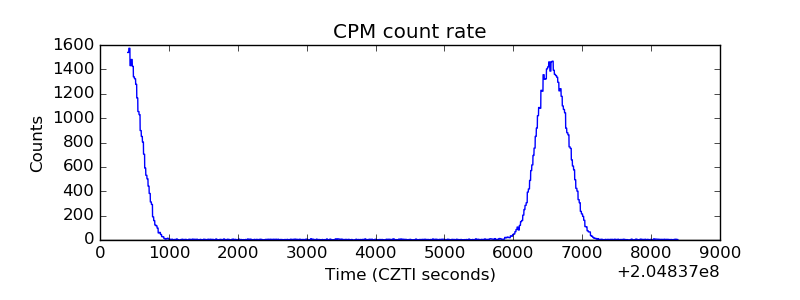

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

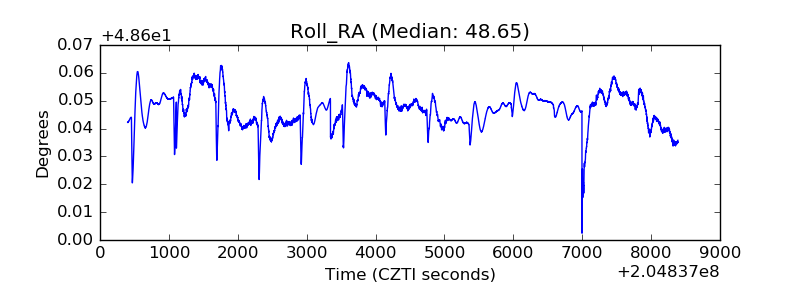

| _Roll_RA |  |

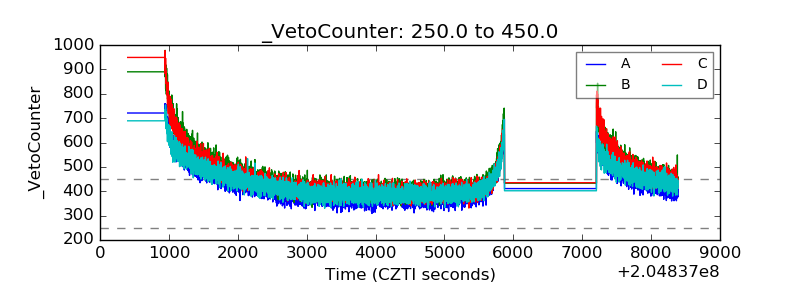

| Veto Counter |  |
