| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_222T01_9000000520_04080cztM0_level2.evt | modeM0/AS1G05_222T01_9000000520_04080cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,830,080 | 63,584,640 |
| Size | 420.4 MB | 60.6 MB |
| Events in quadrant A | 3,085,241 | 377,884 |
| Events in quadrant B | 3,490,860 | 380,492 |
| Events in quadrant C | 3,120,910 | 369,802 |
| Events in quadrant D | 3,225,918 | 357,740 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13313 | 3 |
| B | 0 | 14481 | 2 |
| C | 0 | 13421 | 2 |
| D | 0 | 13804 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6291 | 49 | 0.778890% |
| B | 6291 | 100 | 1.589572% |
| C | 6291 | 47 | 0.747099% |
| D | 6291 | 88 | 1.398824% |

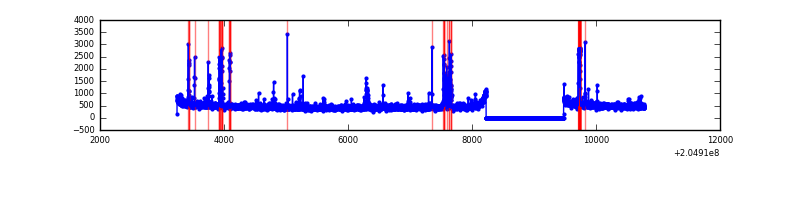

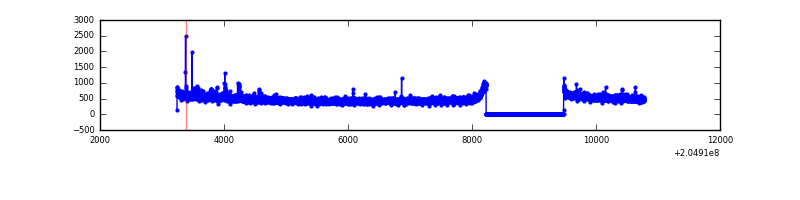

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6291 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7541 | 6291 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7541 | 6292 | 18 | 18 | 0.24% | 0.29% |  |
| D | 7541 | 6291 | 64 | 64 | 0.85% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 33413 | 204.01 | 787 | 771 | 160.0 |
| A | 0 | 118 | 10262 | 59.32 | 787 | 771 | 160.0 |
| A | 0 | 226 | 9132 | 52.25 | 787 | 771 | 160.0 |
| B | 14 | 167 | 134601 | 890.26 | 797 | 782 | 150.3 |
| B | 15 | 204 | 86997 | 573.56 | 797 | 782 | 150.3 |
| B | 10 | 16 | 78177 | 514.89 | 797 | 782 | 150.3 |
| C | 9 | 144 | 136257 | 770.11 | 763 | 769 | 175.9 |
| C | 13 | 61 | 6436 | 32.21 | 763 | 769 | 175.9 |
| C | 10 | 65 | 2668 | 10.79 | 763 | 769 | 175.9 |
| D | 13 | 53 | 167659 | 911.23 | 758 | 738 | 183.2 |
| D | 12 | 233 | 64078 | 345.78 | 758 | 738 | 183.2 |
| D | 13 | 239 | 43921 | 235.74 | 758 | 738 | 183.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

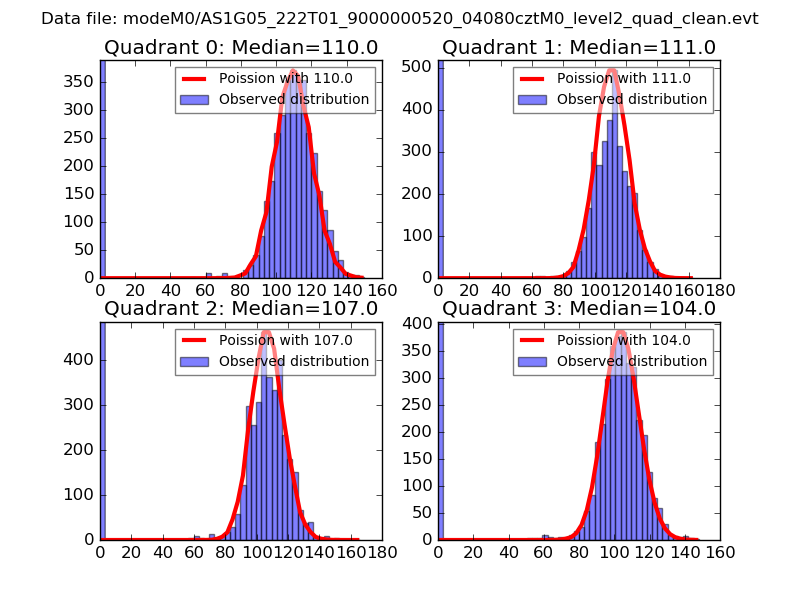

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

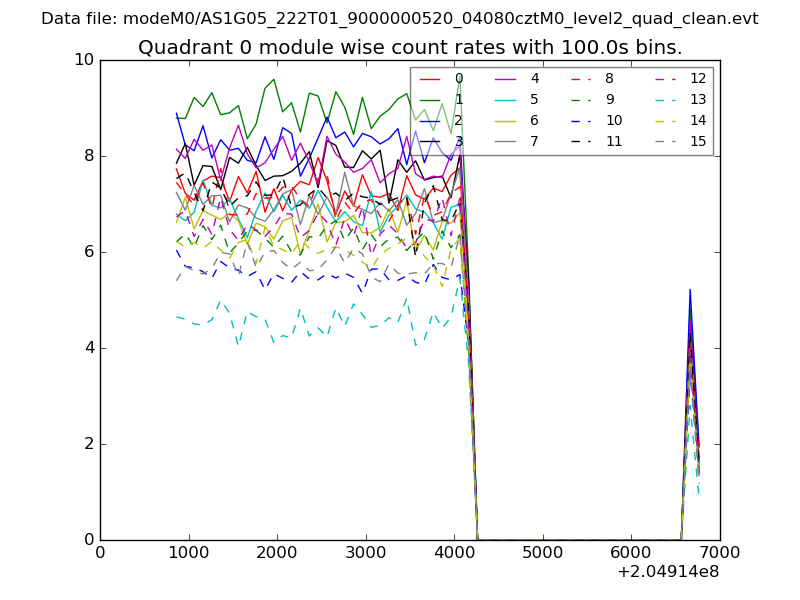

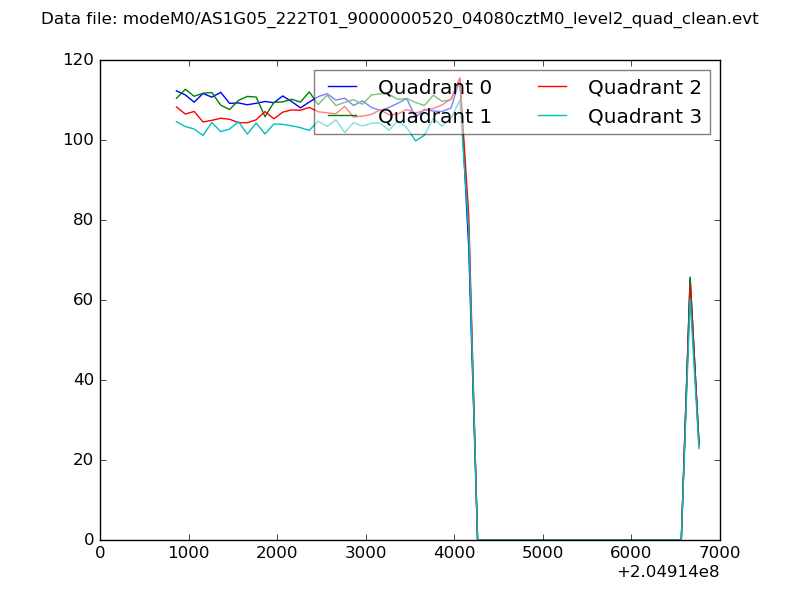

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

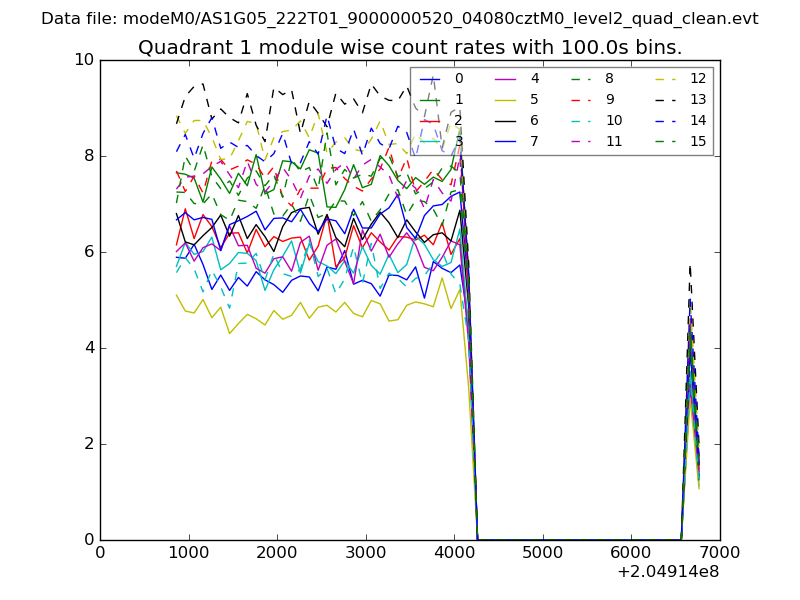

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

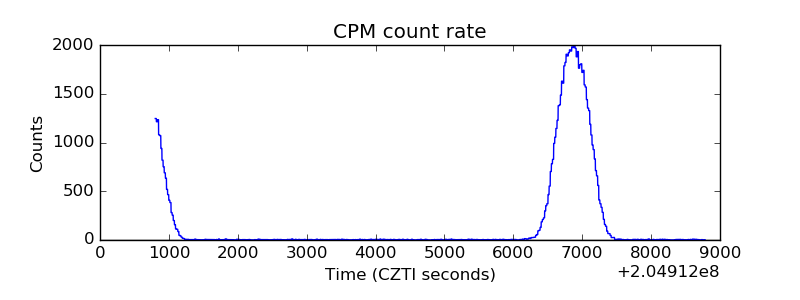

| _CPM_Rate |  |
