| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_222T01_9000000520_04081cztM0_level2.evt | modeM0/AS1G05_222T01_9000000520_04081cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,985,600 | 75,637,440 |
| Size | 446.3 MB | 72.1 MB |
| Events in quadrant A | 3,337,668 | 468,656 |
| Events in quadrant B | 3,792,462 | 472,633 |
| Events in quadrant C | 3,206,493 | 460,775 |
| Events in quadrant D | 3,404,453 | 444,759 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14142 | 3 |
| B | 0 | 15422 | 2 |
| C | 0 | 13576 | 2 |
| D | 0 | 14340 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6351 | 117 | 1.842230% |
| B | 6351 | 266 | 4.188317% |
| C | 6351 | 66 | 1.039206% |
| D | 6351 | 177 | 2.786963% |

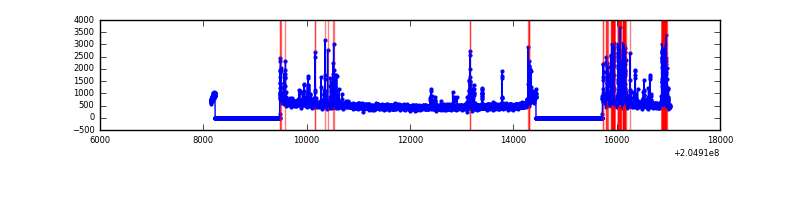

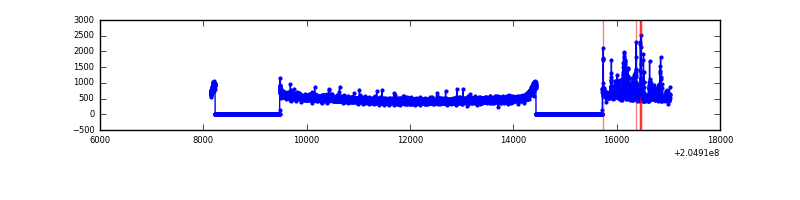

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

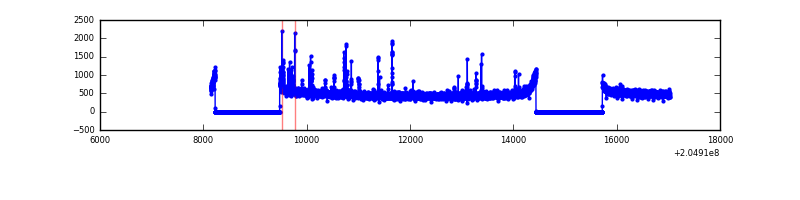

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8886 | 6351 | 6 | 6 | 0.07% | 0.09% |  |
| B | 8886 | 6351 | 116 | 116 | 1.31% | 1.83% |  |
| C | 8886 | 6353 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8886 | 6351 | 83 | 83 | 0.93% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 125913 | 760.46 | 808 | 792 | 164.5 |
| A | 0 | 118 | 54745 | 327.92 | 808 | 792 | 164.5 |
| A | 0 | 226 | 24643 | 144.96 | 808 | 792 | 164.5 |
| B | 14 | 167 | 475917 | 3063.49 | 814 | 797 | 155.1 |
| B | 10 | 16 | 58957 | 375.0 | 814 | 797 | 155.1 |
| B | 15 | 204 | 46746 | 296.27 | 814 | 797 | 155.1 |
| C | 9 | 144 | 112259 | 609.69 | 791 | 796 | 182.8 |
| C | 13 | 61 | 6448 | 30.91 | 791 | 796 | 182.8 |
| C | 10 | 65 | 4168 | 18.44 | 791 | 796 | 182.8 |
| D | 13 | 53 | 327988 | 1752.21 | 778 | 758 | 186.8 |
| D | 13 | 239 | 46539 | 245.14 | 778 | 758 | 186.8 |
| D | 2 | 14 | 31443 | 164.31 | 778 | 758 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

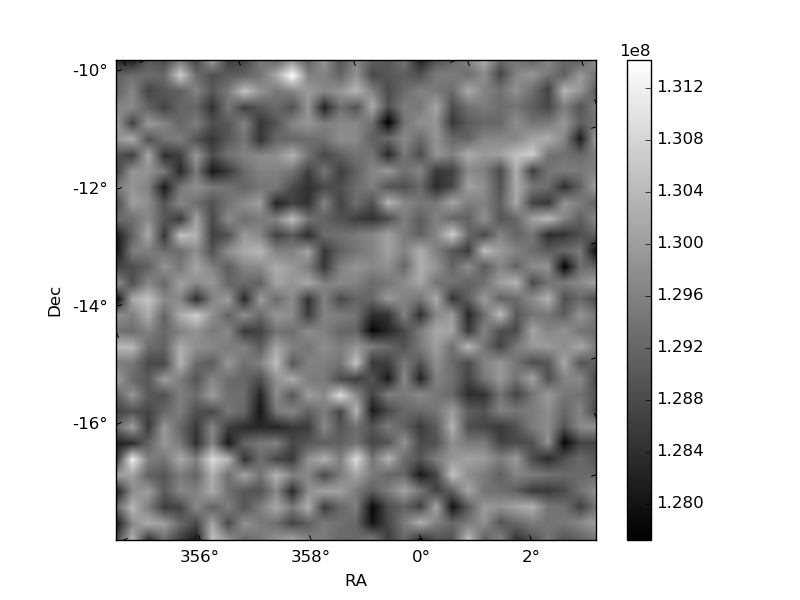

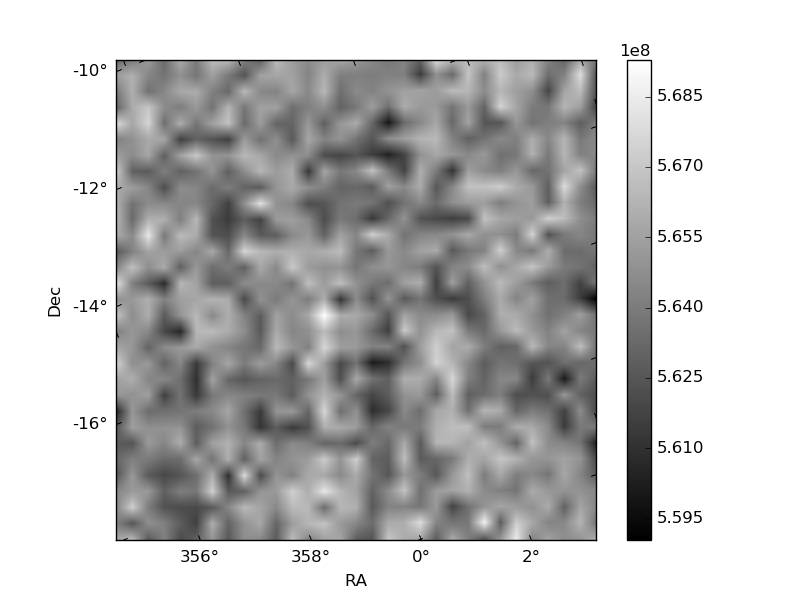

| Plot type | Count rate plots | Images |
|---|---|---|

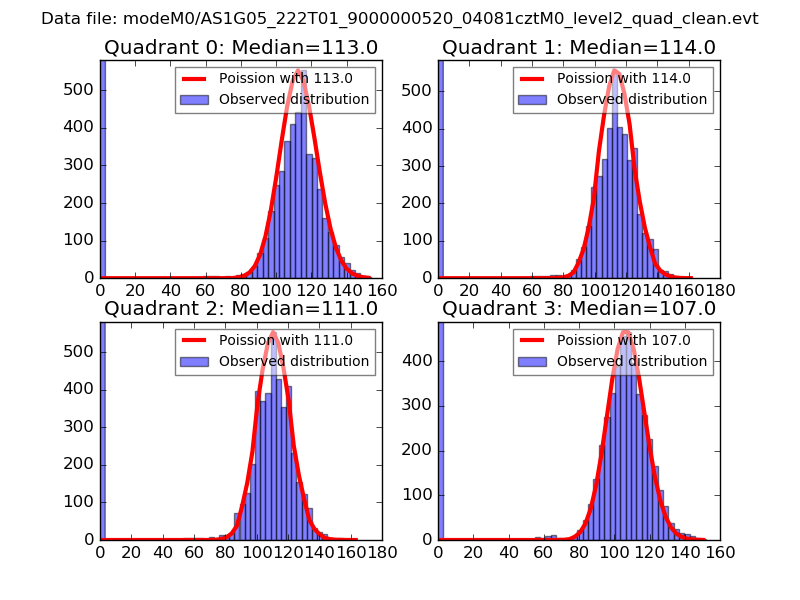

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

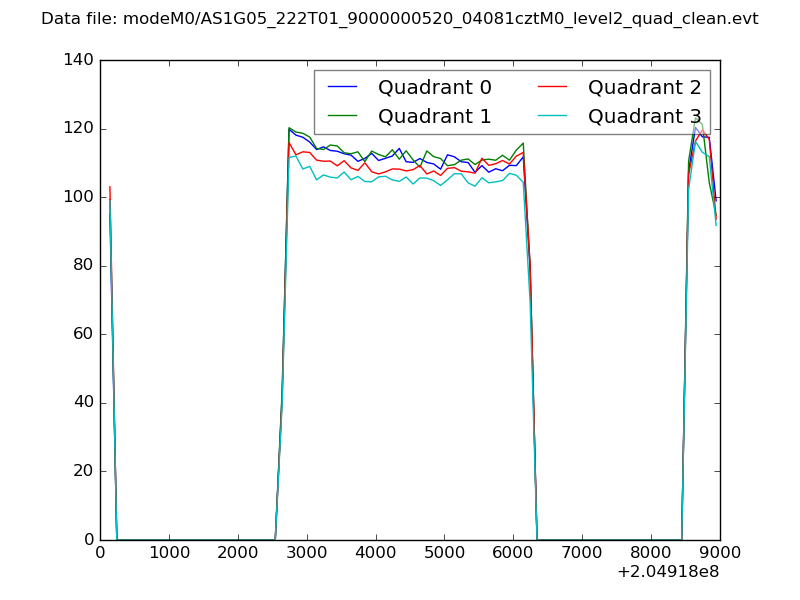

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

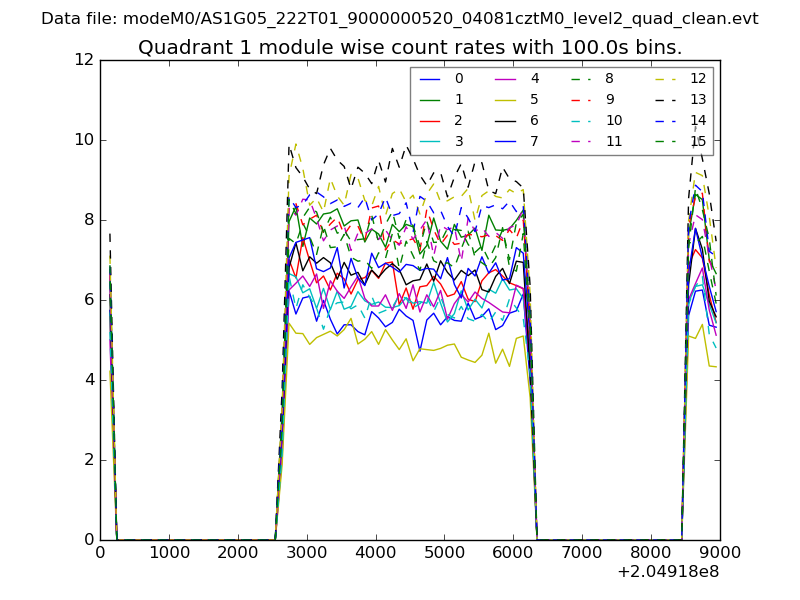

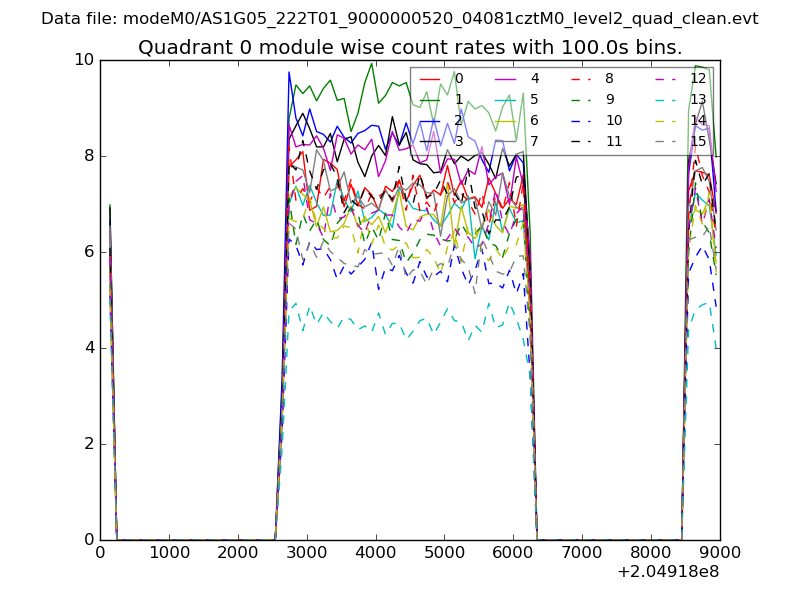

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

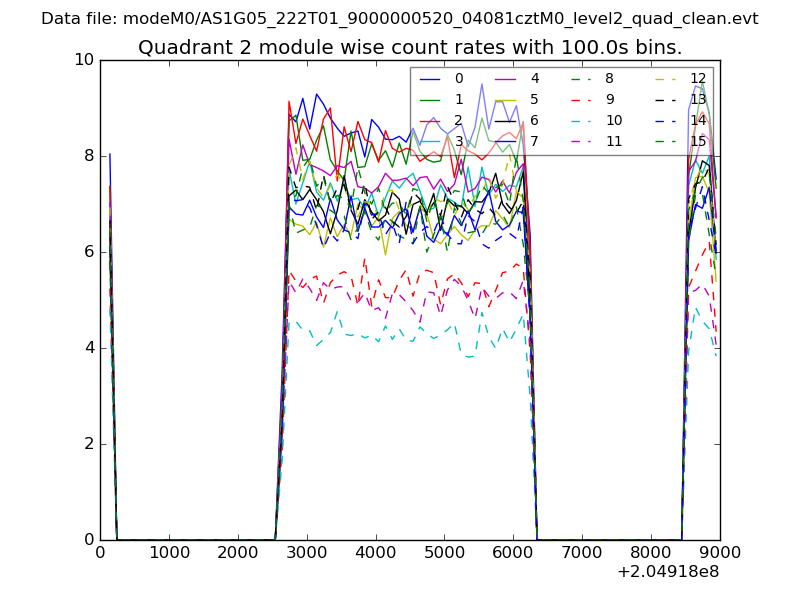

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

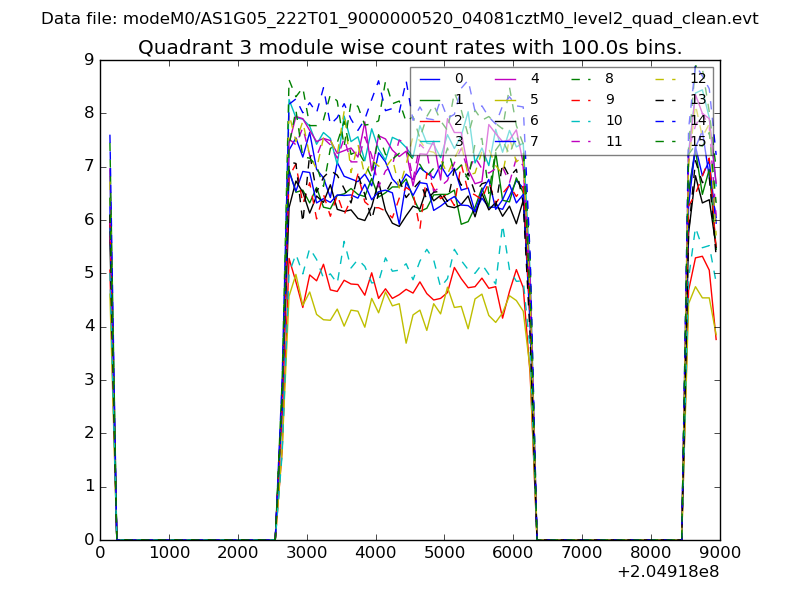

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

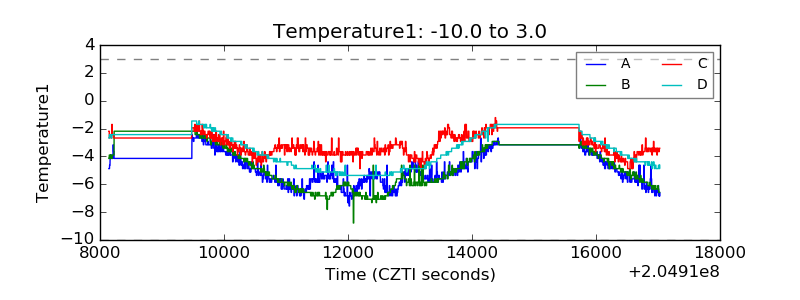

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

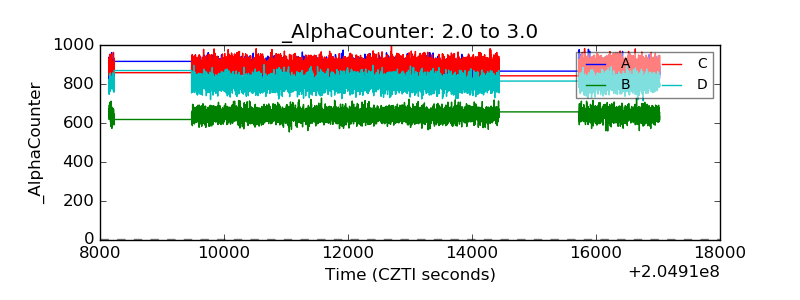

| Alpha Counter |  |

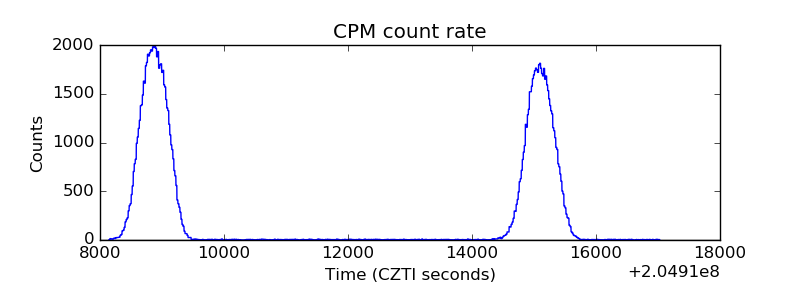

| _CPM_Rate |  |

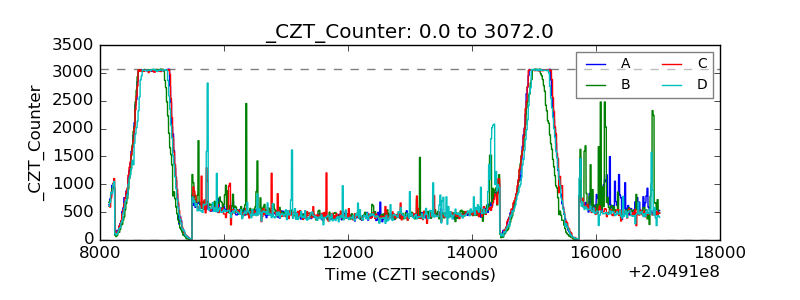

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

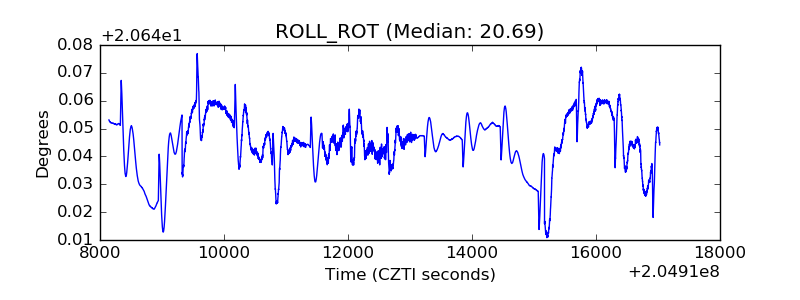

| _ROLL_ROT |  |

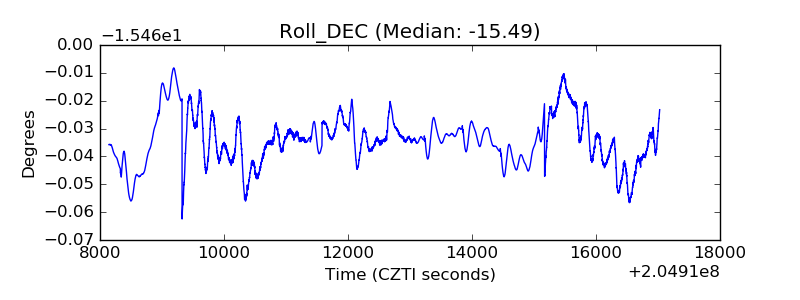

| _Roll_DEC |  |

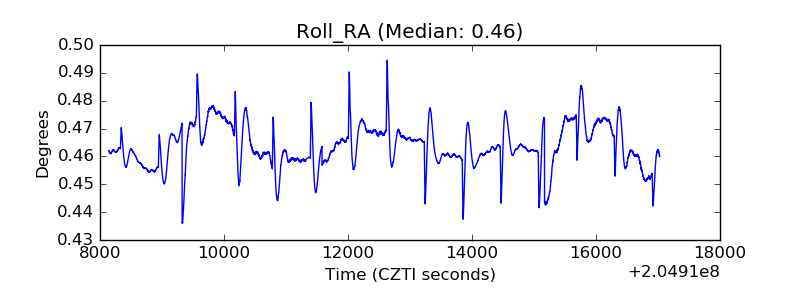

| _Roll_RA |  |

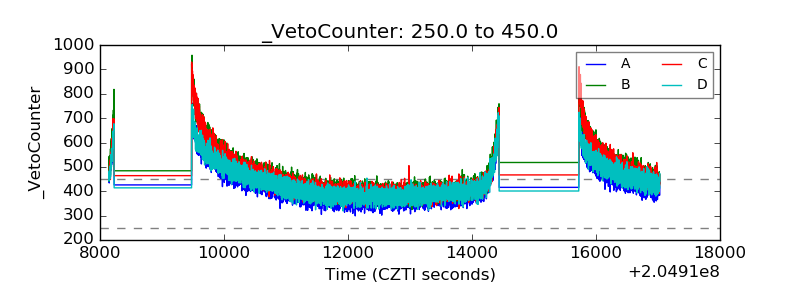

| Veto Counter |  |
